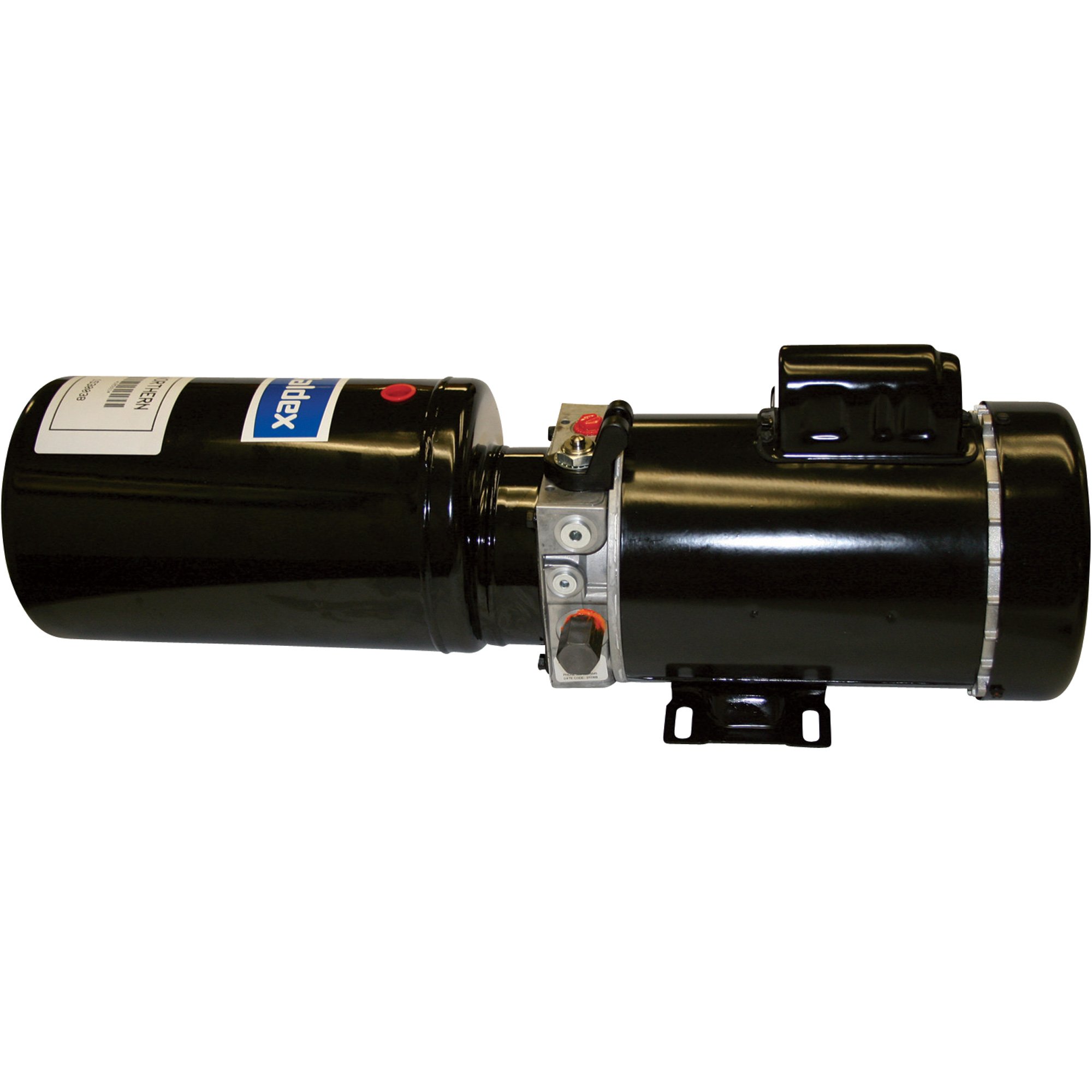

Concentric 1 HP 115/208-230 Volt AC Hydraulic Power Unit, Manual, Model# 1530038

Item# 105881
Concentric 1 HP 115/208-230 Volt AC Hydraulic Power Unit, Manual, Model# 1530038

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Concentric 1 HP 115/208-230 Volt AC Hydraulic Power Unit, Manual, Model# 1530038

Click or Tap image to Zoom

  • Power Unit: Manual Operated

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Mounts vertically or horizontally. 60 Hz TEFC motor turns at 3450 RPM. .097 displacement pump and 1.5 gallon reservoir. Relief valve set at 2000 PSI. 1.25 GPM with check valve to prevent back flow.

Downloads

Product Manual

Features + Benefits

  • Power Unit: Manual Operated

Key Specs

AttributeSpecification

item#

105881

Brand

Haldex

Manufacturer's Warranty

1 year Limited Warranty

Ship Weight

56.0 LB

Max. Flow Rate

1.25 GPM
AttributeSpecification

Max. RPM

3,450

Port Inlet Size

9/16 in

Port Outlet Size

9/16 in

Reservoir Capacity

1.5 Gal

Volts

230

Reviews

Questions & Answers

Questions

1–3 of 3 Questions
Sort by:

  1. Will this pump work with a single line from cylinders

    1. It has a check valve on the pressure line. You have to install a control valve.

      Helpful?

    2. This power unit is for single acting cylinders only.

      Helpful?

  2. Difference between basic and manual versions

    What is the difference between the basic and manual versions of this powerpack? From my understanding, neither of them come with control or valving of any type. Is this true? Or is there something else I am missing?

    1 answer

    1. The basic unit has no valving. The manual unit has a 3 position valve built in.

      Helpful?

  3. is this double action?

    can I add a valve to make it double action? I need to push and/or pull, determined with a switch position or lever position

    1 answer

    1. No, this power unit is for use with single acting cylinders. We also a power unit that comes without valving so that you could add valving to suit your needs. (item # 105871) See link below for more details.

      Helpful?
