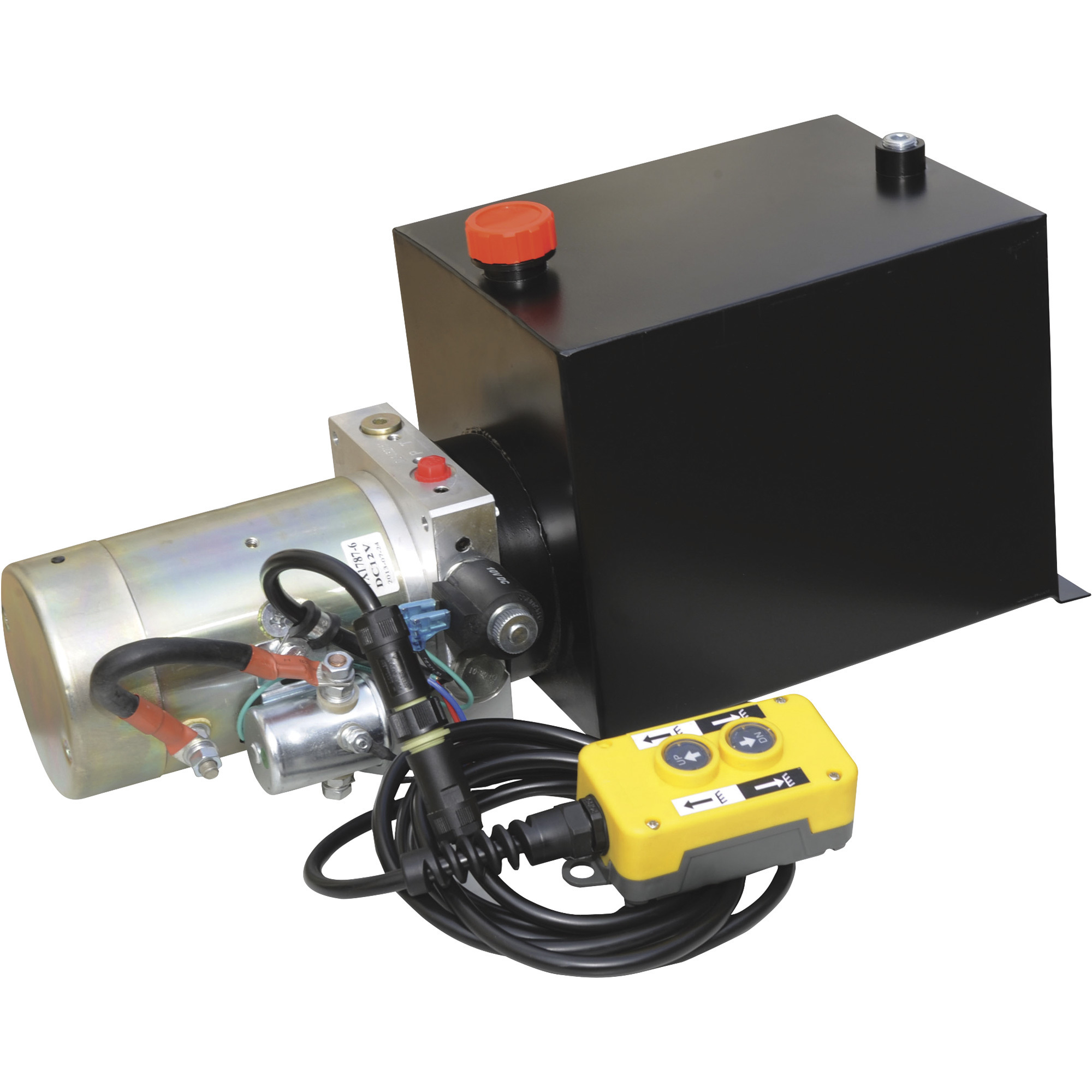

NorTrac Dump Trailer Power Unit with 12V DC Motor for Single-Acting Cylinder, 5.3-Gal. Reservoir

Item# 53464
"NorTrac Dump Trailer Power Unit with 12V DC Motor for Single-Acting Cylinder, 5.3-Gal. Reservoir"
NorTrac Dump Trailer Power Unit with 12V DC Motor for Single-Acting Cylinder, 5.3-Gal. Reservoir

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

NorTrac Dump Trailer Power Unit with 12V DC Motor for Single-Acting Cylinder, 5.3-Gal. Reservoir

Click or Tap image to Zoom

$549.99

  • Shipping:

    Free shipping (lower 48 states) - Available now

  • Store Pickup:

    Not available - online only
  • Heavy-duty 12V motor with single-acting cylinder delivers the power and performance you need
  • Pressure-balanced pump for smooth operation
  • Electric pendant control for easy operation
  • Large 5.3-gallon reservoir tank
  • Generates 3,000 max. RPM and delivers a 1.5 GPM flow rate

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The NorTrac Dump Trailer Power Unit with 12V DC Motor is designed to operate single-acting hydraulic cylinders for power-up, gravity-down dump trailer and tipper applications. Powered by a heavy-duty 2 HP, 12V motor, this unit features a pressure-balanced pump with a 2.1cc displacement for consistent hydraulic output and smooth operation. A large 5.3-gallon reservoir supports extended run time, while the system delivers up to 1.5 GPM flow at 3,000 RPM max. An included electric pendant control allows easy operation, making the NorTrac Dump Trailer Power Unit a reliable solution for dump trailers and similar hydraulic systems.

What's Included

    (1) NorTrac Dump Trailer Power Unit

Downloads

Product Manual

Features + Benefits

  • Heavy-duty 12V motor with single-acting cylinder delivers the power and performance you need
  • Pressure-balanced pump for smooth operation
  • Electric pendant control for easy operation
  • Large 5.3-gallon reservoir tank
  • Generates 3,000 max. RPM and delivers a 1.5 GPM flow rate
  • 2.1cc pump displacement matched to single-acting hydraulic systems

Key Specs

AttributeSpecification

item#

53464

Brand

NorTrac

Manufacturer's Warranty

1 year limited warranty

Ship Weight

43.0 LB

Max. Flow Rate

1.5 GPM

Max. PSI

2,600

Max. RPM

3,000
AttributeSpecification

Power Source

Battery

Port Outlet Size

9/16 in

Thread Type

SAE

Reservoir Capacity

5.3 Gal

Volts

12

Horsepower

2

Action

Single Acting

Reviews

Questions & Answers

5 Reviews This action will navigate to reviews.

Questions

1–5 of 5 Questions
Sort by:

  1. Can a person buy just the motor for this unit?

    1 answer

    1. The motor, part #DLH610-0004, can be purchased through our sister company, Jacks Small Engines. Please visit www.JacksSmallEngines.com for pricing and availability.

      Helpful?

  2. What are the dimensions of the reservoir?

    1 answer

    1. The tank itself measures 14-3/16" long x 10-1/8" wide x 10-1/16" high. With the cap at the top and the bracket on the bottom, the overall tank dimensions are 14-13-16" long x 10-1/8" wide x 11-1/8" high.

      Helpful?

  3. what fluids do they recommend for this unit

    1 answer

    1. The recommended fluid for use with this unit is ATF Dexron III.

      Helpful?

  4. Will this power a 5 ton single cyl dump trailer

    1 answer

    1. This power unit is designed to operate a single-acting cylinder for power-up/gravity-down circuits. It generates 3,000 maximum RPM and delivers a 1.5 GPM flow rate. Please check the requirements of the hydraulic system being used to power the dump trailer.

      Helpful?

  5. What are the measures of this unit in inches?

    1 answer

    1. The overall dimensions of this unit in inches are 31.14"(L) x 8.74" (W) x 8.03" (H).

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
