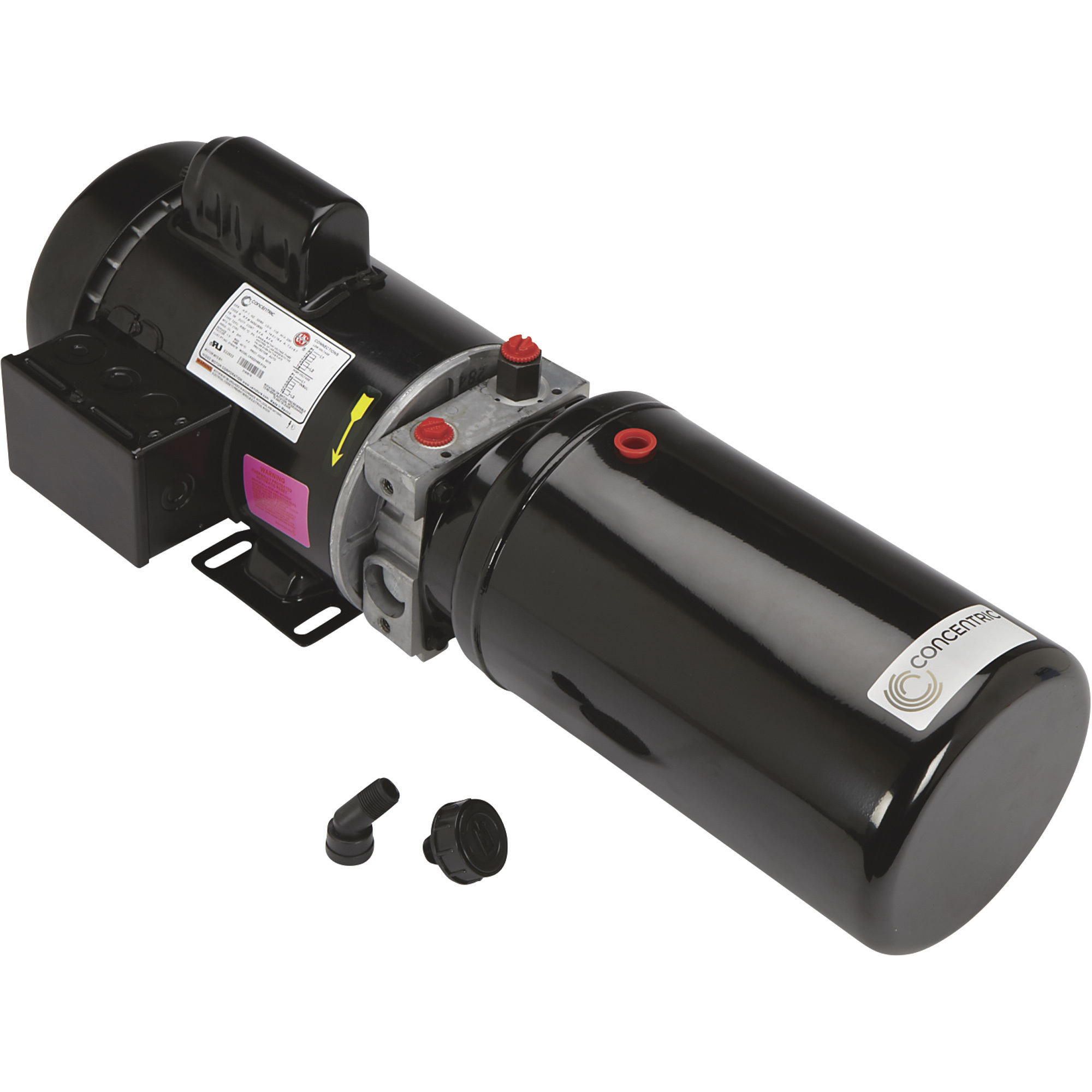

Concentric 1 HP, 115/208-230 Volt AC Hydraulic Power Unit, Basic, Model# 1530036

Your fluid range will vary with the amount that you use in your cylinders. (Motors if you are using them have constant fluid volume.) This unit makes a very loud whine when it does not have enough fluid in it. You should aim to keep the system 2/3 full if your volume usage allows it. Otherwise, it will need to be at least 1/3 full.

To test your volume usage, run all your cylinders back and forth until they are full of oil and the air is worked out. Then extend all of your cylinders. This will be your low fluid height. Retract all of your cylinders. This will be your high fluid height. You want the high level to still allow for some thermal expansion of the oil if you use it enough to get it hot. You want the low end to be above 1/3 full.

Parts are available through our sister company, Jacks Small Engines. Please visit www.JacksSmallEngines.com for pricing and availability.

While the noise of the unit depends on where it is being used, the decibel rating is 80.

The power unit can be plumbed to an external tank.

The manufacturer does not record a decibel or noise rating on this unit.

The valve will vary depending on the application.

The reservoir would be made of plastic.

The power unit would not require any modifications for mounting it vertically.

With the two springs in the relief valve the lowest pressure the power unit can be set at is 1000 PSI. It can be adjusted to 750 PSI by removing the "skinny" spring.

The relief valve is adjustable from 1500 PSI to 3000 PSI. The pump can be changed out. The current pump has a .097 displacement and the next size up would have a .129 displacement. The appropriate part is number JB1300171. This pump can be ordered through our sales department at 1.800.221.0516.
