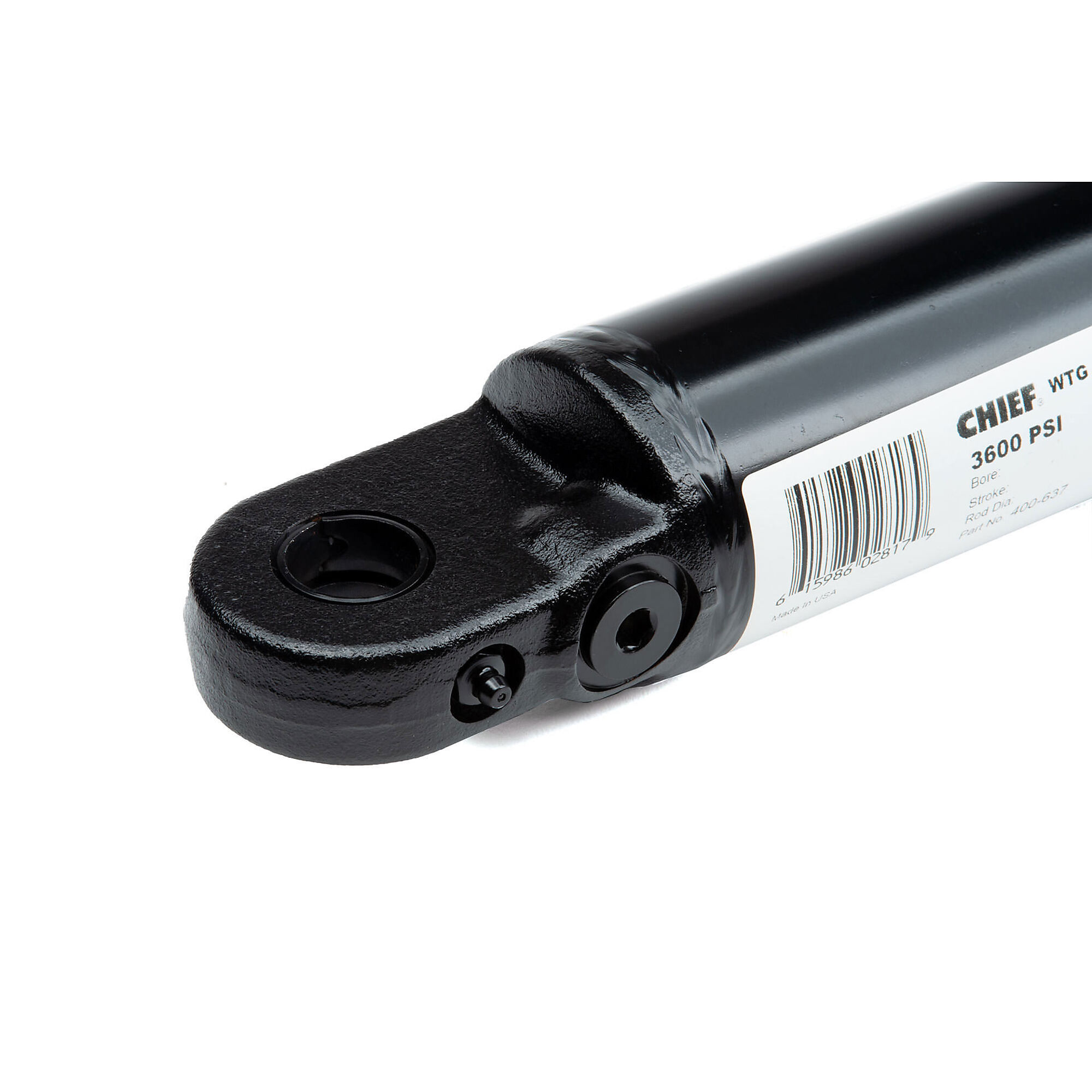

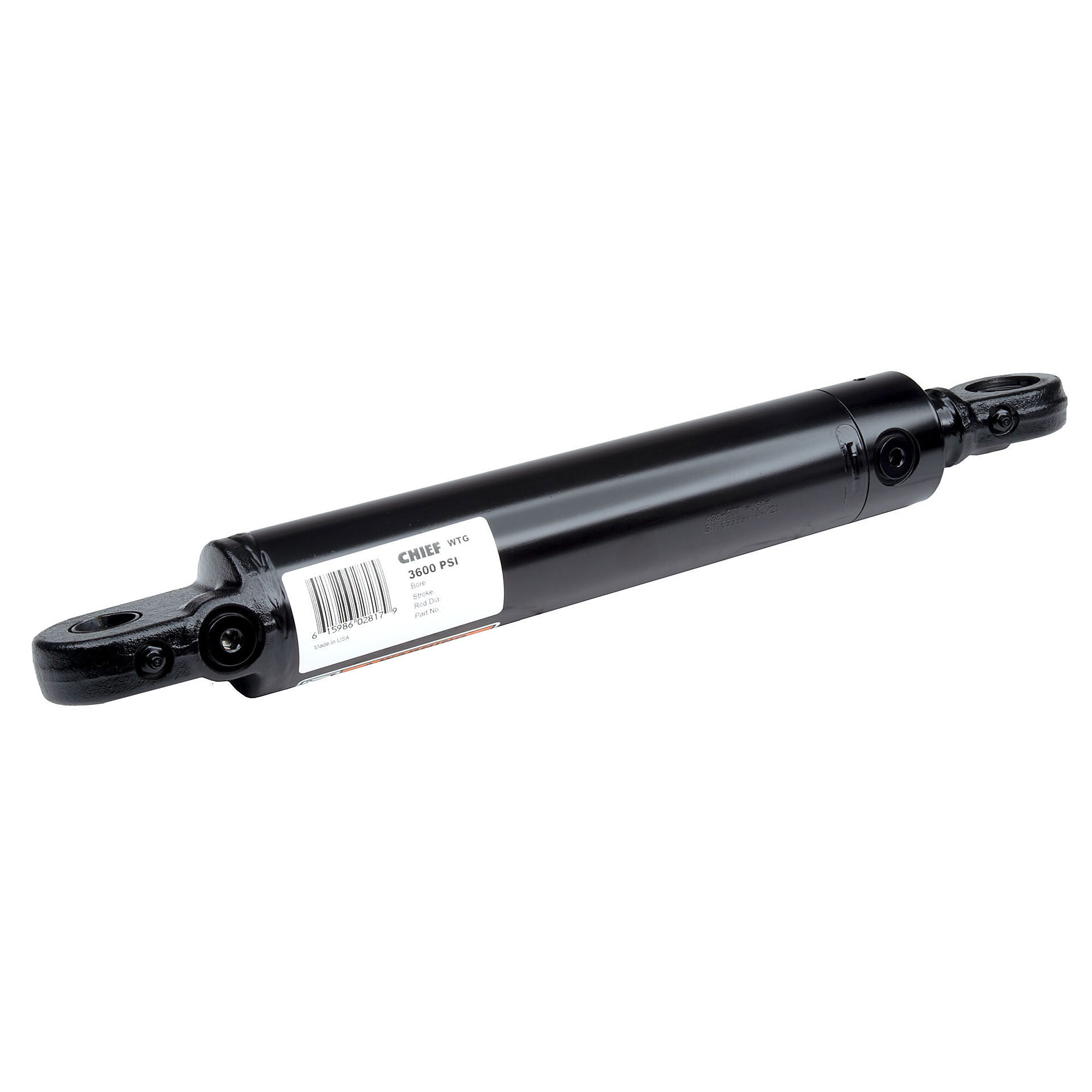

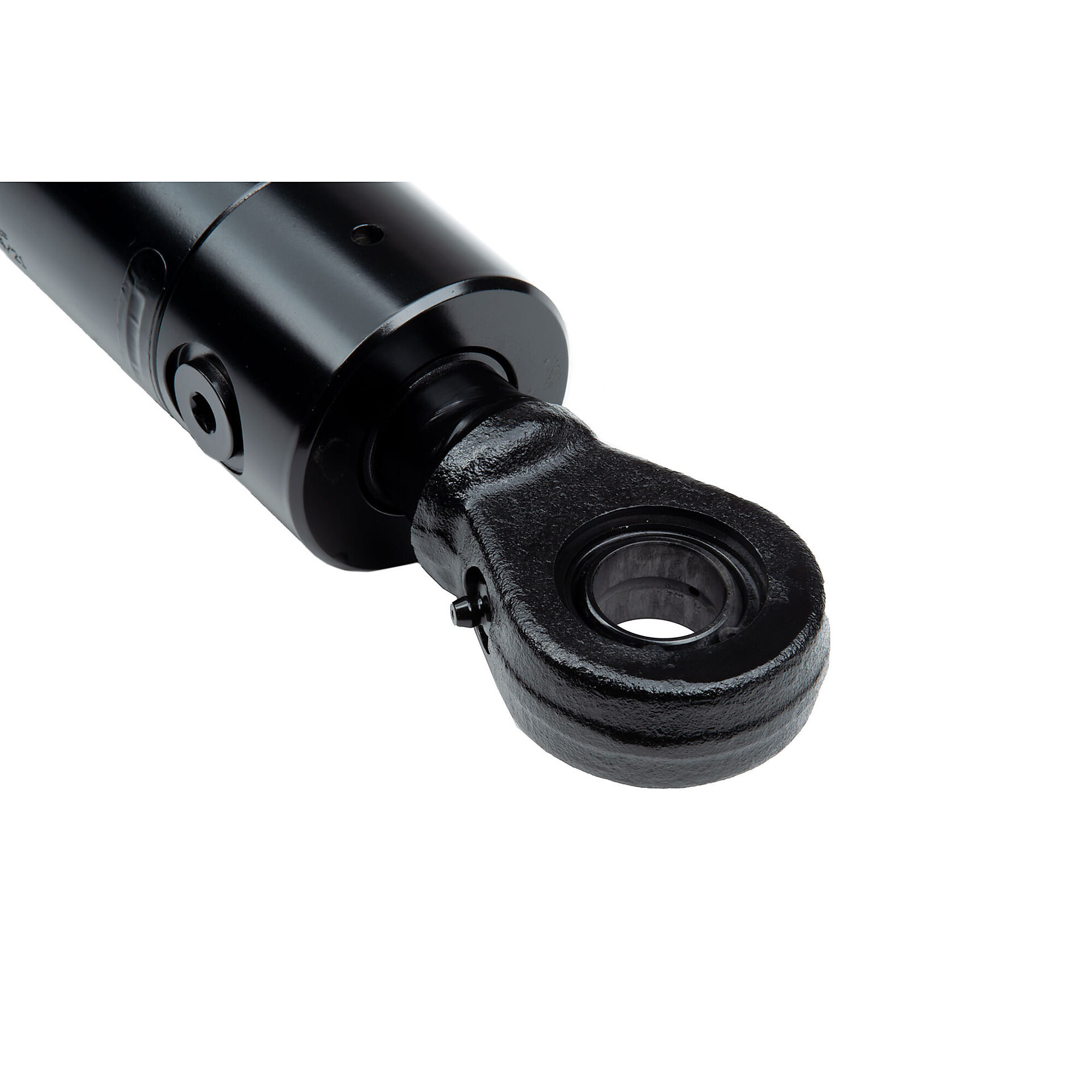

Chief, WTG Welded Cylinder, Max. PSI 3600, Bore Diameter 2.5 in, Stroke Length 10 in, Model# 400637

Item# 4879438
"Chief, WTG Welded Cylinder, Max. PSI 3600, Bore Diameter 2.5 in, Stroke Length 10 in, Model# 400637"
Chief, WTG Welded Cylinder, Max. PSI 3600, Bore Diameter 2.5 in, Stroke Length 10 in, Model# 400637

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Chief, WTG Welded Cylinder, Max. PSI 3600, Bore Diameter 2.5 in, Stroke Length 10 in, Model# 400637

Click or Tap image to Zoom

$349.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Ductile iron, thread-on, piston for excellent life
  • Hallite 755 piston seal for prolonged wear resistance
  • Hard chrome plated rod
  • Forged steel tang mountings with integral heavy duty bushings

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Chief Welded Tang Hydraulic Cylinder, or WTG for short, is one of our most durable cylinders. The WTG is sometimes referred to as a lug end cylinder due to its one-piece lug mount welded to both the rod and base ends. The WTG can utilize a spherical ball or steel bushing insert to improve wear life. Tang cylinders are most commonly used in heavy duty construction equipment. The Chief WTG features a 3600 PSI pressure rating, forged steel tang mountings with integral heavy duty bushings, SAE O-Ring porting and Bailey’s patented 360° rotating gland. Every Chief WTG cylinder is functionally tested and pressurized to 5000 psi to ensure performance reliability. Every Chief WTG cylinder comes with a 3 year limited warranty.

What's Included

    (1) Cylinder

Features + Benefits

  • Ductile iron, thread-on, piston for excellent life
  • Hallite 755 piston seal for prolonged wear resistance
  • Hard chrome plated rod
  • Forged steel tang mountings with integral heavy duty bushings

Key Specs

AttributeSpecification

item#

4879438

Brand

Chief

Manufacturer's Warranty

1 year limited warranty

Ship Weight

28.0 LB

Max. PSI

3,600

Bore Diameter

2.5 in
AttributeSpecification

Stroke Length

10 in

Retracted Length

20 in

Extended Length

30 in

Pin Diameter

1 in

Product Weight

27.0000 lb

Dimensions L x W x H (in.)

30.0 x 3.0 x 3.0 in
