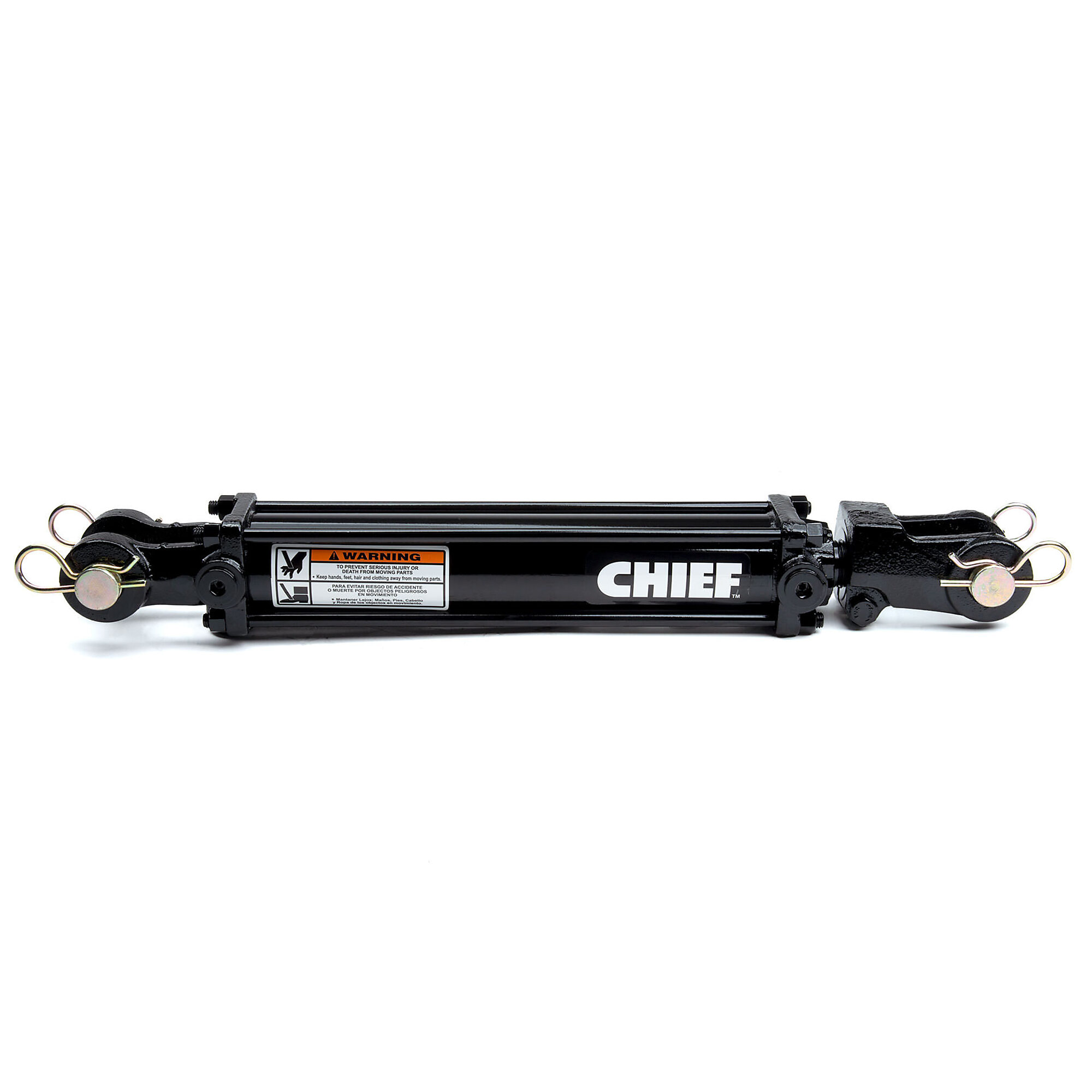

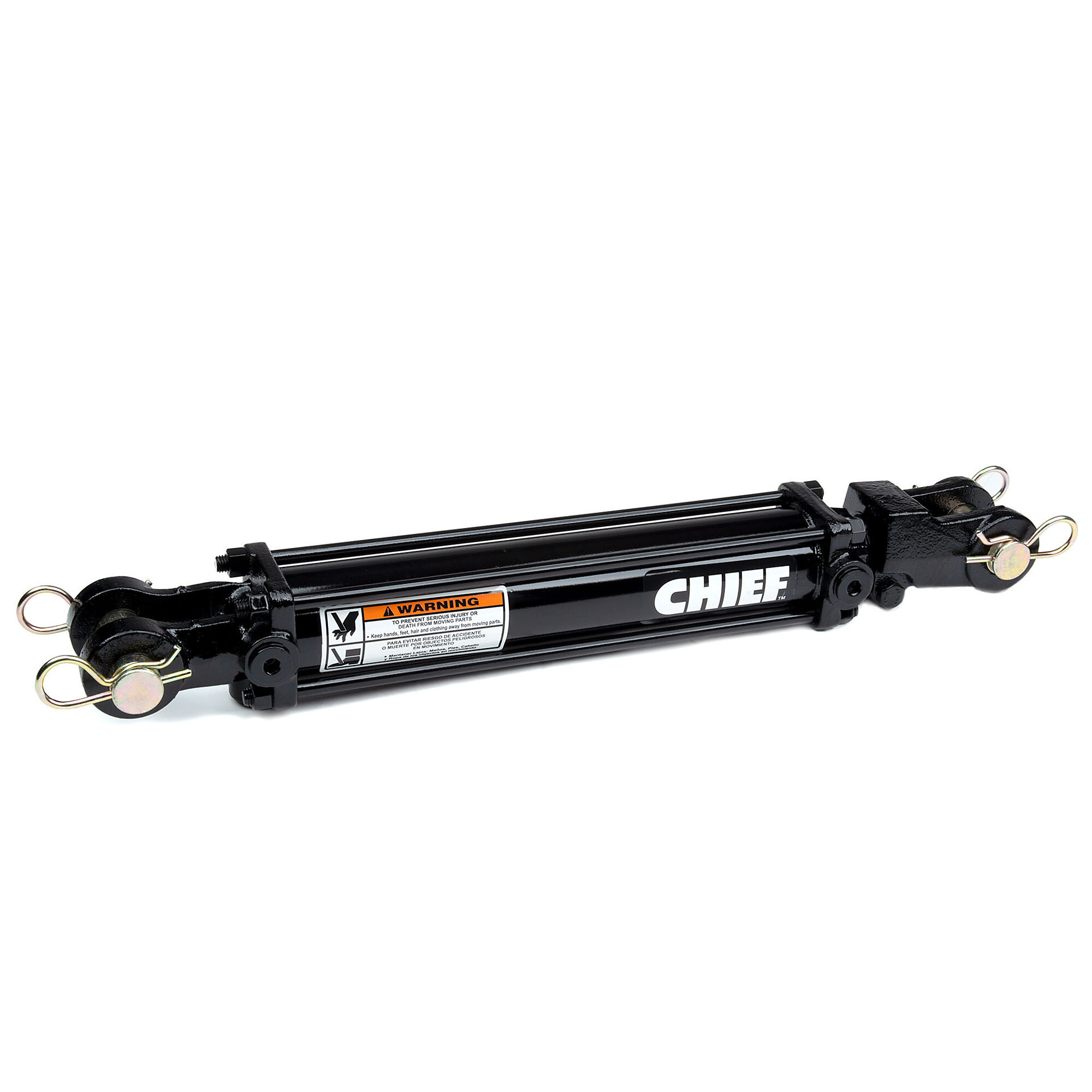

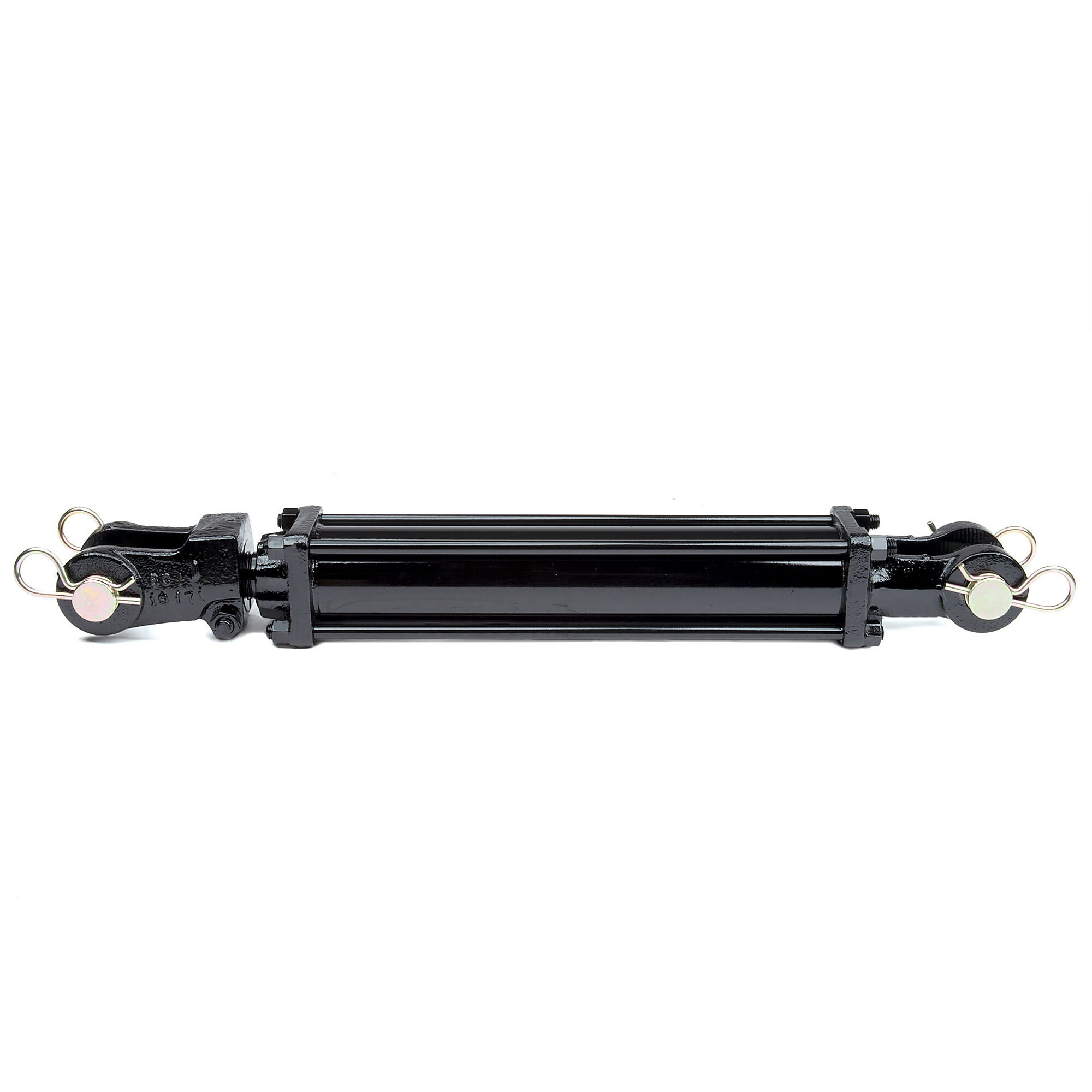

Chief, TC3 Tie-rod Cylinder, Max. PSI 3000, Bore Diameter 3 in, Stroke Length 12 in, Model# 211350

Item# 4858101
Chief, TC3 Tie-rod Cylinder, Max. PSI 3000, Bore Diameter 3 in, Stroke Length 12 in, Model# 211350

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Chief, TC3 Tie-rod Cylinder, Max. PSI 3000, Bore Diameter 3 in, Stroke Length 12 in, Model# 211350

Click or Tap image to Zoom

$169.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Buna O-ring with Polytemp Hytrel backup
  • Hallite 755 piston seal for prolonged wear resistance
  • D-style rod wiper prevents contamination

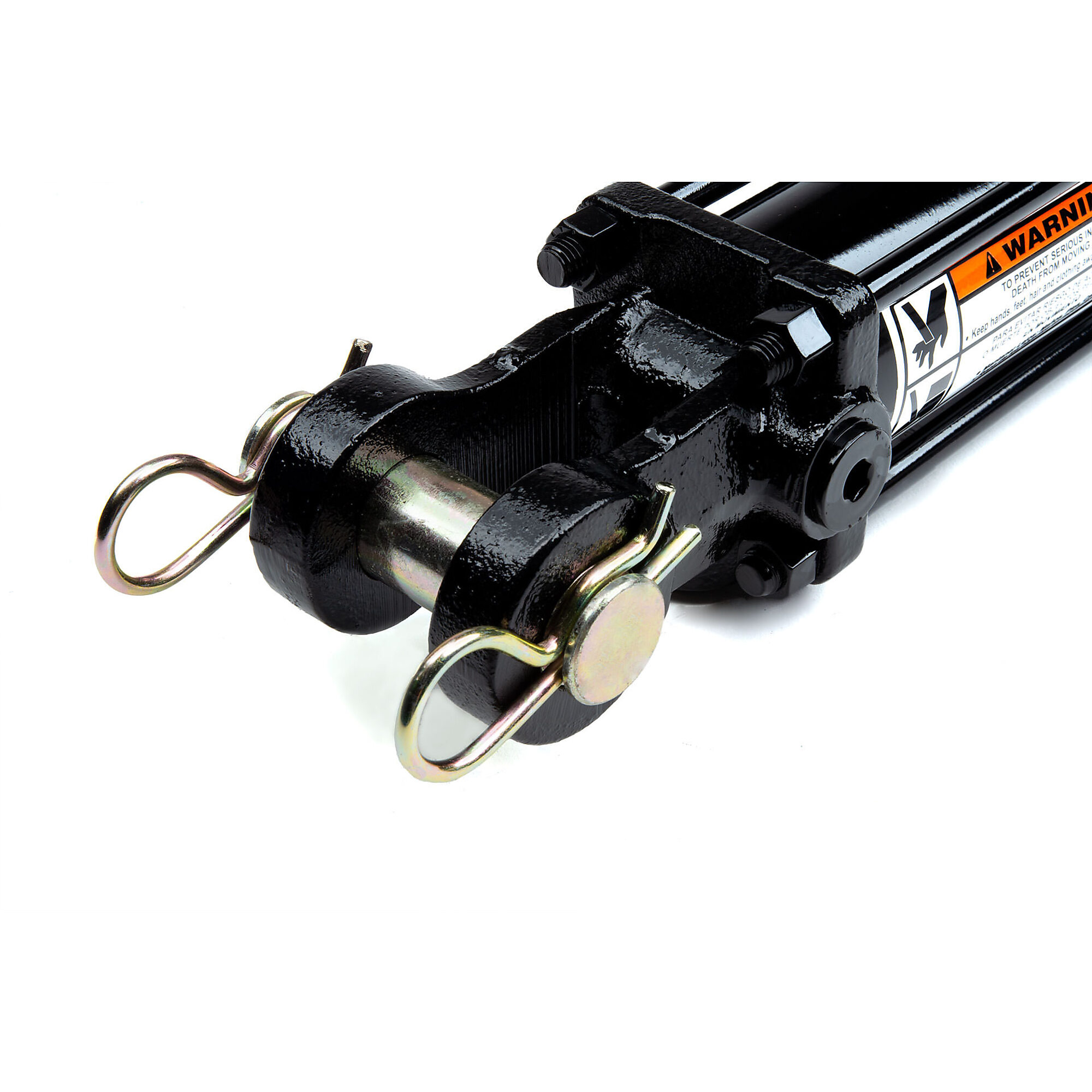

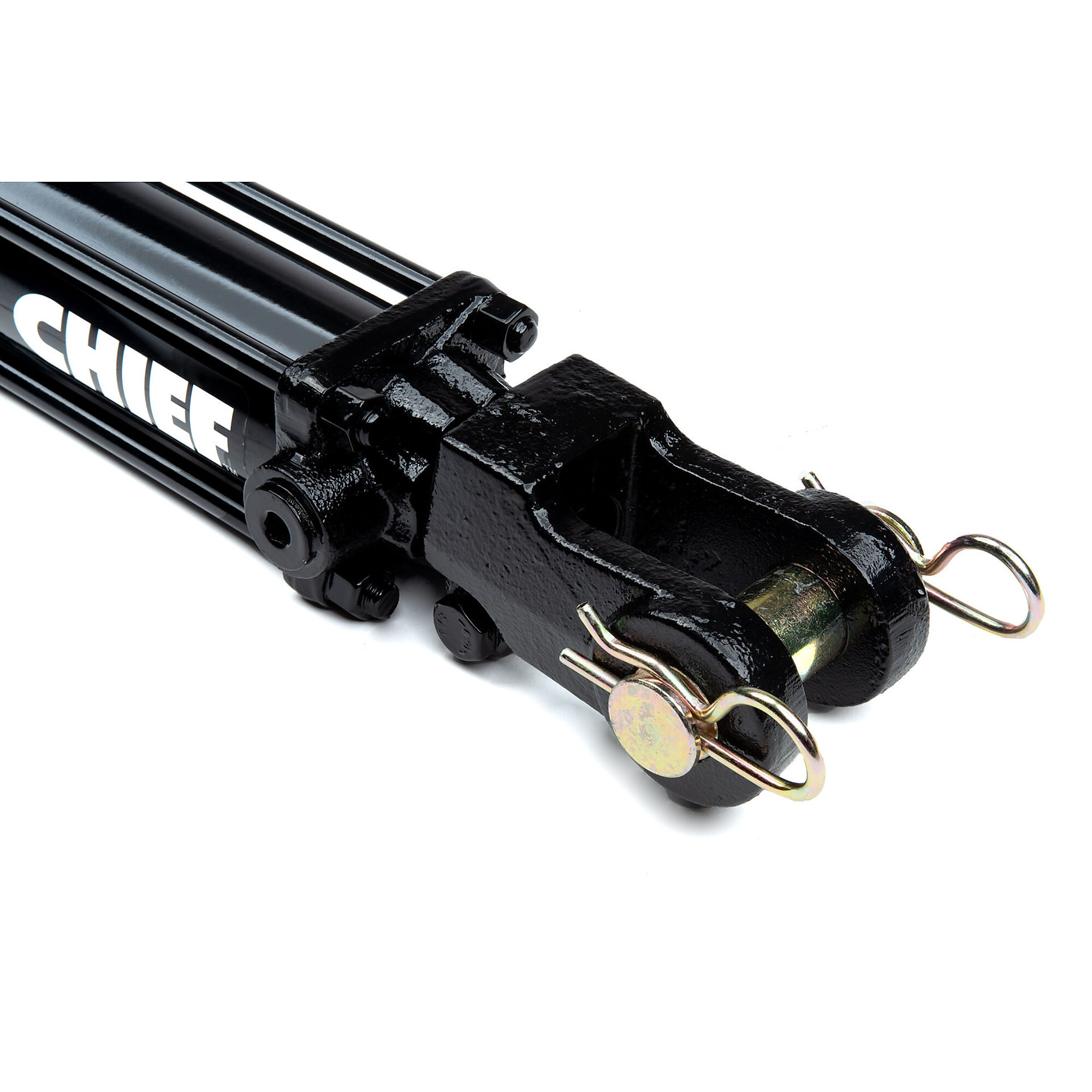

  • High strength, ductile iron female clevis end mounts with pins and R-clips

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This 3000 psi Chief TC3 tie-rod hydraulic cylinder is designed to provide outstanding performance in a variety of applications, including agricultural implements, compact construction and transportation equipment, as well as waste/recycling applications. The base end clevis extends out 2in. for greater swing ability on applications. Featuring SAE O-ring ports for easy hookup, every Chief TC3 cylinder is functionally tested and pressurized to 1.5 times the normal working pressure to ensure performance reliability. The TC3 is available in bore sizes from 2in. to 5in., strokes from 4in. to 60in., and comes with our best 3-year limited warranty. Each cylinder comes painted black.

What's Included

    (1) Cylinder

Features + Benefits

  • Buna O-ring with Polytemp Hytrel backup
  • Hallite 755 piston seal for prolonged wear resistance
  • D-style rod wiper prevents contamination
  • High strength, ductile iron female clevis end mounts with pins and R-clips

Key Specs

AttributeSpecification

item#

4858101

Brand

Chief

Manufacturer's Warranty

3 year limited warranty

Ship Weight

31.96 LB

Max. PSI

3,000

Bore Diameter

3 in
AttributeSpecification

Stroke Length

12 in

Retracted Length

22.25 in

Extended Length

34.25 in

Pin Diameter

1 in

Product Weight

31.9600 lb

Dimensions L x W x H (in.)

34.25 x 3.0 x 3.0 in

Reviews

Questions & Answers

5 Reviews This action will navigate to reviews.

Questions

1–3 of 3 Questions
Sort by:

  1. rod diameter?

    1 answer

    1. This cylinder has a 1.25" rod diameter.

      Helpful?

  2. Can I get the exact dimensions of the end caps outside?  Is there one or two ports On the endcaps

    1 answer

    1. On square the OD is 3.78” square. The base end of these cylinders have 2 ports, 1 parallel and 1 perpendicular to the pins. The rod end has just the 1 port that is parallel to the pins.

      Helpful?

  3. is this a two way cylinder?

    1 answer

    1. The cylinder would be double acting.

      Helpful?

Warranty

Manufacturer's Warranty

3 year limited warranty
