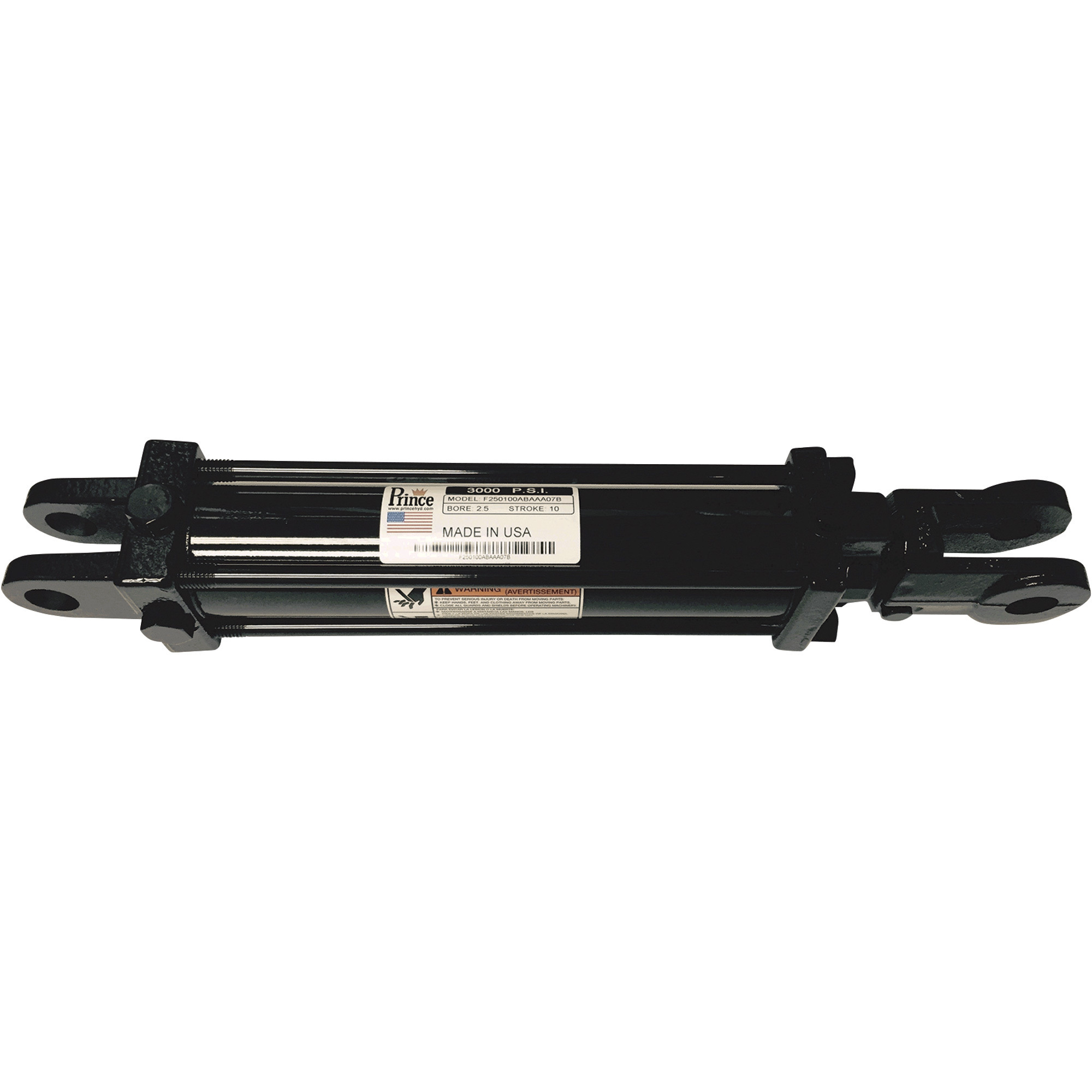

Prince Tie-Rod Hydraulic Cylinder, 3,000 PSI, 5in. Bore, 24in. Stroke, 2in. Shaft

Item# 9035024
Prince Tie-Rod Hydraulic Cylinder, 3,000 PSI, 5in. Bore, 24in. Stroke, 2in. Shaft

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Prince Tie-Rod Hydraulic Cylinder, 3,000 PSI, 5in. Bore, 24in. Stroke, 2in. Shaft

Click or Tap image to Zoom

$719.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Out of stock at Fredericksburg VA

  • 1 1/4in. pins (included)
  • SAE 7/8-14 working ports
  • Induction hardened piston rods

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Prince Tie-Rod Hydraulic Cylinder is a heavy-duty double-acting tie-rod cylinder rated for 3,000 PSI continuous working pressure to handle demanding applications. Features high-strength ductile iron piston, butt, gland, and clevis, plus urethane seals in a honed tube for dependable performance. Aircraft-quality paint offers exceptional durability. Has high-quality urethane seals and SAE O-ring boss style ports. Includes Clevis and cotter pins for easy installation.

What's Included

    (1) Tie-rod cylinder

Features + Benefits

  • 1 1/4in. pins (included)
  • SAE 7/8-14 working ports
  • Induction hardened piston rods

Key Specs

AttributeSpecification

item#

9035024

Brand

Prince

Manufacturer's Warranty

3 year limited warranty

Ship Weight

114.0 LB

Max. PSI

3,000
AttributeSpecification

Bore Diameter

5 in

Stroke Length

24 in

Shaft Diameter

2 in

Closed Pin Center

36.25 in

Reviews

Questions & Answers

6 Reviews This action will navigate to reviews.

Questions

1–6 of 6 Questions
Sort by:

  1. dose it have the same amount of pressure both directions?

    1. Yes, the same amount of pressure, but not the same amount of force. On push the pressure is working on the entire surface of the piston, and on the pull, the pressure is working on the piston minus the area taken up by the push rod.

      Helpful?

    2. Yes, it will have the same amount of pressure in both directions.

      Helpful?

  2. i need a seal for this cylindler

    1 answer

    1. The seal kit, part #PMCK-B500000, is available directly from the manufacturer, Prince.

      Helpful?

  3. What is the size of the pin hole on each end, diameter?

    1 answer

    1. This requires 1.25" diameter pins.

      Helpful?

  4. What is the size of the square flange on ends of cylinder?

    1 answer

    1. The outside square dimension is 5.875 inches.

      Helpful?

  5. What is the prince item number on this product?

    1 answer

    1. The matching Prince number is F500240ACDDA07B.

      Helpful?

  6. is this a double acting cylinder?

    1 answer

    1. Yes, this is a double acting cylinder.

      Helpful?
