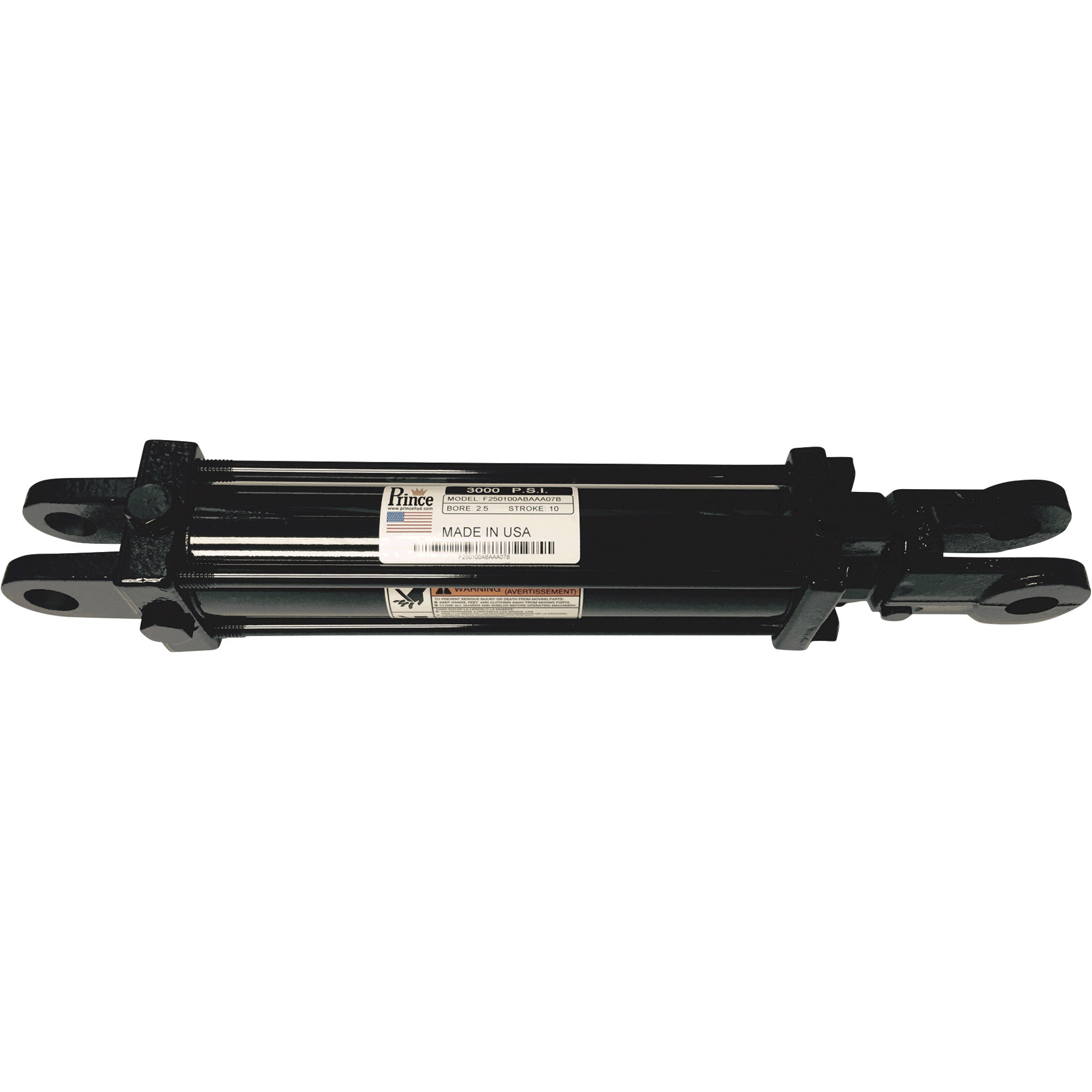

Prince Tie-Rod Hydraulic Cylinder, 3,000 PSI, 5in. Bore, 30in. Stroke, 2in. Shaft

Item# 909530
Prince Tie-Rod Hydraulic Cylinder, 3,000 PSI, 5in. Bore, 30in. Stroke, 2in. Shaft

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Prince Tie-Rod Hydraulic Cylinder, 3,000 PSI, 5in. Bore, 30in. Stroke, 2in. Shaft

Click or Tap image to Zoom

$749.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not Available
  • 1 1/4in. pins (included)
  • 3/4in. working ports
  • Induction-hardened piston rods

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Prince Tie-Rod Cylinder is made to handle the most demanding applications. With 70 plus years of American-made know-how they use a high-strength ductile iron piston, butt, gland, and clevis, plus urethane seals in a honed tube that allow them to handle 3,000 PSI continuous working pressure. Aircraft quality paint provides lasting performance. Seal kits are also available (sold separately.)

What's Included

    (1) Tie-rod cylinder

Downloads

Product Manual

Features + Benefits

  • 1 1/4in. pins (included)
  • 3/4in. working ports
  • Induction-hardened piston rods

Key Specs

AttributeSpecification

item#

909530

Brand

Prince

Manufacturer's Warranty

3 year limited warranty

Ship Weight

114.0 LB

Max. PSI

3,000
AttributeSpecification

Bore Diameter

5 in

Stroke Length

30 in

Shaft Diameter

2 in

Closed Pin Center

42.25 in

Reviews

Questions & Answers

8 Reviews This action will navigate to reviews.

Questions

1–3 of 3 Questions
Sort by:

  1. what is a 2 inch shaft ... is it the size of the pins that act to hold the cylinder in place?

    1 answer

    1. The 2-inch spec refers to the piston rod diameter, not the mounting pins.

      Helpful?

  2. how long is the piston body item no 909530

    1 answer

    1. The piston rod from end to end is 36.875".

      Helpful?

  3. What is the column load rating on this cylinder?

    1 answer

    1. The column load rating for this cylinder is 27520 lbs.

      Helpful?

Warranty

Manufacturer's Warranty

3 year limited warranty
