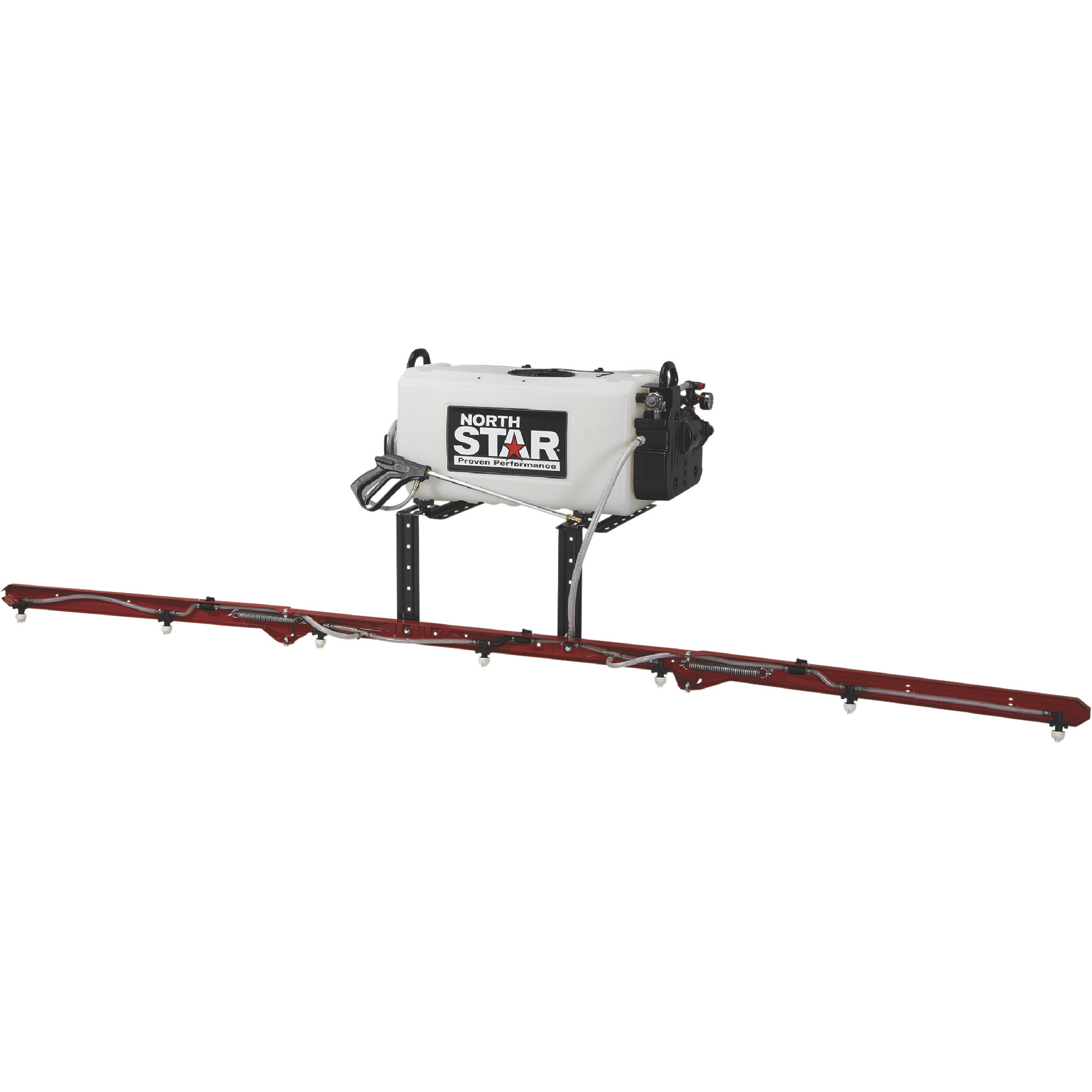

NorthStar High Flow ATV Broadcast and Spot Sprayer with Deluxe 7-Nozzle Boom, 26-Gallon Capacity, 5.5 GPM, 12 Volts

Item# 99922
NorthStar High Flow ATV Broadcast and Spot Sprayer with Deluxe 7-Nozzle Boom, 26-Gallon Capacity, 5.5 GPM, 12 Volts

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

NorthStar High Flow ATV Broadcast and Spot Sprayer with Deluxe 7-Nozzle Boom, 26-Gallon Capacity, 5.5 GPM, 12 Volts

Click or Tap image to Zoom

$649.99

  • Shipping:

    Free shipping (lower 48 states)

  • Store Pickup:

    Not available - online only
  • High flow 12V, 5.5 GPM NorthStar® NSQ Series™ on-demand pump generates 60 PSI
  • 100% continuous-duty oversized electric pump motor -- no down time waiting for the motor to cool
  • Patented DXS-3™ pump valves are made with chemical-resistant Viton® for faster priming, better performance and longer life
  • Santoprene™ diaphragm has superior reliability and chemical resistance
  • Regulator, pressure gauge and deluxe trigger spray gun for fine tuning of spray pressure

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This NorthStar High Flow Broadcast and Spot Sprayer with Deluxe 7-Nozzle Boom is a dependable system that sprays an extra-wide 11.7ft. pattern. Left/center/right boom control accommodates full broadcast, narrow strip and perimeter spraying for exceptional versatility. The included deluxe spray gun delivers a maximum vertical spray height of 22 feet and maximum horizontal spray distance of 33 feet. A high-flow 5.5 GPM NorthStar® NSQ Series on-demand pump generates 60 PSI and impressive flow rates for high-volume delivery that takes care of applications fast and effortlessly. The extra-thick walled tank holds up to 26 gallons so you spend less time refilling. Attaches to an ATV.

What's Included

    (1) High flow broadcast and spot sprayer with deluxe 7-nozzle boom

Downloads

Product Manual
Play Item Video

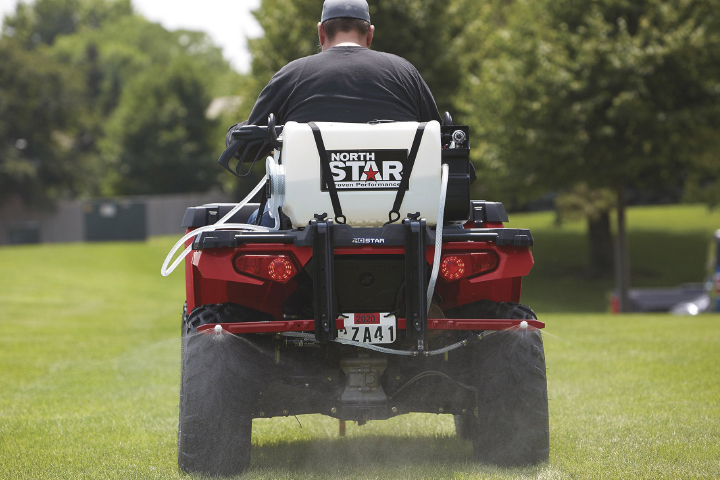

VERSATILE SPRAYING OPTIONS

Whether it’s FULL-FIELD BROADCASTING, targeted perimeter treatment or PRECISE SPOT SPRAYING, this sprayer adapts to your specific needs

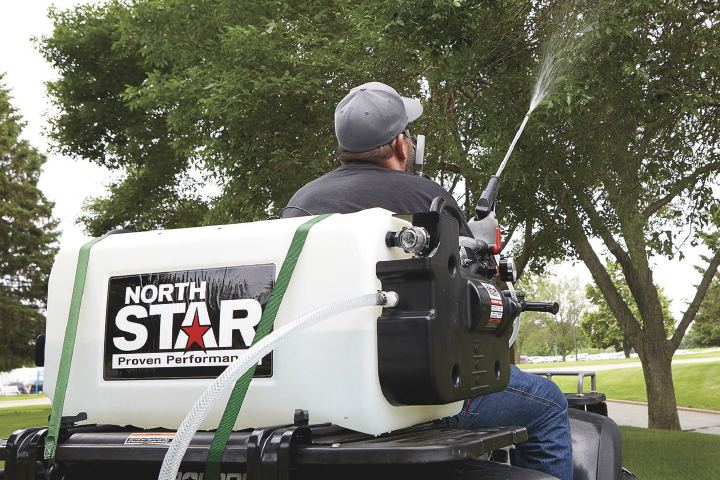

DEPENDABLE AND LONG-LASTING

Designed with CHEMICAL-RESISTANT components for longevity, ENSURING CONSISTENT PERFORMANCE over time

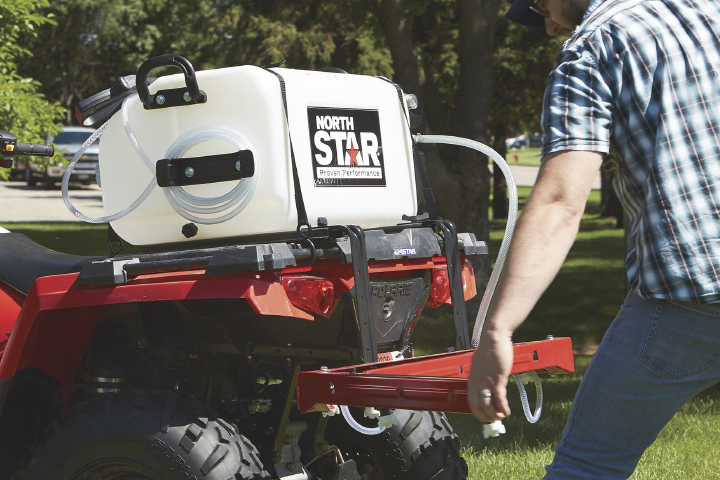

EASY TO TRANSPORT AND STORE

Designed for convenience with SPRING-LOADED, BREAKAWAY BOOM arms that fold for COMPACT STORAGE and easy transport handles

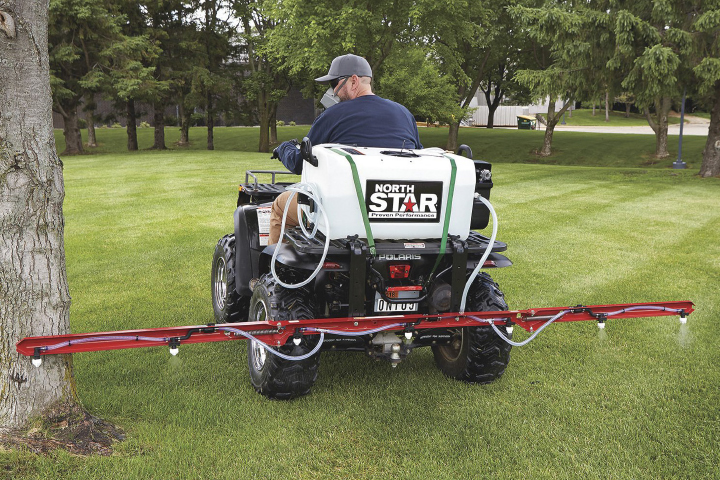

SAFE AND EFFICIENT

Compatible with Roundup® and other AGRICULTURAL HERBICIDES, featuring SAFETY MECHANISMS like an IN-LINE FUSE and AUTO SHUTOFF PUMP for enhanced durability

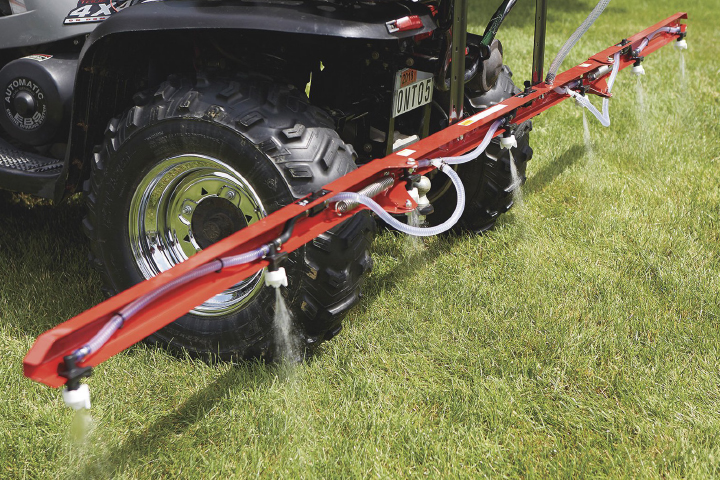

CLEAR MONITORING AND CONTROL

MONITOR FLUID LEVELS easily with tank gallon markers and manage flow with a clear, REINFORCED HOSE and ADJUSTABLE NOZZLE

Features + Benefits

  • High flow 12V, 5.5 GPM NorthStar® NSQ Series™ on-demand pump generates 60 PSI
  • 100% continuous-duty oversized electric pump motor -- no down time waiting for the motor to cool
  • Patented DXS-3™ pump valves are made with chemical-resistant Viton® for faster priming, better performance and longer life
  • Santoprene™ diaphragm has superior reliability and chemical resistance
  • Regulator, pressure gauge and deluxe trigger spray gun for fine tuning of spray pressure

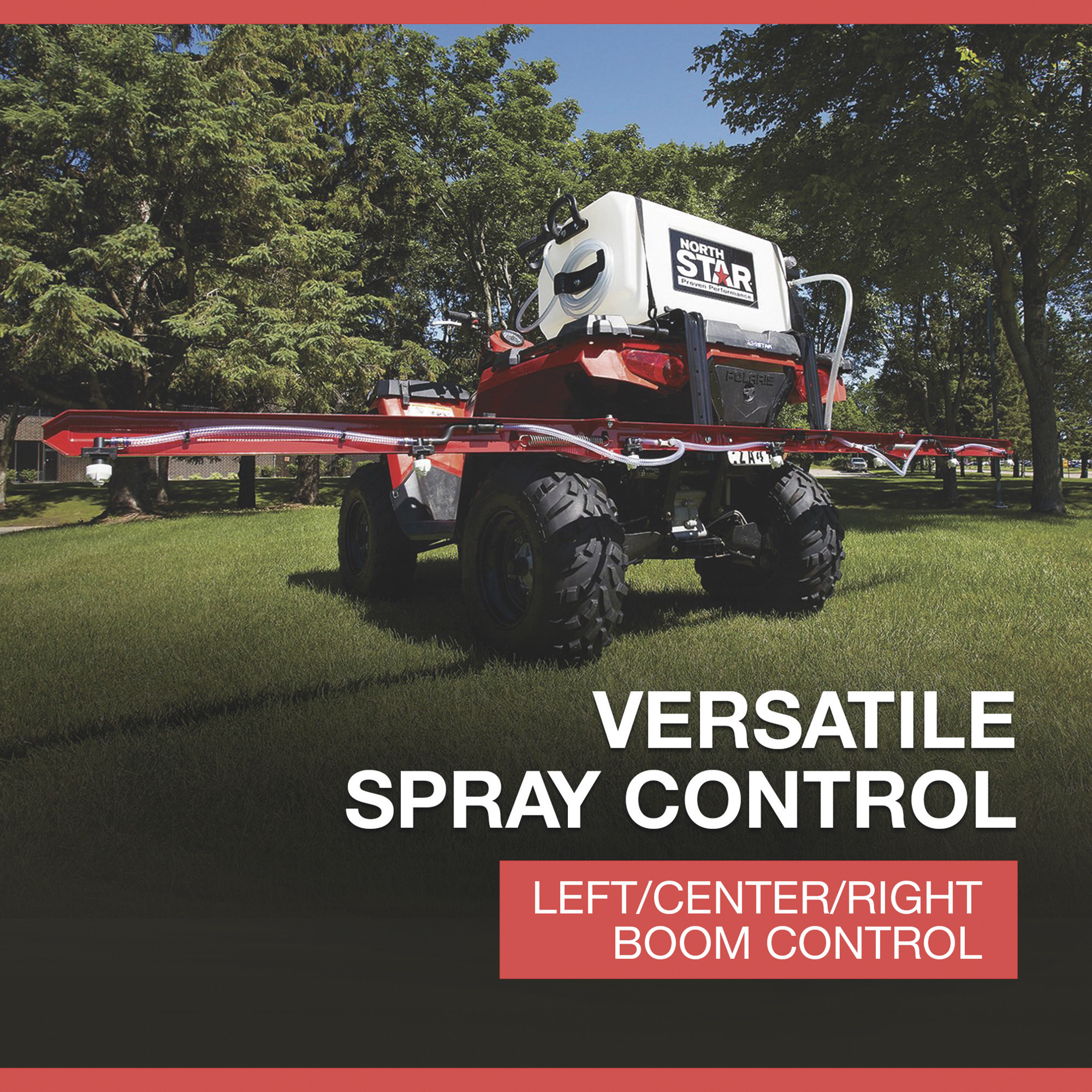

  • Deluxe 7-nozzle boom sprays an extra-wide 11.7ft. pattern swath with selective left/center/right boom control for full broadcast, narrow strip and perimeter spraying
  • Spring-loaded, breakaway boom arms easily connect and disconnect from the sprayer and fold for compact storage
  • Spray gun delivers a 22ft. max. vertical spray height; 33ft. max. horizontal spray distance
  • Adjustable stream-to-cone brass nozzle and 15 feet of hose
  • 8ft. wire harness with battery clamps easily connects and disconnects from your battery
  • In-line switch allows you to turn the pump on and off from the driver's seat
  • In-line fuse helps protect the system
  • Exclusive, extra-thick walled polymer tank design offers superior crack, leak and chemical resistance
  • Bottom mount tank drain offers quick and easy draining and rinsing of tank
  • Bypass flow returns to tank to keep chemicals well mixed
  • Pump and sprayer components are compatible for use with Roundup® brand agricultural herbicides
  • 15ft. x 3/8in. clear reinforced poly vinyl chloride hose makes monitoring chemical flow simple
  • Handles make sprayer easy to transport
  • Hose wrap and spray gun mounting location make storage easy
  • Suction strainer with clear bowl is easy to remove for cleaning

Key Specs

AttributeSpecification

item#

99922

Brand

NorthStar

Manufacturer's Warranty

2 year limited warranty

Ship Weight

70.0 LB

Tank Size

26 Gal

Flow

5.5 GPM

Pressure

60 PSI

Spray Height

22 ft
AttributeSpecification

Broadcast Width

11.7 ft

Spray Pattern

Cone, Stream

Spray Gun Type

Deluxe

Tow Behind Cart Included

No

Pump Type

Northstar Quick-connect

Hose Length

180 in

Product Weight

lb

Dimensions L x W x H (in.)

35.5 x 18.0 x 15.0 in

Reviews

Questions & Answers

44 Reviews This action will navigate to reviews.

Questions

1–10 of 25 Questions
Sort by:

  1. Does this come with the boom?

    1 answer

    1. This sprayer does include the boom as shown.

      Helpful?

  2. Does this unit come with a larger tank

    1 answer

    1. A larger tank option is not available for the sprayer.

      Helpful?

  3. Can I order a replacement pump for this?

    1 answer

    1. The replacement pump is item 2685562.

      Helpful?

  4. What are the dimensions of the sprayer tank? How far off the ground should the boom be for best results?

    1 answer

    1. The sprayer tank measures 28" wide x 15" high x 18" deep. To ensure proper coverage, the height of the unfolded boom nozzles should be about 20" from the ground.

      Helpful?

  5. can i just purchase the boom? I already have that sprayer

    1 answer

    1. The boom is available in parts which are available through our sister company, Jacks Small Engines. Please visit www.JacksSmallEngines.com for pricing and availability. The parts list is included below:

      798538: Tank mount (2 needed)
      82016: 5/16"-18 x 1” bolt (4 needed)
      82020: 5/16"-18 nyloc nut (6 needed)
      82697: 5/16"-18 jam nut (2 needed)
      799550: Left boom arm assembly
      799551: Right boom arm assembly
      799552: Boom center assembly

      Helpful?

  6. Video mentions a tank agitator but I do not see that anywhere on the descriptino. Can you clarify?

    1 answer

    1. The pressure regulator works as an agitator for this sprayer. The pressure regulator bypasses fluid back to the tank. Adjust the knob to divert spray back to the tank to keep chemicals well-mixed.

      Helpful?

  7. How vbb wide is the spray boom, what size spray nozzles are in it, do they fan spray to give complete coverage?

    1 answer

    1. The overall width of the boom is 11' 7". The boom will have a 110 degree flat fan #8 spray nozzle.

      Helpful?

  8. Is there an option for a wire harness compatible with a cigarette lighter adapter?

    1 answer

    1. We do not carry a 12 volt plug adapter for this size of pump due to amperage.

      Helpful?

  9. Can it be mounted on zero turn movers if yes is there special bracket?

    1 answer

    1. The spot sprayer is designed to be mounted to the back of an ATV. There is no mounting bracket available to mount it to the back of a zero turn mower.

      Helpful?

  10. How many square feet without obstacles can the 26 gallon broadcast sprayer complete with one full tank @5.5 gallons per minute?

    1 answer

    1. The area of coverage can vary depending on the pressure (PSI) and the speed of the vehicle. Please view the calibration tables on page 44 of the product manual, located on the product web page, to determine the coverage.

      Helpful?

Warranty

Manufacturer's Warranty

2 year limited warranty
