The pump is on-demand when operating at maximum pressure. If you lower the pressure, by using the regulator, at some point the pump on-demand switch will stop shutting off the pump and the pump will run continuously because not enough pressure is available to trip the on-demand shutoff switch since the regulator allows liquid to flow back into the tank when set at a reduced pressure. This works well enough for mixing chemicals in the tank or when operating at low pressures - tho the pump will run continuously in this mode.
Free Gift Card Details
- The promo code 290264 must be entered on the Shopping Cart page.
- To qualify for this offer, your order subtotal must equal $100 or more. Excludes gift cards, free item offers, warranties, Advantage memberships, tax and shipping.
- Free gift cards will be issued in the form of e-gift cards only, not physical gift cards.
- E-gift cards will be sent to the email address used in your billing address when your order ships or is picked up.
- Free e-gift cards expire 04/01/27.
- Promo code not valid on prior purchases or on Honda and STIHL products and cannot be combined with other promotional offers.
- Valid online and in participating retail stores.
- Limited-time offer. Subject to change without notice.
NorthStar High-Pressure ATV Spot Sprayer, 26-Gallon Capacity, 1.5 GPM, 12 Volt

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Click or Tap image to Zoom
Shipping:
Free shipping (lower 48 states) - Available nowStore Pickup:
Not available - online only
- High-Pressure NSQ Series Pump: 12V, 1.5 GPM quick-connect on-demand pump generates 150 PSI for high-pressure spraying performance
- DXS-3 Valves + Santoprene Diaphragm: Patented chemical-resistant Viton valves promote faster priming and longer pump life, while the Santoprene diaphragm enhances reliability
- 100% Continuous-Duty Motor: Oversized electric pump motor operates continuously without cooling downtime
- Automatic Pump Shutoff: Stops the pump when maximum pressure is reached to reduce unnecessary operation
- Pressure Regulator + Gauge: Enable precise spray pressure adjustment and monitoring for consistent application
See full description
Description
Key Specs
Reviews
Q & A
Accessories
Warranty
Compare
Product Summary
What's Included
- (1) High-pressure spot sprayer
Downloads

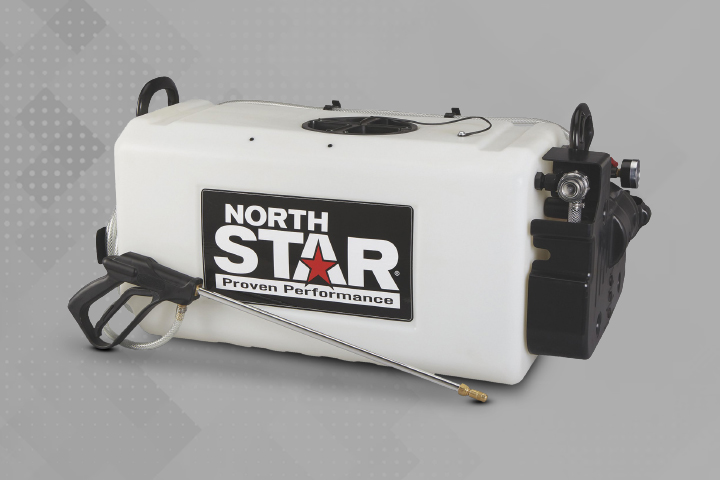

ENHANCED PORTABILITY
Handles, convenient HOSE WRAP and SPRAY GUN mounting location make transportation and storage of the unit effortless

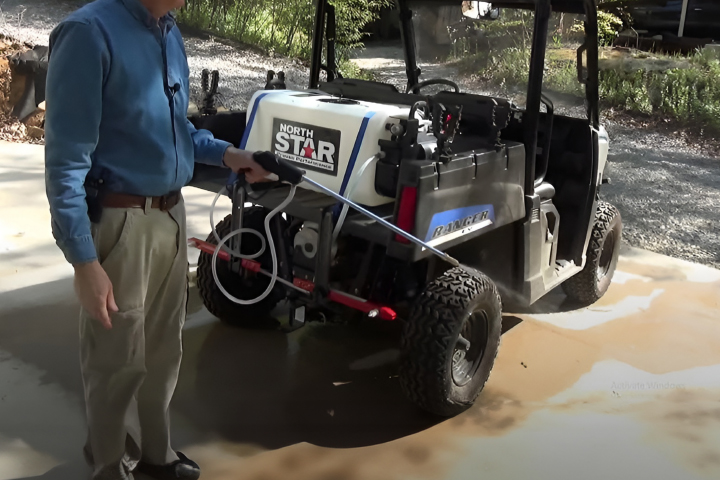

EASY MONITORING AND MAINTENANCE
Features such as GALLON MARKERS, an easy-access inlet filter and a SUCTION STRAINER with a clear bowl simplify operation and maintenance

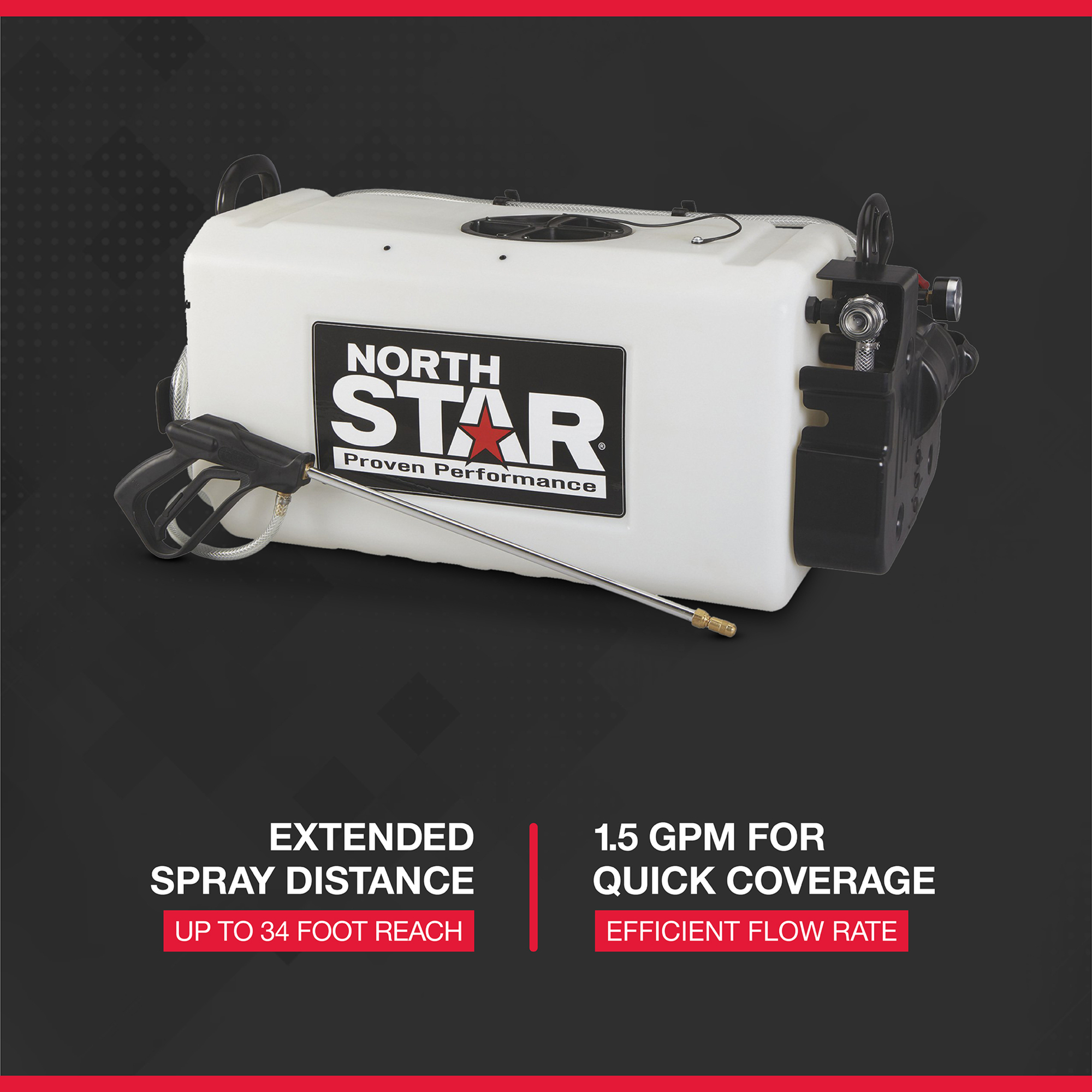

EXTENDED SPRAY DISTANCE
Achieve a maximum VERTICAL SPRAY height of 24 FEET and HORIZONTAL SPRAY distance of 34 FEET, covering large areas quickly and efficiently

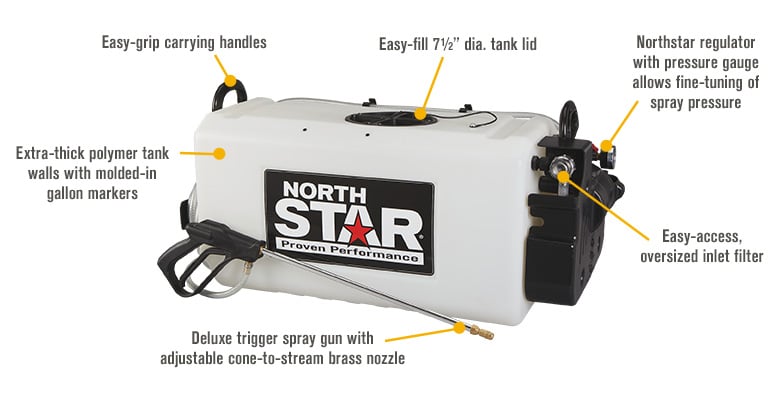

Features + Benefits

- High-Pressure NSQ Series Pump: 12V, 1.5 GPM quick-connect on-demand pump generates 150 PSI for high-pressure spraying performance
- DXS-3 Valves + Santoprene Diaphragm: Patented chemical-resistant Viton valves promote faster priming and longer pump life, while the Santoprene diaphragm enhances reliability
- 100% Continuous-Duty Motor: Oversized electric pump motor operates continuously without cooling downtime
- Automatic Pump Shutoff: Stops the pump when maximum pressure is reached to reduce unnecessary operation
- Pressure Regulator + Gauge: Enable precise spray pressure adjustment and monitoring for consistent application
- Deluxe Trigger Spray Gun: Adjustable brass nozzle switches from stream to cone spray patterns for targeted applications
- 15ft. Reinforced Spray Hose: 3/8in. clear PVC construction extends spraying reach and allows visual monitoring of chemical flow
- 8ft. Battery Wire Harness: Battery clamps simplify connection and disconnection from a 12V power source
- Remote Pump Control + Fuse: In-line switch enables pump operation from the driver's seat, while the fuse helps protect the electrical system
- Extra-Thick-Walled Polymer Tank: Resists cracking, leaking and chemical damage for long-lasting durability
- Bypass Mixing System: Returns excess flow to the tank to help keep chemicals mixed during operation
- Bottom-Mount Tank Drain: Simplifies emptying and rinsing the tank after use
- Inlet Filter + Suction Strainer: Oversized inlet filter helps prevent debris from entering the system, while the removable clear-bowl suction strainer simplifies inspection and cleaning
- Integrated Storage + Transport: Built-in handles, hose wrap and spray gun mount simplify moving and storing the sprayer
- Molded Gallon Markers + Herbicide Compatibility: Tank markings allow quick fluid level checks, while pump and sprayer components are compatible with Roundup brand agricultural herbicides
- Note: Actual product appearance may vary from images shown
Key Specs
| Attribute | Specification |
|---|---|
item# | 99921 |
Brand | NorthStar |
Manufacturer's Warranty | 2 year limited warranty |
Ship Weight | 31.0 LB |
Tank Size | 26 Gal |
Flow | 1.5 GPM |
Pressure | 150 PSI |
Spray Height | 24 ft |
| Attribute | Specification |
|---|---|
Spray Pattern | Cone, Stream |
Spray Gun Type | Deluxe |
Tow Behind Cart Included | No |
Pump Type | Northstar Quick-connect |
Hose Length | 180 in |
Product Weight | lb |
Dimensions L x W x H (in.) | 35.5 x 18.0 x 15.0 in |
Reviews
Questions & Answers
Questions
-
· 7 years ago
It states it has a bypass to keep contents well mixed, but this is an on-demand pump, correct? Not continual bypass?
-
RiverlandMower· 6 years ago
Helpful?
-
NorthstarExpert10· 7 years ago
The unit does use an on-demand pump. If the regulator is set to the max pressure the unit would act as an on-demand pump. With the regulator on the lower setting it would allow excess pressure to continually bypass into the tank.
Helpful?
-
-
· 11 days ago
what does this product weigh? #99921 Northstar sprayer
1 answer-
NorthstarExpert12· 9 days ago
This sprayer has a dry weight of 31.3 lbs. Its total weight when filled with water is 247.8 lbs.
Helpful?
-
-
· 15 days ago
Is the wand stainless steel? Or can a stainless steel want be purchased separately for this model?
1 answer-
NorthstarExpert12· 10 days ago
This sprayer does not include a stainless steel wand. At this time, we do not offer a stainless steel wand for this sprayer.
Helpful?
-
-
· 2 years ago
Is there a boom available for this or can one be added to it?
1 answer-
NorthstarExpert12· 2 years ago
A tank mounted single-nozzle broadcast sprayer kit, item 99902, or a single-nozzle boomless broadcast sprayer kit, item 99903, can be added to this sprayer.
Helpful?
-
-
· 2 years ago
Is this made in the USA?
1 answer-
NorthstarExpert12· 2 years ago
This sprayer is manufactured to our specifications in China.
Helpful?
-
-
· 3 years ago
Can insecticides (Talstar P Professional Insecticide) used to kill carpenter bees be used in this sprayer
1 answer-
productexpert6· 3 years ago
The Talstar Insecticide could be used in the sprayer.
Helpful?
-
-
· 3 years ago
Electric or gas
1 answer-
NorthstarExpert7· 3 years ago
The sprayer pump needs to be powered by a 12 Volt battery. The maximum amp draw from the pump is 10.5 Amps.The battery will need at least that Amp capacity to power this sprayer.
Helpful?
-
-
· 4 years ago
Hi ... are the pump and hose compatible with diluted chlorine, and similar anti mold-mildew chemicals ?
1 answer-
NorthstarExpert7· 4 years ago
This is not compatible with chlorine or other anti-mold and mildew chemicals. Please view our NorthStar Soft Wash and Disinfectant System, item #157140.
Helpful?
-
-
· 5 years ago
Handle looking for a handle for this sprayer
1 answer-
NorthstarExpert12· 5 years ago
The handle part number is 798525. To order, please contact our parts department at 1.800.270.0810.
Helpful?
-
-
· 6 years ago
Will this sprayer support the Valley Industries Flash Turbo Spray Gun — 5 to 15 GPM, 100 to 250 PSI, Model# SG-2200 nozzle?
1 answer-
NorthstarExpert11· 6 years ago
The spray gun requires a minimum of 100 PSI and 5 GPM to operate properly. The sprayer will only produces 1.5 GPM and 150 PSI. The sprayer will not work with the model number SG-2200 spray gun.
Helpful?
-
