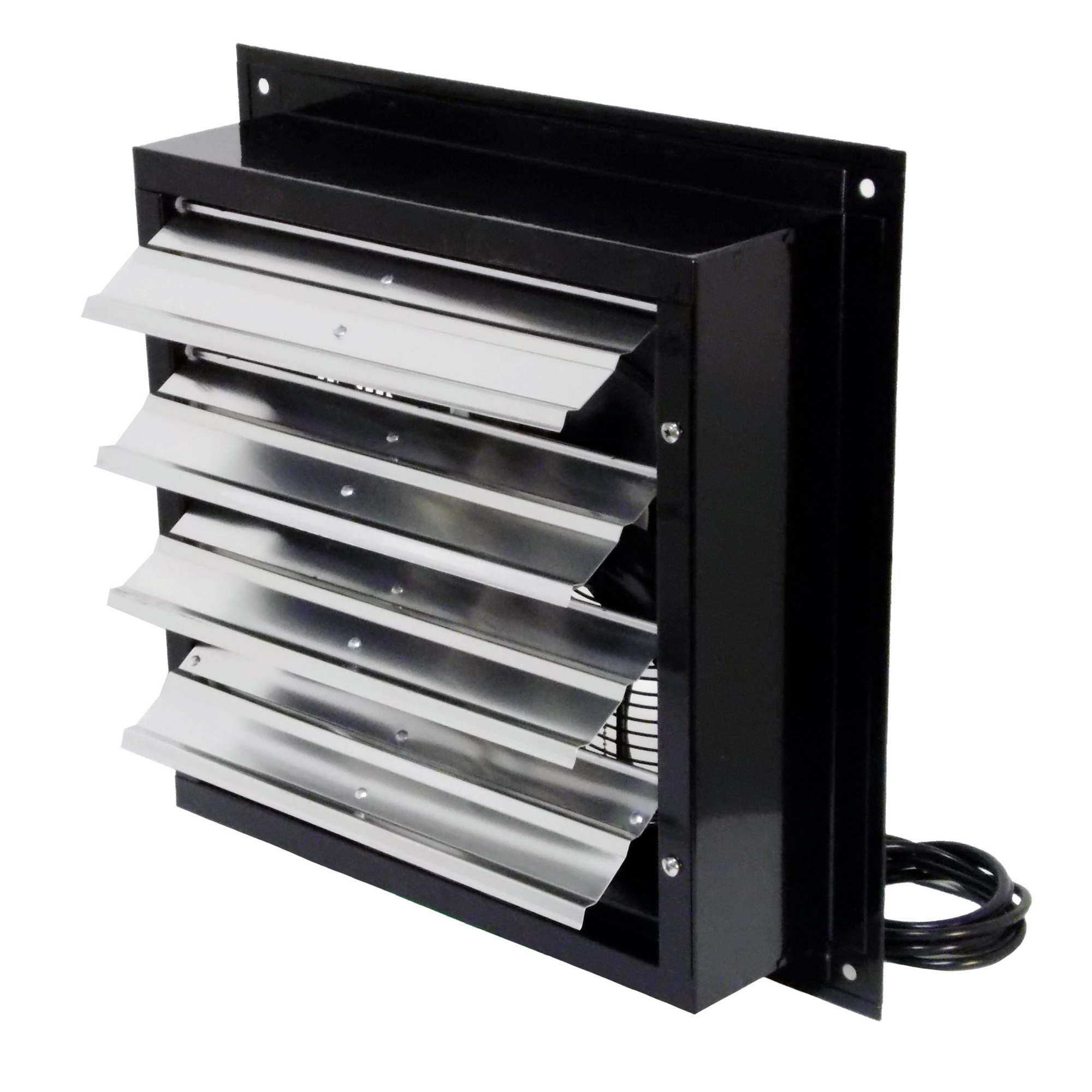

Canarm Exhaust Shutter Fan, 20in. Dia., 2,900/3,300 CFM, 1/4 HP, Model# XFS20

Item# 44780
"Canarm Exhaust Shutter Fan, 20in. Dia., 2,900/3,300 CFM, 1/4 HP, Model# XFS20"
Canarm Exhaust Shutter Fan, 20in. Dia., 2,900/3,300 CFM, 1/4 HP, Model# XFS20

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Canarm Exhaust Shutter Fan, 20in. Dia., 2,900/3,300 CFM, 1/4 HP, Model# XFS20

Click or Tap image to Zoom

$284.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 20in. diameter fan
  • Two-speed high-efficiency outside rotor 1/4 HP motor
  • Totally enclosed with sealed ball bearings
  • 115V, 2.0/2.3 Amps
  • Two speeds: 1,050/1,140 RPM

See full description

Complete Your Solution

  • Canarm Exhaust Shutter Fan, 20in. Dia., 2,900/3,300 CFM, 1/4 HP, Model# XFS20
  • 3M Paint and Pesticide Respirator - N95, NIOSH Approved, Model# 65021HA1A
  • 3M Professional-Grade Over-the-Head Hearing Protector, NRR 30dB, Model# 90565-4DC-PS
  • Tjernlund Duct Booster Fan, 10in., 475 CFM, Model# EF-10
Price for all four:

$599.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Powerful Canarm direct drive exhaust fan is ideal for light commercial applications. Direct-drive fan features a Euro design outside rotor motor for high efficiency, with totally enclosed with sealed ball bearings. Provides smooth, quiet and reliable maintenance-free operation. Fan has swept back, high-efficiency, low-noise blade design. Quiet aluminum shutters with tie bar are designed to maximize airflow. ETL certified.

What's Included

    (1) 20in. exhaust shutter fan

Downloads

Product Manual Product Manual2
Play Item Video

Features + Benefits

  • 20in. diameter fan
  • Two-speed high-efficiency outside rotor 1/4 HP motor
  • Totally enclosed with sealed ball bearings
  • 115V, 2.0/2.3 Amps
  • Two speeds: 1,050/1,140 RPM
  • Swept back, high-efficiency, low-noise blades
  • Air delivery: 2,900/3,300 CFM
  • Quiet aluminum shutters with tie bar for maximum airflow
  • Strong powder-coated OSHA guarding inside
  • Pull chain speed control
  • ETL certified
  • Durable steel construction with powder-coat black finish
  • 9ft. power cord with 115V 3-prong plug
  • Ships fully assembled
  • Overall size: 25 1/10in.W x 10 1/10in.D x 25 1/10in.H

Key Specs

AttributeSpecification

item#

44780

Brand

Canarm

Manufacturer's Warranty

1 year limited warranty

Ship Weight

36.0 LB

Drive Type

Direct

Fan Diameter

20 in
AttributeSpecification

Air Delivery

3,300 cfm

Volts

115

Speeds (qty.)

2

Max. Fan Speed

1,140 rpm

Horsepower

0.25 HP

Reviews

Questions & Answers

3 Reviews This action will navigate to reviews.

Questions

1–10 of 10 Questions
Sort by:

  1. What is the maximum power draw for this fan?

    1 answer

    1. The amperage draw will be 2 amps on low and 2.3 amps on high.

      Helpful?

  2. Single phase motor?

    1 answer

    1. Yes, this is a single phase motor.

      Helpful?

  3. Can I add a filter box to this to filter out overspray

    1 answer

    1. The fan is not designed to work with filters or for a spray booth.

      Helpful?

  4. Are the shutters operated mechanically or just by air flow?

    1 answer

    1. The shutters would be operated by the air flow on the exhaust fan.

      Helpful?

  5. Is there a compatible thermostat to govern this fan?

    1 answer

    1. Thermostat models KJ161100 and KP16110 will work with the exhaust fan. The thermostats can be purchased through the manufacturer directly.

      Helpful?

  6. what is the depth of the flange?

    1 answer

    1. The flange is 1 1/2" wide.

      Helpful?

  7. What is the exact size that the framed opening needs to be?

    1 answer

    1. This Canarm Fan requires a 22" x 22" frame opening.

      Helpful?

  8. Can I mount this fan horizontally?

    Can I mount this fan (XFS20) horizontally?

    1 answer

    1. This fan was not designed to be mounted horizontally.

      Helpful?

  9. decibel/noise level of this fan? Thanks.

    1 answer

    1. The noise level tested on the high setting is 68dba.

      Helpful?

  10. Are the exterior faces of the shutters also black?

    1 answer

    1. The exterior face is also black. The shutters however are silver.

      Helpful?
