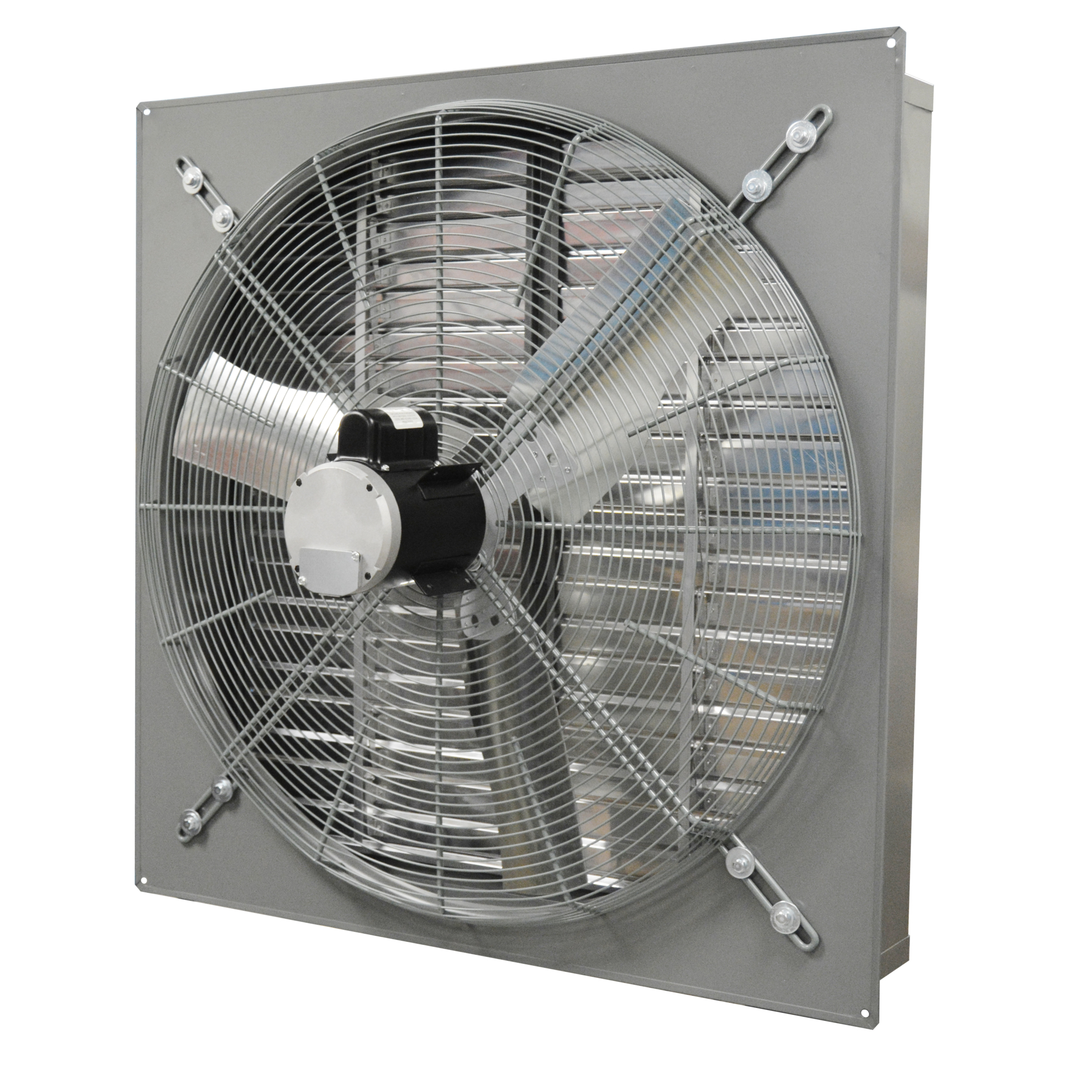

Canarm Wall Exhaust Fan, 36in., Single Speed, 1/2 HP, 10,000 CFM, Model# SD36-G1D

Item# 13774
Canarm Wall Exhaust Fan, 36in., Single Speed, 1/2 HP, 10,000 CFM, Model# SD36-G1D

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Canarm Wall Exhaust Fan, 36in., Single Speed, 1/2 HP, 10,000 CFM, Model# SD36-G1D

Click or Tap image to Zoom

$629.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Totally enclosed and thermally protected motor
  • Galvanized blades are well-balanced for durability and efficiency
  • Heavy wire chrome-plated OSHA guards
  • Rugged steel welded box housing with durable powder-coated finish
  • Plastic louver shutters with long life nylon bushing

See full description

Complete Your Solution

  • Canarm Wall Exhaust Fan, 36in., Single Speed, 1/2 HP, 10,000 CFM, Model# SD36-G1D
  • Canarm Fan Hood with Bird Screen, 36in., Model# EH36
  • Ironton Men's High-Dexterity Utility Gloves — 3 Pairs, Assorted Colors, Large, Model# 86225IR-L3P
  • Strongway Outdoor Extension Cord, 25ft., 12/3 Gauge, 15 Amps, 3-Prong Grounded Plug, Flame Retardant, Extra Heavy Duty, Yellow
Price for all four:

$1142.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This Canarm Wall Exhaust Fan is an efficient, easy-to-install, low-maintenance solution for keeping room air fresh.

What's Included

    (1) Fan

Downloads

Product Manual Product Manual2

Features + Benefits

  • Totally enclosed and thermally protected motor
  • Galvanized blades are well-balanced for durability and efficiency
  • Heavy wire chrome-plated OSHA guards
  • Rugged steel welded box housing with durable powder-coated finish
  • Plastic louver shutters with long life nylon bushing

Key Specs

AttributeSpecification

item#

13774

Brand

Canarm

Manufacturer's Warranty

1 year limited warranty

Ship Weight

88.0 LB

Drive Type

Direct
AttributeSpecification

Fan Diameter

36 in

Air Delivery

10,000 cfm

Volts

115/230

Speeds (qty.)

1

Horsepower

0.5 HP

Reviews

Questions & Answers

11 Reviews This action will navigate to reviews.

Questions

1–9 of 9 Questions
Sort by:

  1. The second picture seems to be a totally different fan?

    1 answer

    1. The first picture is the correct picture for this model SD36-G1D. The second picture would be for a different model.

      Helpful?

  2. whats the size fan fram for installation because we want to be ready when it gets here to install

    1 answer

    1. This fan requires 39in. x 39in. framing. The manual can be found underneath the product summary for more information regarding installation.

      Helpful?

  3. is this fan model SD36-G1D explosion proof ?

    1 answer

    1. This fan is not explosion proof. This fan has galvanized blades and explosion proof have aluminum blades for spark free operation.

      Helpful?

  4. Can you mount this in a ceiling or is it only for wall applications?

    1 answer

    1. The Canarm Wall Exhaust Fan is for wall mounting only. The louvers open and shut with gravity and may or may not operate correctly if ceiling mounted. The motor has also not been tested in a horizontally mounted application.

      Helpful?

  5. Can this fan be set up for variable speed? If so what does it take and can Northern supply it?

    1 answer

    1. This Canarm wall exhaust fan is single speed and cannot be set up for variable speed.

      Helpful?

  6. Will this fan operate on 208 volts? If not do you have a 36" 208 volt fan?

    1 answer

    1. This Canarm wall exhaust fan will operate on 208 volts.

      Helpful?

  7. Can this fan be connected top 115V power?

    1 answer

    1. This exhaust fan can be run off 115 volt power. It must be hardwired as it does not come with a power cord or plug.

      Helpful?

  8. what is the db rating of this fan?

    1 answer

    1. The db rating of the exhaust fan is 72 @ 5 feet.

      Helpful?

  9. What is the required wall opening size for this fan?

    1 answer

    1. The wall opening would need to be 39" x 39".

      Helpful?
