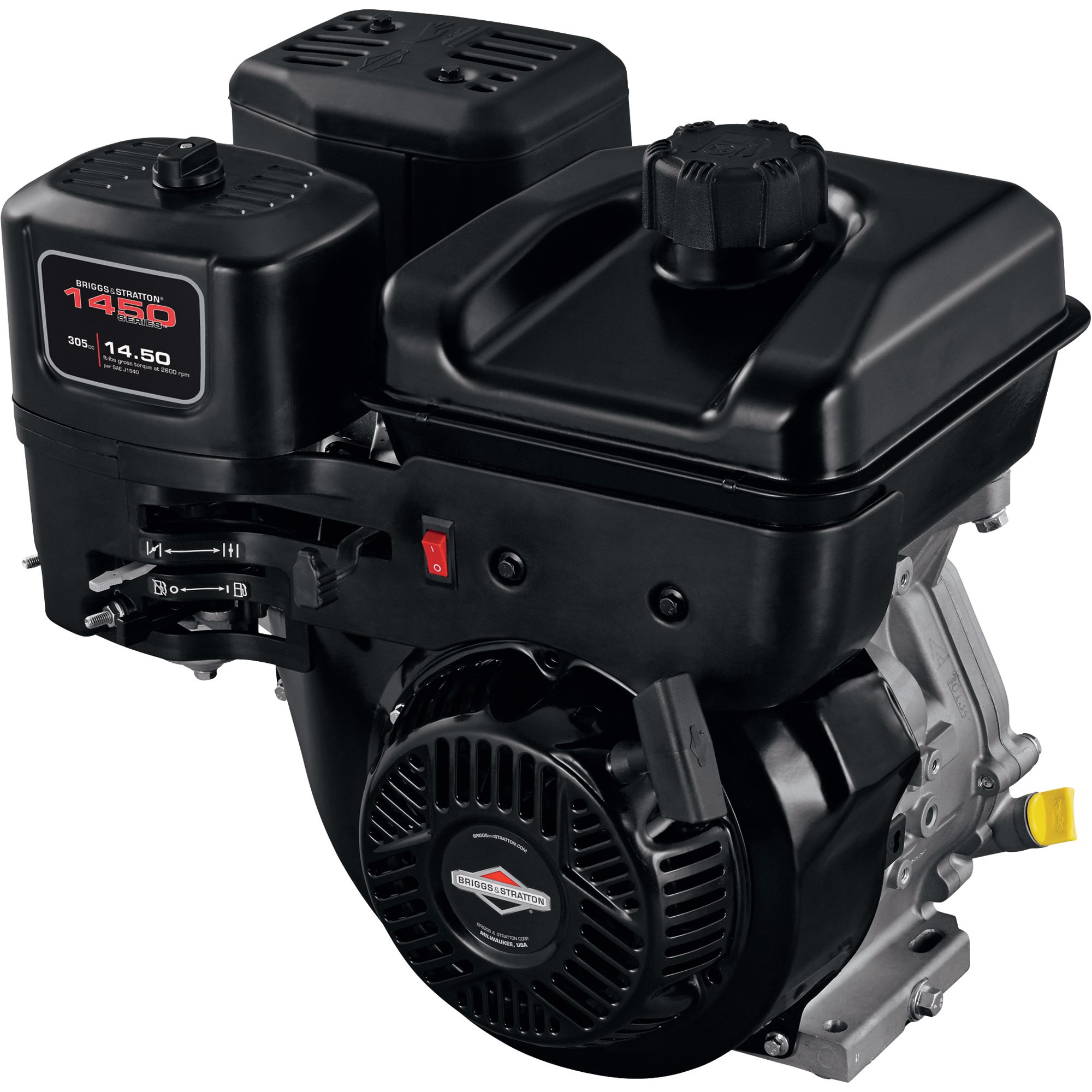

Briggs & Stratton 1450 Series Horizontal OHV Engine — 306cc, 1in. x 3 31/64in. Shaft, Model# 19N137-0052-F1

Item# 44617
Briggs & Stratton 1450 Series Horizontal OHV Engine — 306cc, 1in. x 3 31/64in. Shaft, Model# 19N137-0052-F1

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Briggs & Stratton 1450 Series Horizontal OHV Engine — 306cc, 1in. x 3 31/64in. Shaft, Model# 19N137-0052-F1

Click or Tap image to Zoom

  • 14.5 ft.-lbs. gross torque
  • OHV design for cooler operation, longer valve life
  • Dura-Bore™ cast iron cylinder sleeve withstands wear and abuse while providing improved oil control
  • PTO ball bearing
  • Mechanical governor controls throttle to deliver more power for tough chores

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Briggs & Stratton 1450 Series Horizontal OHV Engine produces 14.5 ft.-lbs. gross torque to get the job done. This robust, versatile engine with standard 1in. diameter crankshaft is designed and engineered for a wide range of applications including tillers, log splitters, compressors, pressure washers, blowers and more. The compact overhead valve design runs cooler and cleaner, delivering more power, longer engine life and improved fuel economy. The ball bearing-supported crankshaft, dual element air cleaner and lo-tone muffler make this engine a workhorse. Fast fuel delivery for one-pull starts and smooth operation.

What's Included

  •  (1) Engine

Downloads

Product Manual

Features + Benefits

  • 14.5 ft.-lbs. gross torque
  • OHV design for cooler operation, longer valve life
  • Dura-Bore™ cast iron cylinder sleeve withstands wear and abuse while providing improved oil control
  • PTO ball bearing
  • Mechanical governor controls throttle to deliver more power for tough chores
  • Maintenance-free Magnetron® electronic ignition for quick, dependable starts
  • Float feed carburetor for consistent one-pull starts
  • Dual-Clean™ premium air filter
  • Recoil start has auto compression release
  • Metal 3.2-qt. fuel tank for long run times and added durability
  • Lo-Tone muffler reduces noise levels and improves tonal quality
  • DuraLube™ gear-driven splash lubrication system continuously supplies oil to all internal parts
  • Oil sensor automatically shuts down the engine in low oil situations to safeguard investment
  • 12V gear-drive starter and 10 Amp DC alternator with regulator

Key Specs

AttributeSpecification

item#

44617

Brand

Briggs & Stratton

Manufacturer's Warranty

2 years consumer use / 1 year commercial use

Ship Weight

71.0 LB

Engine Displacement

306 cc

Engine Type

1450 Series OHV

Shaft Diameter

1 in

Shaft Length

3.48 in

Start Type

Recoil or electrical (battery/cable not included)

Shaft Keyway

0.25 in

PTO Height

5.26 in

Cylinders (qty.)

1

Cylinder Bore

Cast iron sleeve

Fuel Tank

Yes

Fuel Tank Capacity

3.2 qt

Oil Capacity

1.16 qt

Low Oil Shutdown

No
AttributeSpecification

Low Oil Alert

Yes

Shaft Rotation (From PTO Shaft Side)

Counterclockwise

Governor System

Mechanical

Ignition System

Electronic

Carburetor

Float

Lubrication System

Splash

Bearing Type

Ball

Auto Compression Release

Yes

Cooling System

Air cooled

Bore

3.22 in

Stroke

2.28 in

Air Cleaner Type

Dual element

Choke Control

Manual

Throttle Control

Manual, remote, adjustable (constant speed)

Fuel Filter

Yes

Charging System Amps

10

Muffler Included

Yes

Reviews

Questions & Answers

Questions

  1. Where is this engine manufactured?

    1. C H I N A !!

      Helpful?

    2. The Briggs & Stratton Engine is manufactured in China per Briggs & Stratton's specifications and quality control.

      Helpful?
