The engine has 8.5 horsepower.

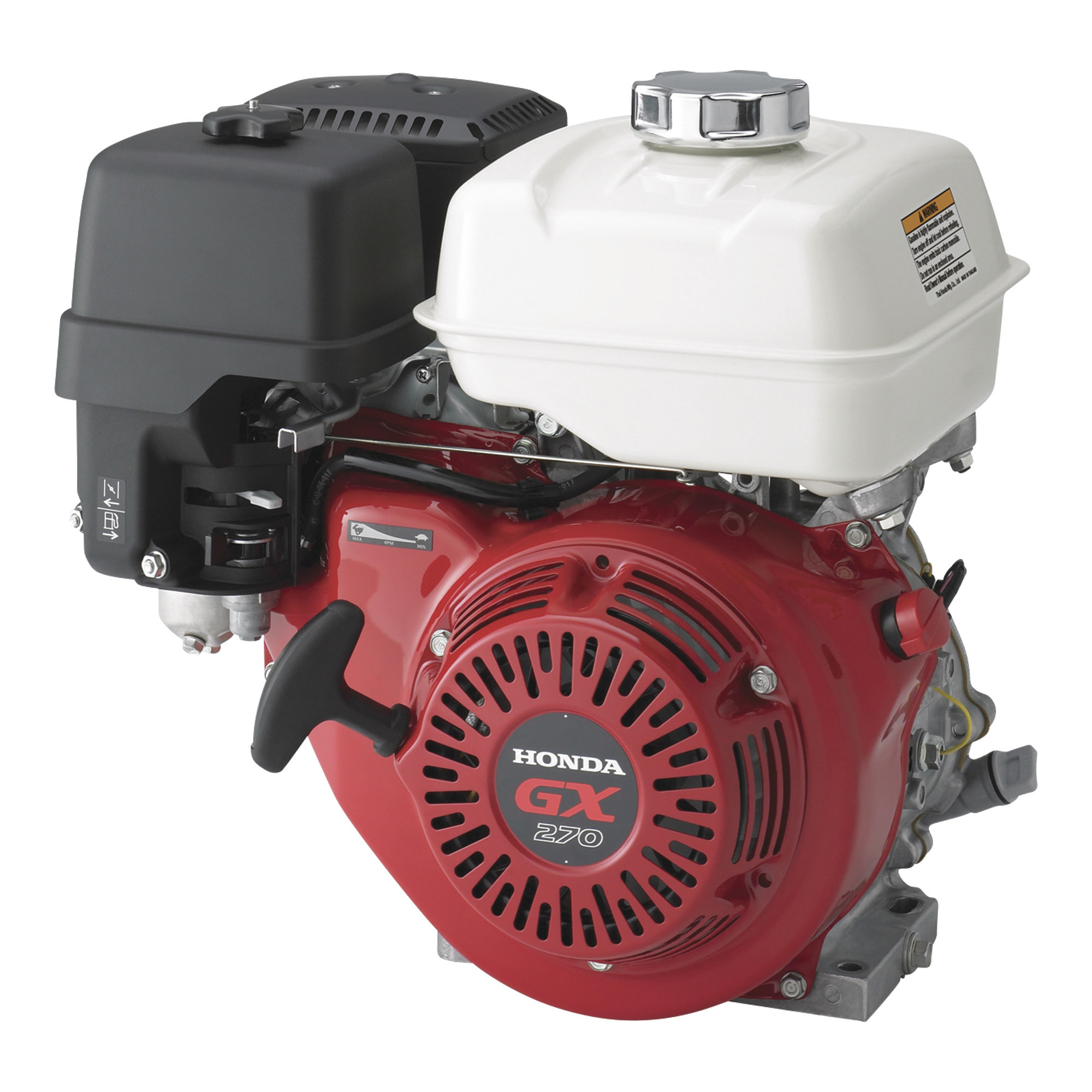

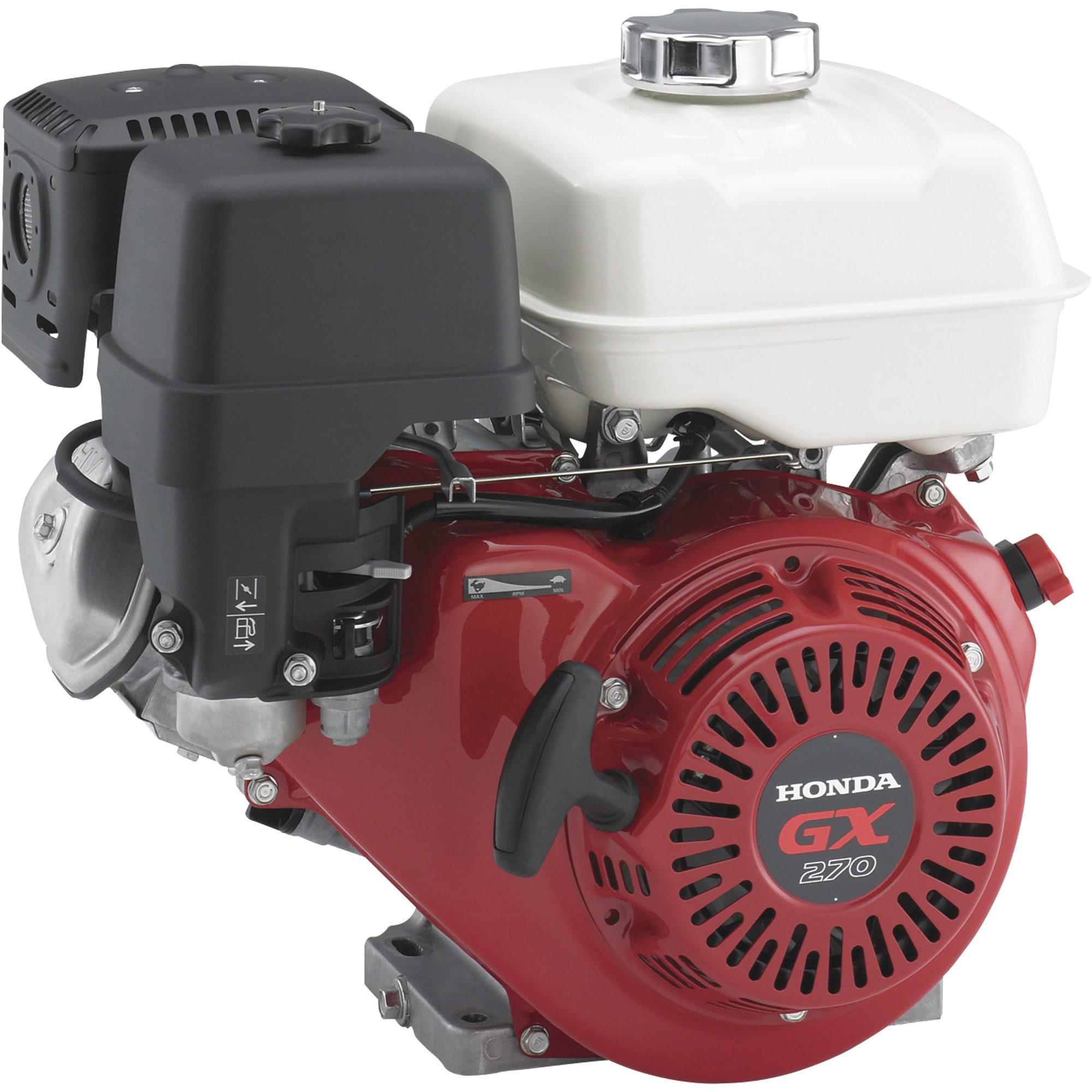

Honda Engines, HONDA 270CC 6:1 ENGINE, Engine Displacement 270 cc, Engine Type GX Series OHV Commercial-duty, Shaft Diameter 1 in, Model# GX270UT2HA2
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$969.99
- Honda 270cc OHV air-cooled, 4-stroke, horizontal engine
- Not for sale in CA
See full description
Price for all two:
$1007.98
Accessories We Recommend
This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
See All Horizontal Engines
See All Honda Engines Horizontal Engines
Currently Viewing This Product
Specifications
Specifications
Honda Engines, HONDA 270CC 6:1 ENGINE, Engine Displacement 270 cc, Engine Type GX Series OHV Commercial-duty, Shaft Diameter 1 in, Model# GX270UT2HA2
Kohler Liquid-Cooled Horizontal Diesel Engine, 1,028cc, 23.7 HP, Model# PA-KDW1003-1001B
Kohler Command PRO V-Twin OHV Horizontal Replacement Engine - 25 HP, 725cc, 1 1/8in. x 2 3/4in. Shaft, Model# PA-CH740-3117
Kohler Horizontal 4-Stroke Diesel Engine - 9.1 HP, Air-Cooled, 12V Electric Start, Model# PA-KD440-2101C
Engine Displacement
Same
270 cc
1,028 cc
725 cc
441 cc
Engine Type
Same
GX Series OHV Commercial-duty
Diesel Horizontal
Command Pro V-twin OHV
Diesel Horizontal
Shaft Diameter
Same
1 in
Group 8 Housing
1-1/8 in
-
Shaft Length
Same
3.23 in
Grp 8 in
2.75 in
-
Start Type
Same
Recoil
Electric
Electric
Electric
Net Torque
Same
14.1 ft-lbs.
62.5 ft-lbs.
39.2 ft-lbs.
-
Crankshaft
Same
H-type
-
Hardened
-
PTO Height
Same
5.25 in
Grp 8 in
6.125 in
-
Cylinders (qty.)
Same
1
3
2
1
Cylinder Bore
Same
Cast Iron
Aluminum
Cast Iron
Cast Iron
Net Power Output
Same
8.5 HP
23.7 HP
25 HP
9.1 HP
Compression Ratio
Same
8.5:1
22.8:1
9:1
20.3:1
Fuel Tank Capacity
Same
5.6 qt
-
-
-
Oil Capacity
Same
1.16 qt
2.5 qt
2 qt
1.6 qt
Shaft Rotation (From PTO Shaft Side)
Same
Counter Clockwise
Counter Clockwise
Counter Clockwise
Counter Clockwise
Governor System
Same
Centrifugal Mechanical
Internal Flywheel Governor
Variable Speed
Yes
Ignition System
Same
Electronic
Electronic
Electronic
Electronic
Carburetor
Same
Float, External Vent
No
Smart Choke
Direct Injection
Lubrication System
Same
Splash
Full Pressure W/full Flow Filter
Full Pressure
Full Pressure With Full Flow Filter
Cooling System
Same
Air
Liquid
Air
Air
Bore
Same
3 in
3 in
3.3 in
3.4 in
Stroke
Same
2.3 in
3.1 in
2.6 in
3 in
Air Cleaner Type
Same
Dual Element
Single Element
Dual Element
Single Element
Choke Control
Same
Manual
Remote
Remote
-
Throttle Control
Same
Manual
Remote
Remote
-
Fuel Filter
Same
Yes
Yes
Yes
-
Shaft Diameter Metric
Same
-
Grp 8
-
-
Shaft Length Metric
Same
-
Grp 8
-
-
Fuel Type
Same
-
Diesel
-
-
Shaft Keyway
Same
-
Grp 8 in
0.25 in
-
Low Oil Shutdown
Same
-
Yes
Yes
-
Low Oil Alert
Same
-
Yes
Yes
Yes
Max. RPM
Same
-
3,600
-
-
Bearing Type
Same
-
Parent Material
Parent Material
-
Auto Compression Release
Same
-
No
-
Yes
Charging System Amps
Same
-
45
20
20
Muffler Included
Same
-
Yes
-
Yes
Replaces OEM
Same
-
-
Toro Exmark ZTR
-
Fuel Tank
Same
-
-
No
-
Grade
Same
-
-
87 Up
-
