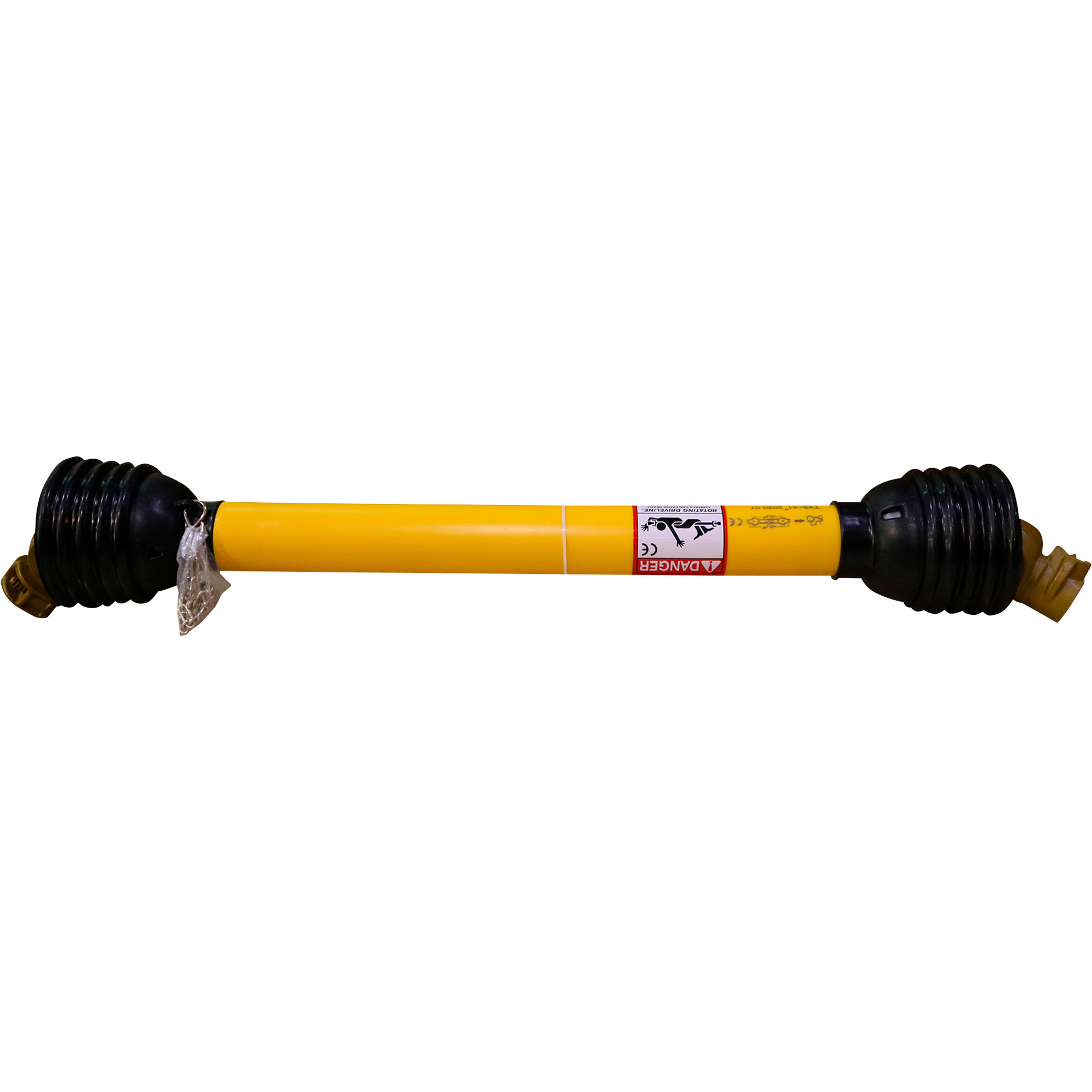

Braber, Pto Shaft 47HP 36in.-50in Length, 540 Shearbolt Clutch, Model# 69.885.005

Item# 31919
"Braber, Pto Shaft 47HP 36in.-50in Length, 540 Shearbolt Clutch, Model# 69.885.005"
Braber, Pto Shaft 47HP 36in.-50in Length, 540 Shearbolt Clutch, Model# 69.885.005

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Braber, Pto Shaft 47HP 36in.-50in Length, 540 Shearbolt Clutch, Model# 69.885.005

Click or Tap image to Zoom

$299.99

  • Shipping:

    Available now

  • Store Pickup:

    Not available - online only
  • Series 5
  • 36in. collapsed length, measured from end to end of the PTO shaft
  • 50in. max extended length, measured from end to end of the PTO shaft

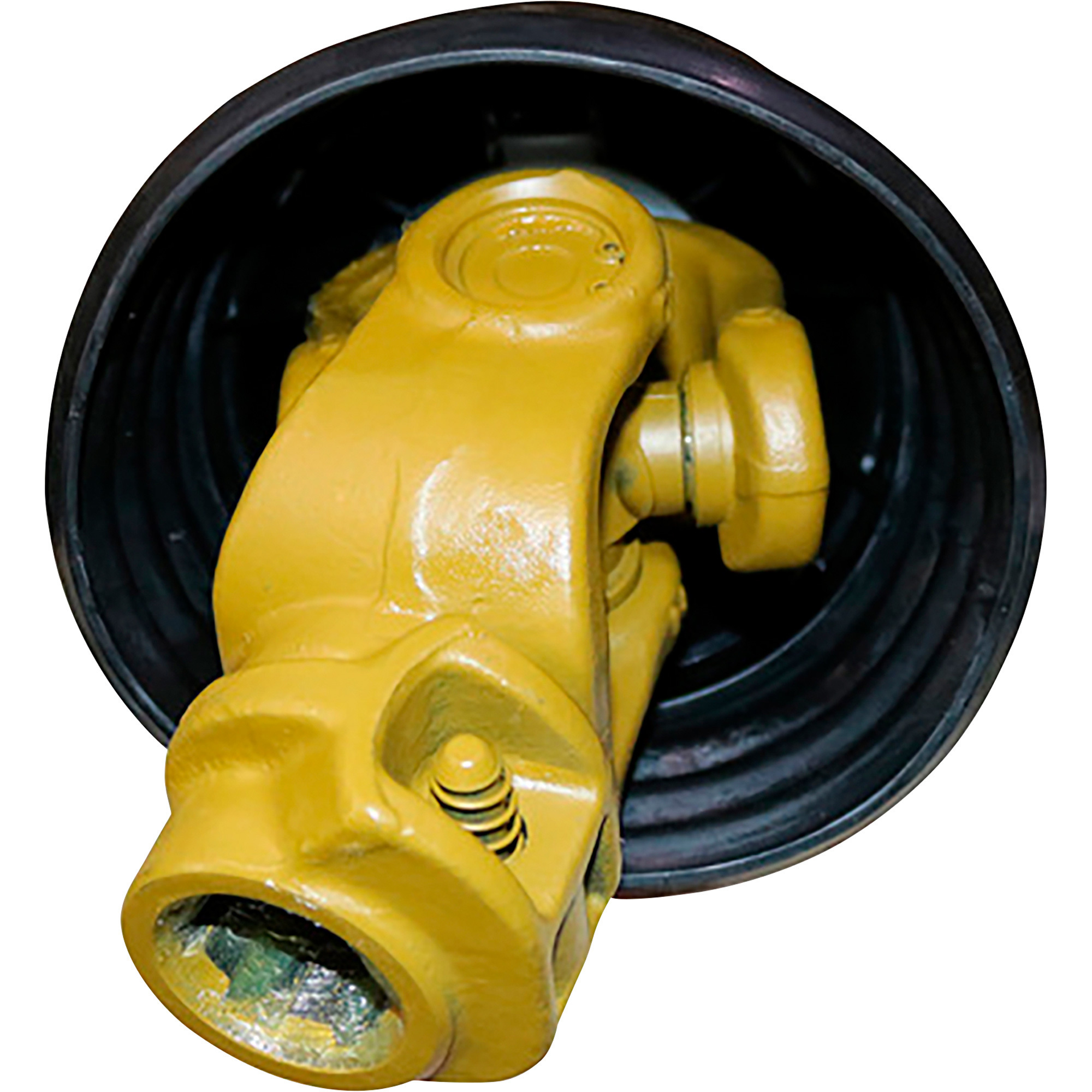

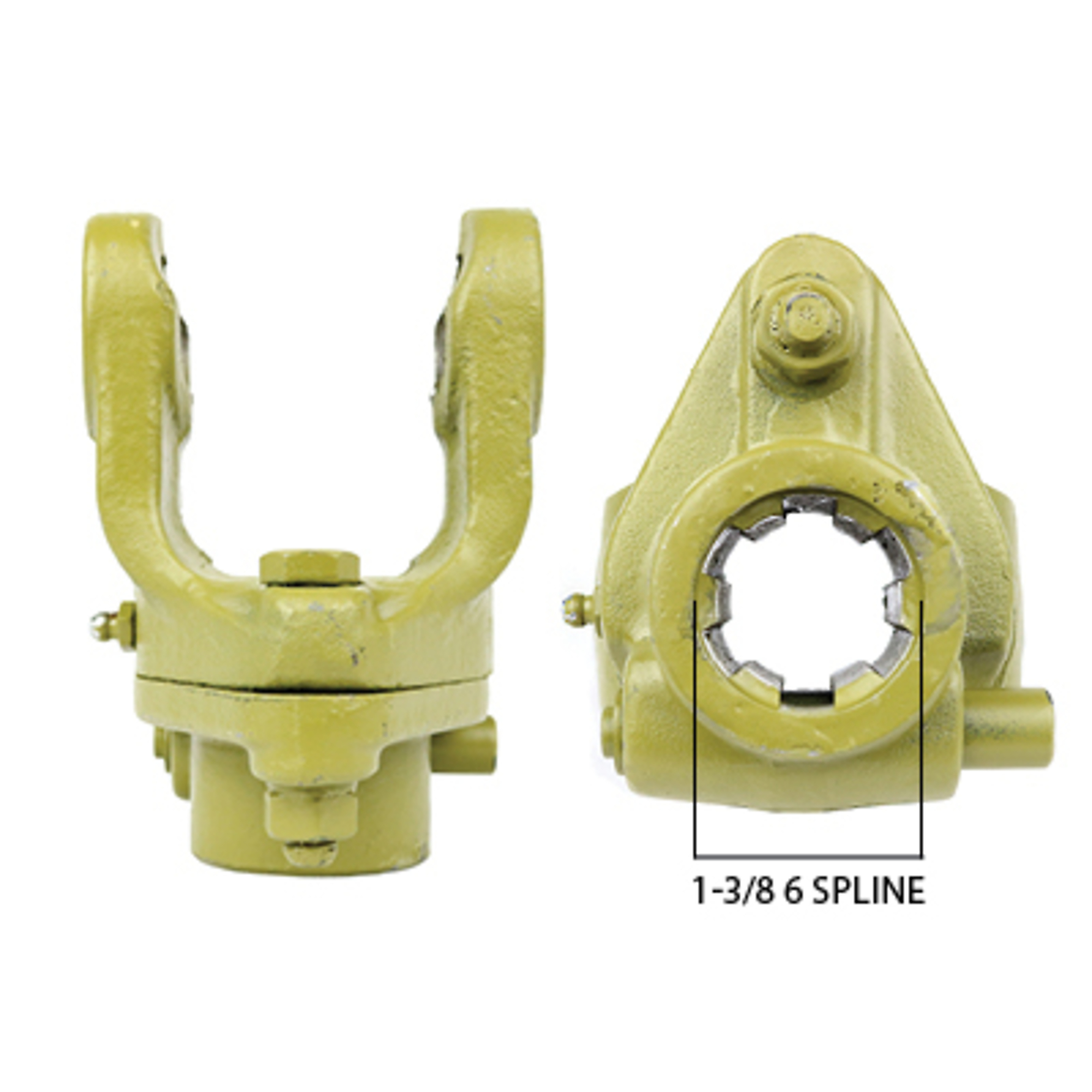

  • Quick-disconnect 1 3/8in.-6 spline x 1 3/8in.-6 spline quick-disconnect shear bolt clutch
  • 47 HP max. rating

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Compare

Product Summary

Complete driveline is economical and easy to install, so you don't have to spend time trying to repair damaged or worn shafts. Can be cut to desired length to meet your driveline needs. Meets all ASAE standards.

What's Included

    (1) Shaft assembly

Downloads

Product Manual

Features + Benefits

  • Series 5
  • 36in. collapsed length, measured from end to end of the PTO shaft
  • 50in. max extended length, measured from end to end of the PTO shaft
  • Quick-disconnect 1 3/8in.-6 spline x 1 3/8in.-6 spline quick-disconnect shear bolt clutch
  • 47 HP max. rating
  • Optimal for use with snow blowers, rotary cutters and tillers

Key Specs

AttributeSpecification

item#

31919

Brand

BE AG & Industrial

Ship Weight

32.0 LB
AttributeSpecification

Max. Horsepower

47

Dimensions L x W x H (in.)

38.0 x 7.0 x 7.0 in

Product Weight

lb

Reviews

Questions & Answers

7 Reviews This action will navigate to reviews.

Questions

  1. Does this PRO Shaft come with clutch and all shields? What are specifications for sheer bolt -- length, diameter, bolt type? Thanks. Tom

    1 answer

    1. This PTO shaft assembly comes complete with the shield and clutch. The sheer bolt is a DIN 933 type.
      It is a hex bolt with an 8.8 hardness and measures 10 mm long x 5 mm in diameter with a 1.5 mm thread pitch.
