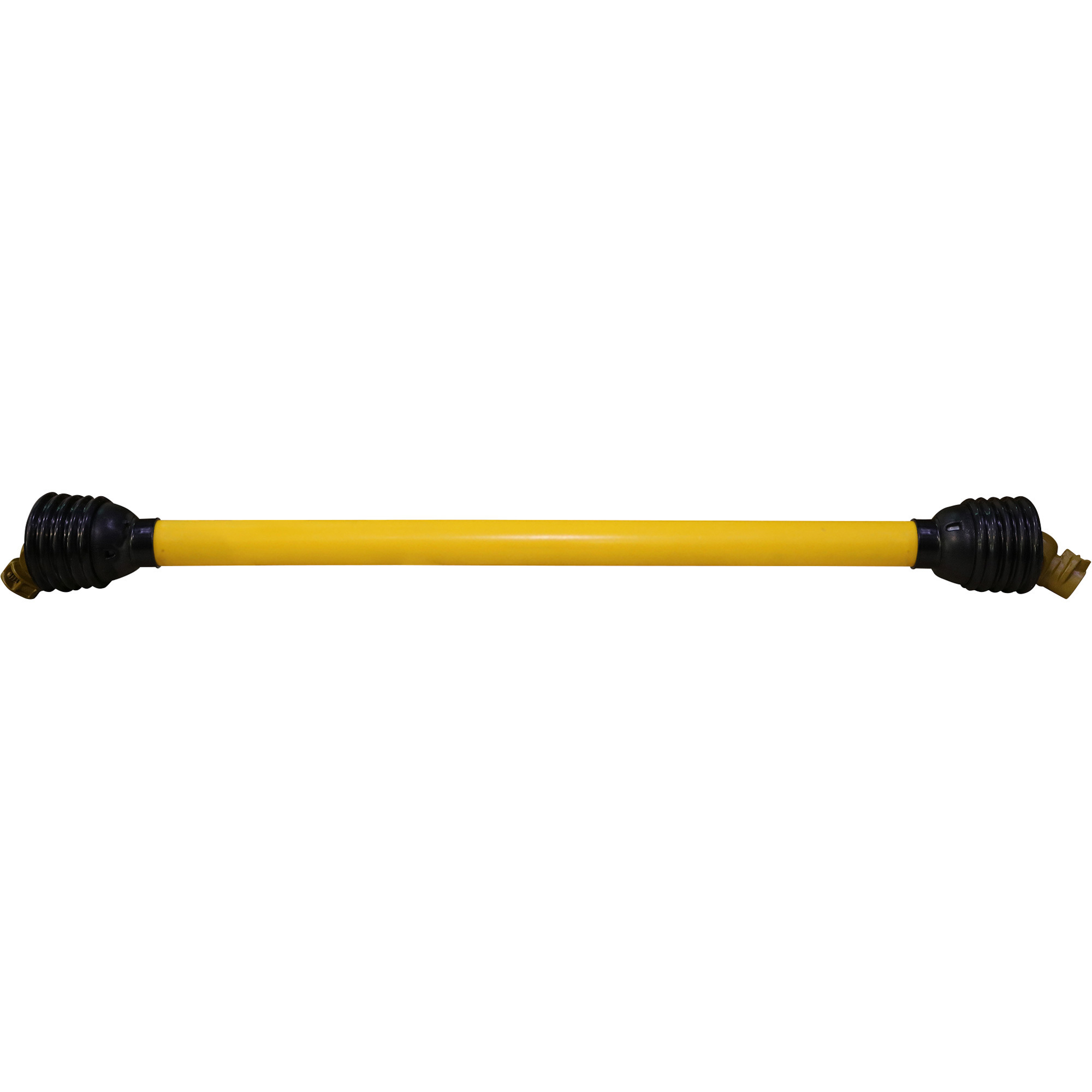

Braber, Pto Shaft 64HP 64in.-92in. Length, Model# 69.885.664

Item# 31925
"Braber, Pto Shaft 64HP 64in.-92in. Length, Model# 69.885.664"
Top Seller
Braber, Pto Shaft 64HP 64in.-92in. Length, Model# 69.885.664

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Braber, Pto Shaft 64HP 64in.-92in. Length, Model# 69.885.664

Click or Tap image to Zoom

$349.99

  • Shipping:

    Available now

  • Store Pickup:

  • Series 6
  • 64in. collapsed length, measured from end to end of the PTO shaft
  • 92in. max extended length, measured from end to end of the PTO shaft

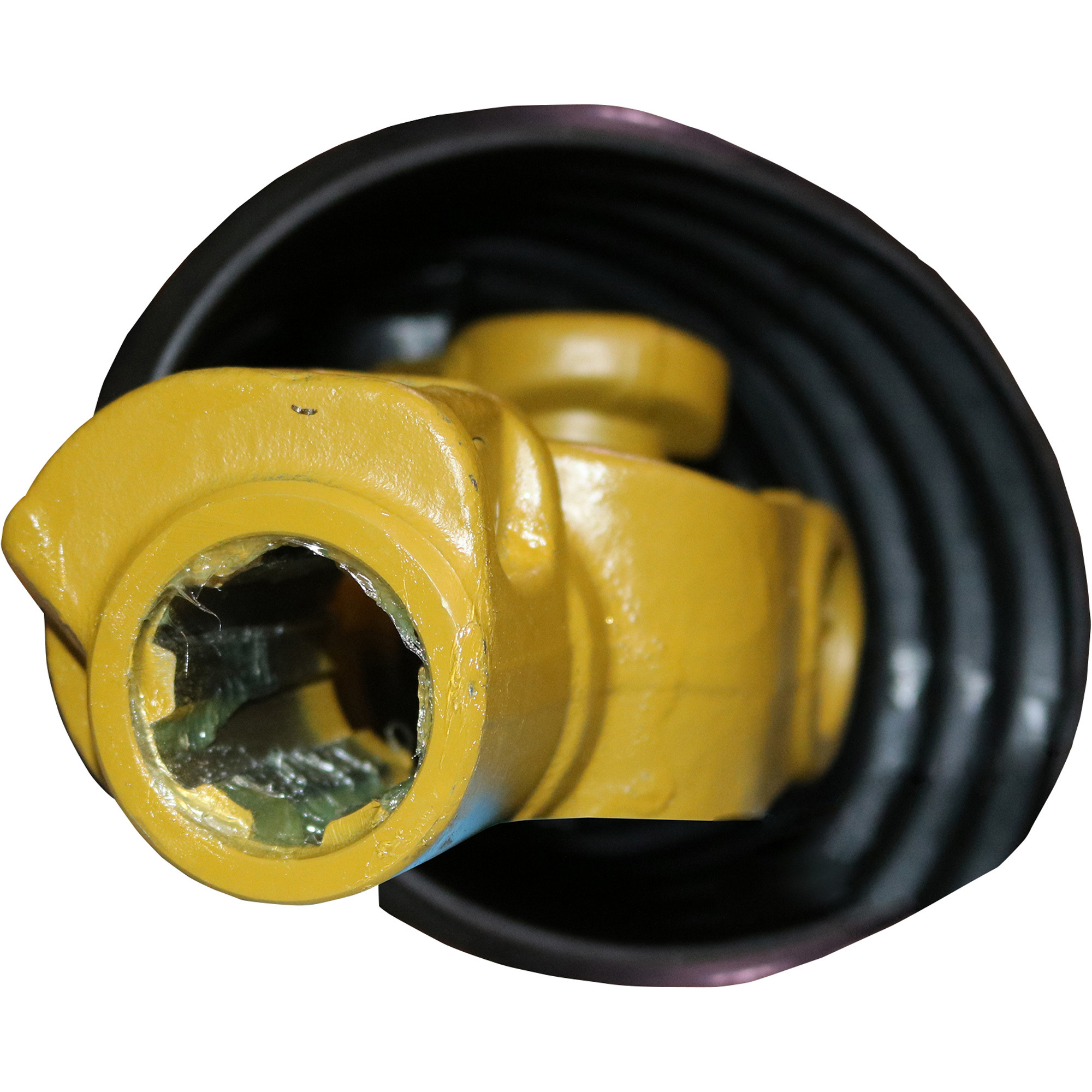

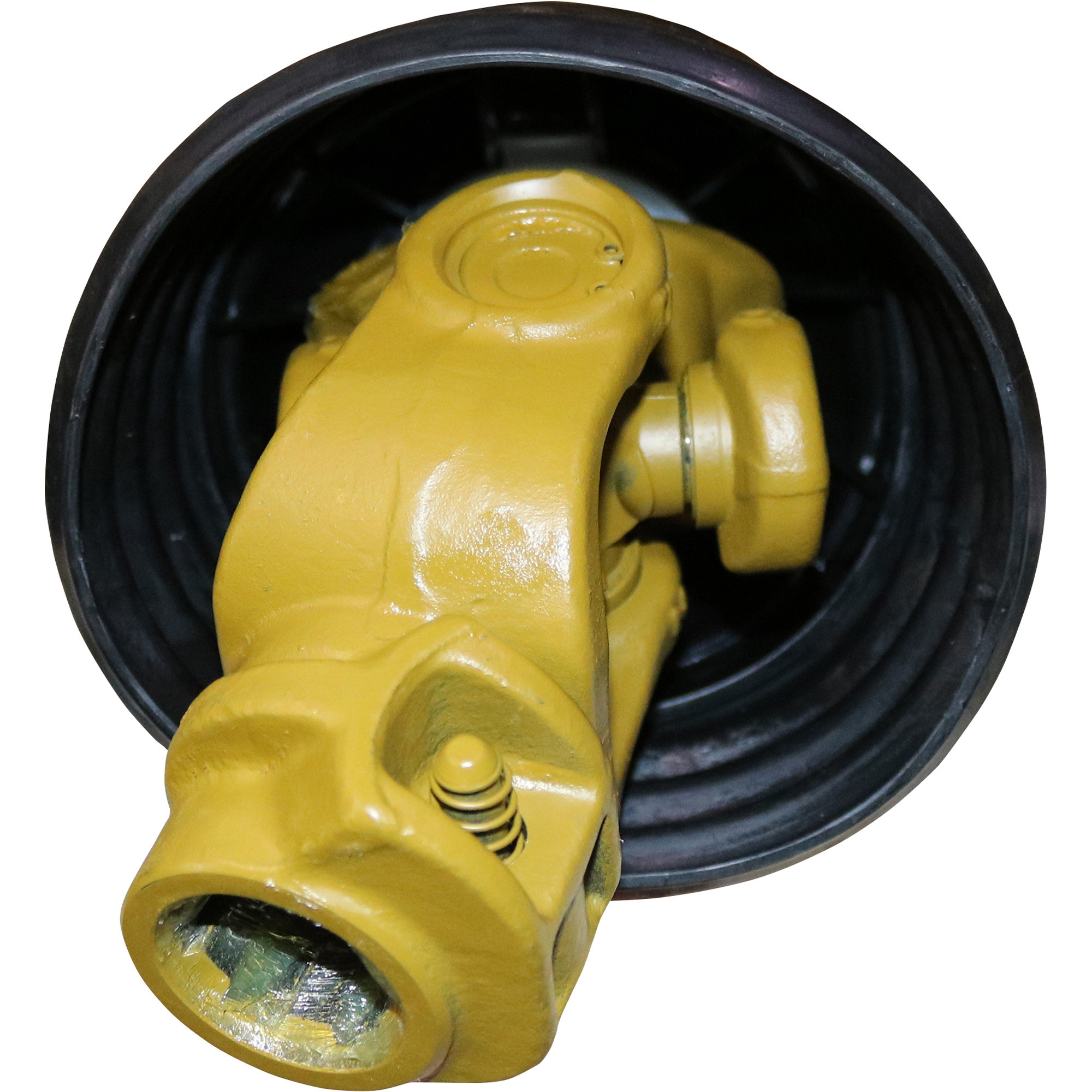

  • Quick-disconnect 1 3/8in.-6 spline on both ends
  • 64 HP max. rating

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Compare

Product Summary

Complete driveline is economical and easy to install, so you don't have to spend time trying to repair damaged or worn shafts. Can be cut to desired length to meet your driveline needs. Meets all ASAE standards.

What's Included

    (1) Shaft assembly

Downloads

Product Manual

Features + Benefits

  • Series 6
  • 64in. collapsed length, measured from end to end of the PTO shaft
  • 92in. max extended length, measured from end to end of the PTO shaft
  • Quick-disconnect 1 3/8in.-6 spline on both ends
  • 64 HP max. rating
  • Designed for general use

Key Specs

AttributeSpecification

item#

31925

Brand

BE AG & Industrial

Ship Weight

50.0 LB
AttributeSpecification

Max. Horsepower

64

Dimensions L x W x H (in.)

66.0 x 6.0 x 6.0 in

Product Weight

lb

Reviews

Questions & Answers

2 Reviews This action will navigate to reviews.

Questions

1–4 of 4 Questions
Sort by:

  1. What size is the cross bearing on the ends of this shaft?

    1 answer

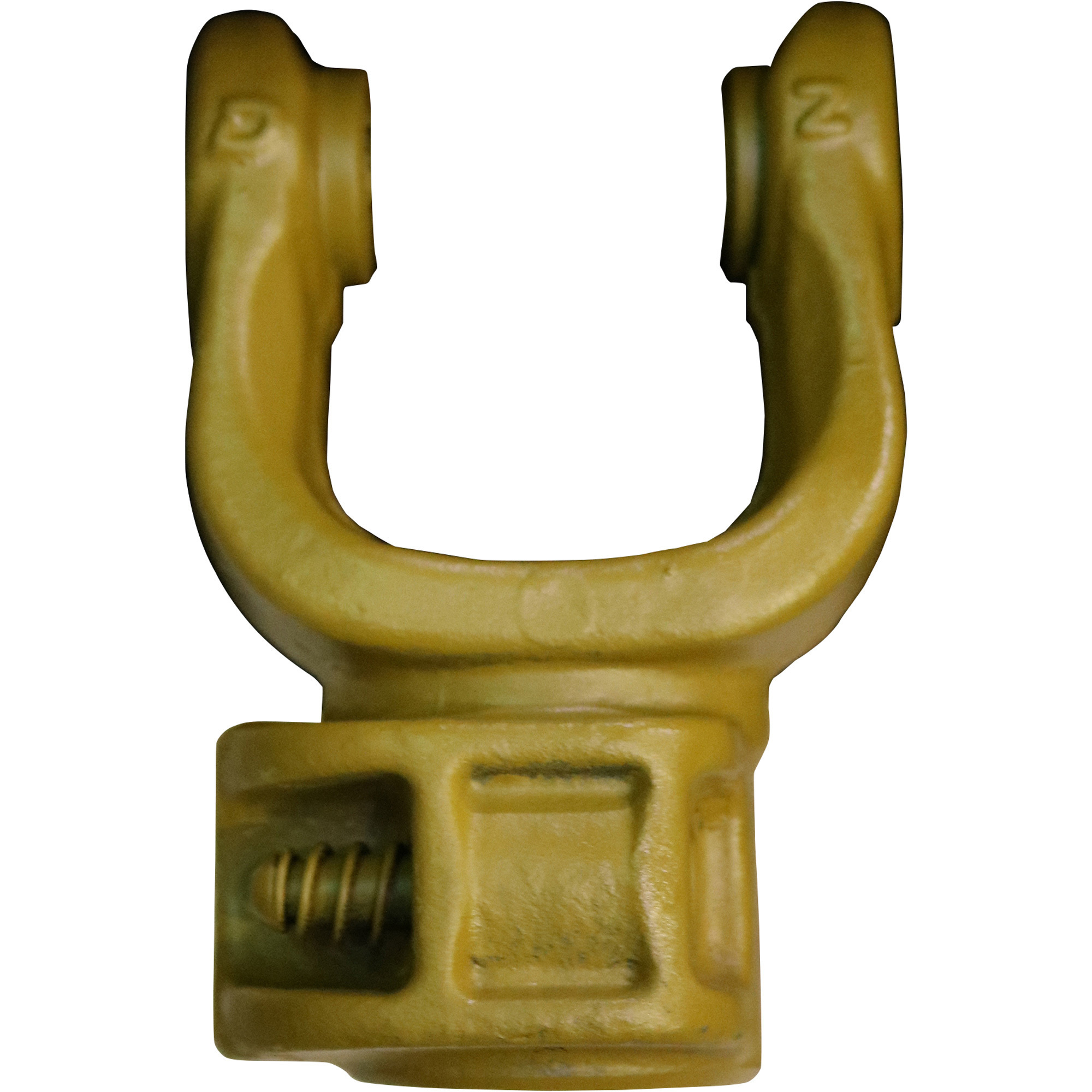

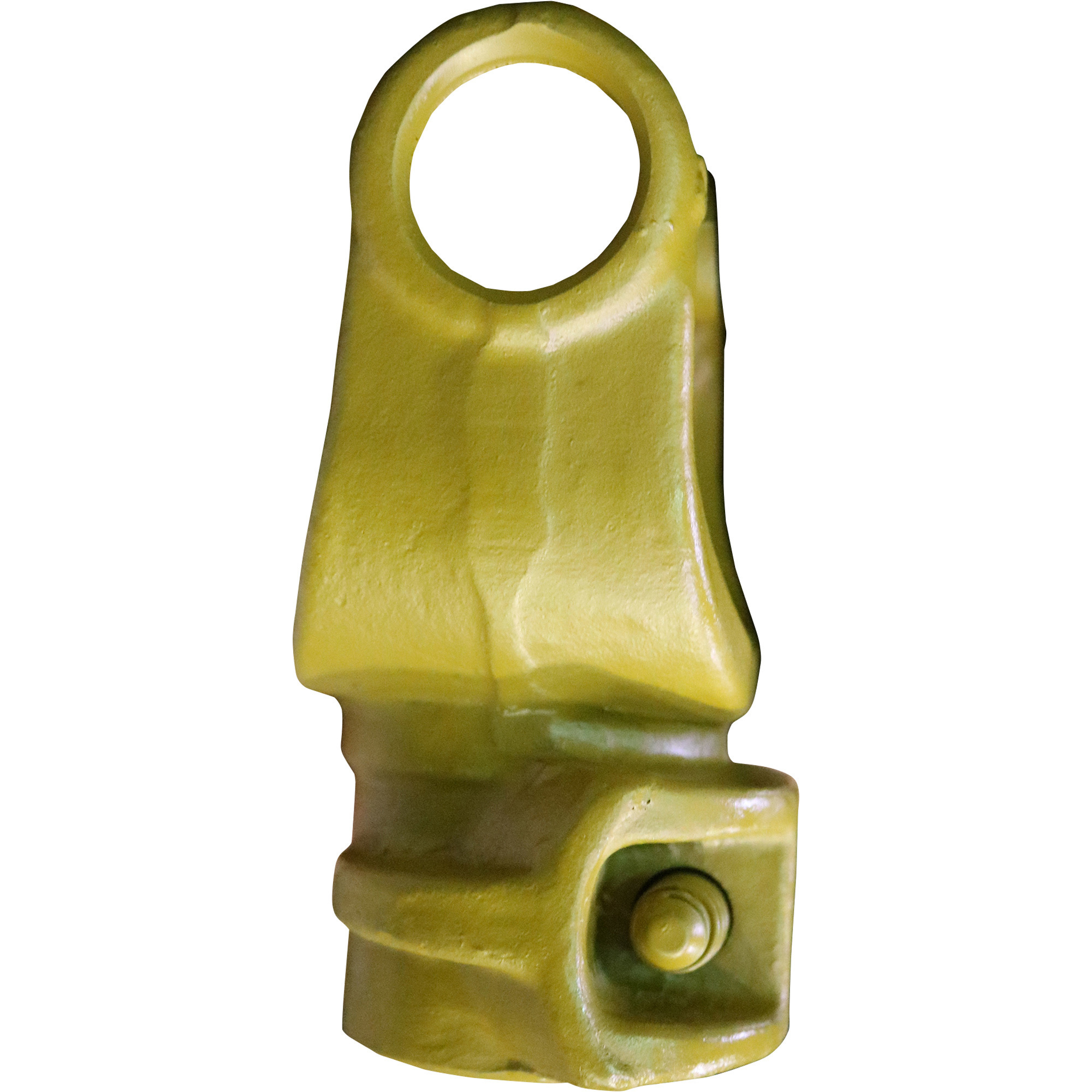

    1. The U joint cross bearing is a 6 series with 30.2 MM caps and 92 MM length of U joint.

      Helpful?

  2. Is there an adapter that could convert the implement end to a 7/8” smooth shaft?

    1 answer

    1. We do not currently offer an adapter that would work with this.

      Helpful?

  3. do you have one with a cv joint?

    1 answer

    1. We are unable to provide a PTO shaft assembly with a CV joint.

      Helpful?

  4. What is the max length of this drive shaft and what ends are on it?

    1 answer

    1. The maximum length is 92". It has quick disconnect 1 3/8"-6 spline on both ends.

      Helpful?
