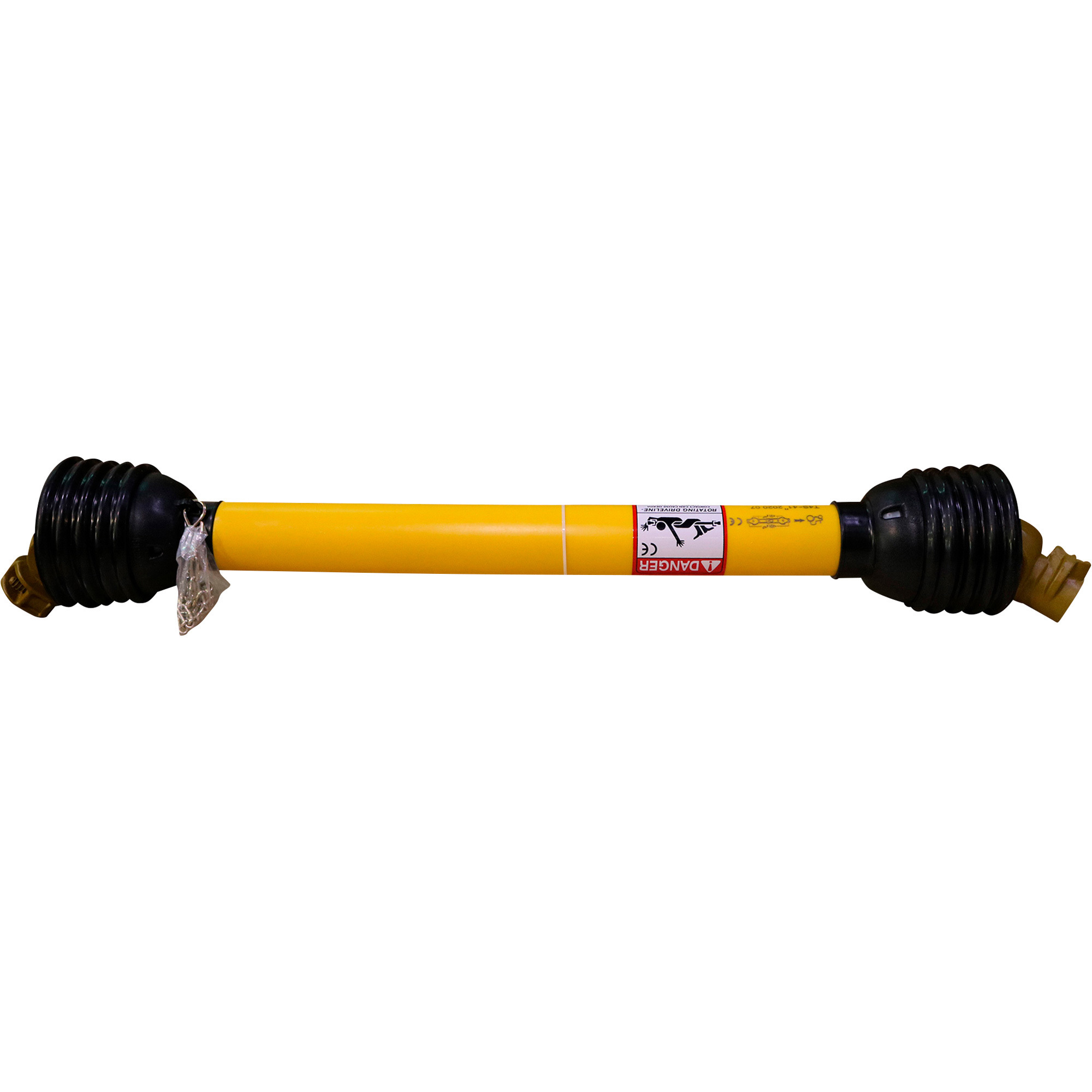

Braber, Pto Shaft 35HP 54in.-80in. Length, Model# 69.885.051

Item# 31922
"Braber, Pto Shaft 35HP 54in.-80in. Length, Model# 69.885.051"
Braber, Pto Shaft 35HP 54in.-80in. Length, Model# 69.885.051

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Braber, Pto Shaft 35HP 54in.-80in. Length, Model# 69.885.051

Click or Tap image to Zoom

$249.99

  • Shipping:

    Backordered: Order now to reserve yours -
    Estimated to ship 07/09/26

  • Store Pickup:

    Not available - online only
  • Series 4
  • 54in. collapsed length, measured from end to end of the PTO shaft
  • 80in. max extended length, measured from end to end of the PTO shaft

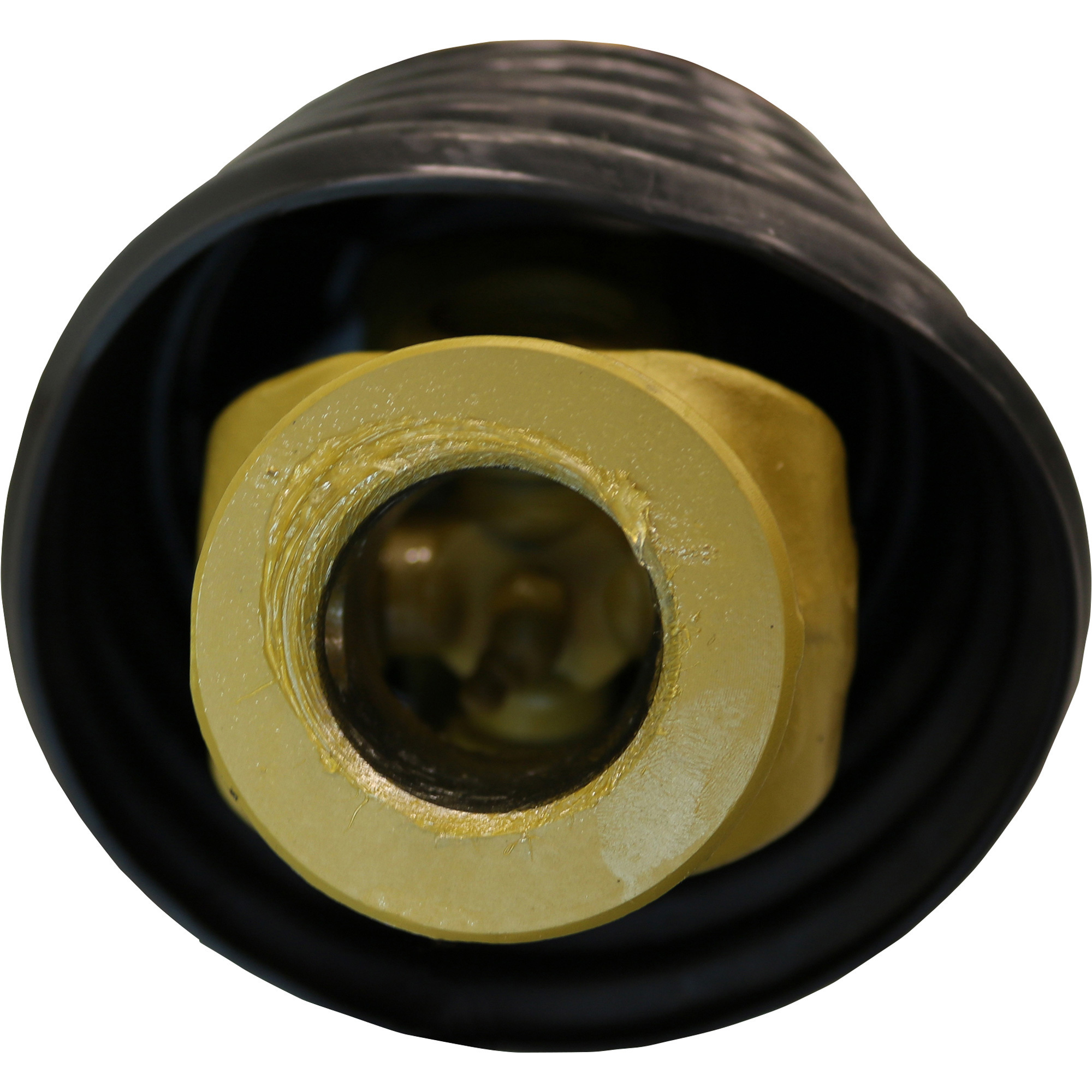

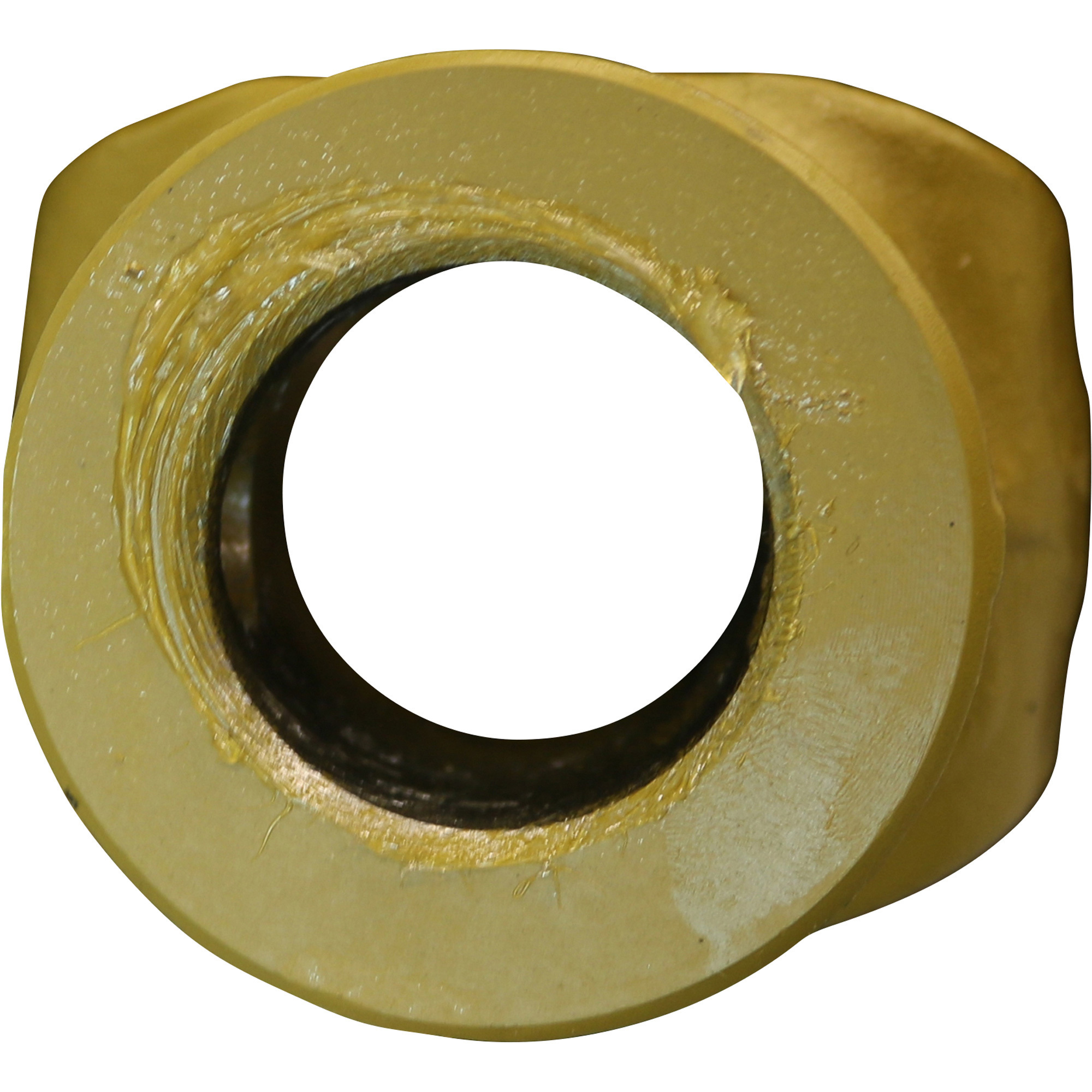

  • Quick-disconnect 1 3/8in.-6 spline x 1 3/8in. round bore
  • 35 HP max. rating

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Compare

Product Summary

Complete driveline is economical and easy to install, so you don't have to spend time trying to repair damaged or worn shafts. Can be cut to desired length to meet your driveline needs. Meets all ASAE standards.

What's Included

    (1) Shaft assembly

Downloads

Product Manual

Features + Benefits

  • Series 4
  • 54in. collapsed length, measured from end to end of the PTO shaft
  • 80in. max extended length, measured from end to end of the PTO shaft
  • Quick-disconnect 1 3/8in.-6 spline x 1 3/8in. round bore
  • 35 HP max. rating
  • Optimal for use with rotary mowers

Key Specs

AttributeSpecification

item#

31922

Brand

BE AG & Industrial

Ship Weight

32.0 LB
AttributeSpecification

Max. Horsepower

35

Dimensions L x W x H (in.)

56.0 x 7.0 x 7.0 in

Product Weight

lb

Reviews

Questions & Answers

20 Reviews This action will navigate to reviews.

Questions

1–6 of 6 Questions
Sort by:

  1. Max HP

    Does max 35 hp mean I can't use for my shredder on my 85 hp JD tractor?

    1. That's exactly what it means. 85 Hp would require a series 8 PTO shaft at 540RPM or a series 6 for a 1000 RPM PTO.

      Helpful?

    2. You cannot use this item for the shredder on an 85 HP tractor.

      Helpful?

  2. Is this shaft functional when extended to an overall length of 72 inches?

    1 answer

    1. This PTO shaft is functional up to a max extended length of 80".

      Helpful?

  3. Is the spline end of this assembly equipped with a push pin or a ball collar?

    1 answer

    1. The spline assembly is equipped with a push pin.

      Helpful?

  4. I need to replace the u-joint. Is one available at northern tool?  If not, what are the measurements/specs for a replacement?

    1 answer

    1. The U-joint is not available through Northern Tool. Please contact the manufacturer directly for further assistance.

      Helpful?

  5. What size shear pin fits this shaft?

    1 answer

    1. The shear pin size for this item is 1/2 inch (13mm).

      Helpful?

  6. What is the total leingth of this from end to end of conectors when collapsed?

    1 answer

    1. The total length counting the connectors is 56 inches.

      Helpful?
