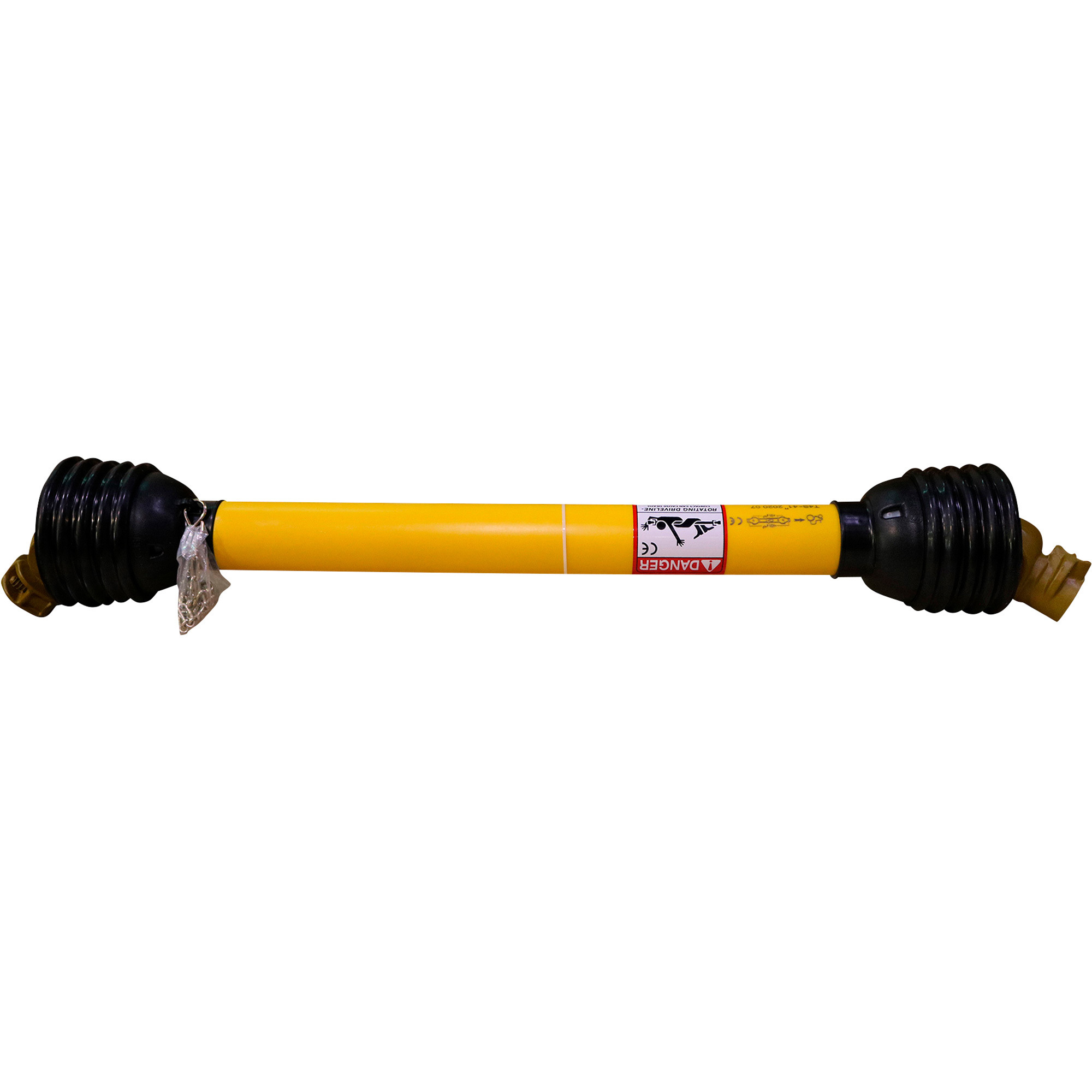

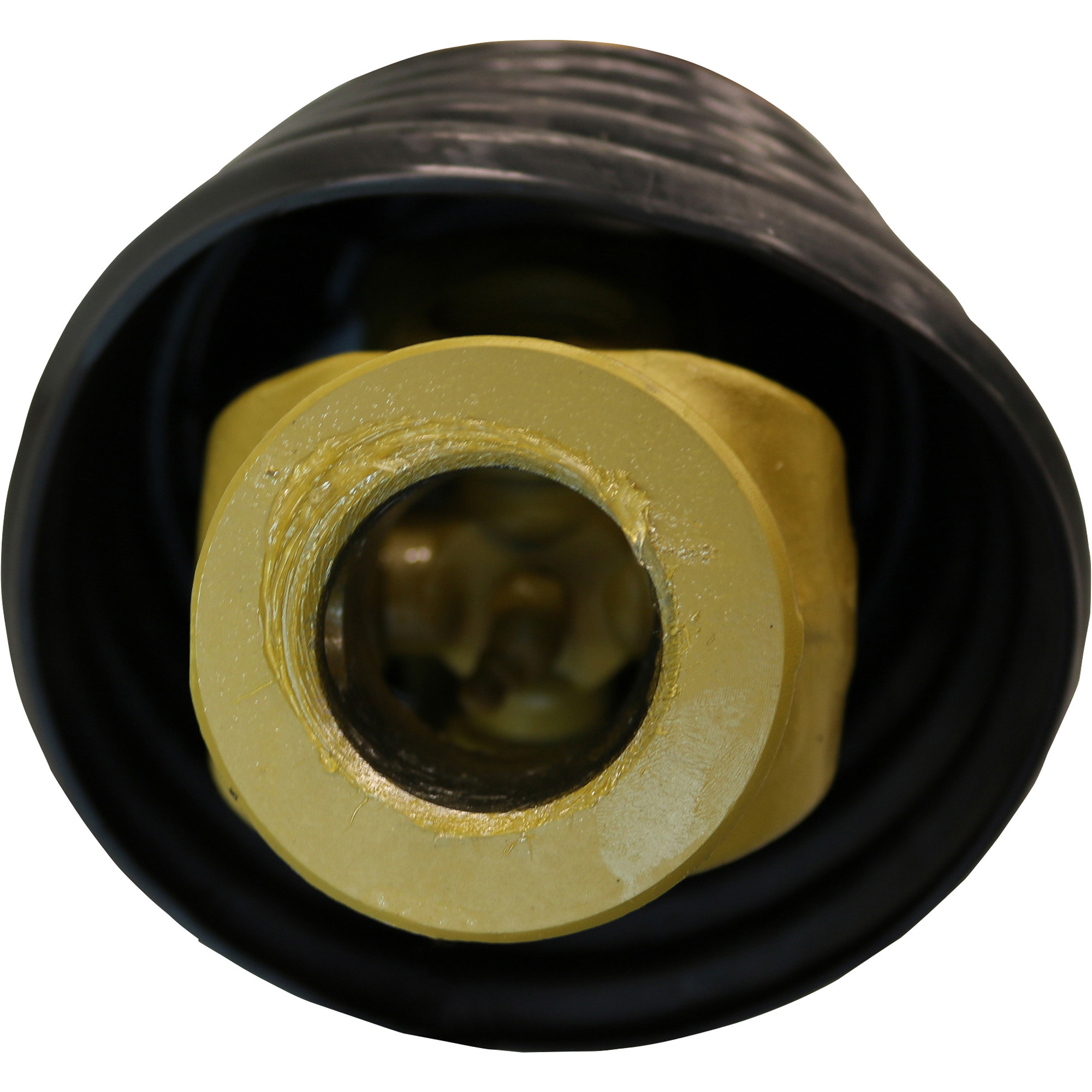

Braber, Pto Shaft 21HP 60in.-86in. Length, Model# 69.885.260

Item# 31923
"Braber, Pto Shaft 21HP 60in.-86in. Length, Model# 69.885.260"
Braber, Pto Shaft 21HP 60in.-86in. Length, Model# 69.885.260

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Braber, Pto Shaft 21HP 60in.-86in. Length, Model# 69.885.260

Click or Tap image to Zoom

$199.99

  • Shipping:

    Available now

  • Store Pickup:

  • Series 2
  • 60in. collapsed length, measured from end to end of the PTO shaft
  • 86in. max extended length, measured from end to end of the PTO shaft
  • Quick-disconnect 1 3/8in.-6 spline x 1 1/4in. round bore
  • 21 HP max. rating

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Compare

Product Summary

Complete driveline is economical and easy to install, so you don't have to spend time trying to repair damaged or worn shafts. Can be cut to desired length to meet your driveline needs. Meets all ASAE standards.

What's Included

    (1) Shaft assembly

Downloads

Product Manual

Features + Benefits

  • Series 2
  • 60in. collapsed length, measured from end to end of the PTO shaft
  • 86in. max extended length, measured from end to end of the PTO shaft
  • Quick-disconnect 1 3/8in.-6 spline x 1 1/4in. round bore
  • 21 HP max. rating
  • Optimal for use with post hole diggers

Key Specs

AttributeSpecification

item#

31923

Brand

BE AG & Industrial

Ship Weight

28.0 LB
AttributeSpecification

Max. Horsepower

21

Dimensions L x W x H (in.)

62.0 x 6.5 x 6.5 in

Product Weight

lb

Reviews

Questions & Answers

7 Reviews This action will navigate to reviews.

Questions

1–5 of 5 Questions
Sort by:

  1. What diameter shear pin is used on this shaft?

    1. 3/8"

      Helpful?

    2. This Braber Equipment General-Purpose PTO Shaft Assembly uses a 3/8” shear pin.

      Helpful?

  2. do the dimensions include the yoke or just the shaft?

    1 answer

    1. The collapsed length is 60 inches. The maximum extended length is 86 inches. The measurement will be the overall length including the yoke.

      Helpful?

  3. Does the yoke end to digger have a threaded allen keyed point to keep the yoke from coming off if the sheer pin breaks?

    1 answer

    1. This yoke does not have a threaded allen keyed point. It has only holes for the positioning of the shear bolt.

      Helpful?

  4. what is the round bore on a pto shaft

    1 answer

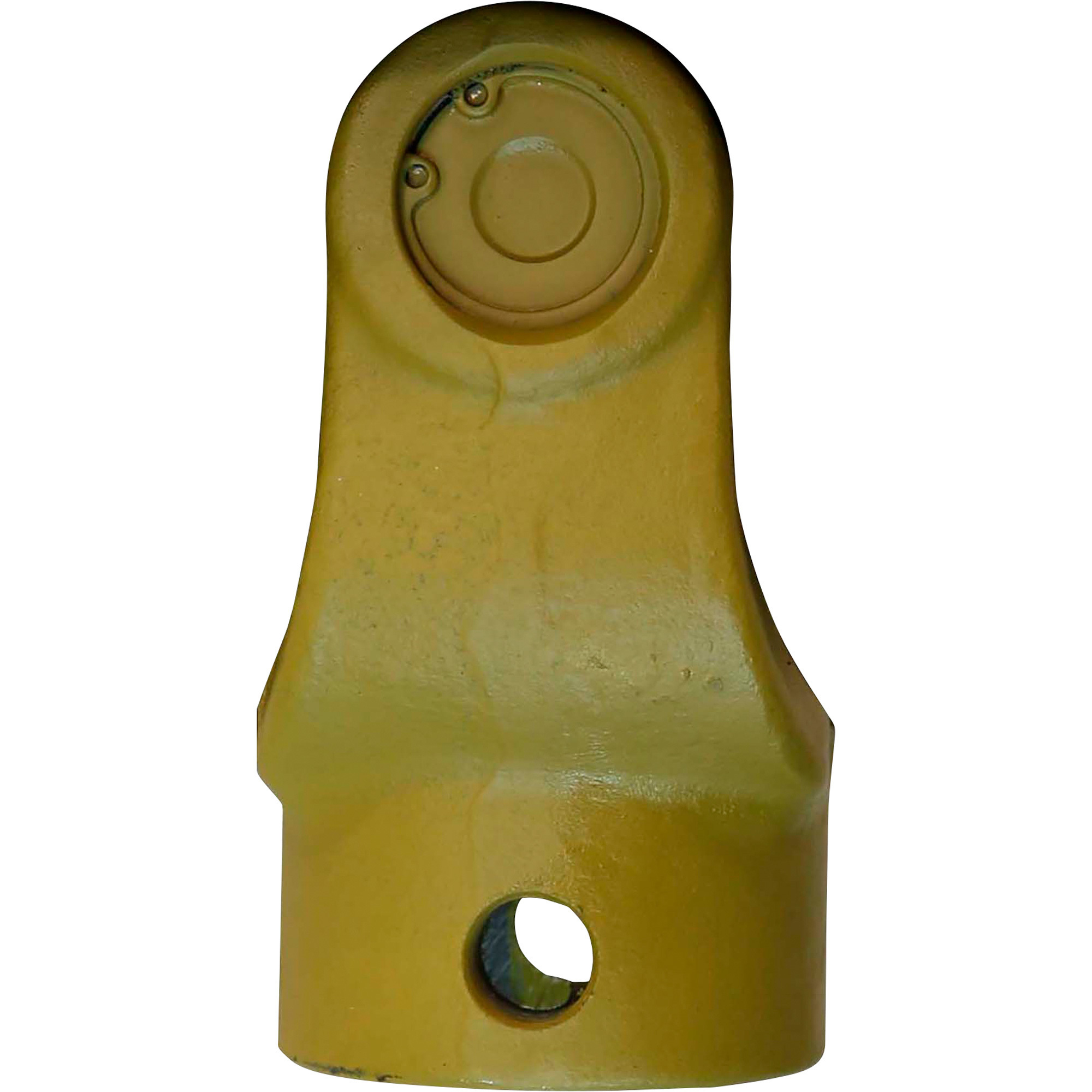

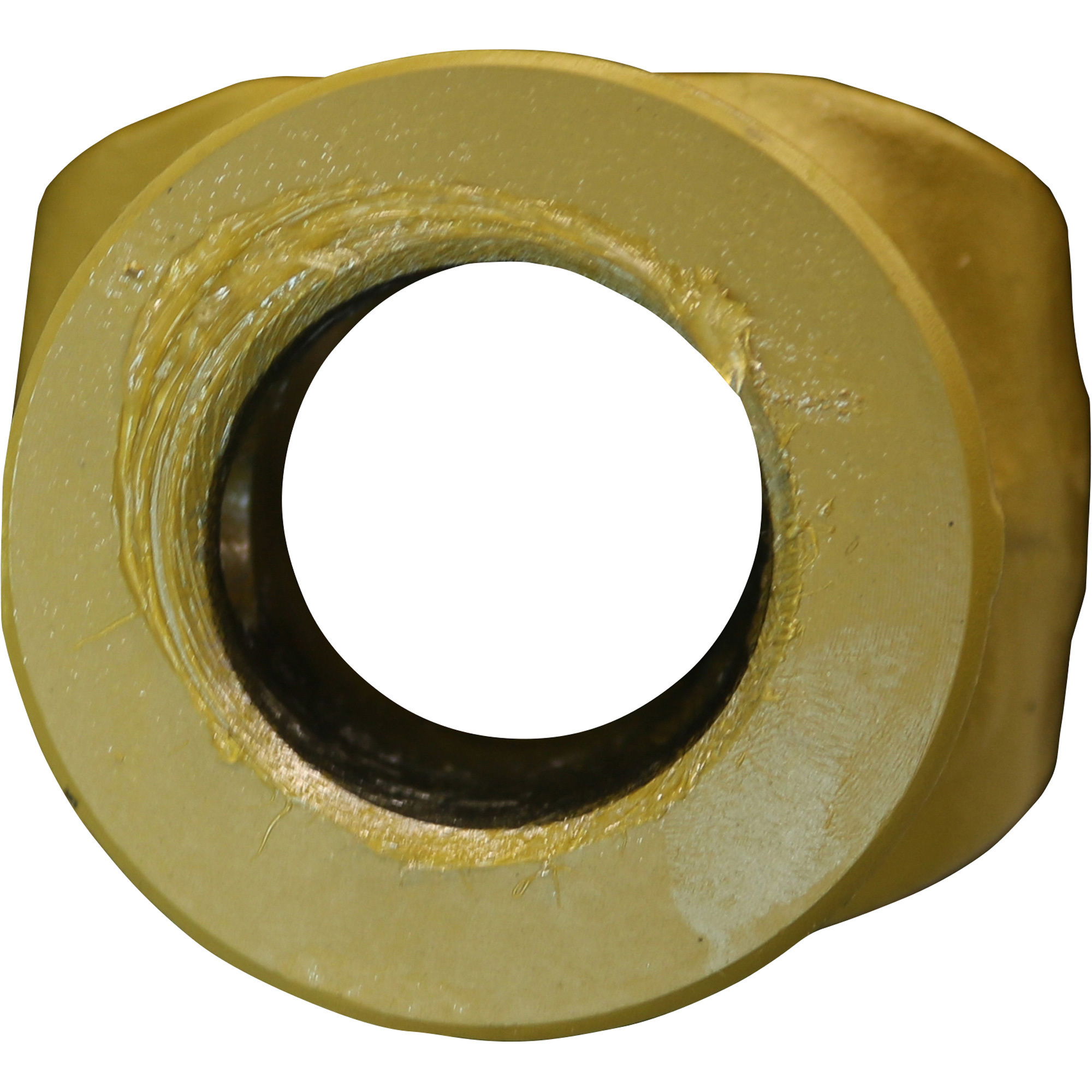

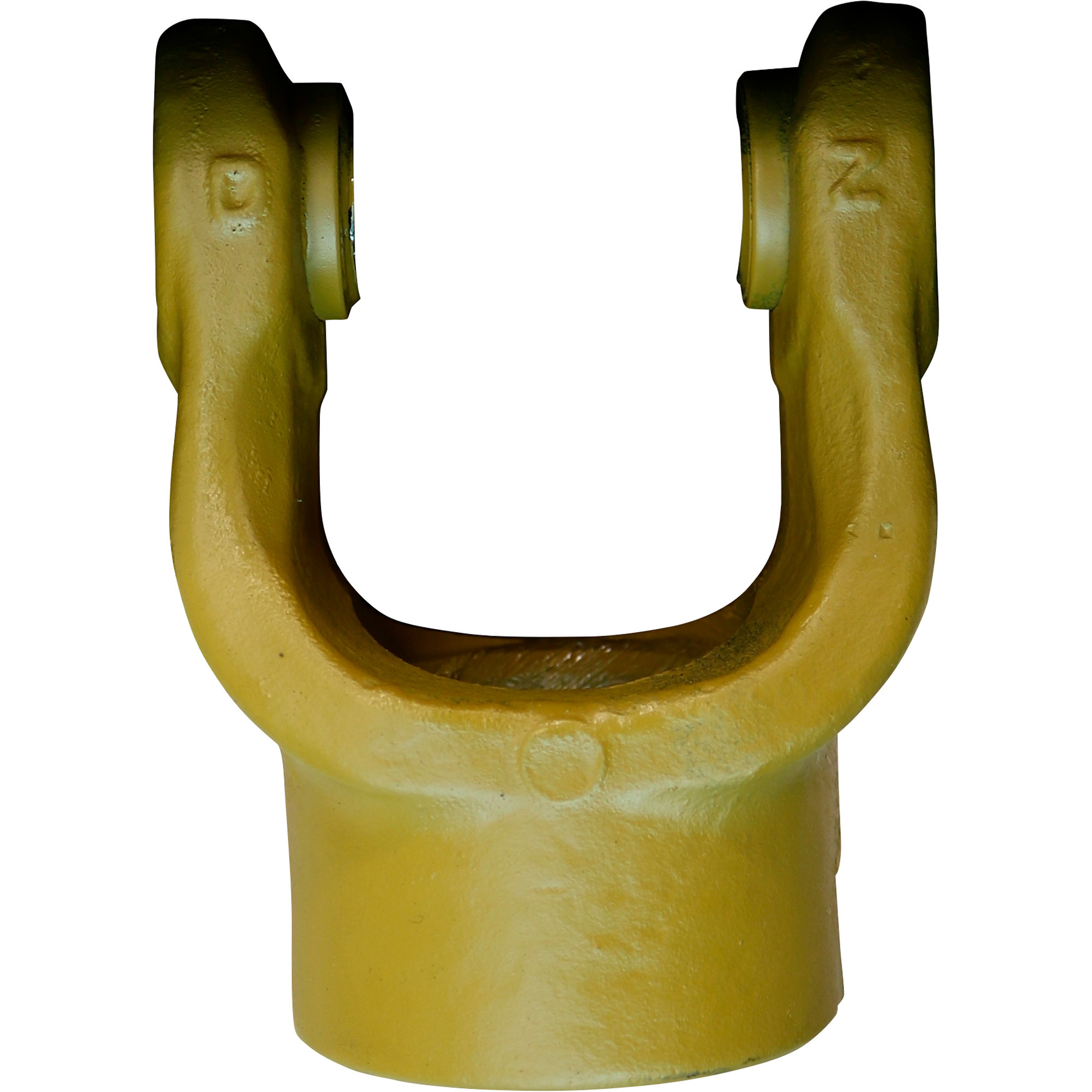

    1. The round bore is also known as the yoke. This part is shown in the third picture to the right of the product. The round bore is 1-1/4in.

      Helpful?

  5. does it have 35 series u-joints and is it a square shaft

    1 answer

    1. The Braber PTO Shaft is a Series 2 not a Series 35 assembly. The shaft is considered a 3 pt. Bondeoli Pavesi shaft.

      Helpful?
