BendPak Vehicle Alignment Lift, 9000-Lb. Capacity, Model# 5175820

Item# 95333
BendPak Vehicle Alignment Lift, 9000-Lb. Capacity, Model# 5175820

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

BendPak Vehicle Alignment Lift, 9000-Lb. Capacity, Model# 5175820

Click or Tap image to Zoom

$9395.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • 9000-lb. maximum lifting capacity
  • CE Approved and Certified
  • Forklift Required
  • Multi-caster slip plates
  • Dual radius plate positions

See full description

Complete Your Solution

  • BendPak Vehicle Alignment Lift, 9000-Lb. Capacity, Model# 5175820
  • BendPak Rolling Bridge Jack for 4-Post Lifts, 4500-Lb. Capacity, Model# RBJ-4500
  • BendPak Rolling Drain Pan for 4-Post Truck and Car Lifts, Model# DP-30
  • 3M Virtua Protective Safety Glasses, Clear Lens, Model# 11228-00000-100
Price for all four:

$12,271.99

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

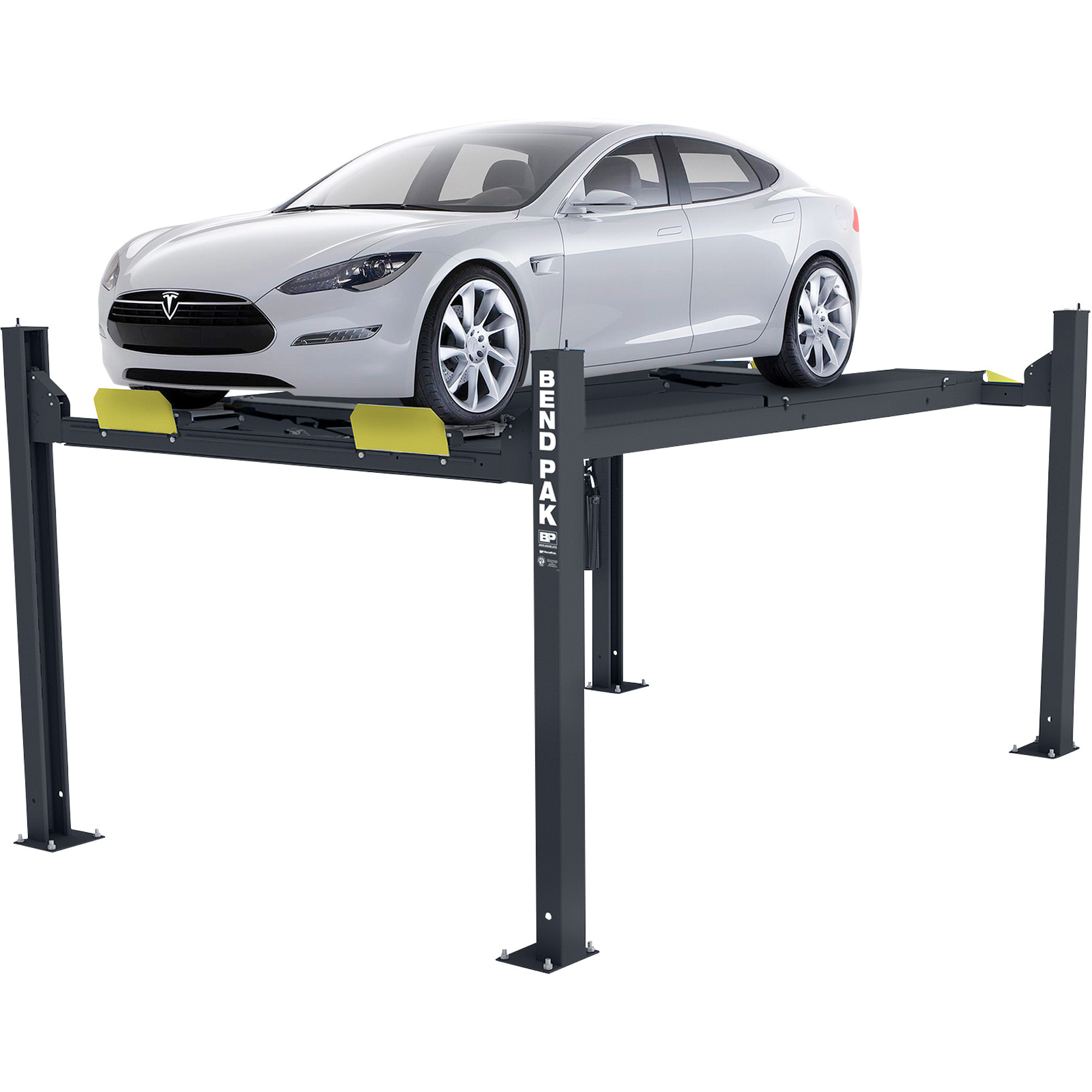

The BendPak Vehicle Alignment Lift features adjustable multi-position leveling, integrated front radius plates and rear slip plates. These features make it compatible with all leading alignment instrumentation, including 3D and camera wheel alignment systems. Multi-caster slip plates in the back and radius plates upfront allow for extremely precise, free-floating alignment. Wheel service is where many shops make the big bucks, so these lifts need to be dependable and efficient to keep you satisfied. Free-floating alignments are made easy-to-handle to help you get to work without delay and generate faster turnaround. Multi-caster slip plates are positioned in the rear, with turnplates established in the front. This allows for the most precise alignments in the business. Aluminum-alloy construction turn plates are easily positioned using BendPak's turnplate pockets. Larger and more robust than the previous BendPak slip-plate design, they're also lighter in construction and feature dual "popsicle gap stops" for your convenience. Angled steel lock pins conveniently hold the plate in place when you want to use your machine strictly as a maintenance or storage lift. This lift also features oversized cable sheaves within the runway and cross tubes sheave axles. This is essentially the same cable-routing system found on BendPak full-size car lifts, which means these exceptionally over-engineered alignment lifts are prepared to service your shop with hardly any maintenance for years to come. Item too large for lift gate. Requires forklift on site for unloading. This item is delivered by flatbed truck Monday-Friday with 24 hours advance notice. A forklift is required to offload the lift from a dock-height flatbed trailer.

What's Included

    (1) Vehicle alignment lift

Downloads

Product Manual

Features + Benefits

  • 9000-lb. maximum lifting capacity
  • CE Approved and Certified
  • Forklift Required
  • Multi-caster slip plates
  • Dual radius plate positions
  • Heavy-duty stainless steel lifting cables
  • Dual-hub cable sheaves
  • Grease nipples on every sheave and sheave axle
  • Single hydraulic cylinder
  • Integrated hydraulic flow restrictor
  • Durable powder-coat finish
  • Spring-loaded safety locks
  • Simple push-button lock release
  • Aircraft-quality stainless steel and aluminum pneumatic cylinders
  • Secondary lock system
  • Fully enclosed cables, airlines, safety latches and sheaves
  • Multiple adjustable height locking positions
  • Maintenance-free power system
  • Easy-to-reach operator controls
  • Non-skid runways

Key Specs

AttributeSpecification

item#

95333

Brand

BendPak

Manufacturer's Warranty

24 months parts/12months labor

Ship Weight

2270.0 LB

Capacity

9,000 lb

Max. Rise

7.2 ft

Horsepower

3 HP
AttributeSpecification

Motor Phase

Single-phase

Volts

220

Lock Spacing

4 in

Locking Position (qty.)

14

Time of Full Rise

60 sec.

Drive-Thru Clearance

103.5 in

Product Weight

2,292 lb

Reviews

Questions & Answers

Questions

  1. Is the overall length including ramps? What would be measured length without ramps if so Thank you so much

    1 answer

    1. The overall length of 224" is including the ramps. The length without the ramps would be 198".
