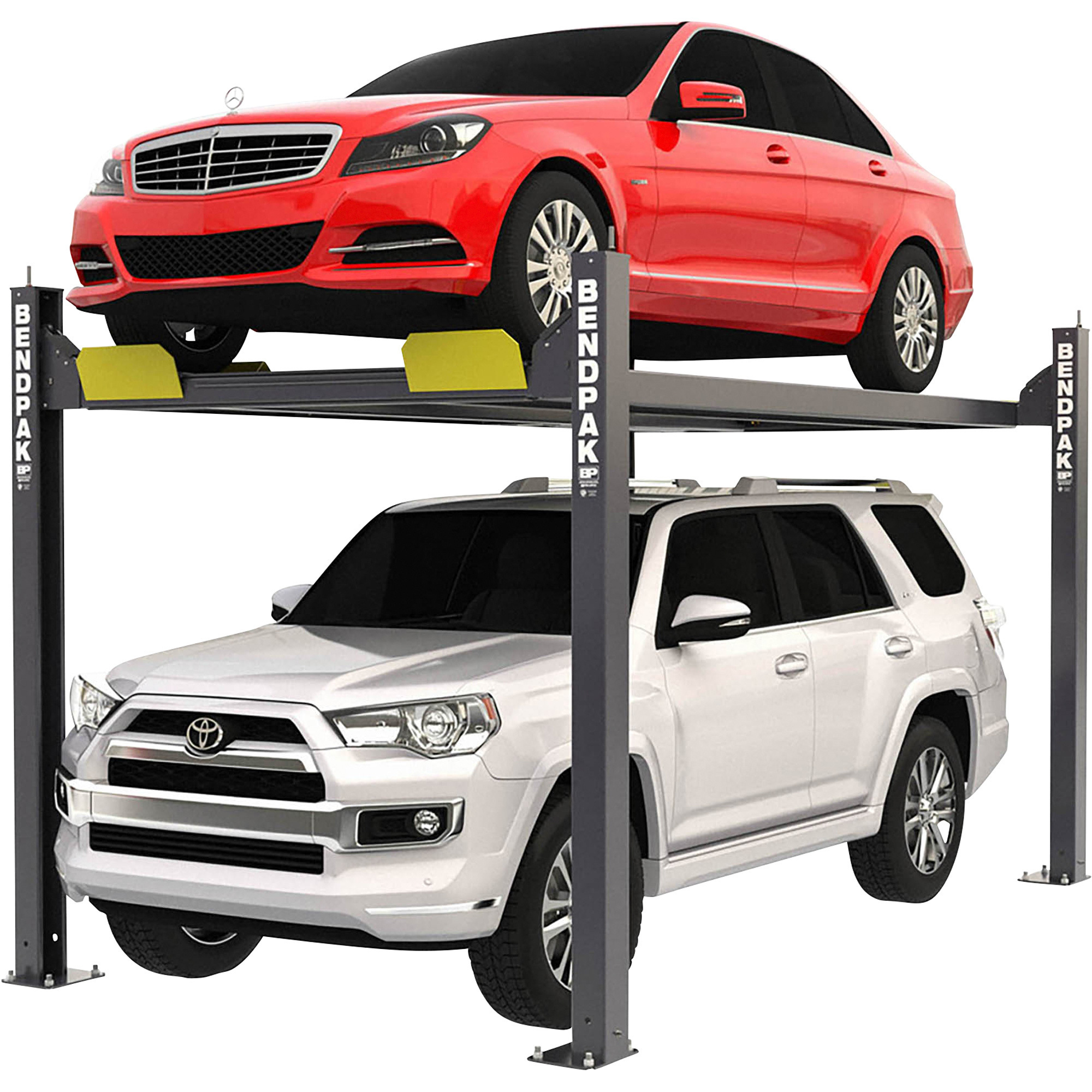

BendPak Compact 4-Post Car Lift, 7000-Lb. Capacity, Model# HD-7P

Item# 53857
BendPak Compact 4-Post Car Lift, 7000-Lb. Capacity, Model# HD-7P

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

BendPak Compact 4-Post Car Lift, 7000-Lb. Capacity, Model# HD-7P

Click or Tap image to Zoom

$6595.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • The HD-7P is a 7,000-lb. capacity, narrow-configuration four-post lift. This model offers compact convenience, so it also helps maintain an open, fresh appearance in more spacious garages
  • High lift with short runways
  • Forklift Required
  • Single hydraulic cylinder mounted underneath runway
  • Internal anti-sway slider blocks in each column

See full description

Complete Your Solution

  • BendPak Compact 4-Post Car Lift, 7000-Lb. Capacity, Model# HD-7P
  • BendPak Rolling Drain Pan for 4-Post Truck and Car Lifts, Model# DP-30
  • BendPak Sliding Jack Platform for 4-Post Lifts, Model# JP-6
Price for all three:

$7576.00

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The HD-7P is a 7,000-lb. capacity, narrow-configuration four-post lift. This model offers compact convenience, so it also helps maintain an open, fresh appearance in more spacious garages. A Versatile and Compact 7,000-lb. Parking Lift A parking lift is one of the best ways to save space. Home owners love the extra room their lifts offer, and commercial parking garages know that enough parking lifts can effectively double their garage space and their bottom lines. The only way to add parking spaces, other than a car lift, is to expand the physical boundaries of your property (e.g., in-ground lifts). Our lifts are made to outlast whatever vehicle(s) you stow on them. They require very little maintenance over their entire lifespans, and they look sleek and attractive in any setting. This is an important consideration for professionals who know customers make value judgments based off appearances: organized, efficient parking is a no-brainer. Homeowners will enjoy the sophisticated look too. The HD-7 parking lift components are all internally routed for both safety and improved aesthetics. Dual-hub cable sheaves By doubling the cable-run surface area on our cable sheaves, we’ve created a safer, longer-lasting product for your shop or garage. The extra engineering involved comes at our own expense, but we never believed at doing things on the cheap.

What's Included

    (1) 4-post car lift (1) 220V power unit (1) Set of parts

Downloads

Product Manual

Features + Benefits

  • The HD-7P is a 7,000-lb. capacity, narrow-configuration four-post lift. This model offers compact convenience, so it also helps maintain an open, fresh appearance in more spacious garages
  • High lift with short runways
  • Forklift Required
  • Single hydraulic cylinder mounted underneath runway
  • Internal anti-sway slider blocks in each column

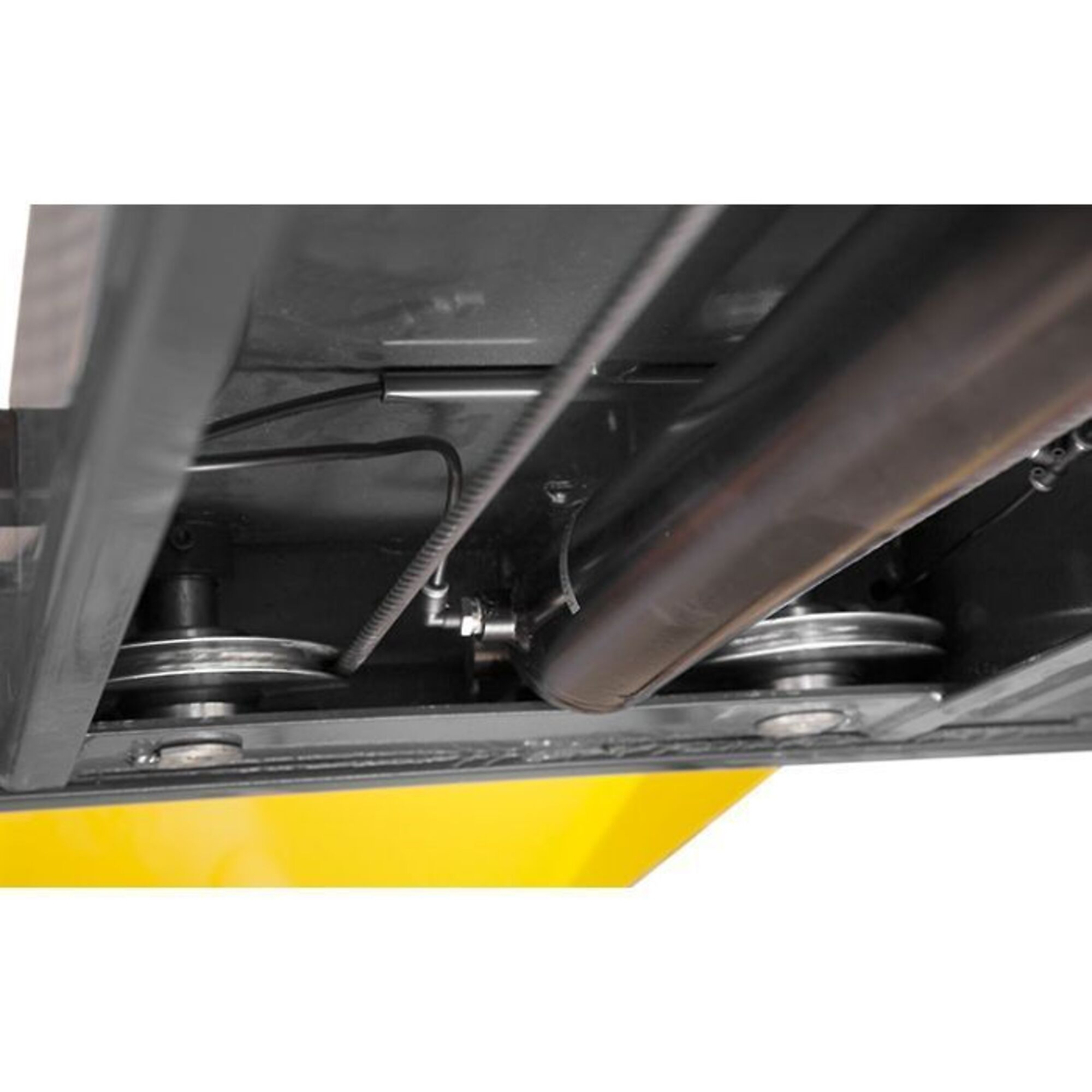

  • Oversized self-lubricating cable rollers
  • High-speed lifting
  • Rugged 1.25" roller axles
  • Heavy-duty 3/8in. aircraft cable offers strength and durability

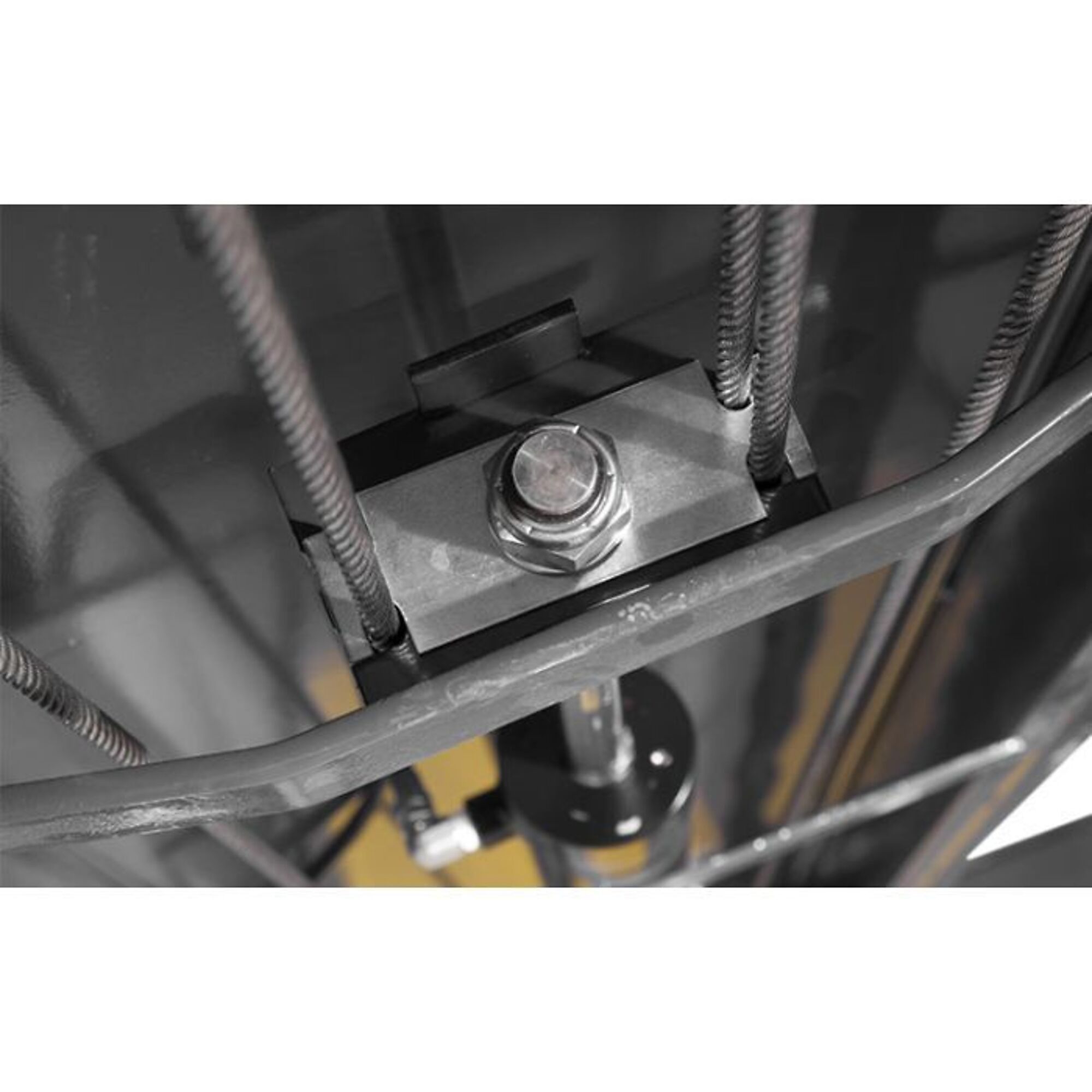

  • Multi-position safety locks in each column
  • Adjustable lock ladders
  • Push-button pneumatic safety release
  • Electric / hydraulic power system

Key Specs

AttributeSpecification

item#

53857

Brand

BendPak

Manufacturer's Warranty

2 year limited warranty

Ship Weight

1718.0 LB

Capacity

7,000 lb

Max. Rise

7 ft

Horsepower

3 HP
AttributeSpecification

Motor Phase

Single-phase

Volts

220

Locking Position (qty.)

17

Time of Full Rise

60 sec.

Drive-Thru Clearance

76.5 in

Material

Steel

Reviews

Questions & Answers

Questions

1–4 of 4 Questions
Sort by:

  1. How tall are the posts? How high must my garage ceiling be to accommodate this model? I have 10' of ceiling height. I have two low profile cars. Each one is less than 4' high. Can this lift work?

    1 answer

    1. The maximum rise is 82". Maximum lifting height is 85.75". The height of the columns is 100". There is not a minimum ceiling height recommended. The ceiling height is dependent on the vehicle that you are lifting. The ceiling height needed will be 87 inches plus the height of the vehicle. It is recommended to measure prior to ordering.

      Helpful?

  2. Are castors included with this lift or are they available as an assessory for this lift?

    1 answer

    1. Casters are not an option for this lift. It needs to be permanently mounted to the floor.

      Helpful?

  3. Is this lift Made In USA or Imported?

    1 answer

    1. This item is imported from China.

      Helpful?

  4. Will I need to reinforce concrete in my garage to accomodate the lift system?

    I am building a new garage and was wondering if I need to reinforce the concrete pad below the 4 posts. Does the manufacturer have any requirement to do so or recommend doing so? Thanks.

    1 answer

    1. This lift must be installed on a solid level concrete floor with no more than 3-degrees of slope. The required minimum thickness for concrete is 5" /2500 PSI.

      Helpful?

Accessories We Recommend

This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.

See All Lift Accessories
BendPak Rolling Drain Pan for 4-Post Truck and Car Lifts, Model# DP-30
4.0 out of 5 stars. 2 reviews

BendPak Rolling Drain Pan for 4-Post Truck and Car Lifts, Model# DP-30

Item # 144625

$525.00
See All Lift Accessories
BendPak Sliding Jack Platform for 4-Post Lifts, Model# JP-6
4.2 out of 5 stars. 6 reviews

BendPak Sliding Jack Platform for 4-Post Lifts, Model# JP-6

Item # 144631

$456.00

Warranty

Manufacturer's Warranty

2 year limited warranty

Extend Your Warranty Coverage with a Northern Protection Plan (NPP)

Repair Plan — 1 Year

A Northern Protection Plan is available after adding the product to your shopping cart.

Compare with Most Popular in Four-Post Lifts

See All Four-Post Lifts

See All BendPak Four-Post Lifts

Specifications

Specifications
BendPak Compact 4-Post Car Lift, 7000-Lb. Capacity, Model# HD-7P
BendPak 4-Post Extended Truck Lift, 40,000-Lb. Capacity, Model# HDS-40X
BendPak Heavy-Duty 4-Post Truck Lift, 40,000-Lb. Capacity, Model# HDS-40
BendPak 4-Post Car Lift, 9000-Lb. Capacity, Model# HD-9
Capacity
Same

7,000 lb

40,000 lb

40,000 lb

9,000 lb

Max. Rise
Same

7 ft

5.8 ft

5.8 ft

6 ft

Horsepower
Same

3 HP

5 HP

5 HP

3 HP

Motor Phase
Same

Single-phase

Single-phase

Single-phase

Single-phase

Volts
Same

220

220

220/240

220

Locking Position (qty.)
Same

17

13

13

14

Time of Full Rise
Same

60 sec.

75 sec.

75 sec.

50 sec.

Drive-Thru Clearance
Same

76.5 in

109 in

109 in

86.5 in

Material
Same

Steel

Steel

Steel

Steel

Lock Spacing
Same

-

4 in

4 in

4 in
