BendPak Dual-Platform Super-Wide 4-Post Car Lift, 9000-Lb. Capacity, Model# HD-9SW

Item# 5791711
BendPak Dual-Platform Super-Wide 4-Post Car Lift, 9000-Lb. Capacity, Model# HD-9SW

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

BendPak Dual-Platform Super-Wide 4-Post Car Lift, 9000-Lb. Capacity, Model# HD-9SW

Click or Tap image to Zoom

$11,495.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • To accommodate super-wide vehicles on a 9,000-lb. capacity four-post lift, choose the HD-9SW. The “SW” stands for super-wide, and it’s the ideal four-post lift to double your parking and/or service wider vehicles.
  • Shorter runway for smaller spaces
  • Forklift Required
  • Single hydraulic cylinder mounted underneath runway
  • Fully enclosed lifting cables, safety locks and sheaves

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

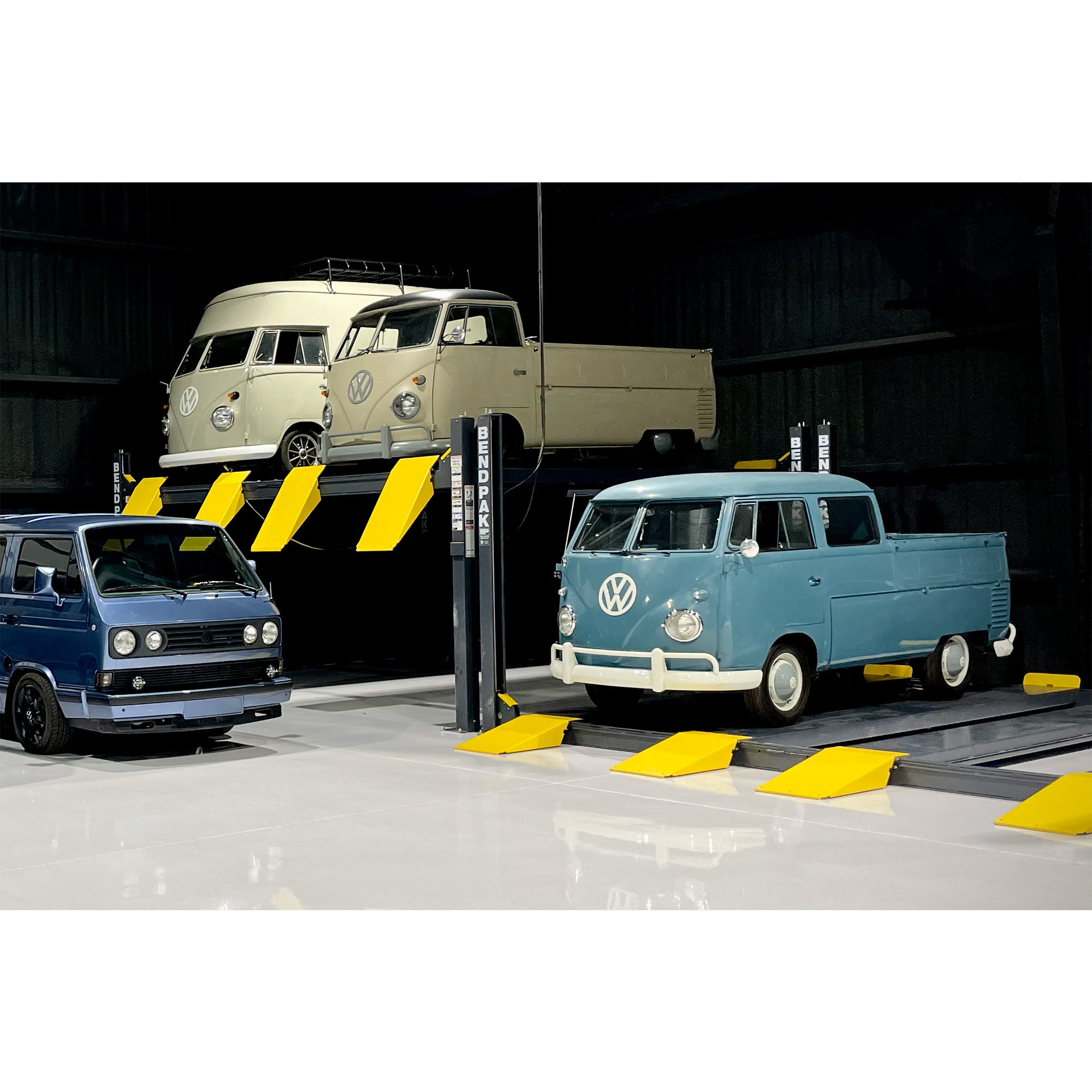

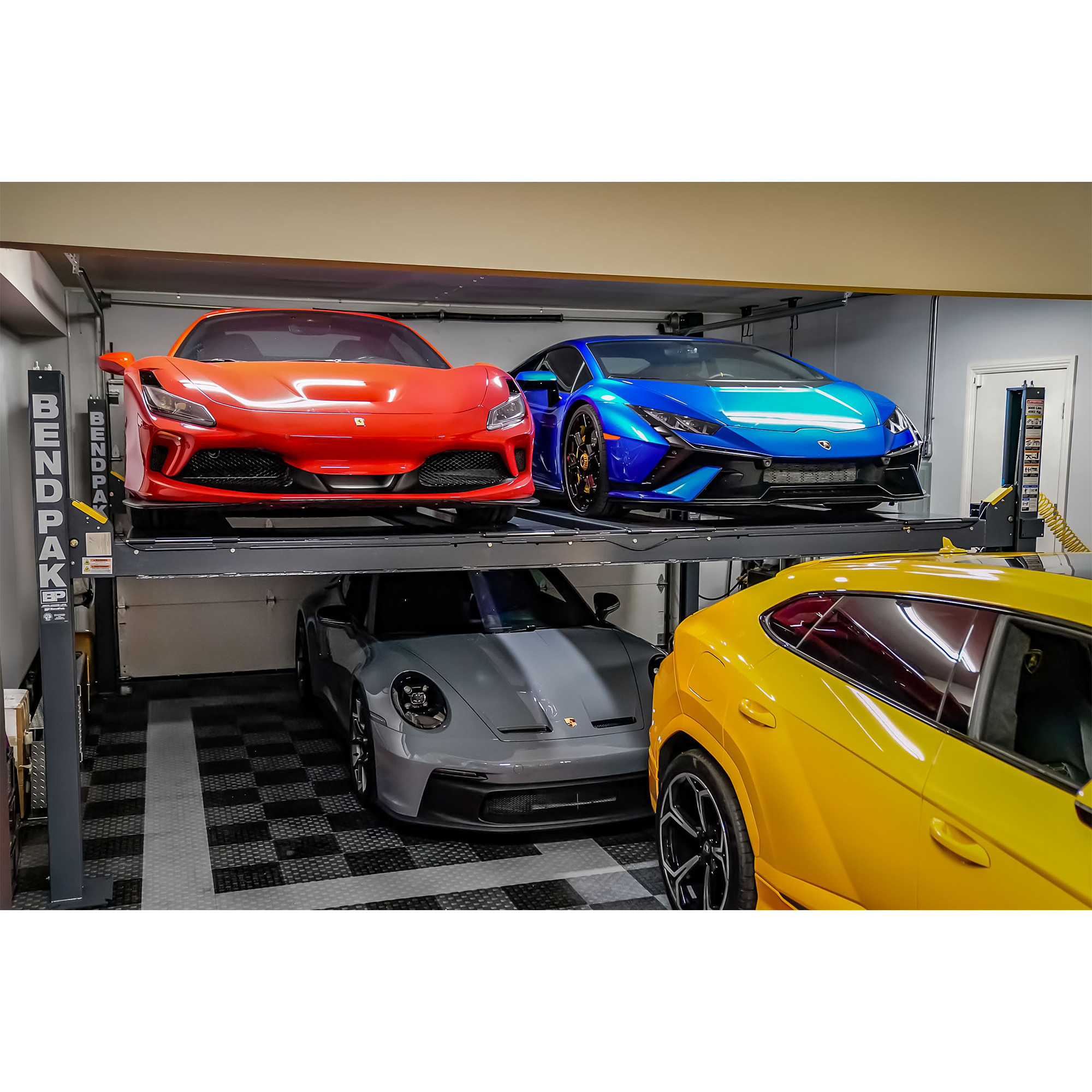

Double-Wide Four-Post Lift to Park Four Vehicles If you need to park up to four vehicles in a space that previously could only fit two, 192” post-to-post clearance is perfect for two of whatever you drive. No more sacrificing the indoor protection of your daily drivers. You know what we mean. You’ve been leaving them exposed in the driveway, so you can keep your weekend rides safe indoors. The BendPak HD-9SW four-post lift lets you park four vehicles and keep them tucked in the garage. Know what else? The runways are completely open-center, so this parking lift does double-duty as a maintenance lift. Work on two vehicles at once if you want! Only BendPak offers total peace-of-mind and lets you enjoy the lifestyle you want to live. Clear more space at home or increase the parking and service capabilities in your shop. Take in all the parking glory BendPak has to offer with this double-wide stacker.

What's Included

    (1) (1) 4 Post Lift

Features + Benefits

  • To accommodate super-wide vehicles on a 9,000-lb. capacity four-post lift, choose the HD-9SW. The “SW” stands for super-wide, and it’s the ideal four-post lift to double your parking and/or service wider vehicles.
  • Shorter runway for smaller spaces
  • Forklift Required
  • Single hydraulic cylinder mounted underneath runway
  • Fully enclosed lifting cables, safety locks and sheaves
  • Internal anti-sway slider blocks in each column
  • Oversized self-lubricating cable rollers
  • Oversized sheave diameter reduces cable fatigue
  • eatures heavy-duty 3/8" aircraft cable
  • Push-button pneumatic safety release
  • Runways accommodate wide or narrow vehicles

Key Specs

AttributeSpecification

item#

5791711

Brand

BendPak

Manufacturer's Warranty

5 year limited warranty

Ship Weight

2796.0 LB

Capacity

9,000 lb

Max. Rise

6.3 ft

Horsepower

3 HP

Motor Phase

Single-phase
AttributeSpecification

Volts

220

Lock Spacing

4 in

Locking Position (qty.)

14

Time of Full Rise

55 sec.

Drive-Thru Clearance

178 in

Material

Steel

Product Weight

2700.0000 lb

Dimensions L x W x H (in.)

218.5 x 202.0 x 93.0 in

Reviews

Questions & Answers

Questions

  1. I am interested in buying this lift. My question is what kind of outlet will be needed for the 220 to power the lift. Thank you, Brad H.

    1 answer

    1. The hoist is designed to be hardwired. All wiring must be performed by a licensed certified electrician. Protect each circuit with a time delay fuse or circuit breaker. The hoist will be wired 220 volt, single phase
      60 Hz power. It is recommended to use a 25 amp or greater fuse.

      Helpful?

Warranty

Manufacturer's Warranty

5 year limited warranty
