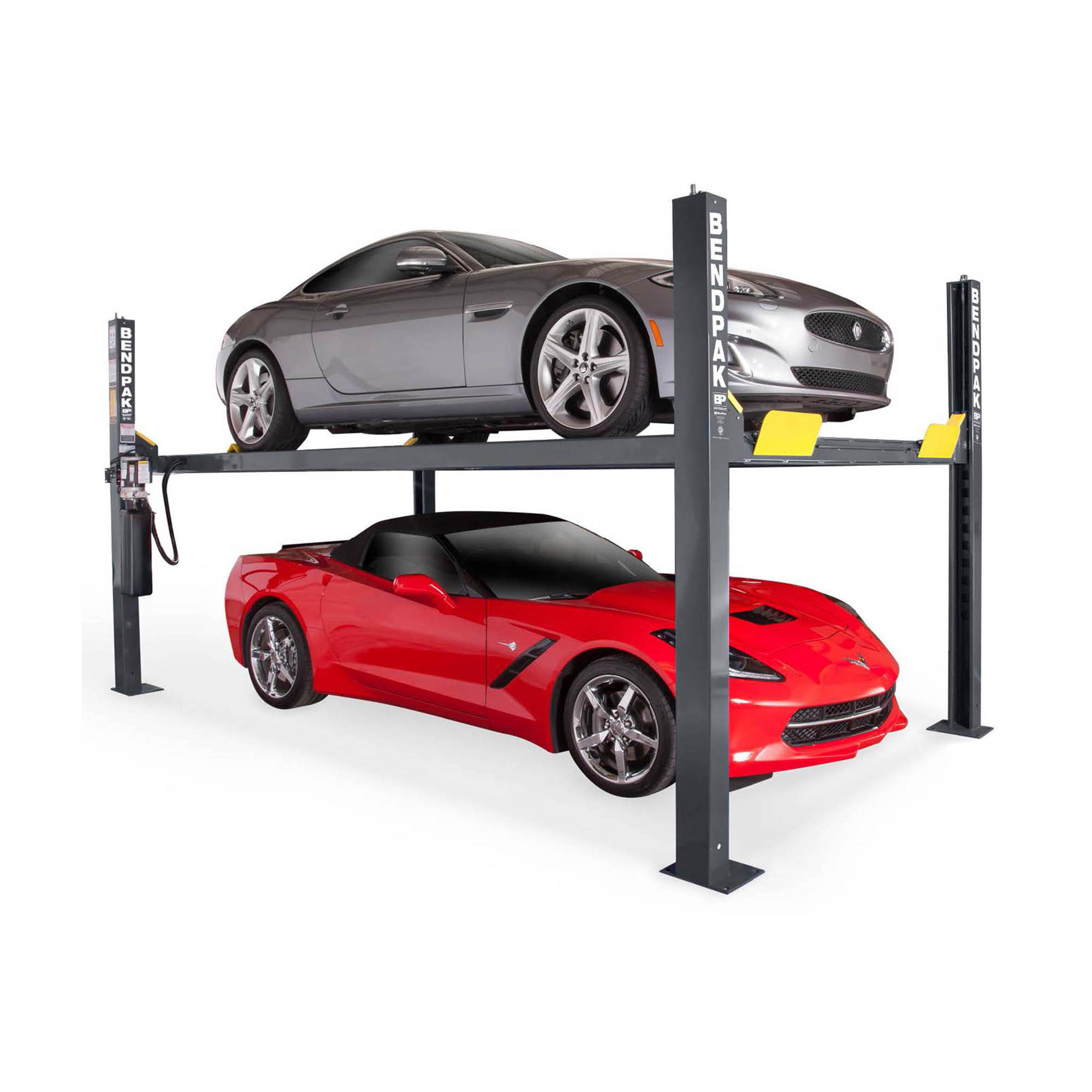

BendPak 4-Post Narrow-Width Car Lift, 9000-Lb. Capacity, Model# HD-9ST

Item# 144689
"BendPak 4-Post Narrow-Width Car Lift, 9000-Lb. Capacity, Model# HD-9ST"
BendPak 4-Post Narrow-Width Car Lift, 9000-Lb. Capacity, Model# HD-9ST

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

BendPak 4-Post Narrow-Width Car Lift, 9000-Lb. Capacity, Model# HD-9ST

Click or Tap image to Zoom

$5995.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • 9,000-lb. maximum lifting capacity
  • CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN-1493
  • Forklift Required
  • Features heavy-duty 3/8" aircraft cable
  • Freestanding design

See full description

Complete Your Solution

  • BendPak 4-Post Narrow-Width Car Lift, 9000-Lb. Capacity, Model# HD-9ST
  • BendPak Caster Kit, Fits BendPak Model# HD-9ST, Item# 144689
  • BendPak Rolling Bridge Jack for 4-Post Lifts, 4500-Lb. Capacity, Model# RBJ-4500
Price for all three:

$9170.00

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This narrow-width, 9,000-lb. HD-9ST four-post lift offers the same power and safety features of the HD-9, but in a smaller package. A Slim, Safe and Certified Lift Some garages are just a bit too cozy for a standard-width four-post lift. The trick is to find a smaller-footprint lift that won’t sacrifice functionality. The HD-9ST is perfect for small garages and spaces that are already filled to near-capacity. Its narrow width is designed for spaces and service bays that need to fit more lift in less space. A slim lift is a smart choice for owners more compact vehicles. Because the HD-9ST features an open center, it doubles as both narrow parking lift and maintenance lift. This makes it the ideal four-post lift for wrenchers with a limited amount of space. In addition to the narrow design, the columns are only 88” high, so it’s low-profile too. The runways raise to a max height of 75”, so the HD-9ST fits easily in low ceilings yet doesn’t sacrifice lifting height. Ample clearance underneath ensures that full-grown men and women over 6ft. tall will have no problem performing oil changes, comfortably adjusting transmission jacks and removing and replacing exhaust systems. Other lifts may sacrifice lifting height as they reduce their overall widths to accommodate smaller vehicles, but not this one. This is one four-post lift that’s every bit as comfortable to use as its standard-width and super-wide sister models in the HD-9 series. The HD-9ST may be smaller, but it’s not weaker than other designs, nor is it a hobby lift. In fact, this car lift is fully ALI certified. It’s used every day in professional shops around the world, and many motorists prefer it to the standard-length HD-9 simply because it leaves more room in their garage for tools and equipment.

What's Included

    (1) 4-post narrow width car lift (Model# HD-9ST)

Downloads

Product Manual

Features + Benefits

  • 9,000-lb. maximum lifting capacity
  • CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN-1493
  • Forklift Required
  • Features heavy-duty 3/8" aircraft cable
  • Freestanding design
  • Perfect for parking, storage and service
  • Runways accommodate narrow and standard vehicles
  • Single hydraulic cylinder mounted underneath runway

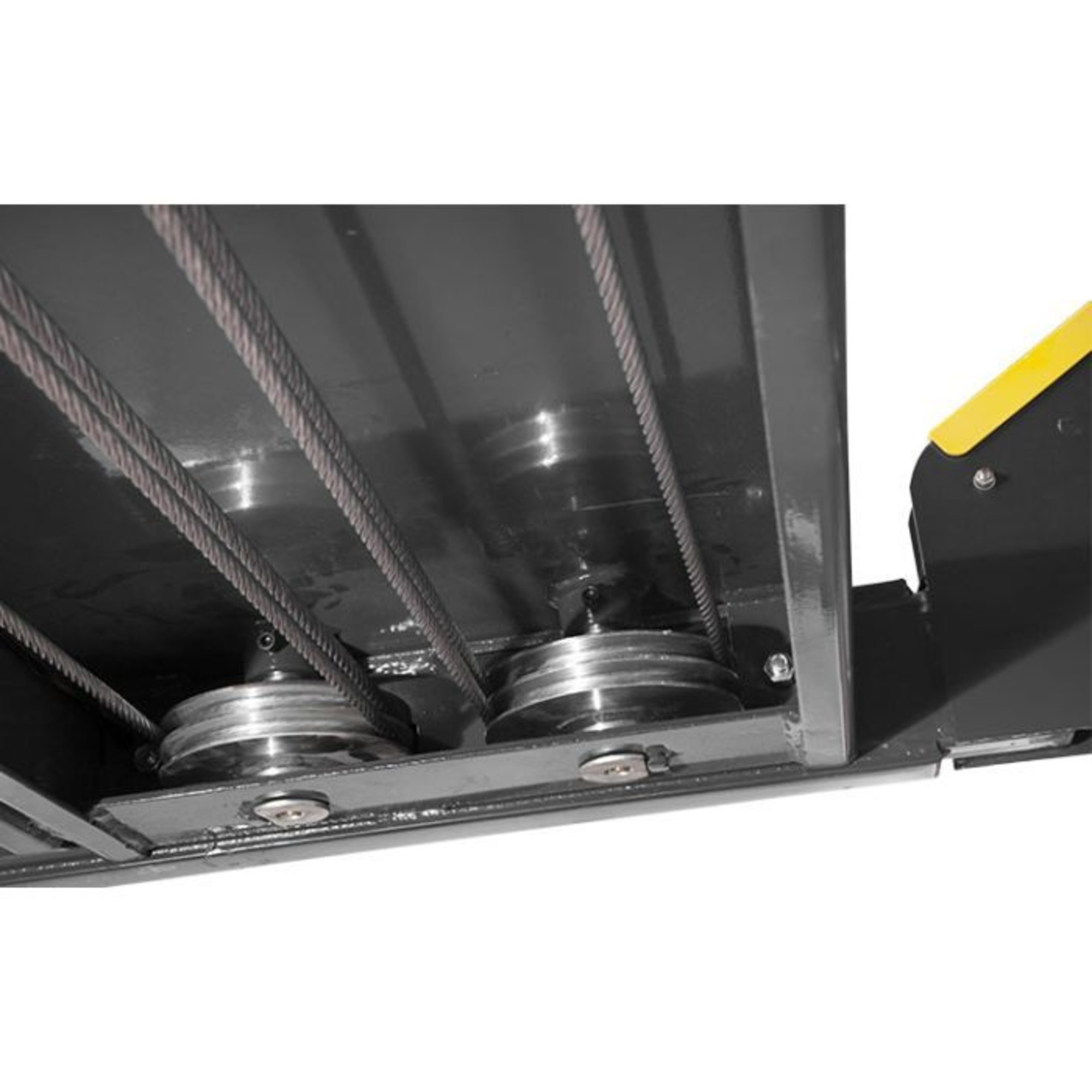

  • Fully enclosed lifting cables, safety locks and sheaves
  • ETL Approved
  • Narrow width for space efficiency

Key Specs

AttributeSpecification

item#

144689

Brand

BendPak

Manufacturer's Warranty

24 months parts/12months labor

Ship Weight

1682.0 LB

Capacity

9,000 lb

Max. Rise

6 ft

Horsepower

3 HP
AttributeSpecification

Motor Phase

Single-phase

Volts

220

Lock Spacing

4 in

Locking Position (qty.)

14

Time of Full Rise

50 sec.

Drive-Thru Clearance

76.5 in

Material

Steel

Reviews

Questions & Answers

5 Reviews This action will navigate to reviews.

Questions

1–10 of 20 Questions
Sort by:

  1. Where is this lift manufactured?

    1. According to the label on the side of my HD9ST, it is designed in the USA by Bend Pak and manufactured in China.

      Helpful?

    2. The lift is manufactured in China.

      Helpful?

  2. How are the locks unlocked? Compressed air?

    1 answer

    1. To lower the runways, raise them a few inches to get them off the safety locks, then press and hold down the pushbutton on the air valve. While you hold down the pushbutton, the safety locks are moved away.

      Helpful?

  3. What is the width of the runways?

    1 answer

    1. The runways are 19" wide.

      Helpful?

  4. suggested ceiling height for standard car on lift

    1 answer

    1. The maximum lift of the car lift is 70", you would then need to factor in the height of the car, from there to determine the ceiling height needed.

      Helpful?

  5. Can a person over 6 ft work comfortably underneath a car?

    1 answer

    1. The walk under height for this model is 70". There would be good room to stand in between the runways.

      Helpful?

  6. How wide is the widest car you can park under the lift?

    1 answer

    1. The width between the columns would be 89 3/4".

      Helpful?

  7. What is the thickness of the steel in the posts, 1/2, 5/8 ?

    1 answer

    1. The posts on this BendPak lift are 3mm thick.

      Helpful?

  8. Wil this lift work on European voltage specifications?

    1 answer

    1. This lift has a 220 volt rating.

      Helpful?

  9. How high does this lift raise the bottom of the vehicle? (The ground clearance height)

    1 answer

    1. The maximum lift would be 70" (5.8ft).

      Helpful?

  10. What colors does the car lift come in also what is the inside dimensions between the 4 x 4 column post

    1 answer

    1. The lift comes in black. The inside dimensions of the column post are 89 3/4" x 37 1/2".

      Helpful?

Accessories We Recommend

This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.

See All Lift Accessories
BendPak Caster Kit, Fits BendPak Model# HD-9ST, Item# 144689
4.7 out of 5 stars. 6 reviews

BendPak Caster Kit, Fits BendPak Model# HD-9ST, Item# 144689

Item # 14468C

$825.00

Warranty

Manufacturer's Warranty

24 months parts/12months labor

Extend Your Warranty Coverage with a Northern Protection Plan (NPP)

Repair Plan — 1 Year

A Northern Protection Plan is available after adding the product to your shopping cart.

Compare with Most Popular in Four-Post Lifts

See All Four-Post Lifts

See All BendPak Four-Post Lifts

Specifications

Specifications
BendPak 4-Post Narrow-Width Car Lift, 9000-Lb. Capacity, Model# HD-9ST
BendPak 4-Post Wide/Standard Car Lift, 9000-Lb. Capacity, Gray, Model# HD-9XL
BendPak 4-Post Truck and Car Lift, 14,000-Lb. Capacity, Model# HDS-14
BendPak Compact 4-Post Car Lift, 7000-Lb. Capacity, Model# HD-7P
Capacity
Same

9,000 lb

9,000 lb

14,000 lb

7,000 lb

Max. Rise
Same

6 ft

6.2 ft

6.4 ft

7 ft

Horsepower
Same

3 HP

3 HP

3 HP

3 HP

Motor Phase
Same

Single-phase

Single-phase

Single-phase

Single-phase

Volts
Same

220

220

220

220

Lock Spacing
Same

4 in

4 in

4 in

-

Locking Position (qty.)
Same

14

14

15

17

Time of Full Rise
Same

50 sec.

50 sec.

60 sec.

60 sec.

Drive-Thru Clearance
Same

76.5 in

86.5 in

98.25 in

76.5 in

Material
Same

Steel

Steel

Steel

Steel
