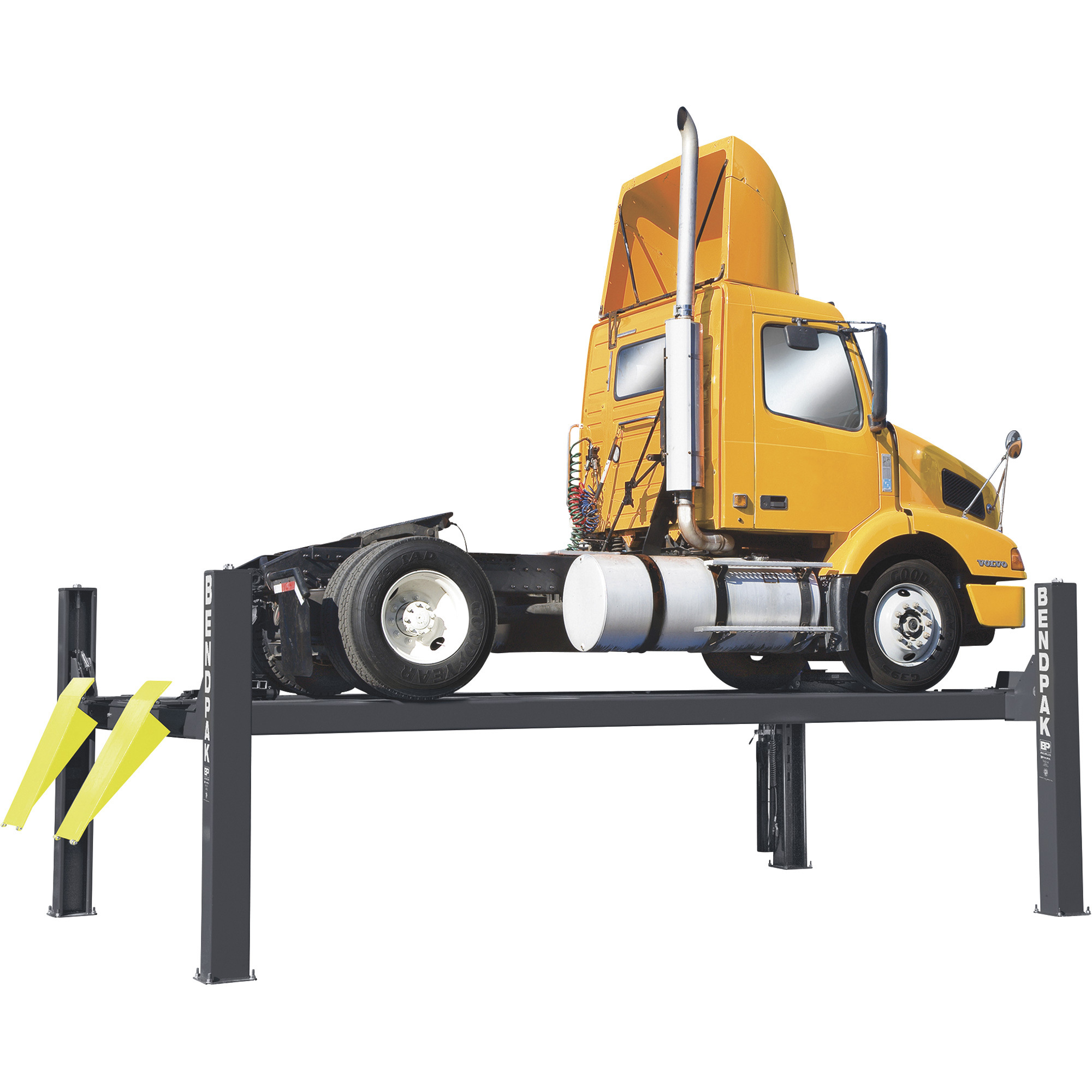

BendPak 4-Post Truck Lift, 27,000-Lb. Capacity, Model# HDS-27

Item# 144251
BendPak 4-Post Truck Lift, 27,000-Lb. Capacity, Model# HDS-27

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

BendPak 4-Post Truck Lift, 27,000-Lb. Capacity, Model# HDS-27

Click or Tap image to Zoom

$23,495.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Electric/hydraulic power system
  • Single hydraulic cylinder mounted under runway
  • Forklift Required
  • Heavy-duty aircraft cables
  • Oversized, self-lubricating cable sheaves

See full description

Complete Your Solution

  • BendPak 4-Post Truck Lift, 27,000-Lb. Capacity, Model# HDS-27
  • BendPak Rolling Drain Pan for 4-Post Truck and Car Lifts, Model# DP-30
Price for all two:

$24,020.00

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Super-duty, BendPak 4-post truck lift features a 27,000-lb. lifting capacity, 3 different lengths, rail-kit for optional accessories and more. ETL approved. Item too large for lift gate. Requires forklift on site for unloading. This item is delivered by flatbed truck Monday-Friday with 24 hours advance notice. A forklift is required to offload the lift from a dock-height flatbed trailer.

What's Included

    (4) Posts (2) Runways (2) Equalizer cables (4) Oversize sheaves (1) Power unit

Downloads

Product Manual

Features + Benefits

  • Electric/hydraulic power system
  • Single hydraulic cylinder mounted under runway
  • Forklift Required
  • Heavy-duty aircraft cables
  • Oversized, self-lubricating cable sheaves
  • Rugged 4in. sheave axles combined with 12in. dia. cable sheaves
  • Multiposition safety locks
  • Nonskid runway surface
  • Push-button safety release
  • Adjustable runways
  • Item too large for lift gate; Requires forklift on site for unloading
  • Internal anti-sway slider blocks in each column

Key Specs

AttributeSpecification

item#

144251

Brand

BendPak

Manufacturer's Warranty

1 year limited warranty

Ship Weight

2.18 LB

Capacity

27,000 lb

Max. Rise

5.8 ft

Horsepower

5 HP
AttributeSpecification

Motor Phase

Single-phase

Volts

220

Lock Spacing

4 in

Locking Position (qty.)

13

Time of Full Rise

75 sec.

Drive-Thru Clearance

109 in

Material

Steel

Reviews

Questions & Answers

Questions

1–3 of 3 Questions
Sort by:

  1. Is this lift Made In USA or Imported?

    1 answer

    1. This item is imported from China.

      Helpful?

  2. What is the Inside Width Measurement? That is what I would need to know if I were lifting something like pick up trucks.

    1 answer

    1. The center line to center line of the runways is adjustable from 60"-78". The inside width would be 38"-60".

      Helpful?

  3. Is this trucks only or can it lift very heavy smaller vehicles also?

    Does this thing only lift huge trucks or can it lift very heavy cars too, for instance modified* classic Cadillacs that may not be as wide as a truck but almost as heavy..?

    1 answer

    1. The width of this lift is 154". You would need to check the width of the car to be sure is would fit within the dimension of the lift.

      Helpful?

Accessories We Recommend

This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.

See All Lift Accessories
BendPak Rolling Drain Pan for 4-Post Truck and Car Lifts, Model# DP-30
4.0 out of 5 stars. 2 reviews

BendPak Rolling Drain Pan for 4-Post Truck and Car Lifts, Model# DP-30

Item # 144625

$525.00

Warranty

Manufacturer's Warranty

1 year limited warranty

Compare with Most Popular in Four-Post Lifts

See All Four-Post Lifts

See All BendPak Four-Post Lifts

Specifications

Specifications
BendPak 4-Post Truck Lift, 27,000-Lb. Capacity, Model# HDS-27
BendPak Extended-Length Alignment Lift Package — 14,000-Lb. Capacity, 6.4ft. Max Rise, 3 HP, Model# HDS14-LSXE+ RJ7W(2)+ AIRL
BendPak 4-Post Truck Lift, 27,000-Lb. Capacity, Model# HDS-27X
BendPak 4-Post Extra-Tall Car Lift, 9000-Lb. Capacity, Model# HD-9XW
Capacity
Same

27,000 lb

14,000 lb

27,000 lb

9,000 lb

Max. Rise
Same

5.8 ft

6.4 ft

5.8 ft

7.2 ft

Horsepower
Same

5 HP

3 HP

5 HP

3 HP

Motor Phase
Same

Single-phase

Single-phase

Single-phase

Single-phase

Volts
Same

220

220

220

220

Lock Spacing
Same

4 in

4 in

4 in

4 in

Locking Position (qty.)
Same

13

15

13

17

Time of Full Rise
Same

75 sec.

60 sec.

75 sec.

50 sec.

Drive-Thru Clearance
Same

109 in

98.25 in

109 in

86.5 in

Material
Same

Steel

Steel

Steel

Steel
