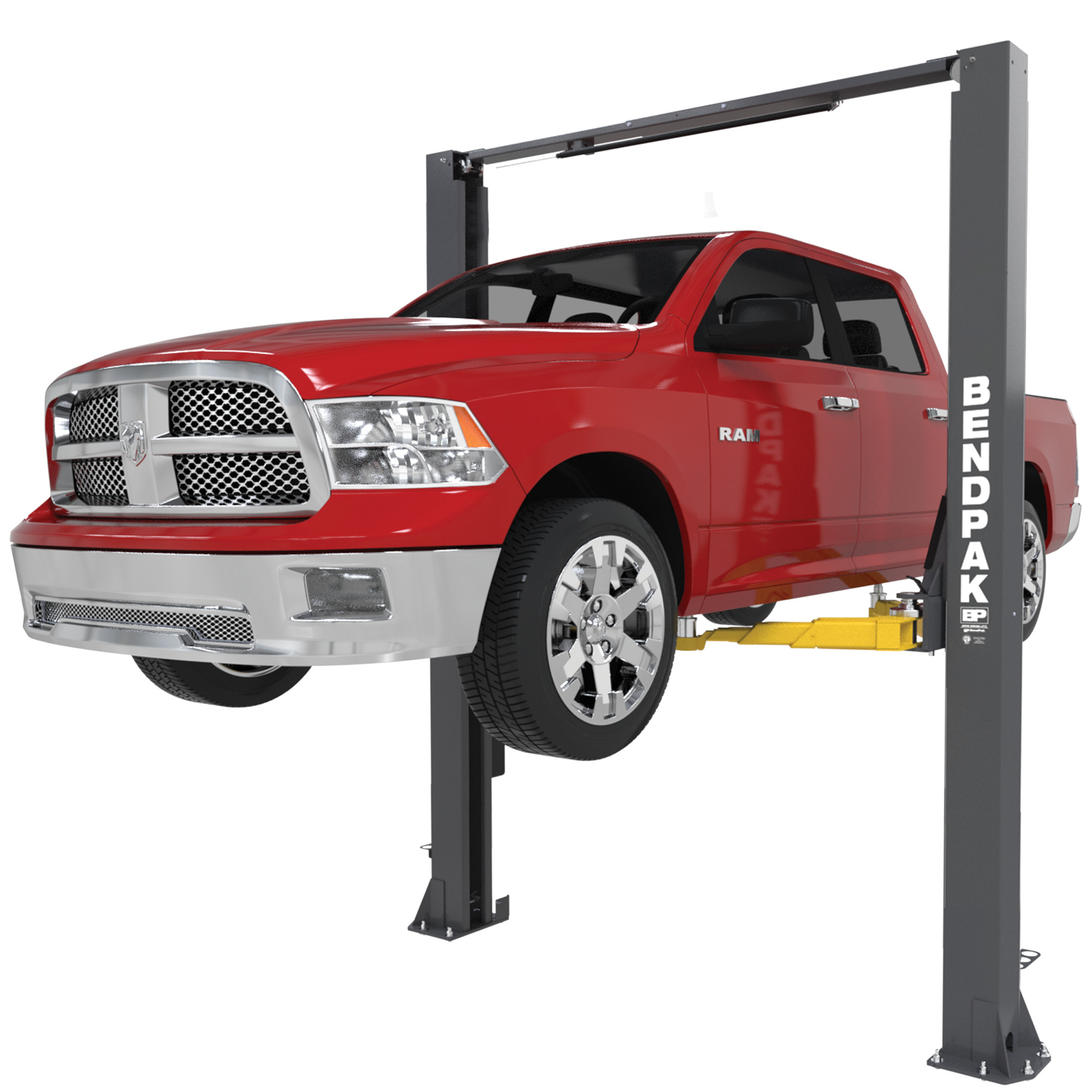

BendPak 2-Post Truck and Car Lift, 10,000 Lb. Capacity, Model# 10APX

Item# 5777003
"BendPak 2-Post Truck and Car Lift, 10,000 Lb. Capacity, Model# 10APX"
BendPak 2-Post Truck and Car Lift, 10,000 Lb. Capacity, Model# 10APX

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

BendPak 2-Post Truck and Car Lift, 10,000 Lb. Capacity, Model# 10APX

Click or Tap image to Zoom

$6895.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • The next generation of two-post lifts - now with an increased height! The 10AP Series is built with the future in mind, and has all the features you'll need to service vehicles as effectively as possible. This revolutionary lift can handle Electric Vehicles effortlessly and can adapt to both symmetrical and asymmetrical configurations.
  • Expandable top beam accommodates wide or narrow drive-thru configurations
  • Adaptable Design SYMMETRIC OR ASYMMETRIC
  • Forklift Required
  • Exclusive Bi-Metric™ arm design for more versatile arm positioning

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

10APX has been designed to accommodate mechanics out there that are constantly in uncomfortable positions while on the job. This beast of a lift offers a lifting height of 79.5” and an overhead beam of 157”. This will give you plenty of room to work comfortably with the best equipment available. If you’re working on larger vehicles, our 10APX-181 is the lift for you! This lift has the same lifting height, but it features an overhead beam height of 181” so you’ll be able to work on high-roof cargo vans! Much like the rest of the 10AP Series, these lifts still have all of your favorite features, such as a 10,000-lb. lifting capacity, Low-Pro arms, Bi-Metric arms, and much more! The 10AP Series offers the convenience of wide or narrow installation wrapped up into one configurable package. These durable, safe, and reliable lifts come with our advanced Bi-Metric arms which are capable of performing both symmetric and asymmetric lifting! The simple, yet highly sophisticated lift design keeps service and maintenance costs to a minimum, delivering lower operating expenses and higher productivity.

What's Included

    (1) (1) 2 Post Lift

Features + Benefits

  • The next generation of two-post lifts - now with an increased height! The 10AP Series is built with the future in mind, and has all the features you'll need to service vehicles as effectively as possible. This revolutionary lift can handle Electric Vehicles effortlessly and can adapt to both symmetrical and asymmetrical configurations.
  • Expandable top beam accommodates wide or narrow drive-thru configurations
  • Adaptable Design SYMMETRIC OR ASYMMETRIC
  • Forklift Required
  • Exclusive Bi-Metric™ arm design for more versatile arm positioning
  • Single-point safety release
  • Drop-end arms provide a lower pad height
  • Dual hydraulic direct-drive cylinders
  • Self-lubricating dura-glide UHMW polyethylene bearing system
  • ALI certified

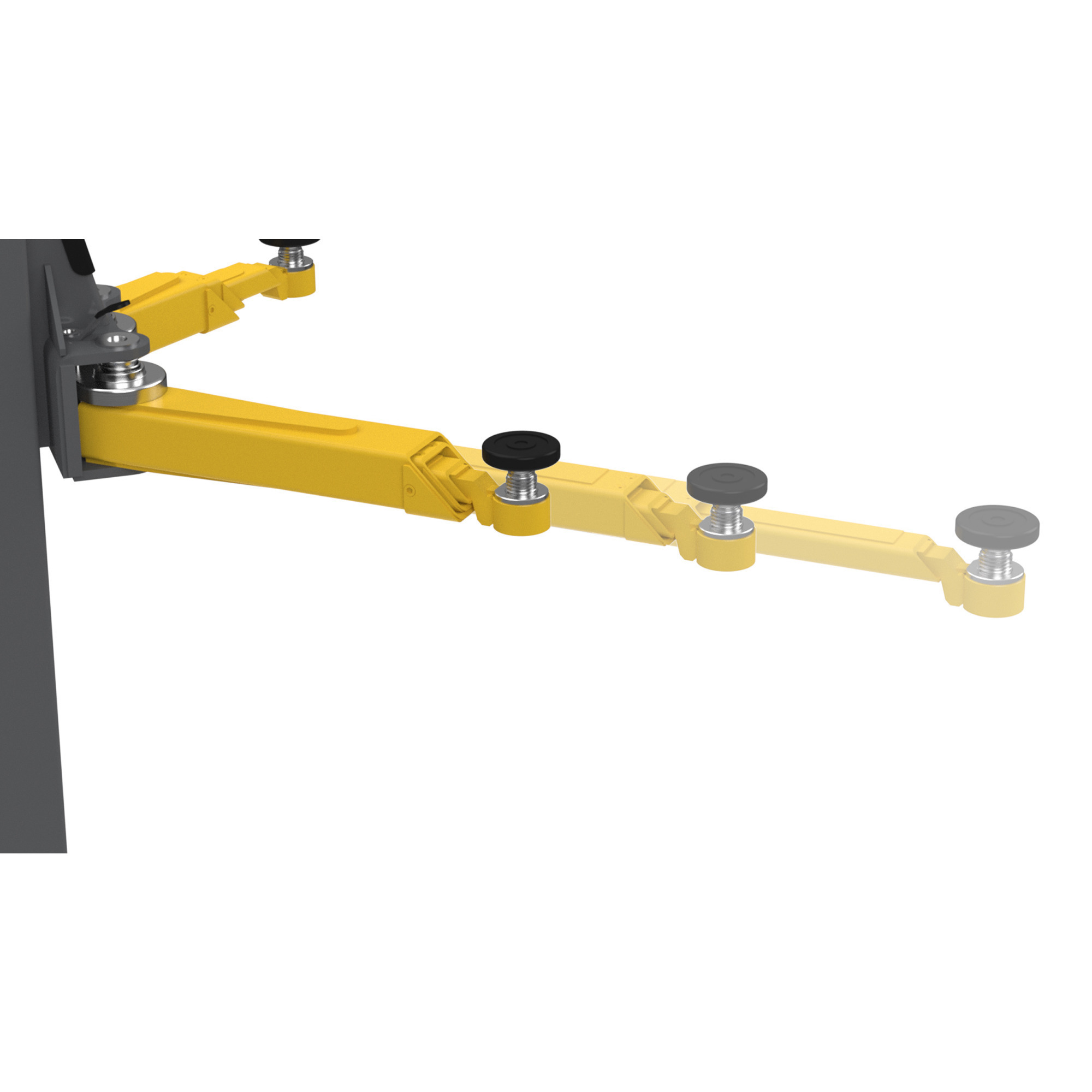

  • Four triple-telescoping arms
  • Double-telescoping screw pads offer increased versatility
  • Padded overhead safety shutoff bar

Key Specs

AttributeSpecification

item#

5777003

Brand

BendPak

Manufacturer's Warranty

5 year limited warranty

Ship Weight

1786.0 LB

Capacity

10,000 lb

Max. Rise

6.5 ft

Horsepower

3 HP

Motor Phase

Single-phase

Volts

220
AttributeSpecification

Lock Spacing

4 in

Locking Position (qty.)

15

Time of Full Rise

45 sec.

Pad Height

4 in

Drive-Thru Clearance

102 in

Material

Steel

Product Weight

1766.0000 lb

Dimensions L x W x H (in.)

145.0 x 20.0 x 157.0 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–3 of 3 Questions
Sort by:

  1. What is the Bendpak part number for this lift? The item number in the description doesn't match anything on the Bendpak website.

    1 answer

    1. The Model number is 10APX.

      Helpful?

  2. What is the height of the lift (top post)?

    1 answer

    1. The overall height would be 157" (13').

      Helpful?

  3. how thick does concrete pad  need to be?

    1 answer

    1. The concrete pad should be a minimum of 4 1/2".

      Helpful?

Warranty

Manufacturer's Warranty

5 year limited warranty

Compare with Most Popular in Two-Post Lifts

See All Two-Post Lifts

See All BendPak Two-Post Lifts

Specifications

Specifications
BendPak 2-Post Truck and Car Lift, 10,000 Lb. Capacity, Model# 10APX
Tuxedo 2-Post Asymmetric Low-Profile Clear Floor Automotive Lift, 9000-Lb. Capacity, Blue, Model# TP9KACX
Tuxedo 2-Post Clear Floor Electric/Hydraulic Vehicle Lift, 12,000-Lb. Capacity, Model# TP12KC-D
Ideal 2-Post Bi-Symmetric Vehicle Lift, 10,000-Lb. Capacity, Model# TP10KAC-DX
Capacity
Same

10,000 lb

9,000 lb

12,000 lb

10,000 lb

Max. Rise
Same

6.5 ft

6 ft

6 ft

5.9 ft

Horsepower
Same

3 HP

1 HP

2 HP

1 HP

Motor Phase
Same

Single-phase

Single-phase

Single-phase

Single-phase

Volts
Same

220

220

220

220

Lock Spacing
Same

4 in

-

-

-

Locking Position (qty.)
Same

15

14

1

10

Time of Full Rise
Same

45 sec.

-

-

-

Pad Height
Same

4 in

-

-

-

Drive-Thru Clearance
Same

102 in

-

-

-

Material
Same

Steel

-

-

-

Product Weight
Same

1766.0000 lb

1,370 lb

3,000 lb

1,705 lb

Dimensions L x W x H (in.)
Same

145.0 x 20.0 x 157.0 in

-

-

-
