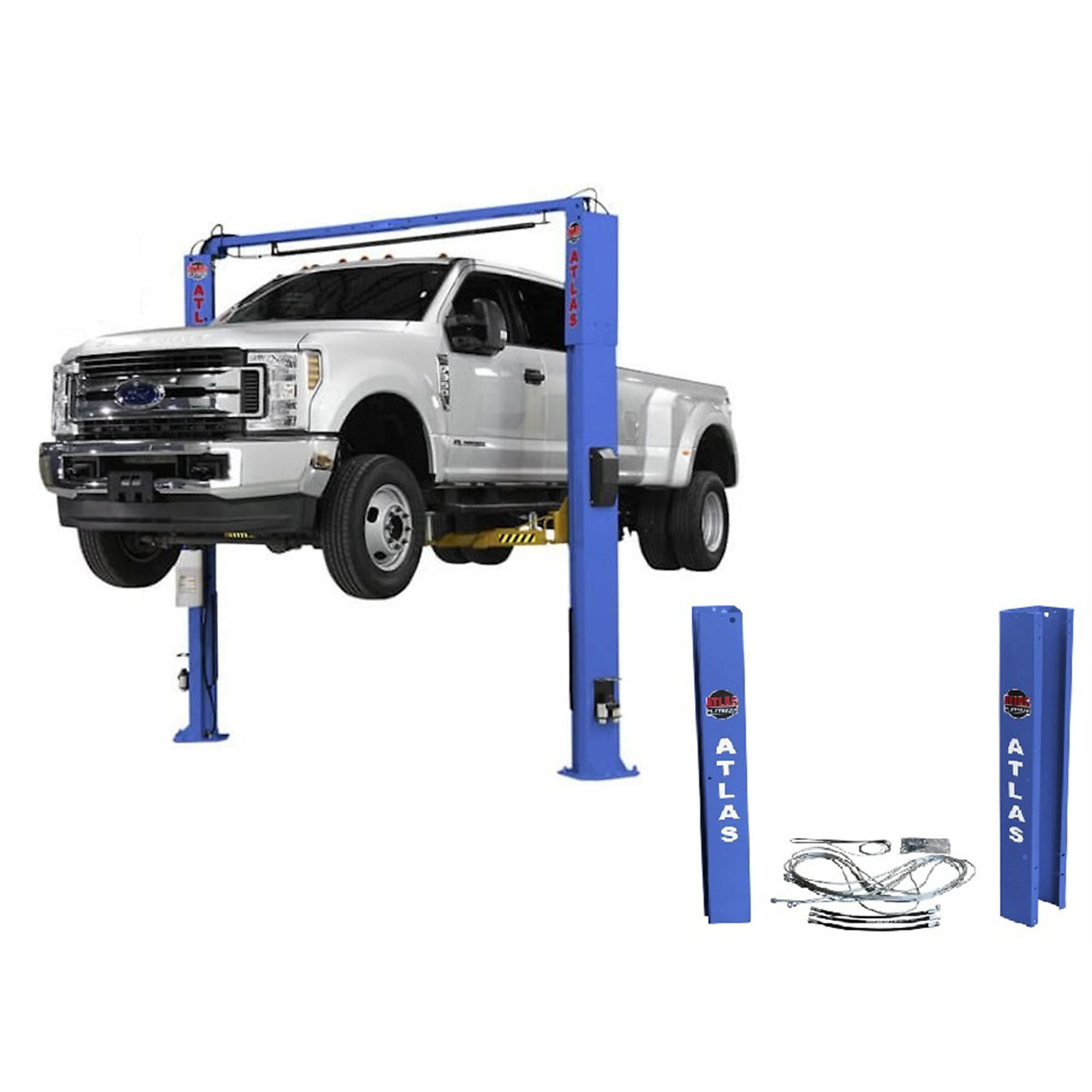

Atlas Automotive Equipment Platinum PVL10 w/ Extension Kit (SHIPPED)

Item# 7066942
Atlas Automotive Equipment Platinum PVL10 w/ Extension Kit (SHIPPED)

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Atlas Automotive Equipment Platinum PVL10 w/ Extension Kit (SHIPPED)

Click or Tap image to Zoom

$5849.00

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 10,0000 lb. Capacity

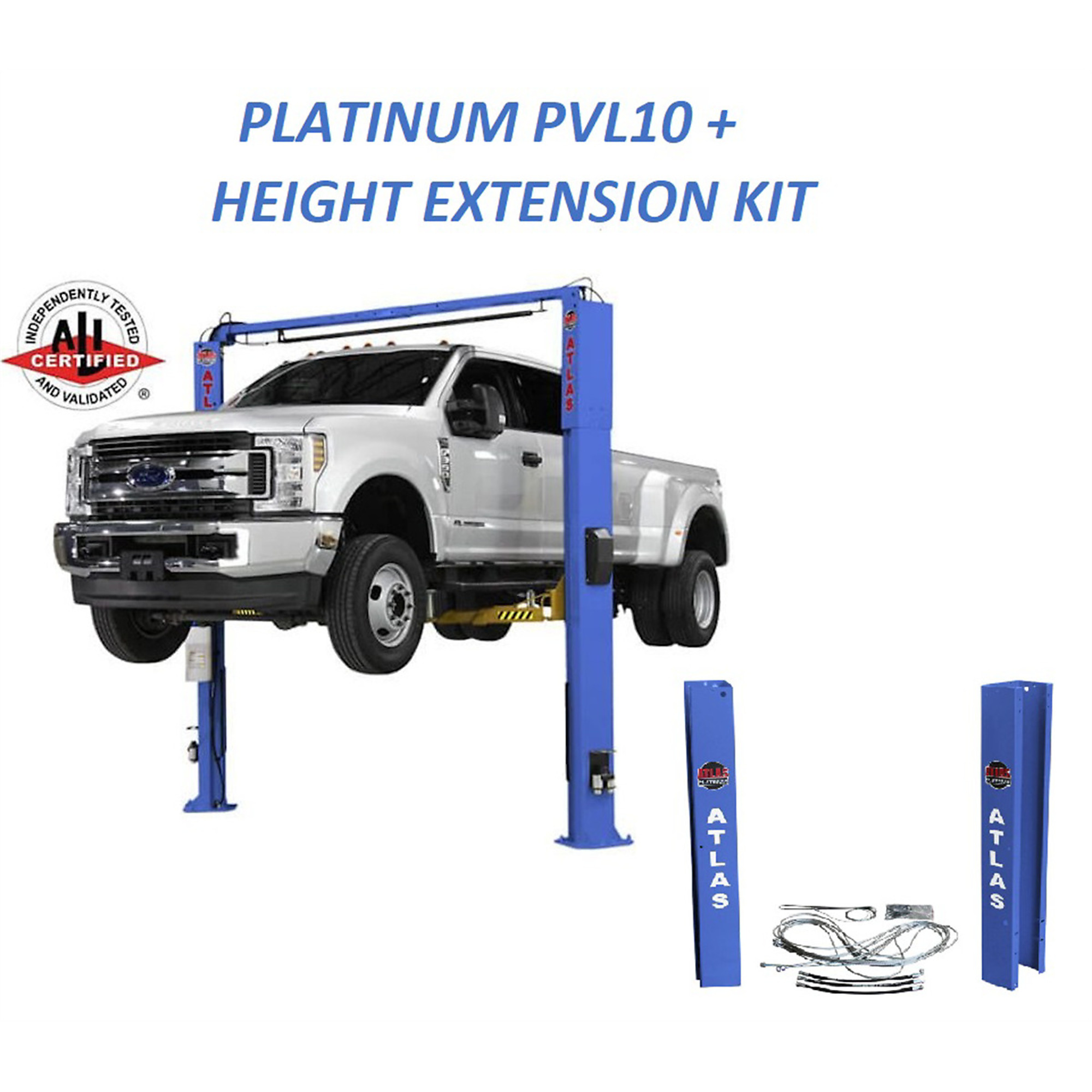

  • 2 Foot Height Extension Kit Included
  • Column design with special Double “S” bends increasing column strength

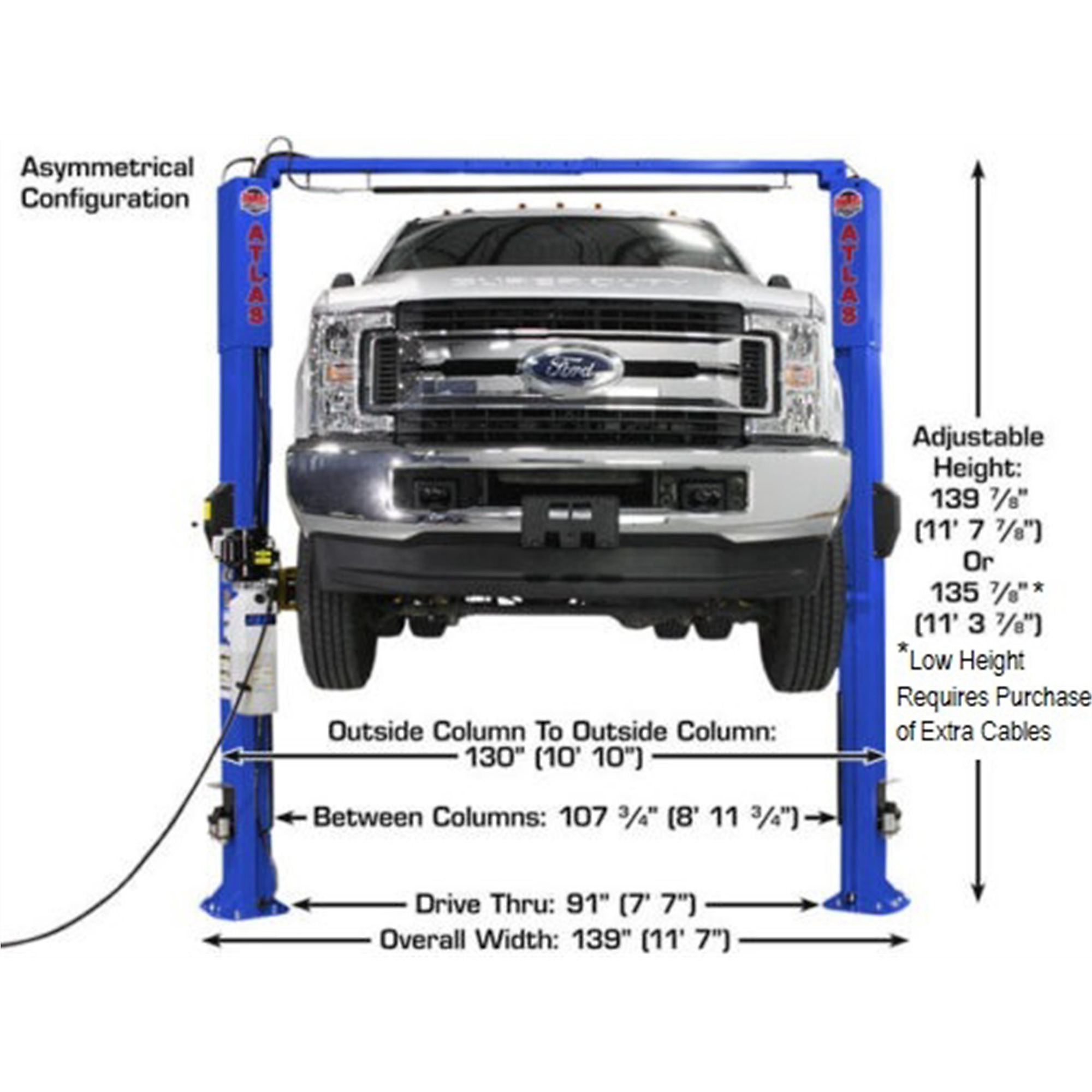

  • Can be installed Symmetrically OR Asymmetrically

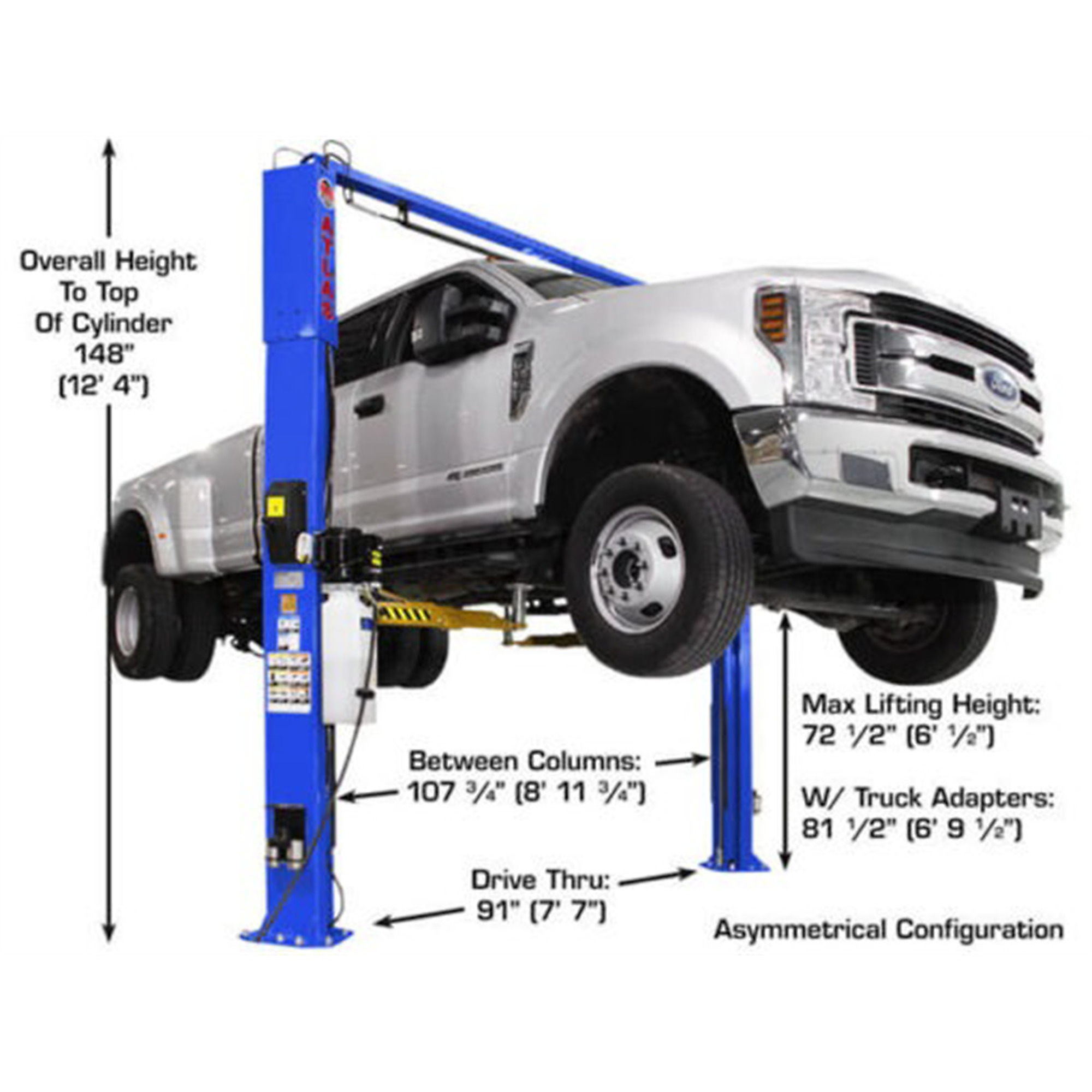

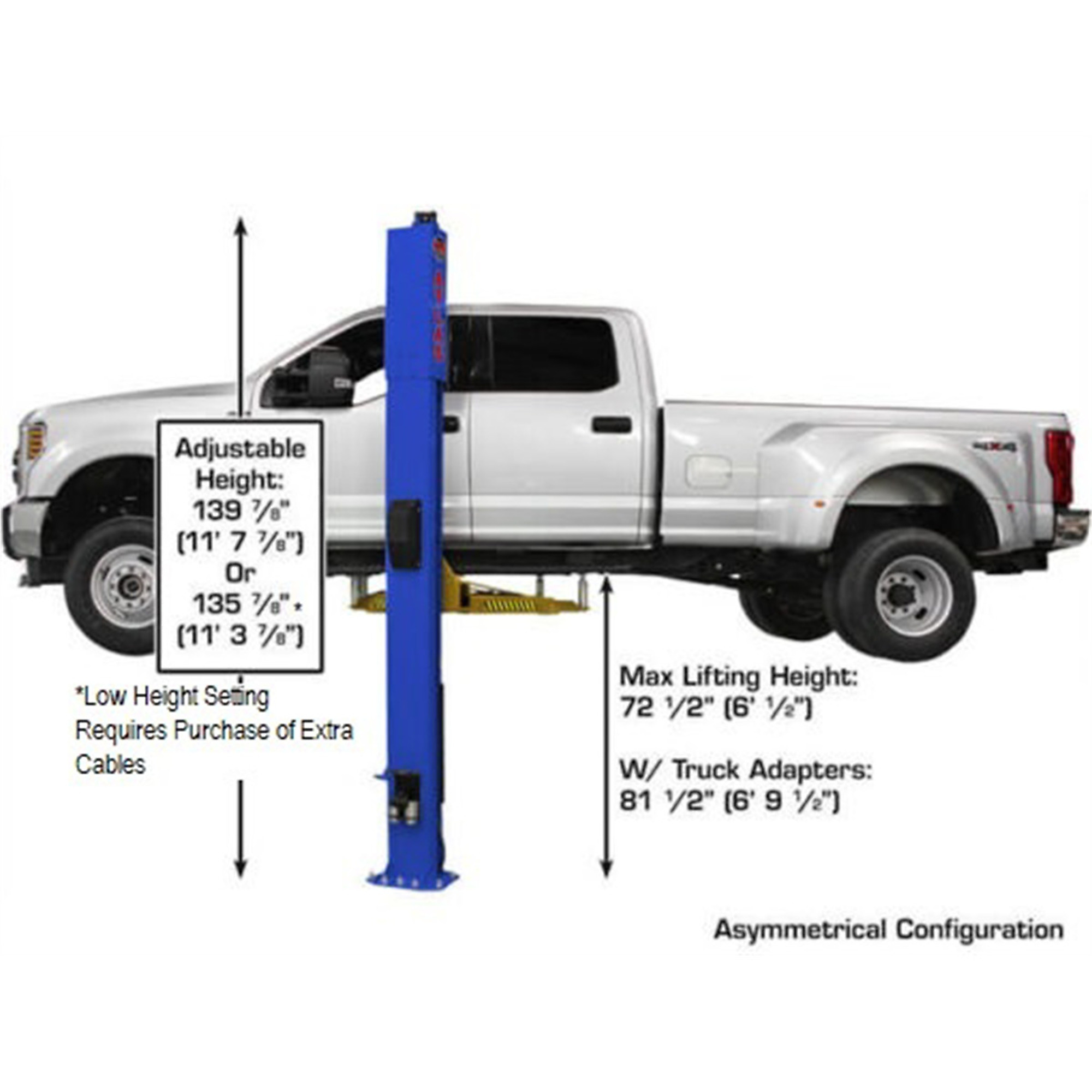

  • Overall Height: 135 7/8? (11? 3 7/8?) or 139 7/8? (11? 7 7/8?) (Cylinder Height 12? 4?)

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Atlas Platinum PVL10 is a 2-post 10,000 lb. capacity ALI Certified commercial grade lift designed with the professional shop in mind. The Platinum PVL10 was engineered and built to offer a commercial grade above ground lift to those customers who have “fallen in love” with the reliability offered by the Double S column design and symmetric columns. Tens of thousands of above ground lifts incorporating the Double S column design have been sold worldwide over the past two decades. The Double S column design was so revolutionary, that it was protected by a patent. That patent has now expired. The Atlas Platinum PVL10 can be installed with the columns positioned symmetrically or asymmetrically. When the columns are installed in an asymmetric configuration exiting and entering the vehicle is easier and reduces the chance or getting dings or scratches in the door. When the columns are installed in a symmetric configuration the width between the columns is wider, allowing wider trucks and SUVs to use the lifts with ease. Both column configurations offer easy vehicle access and superior vehicle lift point support due to the three stage front arm design. The Atlas Platinum PVL10 features three (3) stage telescoping front arms, double screw rubber/metal adapters with truck height extensions, protective rubber pads mounted to the carriage, rubber column guards, and a price that cannot be matched. This product also features an ALLY Hydraulic AL2850 Power Unit. This premium power unit is certified by MET Laboratories Inc. for electrical compliance in the United States and Canada. Extra heavy-duty armatures and more motor windings with increased silver metal included in the wires and connections create far less heat generation and allow ALLY Hydraulic power units to maintain constant torque through the lifting process. This power unit also carries an industry leading two-year limited warranty.

What's Included

    (1) Item

Features + Benefits

  • 10,0000 lb. Capacity
  • 2 Foot Height Extension Kit Included
  • Column design with special Double “S” bends increasing column strength
  • Can be installed Symmetrically OR Asymmetrically
  • Overall Height: 135 7/8? (11? 3 7/8?) or 139 7/8? (11? 7 7/8?) (Cylinder Height 12? 4?)

Key Specs

AttributeSpecification

item#

7066942

Brand

Atlas

Manufacturer's Warranty

5 year limited warranty

Ship Weight

2000.0 LB

Capacity

10,000 lb

Max. Rise

6.4 ft
AttributeSpecification

Horsepower

0 HP

Motor Phase

Single-phase

Volts

240

Product Weight

2000.0000 lb

Dimensions L x W x H (in.)

115.0 x 38.0 x 24.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

5 year limited warranty

Compare with Most Popular in Two-Post Lifts

See All Two-Post Lifts

See All Atlas Two-Post Lifts

Specifications

Specifications
Atlas Automotive Equipment Platinum PVL10 w/ Extension Kit (SHIPPED)
BendPak 2-Post Car Lift, 10,000-Lb. Capacity, Model# 10AP
BendPak 2-Post Truck and Car Lift, 10,000 Lb. Capacity, Model# 10APX
BendPak, Two Post Parking Lift 6000lb Capacity, Capacity 6000 lb, Max. Rise 6.8 ft, Horsepower 4 HP, Model# PL-6000DCX
Capacity
Same

10,000 lb

10,000 lb

10,000 lb

6,000 lb

Max. Rise
Same

6.4 ft

6 ft

6.5 ft

6.8 ft

Horsepower
Same

0 HP

3 HP

3 HP

4 HP

Motor Phase
Same

Single-phase

Single-phase

Single-phase

Single-phase

Volts
Same

240

220

220

220

Product Weight
Same

2000.0000 lb

1710.0000 lb

1766.0000 lb

2288.0000 lb

Dimensions L x W x H (in.)
Same

115.0 x 38.0 x 24.0 in

145.0 x 20.0 x 145.0 in

145.0 x 20.0 x 157.0 in

163.5 x 112.0 x 131.0 in

Lock Spacing
Same

-

3.75 in

4 in

-

Locking Position (qty.)
Same

-

14

15

10

Time of Full Rise
Same

-

45 sec.

45 sec.

50 sec.

Pad Height
Same

-

4 in

4 in

-

Drive-Thru Clearance
Same

-

102 in

102 in

-

Material
Same

-

Steel

Steel

Steel
