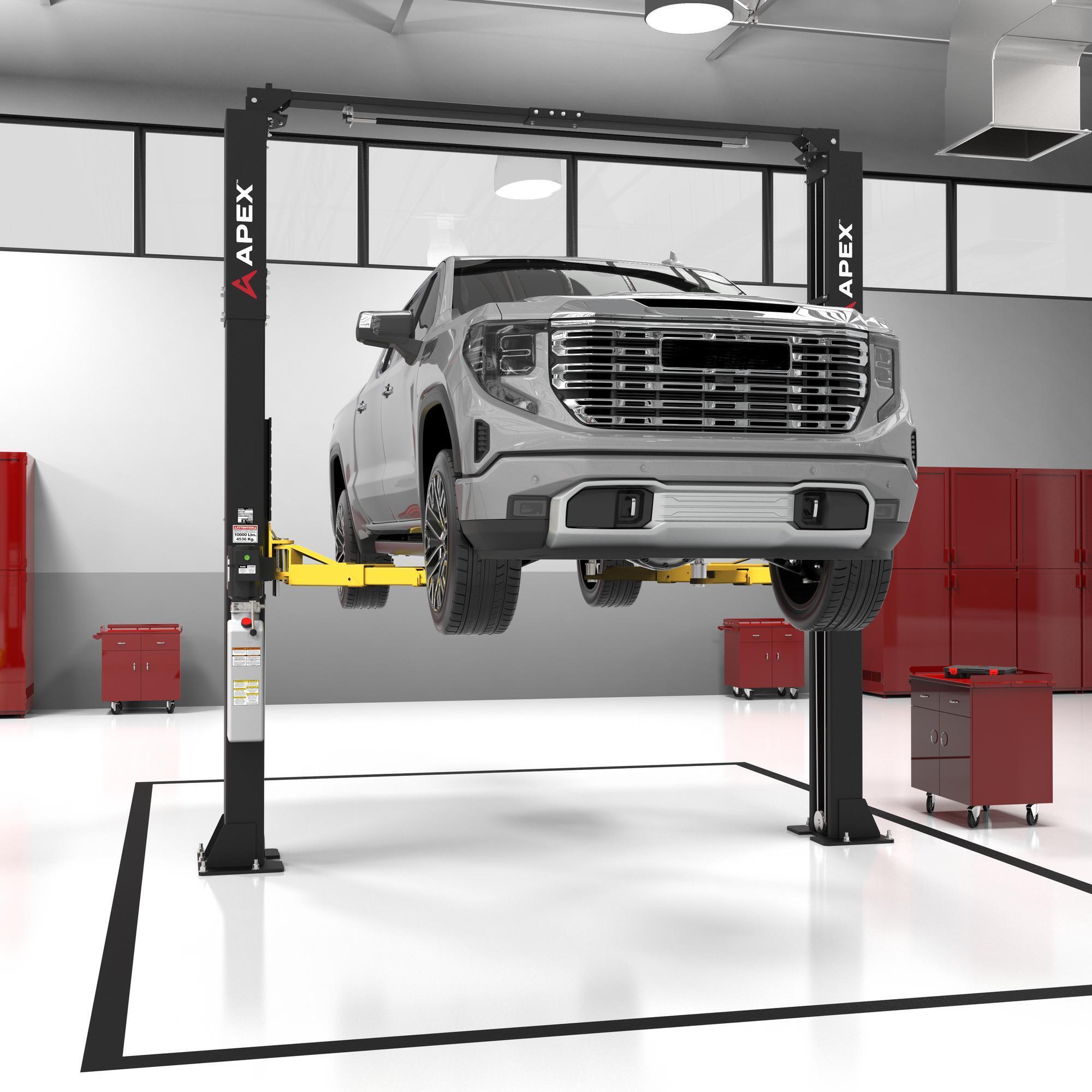

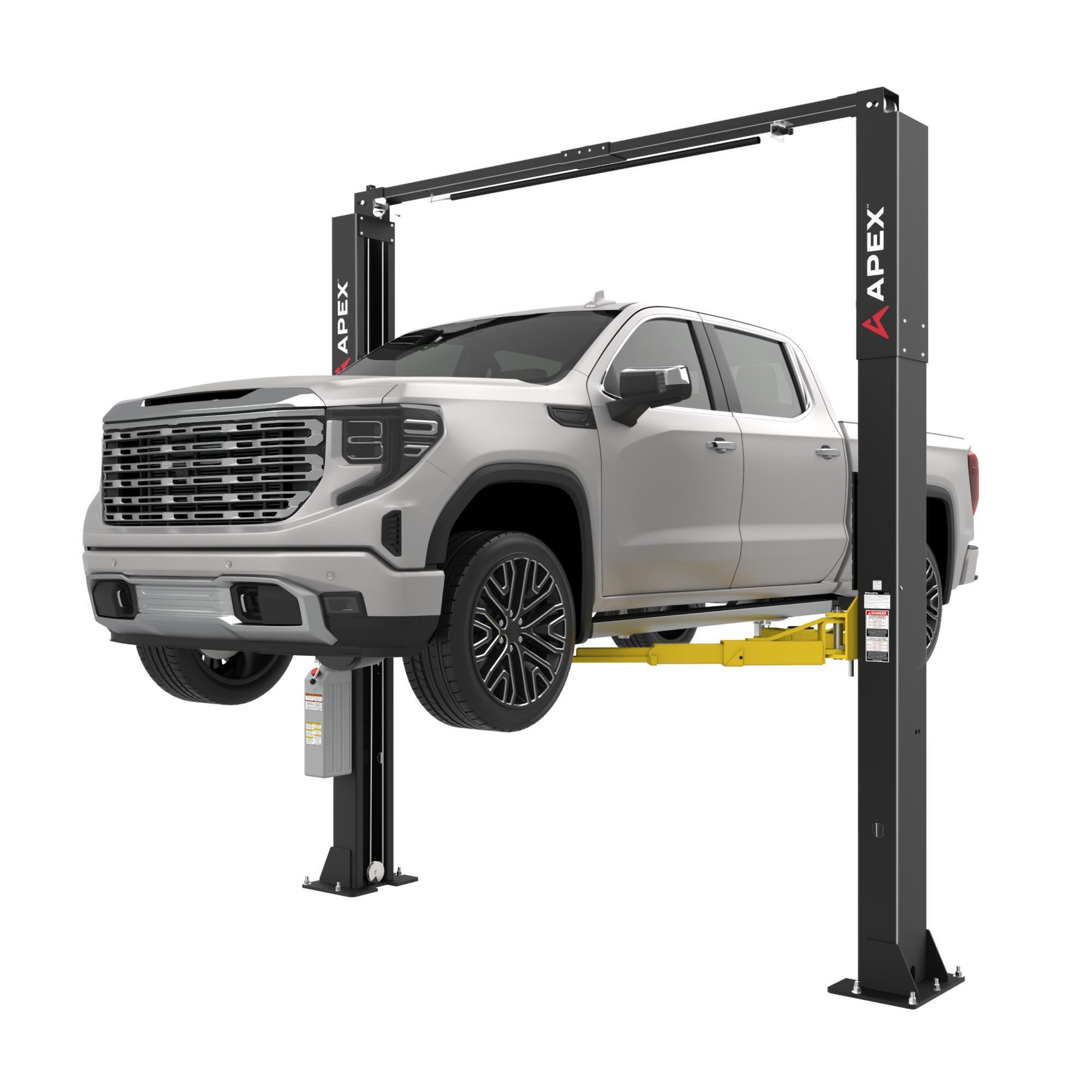

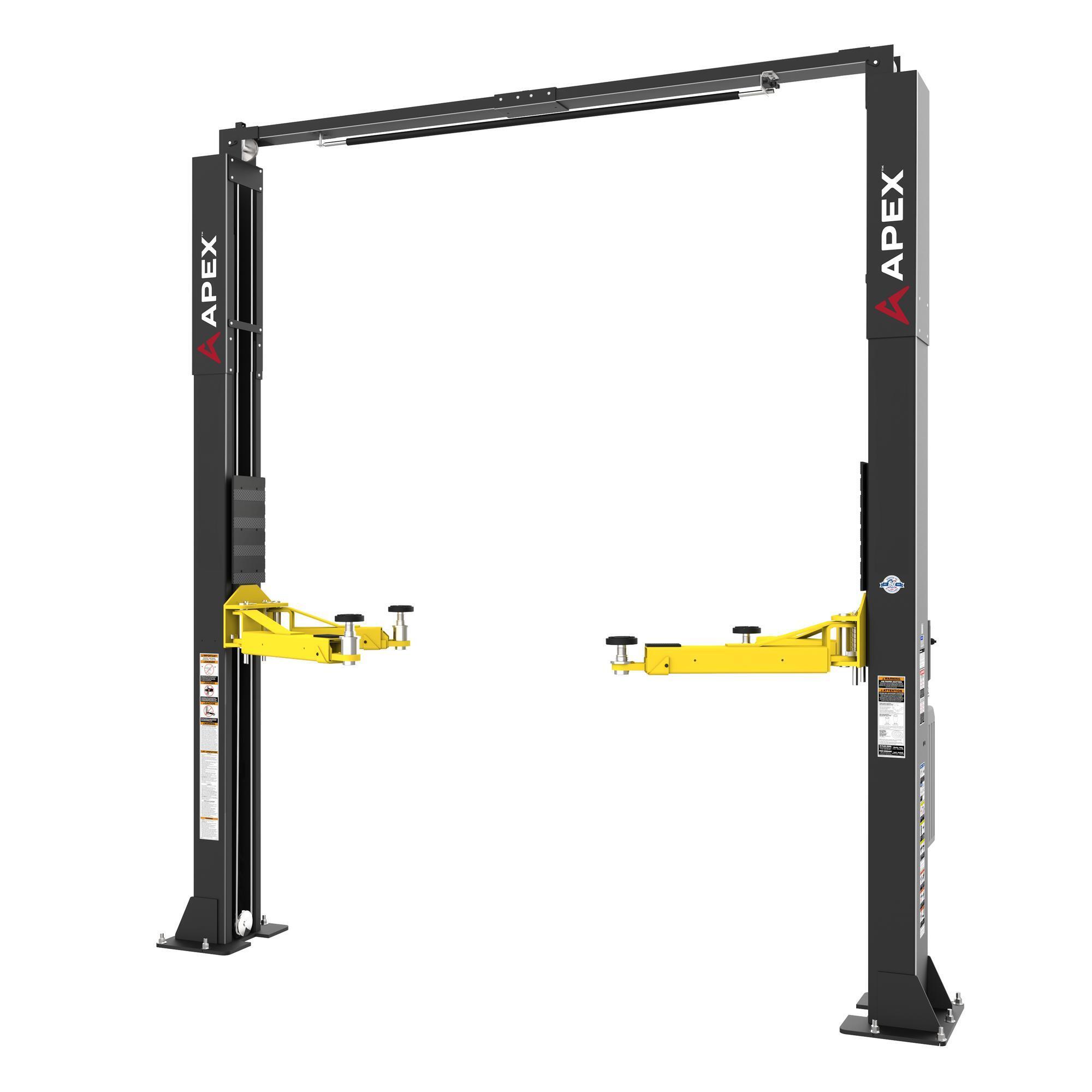

APEX AL10C Two Post Car Lift 10,000-Lb Capacity

Item# 7075611
APEX AL10C Two Post Car Lift 10,000-Lb Capacity

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

APEX AL10C Two Post Car Lift 10,000-Lb Capacity

Click or Tap image to Zoom

$4195.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • 10,000-lb Lifting Capacity Supports a wide range of passenger vehicles, performance cars, and light trucks.
  • Clearfloor Two-Post Design Provides unobstructed access beneath the vehicle for improved workflow.
  • Direct-Drive Dual Hydraulic Cylinders Reduce moving parts while delivering smooth, consistent lifting performance.
  • Rugged Overhead Box-Beam Construction Enhances structural stability and reduces column stress.
  • Padded Overhead Safety Shutoff Bar Automatically stops lift travel if a vehicle is raised too high.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Clearfloor Design for Maximum Shop Efficiency The APEX AL10C is designed for professional shops and serious garages that want complete freedom of movement beneath the vehicle. Its clearfloor design eliminates the floor beam found on traditional two-post lifts, allowing transmission jacks, oil drains, tool carts, and other shop equipment to move freely without obstruction. This open workspace improves efficiency, reduces clutter, and makes it easier to service everything from low-profile performance cars to lifted trucks. With a 10,000-lb lifting capacity, the AL10C delivers the strength needed for modern vehicles while maintaining excellent access and workflow. From GrandPrix to APEX: Proven Engineering, Unified Brand The APEX AL10C was previously sold under the GrandPrix brand and has transitioned into the APEX lineup as part of BendPak’s effort to streamline and strengthen its product families. This transition represents a branding evolution, not a design change. The AL10C retains the same clearfloor architecture, direct-drive hydraulic lifting system, heavy-duty structural components, and safety features that made it a trusted lift in professional and enthusiast shops. It continues to be built to the same specifications and performance standards. By bringing this model under the APEX name, BendPak has aligned it with a broader APEX product lineup focused on delivering professional-grade capability at a smart value, supported by U.S.-based customer service and industry-leading warranty and support. Flexible Arm Geometry for Faster Vehicle Positioning Positioning vehicles correctly on a two-post lift can slow productivity, but the AL10C is built to make setup fast and predictable. Dual symmetric and asymmetric arm configurations allow technicians to position the arms exactly where they are needed for balanced lifting. Triple-telescoping front arms and dual-stage extended rear arms provide exceptional reach, accommodating a wide range of wheelbases and vehicle types. Double-telescoping screw pads and a 4-piece 63 mm stackable adapter set ensure secure, stable contact across varying frame designs. Direct-Drive Hydraulic Lifting System Unlike many clearfloor lifts that rely on complex chain-over systems, the AL10C features a direct-drive design with dual full-stroke hydraulic cylinders. This approach significantly reduces the number of moving parts, minimizing wear while delivering smooth, consistent lifting performance. The result is lower maintenance, impr

What's Included

    (1) Two Post Lift

Features + Benefits

  • 10,000-lb Lifting Capacity Supports a wide range of passenger vehicles, performance cars, and light trucks.
  • Clearfloor Two-Post Design Provides unobstructed access beneath the vehicle for improved workflow.
  • Direct-Drive Dual Hydraulic Cylinders Reduce moving parts while delivering smooth, consistent lifting performance.
  • Rugged Overhead Box-Beam Construction Enhances structural stability and reduces column stress.
  • Padded Overhead Safety Shutoff Bar Automatically stops lift travel if a vehicle is raised too high.

Key Specs

AttributeSpecification

item#

7075611

Brand

Apex

Manufacturer's Warranty

3 year limited warranty

Ship Weight

1544.0 LB

Capacity

10,000 lb

Max. Rise

5.8 ft

Horsepower

3 HP

Motor Phase

Single-phase

Volts

220
AttributeSpecification

Lock Spacing

3 in

Locking Position (qty.)

19

Time of Full Rise

65 sec.

Pad Height

4 in

Drive-Thru Clearance

103 in

Material

Steel

Product Weight

1474.0000 lb

Dimensions L x W x H (in.)

27.0 x 137.5 x 148.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

3 year limited warranty

Compare with Most Popular in Two-Post Lifts

See All Two-Post Lifts

See All Apex Two-Post Lifts

Specifications

Specifications
APEX AL10C Two Post Car Lift 10,000-Lb Capacity
Tuxedo 2-Post Clear Floor Electric/Hydraulic Vehicle Lift, 12,000-Lb. Capacity, Model# TP12KC-D
BendPak 2-Post Car Lift, 10,000-Lb. Capacity, Model# 10AP
MaxJax, 7000 lbs. Capacity MaxJax Two Post Lift, Capacity 7000 lb, Max. Rise 3.75 ft, Horsepower 1 HP, Model# M7K
Capacity
Same

10,000 lb

12,000 lb

10,000 lb

7,000 lb

Max. Rise
Same

5.8 ft

6 ft

6 ft

3.75 ft

Horsepower
Same

3 HP

2 HP

3 HP

1 HP

Motor Phase
Same

Single-phase

Single-phase

Single-phase

Single-phase

Volts
Same

220

220

220

110

Lock Spacing
Same

3 in

-

3.75 in

3 in

Locking Position (qty.)
Same

19

1

14

7

Time of Full Rise
Same

65 sec.

-

45 sec.

45 sec.

Pad Height
Same

4 in

-

4 in

4.75 in

Drive-Thru Clearance
Same

103 in

-

102 in

104 in

Material
Same

Steel

-

Steel

Steel

Product Weight
Same

1474.0000 lb

3,000 lb

1710.0000 lb

950.0000 lb

Dimensions L x W x H (in.)
Same

27.0 x 137.5 x 148.0 in

-

145.0 x 20.0 x 145.0 in

135.0 x 19.0 x 64.0 in
