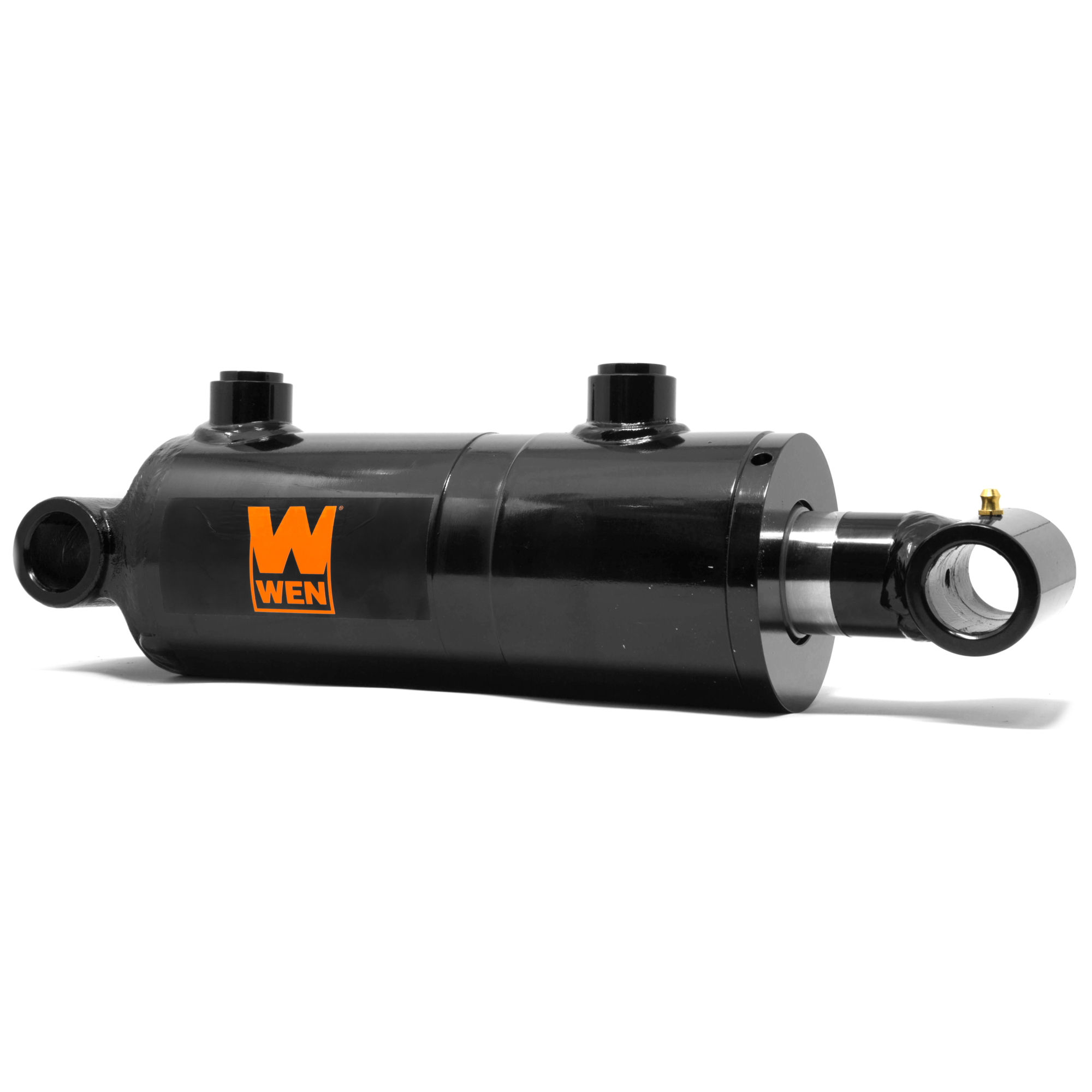

WEN WT-3008 Cross Tube Hydraulic Cylinder with 3-inch Bore and 8-inch Stroke
Top Seller
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$104.99
- Double-acting steel-welded design creates pressure up to 3000 PSI
- Features a 3-inch bore, a 8-inch stroke, and a 1.5-inch rod diameter
- SAE-8 port (3/4 inch-16UNF) connects easily to your hydraulic hose
- Retracted 16-inch cylinder extends out to 24 inches in length
- Includes a polished chrome-plated rod, and a two-year warranty
Prop 65 Warning: See Details
See full description
See All Cross Tube Welded Cylinders
See All WEN Cross Tube Welded Cylinders
Currently Viewing This Product
Specifications
Specifications
WEN WT-3008 Cross Tube Hydraulic Cylinder with 3-inch Bore and 8-inch Stroke
WEN WT-2006 Cross Tube Hydraulic Cylinder with 2-inch Bore and 6-inch Stroke
WEN WT-2008 Cross Tube Hydraulic Cylinder with 2-inch Bore and 8-inch Stroke
Max. PSI
Same
4,500
4,500
4,500
Bore Diameter
Same
3 in
2 in
2 in
Stroke Length
Same
8 in
6 in
8 in
Retracted Length
Same
16 in
14 in
16 in
Extended Length
Same
24 in
20 in
24 in
Port Size
Same
0.75 in
0.563 in
0.563 in
Product Weight
Same
22.7000 lb
11.7000 lb
13.0000 lb
Dimensions L x W x H (in.)
Same
17.5 x 4.22 x 3.75 in
15.5 x 3.15 x 2.75 in
17.5 x 3.15 x 2.75 in
