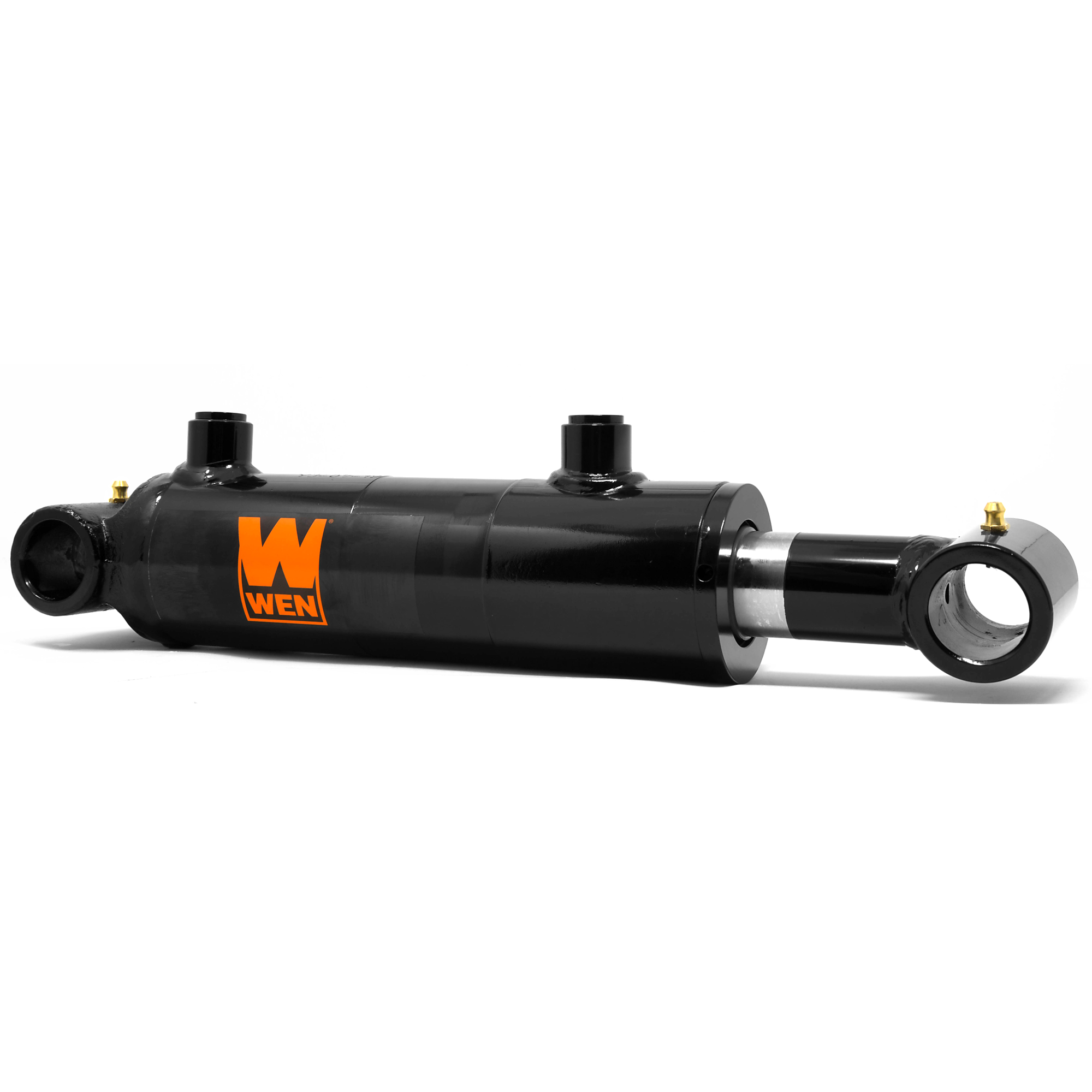

WEN WT-2006 Cross Tube Hydraulic Cylinder with 2-inch Bore and 6-inch Stroke
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
- Double-acting steel-welded design creates pressure up to 3000 PSI
- Features a 2-inch bore, a 6-inch stroke, and a 1.25-inch rod diameter
- SAE-6 port (9/16 inch-18UNF) connects easily to your hydraulic hose
- Retracted 14-inch cylinder extends out to 20 inches in length
- Includes a polished chrome-plated rod, and a two-year warranty
Prop 65 Warning: See Details
See full description
See All Cross Tube Welded Cylinders
See All WEN Cross Tube Welded Cylinders
Currently Viewing This Product
Specifications
4,500
4,500
4,500
4,500
2 in
2 in
1.5 in
2 in
6 in
8 in
10 in
24 in
14 in
16 in
18 in
32 in
20 in
24 in
28 in
56 in
0.563 in
0.563 in
0.438 in
0.563 in
11.7000 lb
13.0000 lb
10.1000 lb
24.5000 lb
15.5 x 3.15 x 2.75 in
17.5 x 3.15 x 2.75 in
19.25 x 2.55 x 2.25 in
33.5 x 3.15 x 2.75 in
