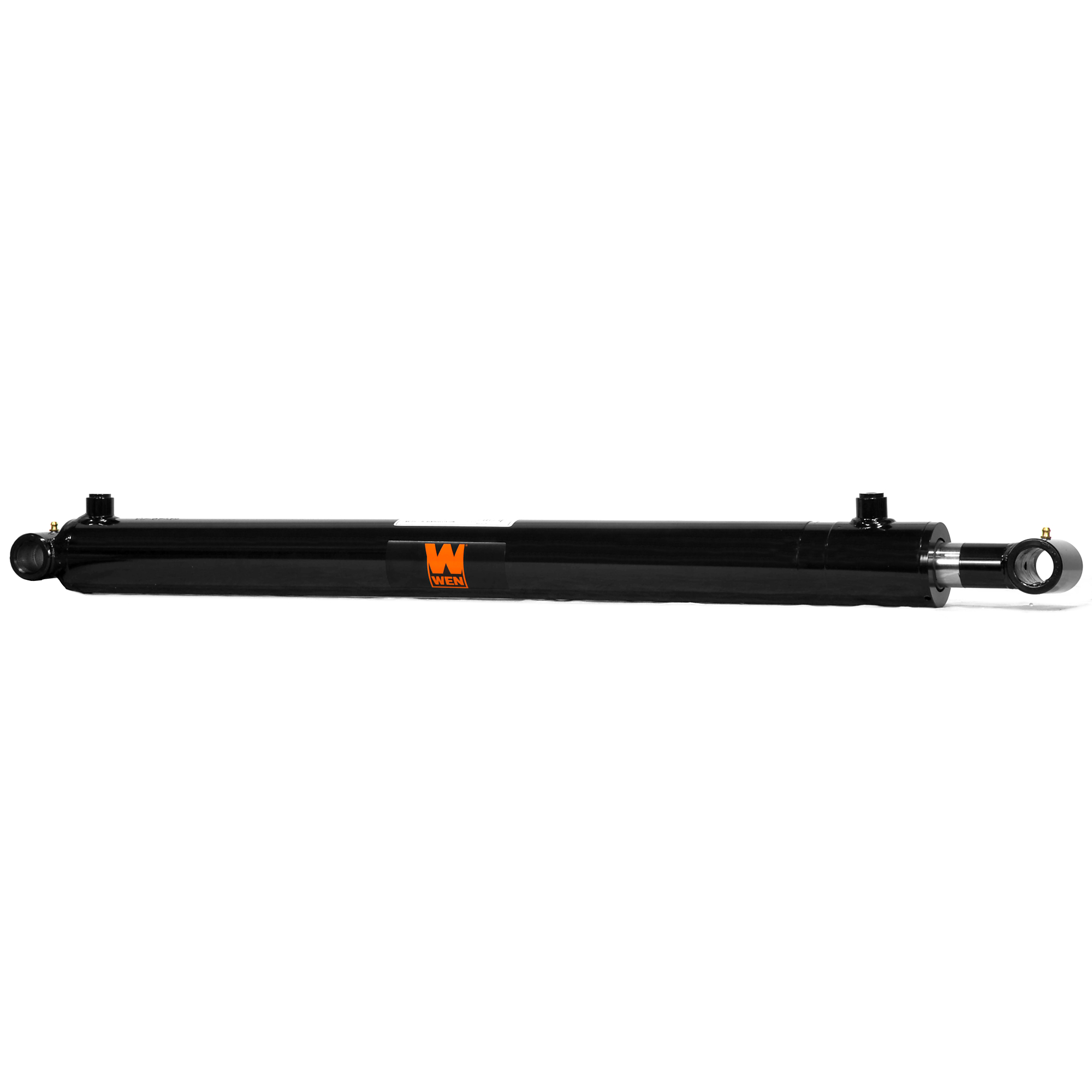

WEN WT-1512 Cross Tube Hydraulic Cylinder with 1.5-inch Bore and 12-inch Stroke
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
- Double-acting steel-welded design creates pressure up to 3000 PSI

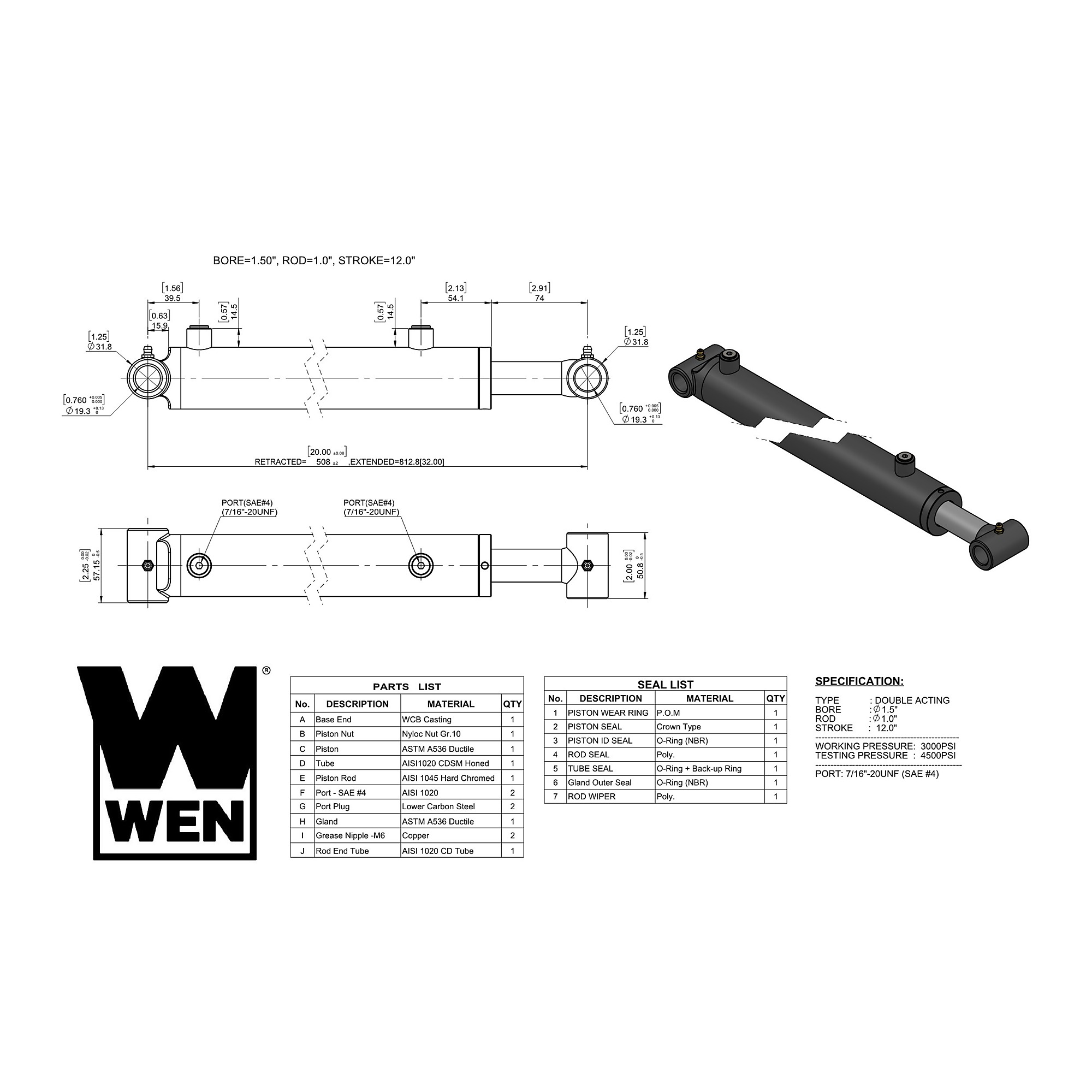

- Features a 1.5-inch bore, a 12-inch stroke, and a 1-inch rod diameter
- SAE-4 port (7/16 inch-20UNF) connects easily to your hydraulic hose
- Retracted 20-inch cylinder extends out to 32 inches in length
- Includes a polished chrome-plated rod, and a two-year warranty
Prop 65 Warning: See Details
See full description
See All Cross Tube Welded Cylinders
See All WEN Cross Tube Welded Cylinders
Currently Viewing This Product
Specifications
4,500
4,500
4,500
3,000
1.5 in
2.5 in
2 in
3 in
12 in
8 in
8 in
12 in
20 in
16 in
16 in
20 in
32 in
24 in
24 in
32 in
0.438 in
0.75 in
0.563 in
-
11.0000 lb
17.9000 lb
13.0000 lb
26.9000 lb
21.25 x 2.55 x 2.25 in
17.5 x 3.7 x 3.25 in
17.5 x 3.15 x 2.75 in
25.0 x 5.0 x 5.0 in
-
-
-
1.5 in
-
-
-
21,200 lb
-
-
-
1 in
