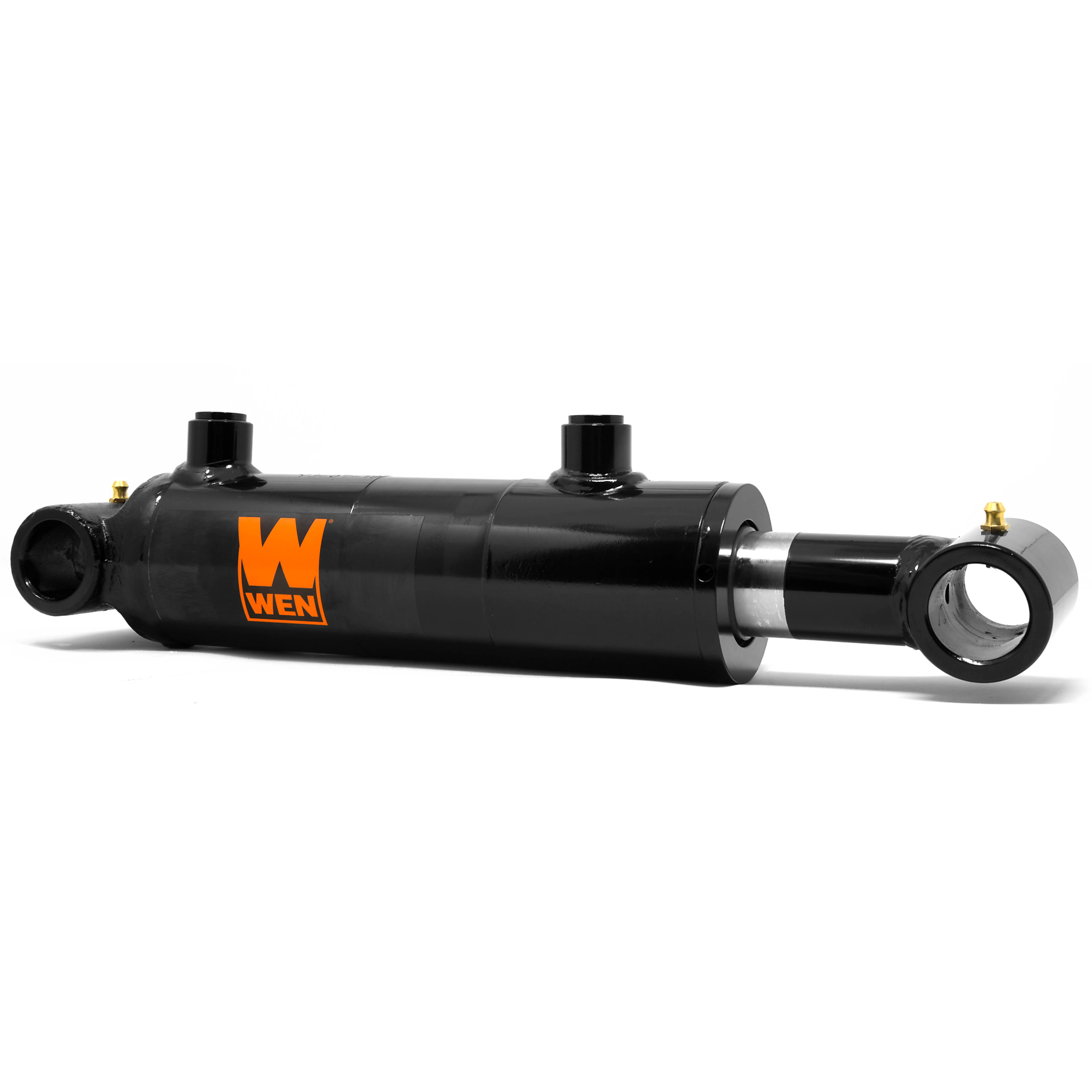

WEN WT-2008 Cross Tube Hydraulic Cylinder with 2-inch Bore and 8-inch Stroke

Item# 7061041
WEN WT-2008 Cross Tube Hydraulic Cylinder with 2-inch Bore and 8-inch Stroke

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

WEN WT-2008 Cross Tube Hydraulic Cylinder with 2-inch Bore and 8-inch Stroke

Click or Tap image to Zoom

$72.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Double-acting steel-welded design creates pressure up to 3000 PSI
  • Features a 2-inch bore, a 8-inch stroke, and a 1.25-inch rod diameter
  • SAE-6 port (9/16 inch-18UNF) connects easily to your hydraulic hose
  • Retracted 16-inch cylinder extends out to 24 inches in length
  • Includes a polished chrome-plated rod, and a two-year warranty

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

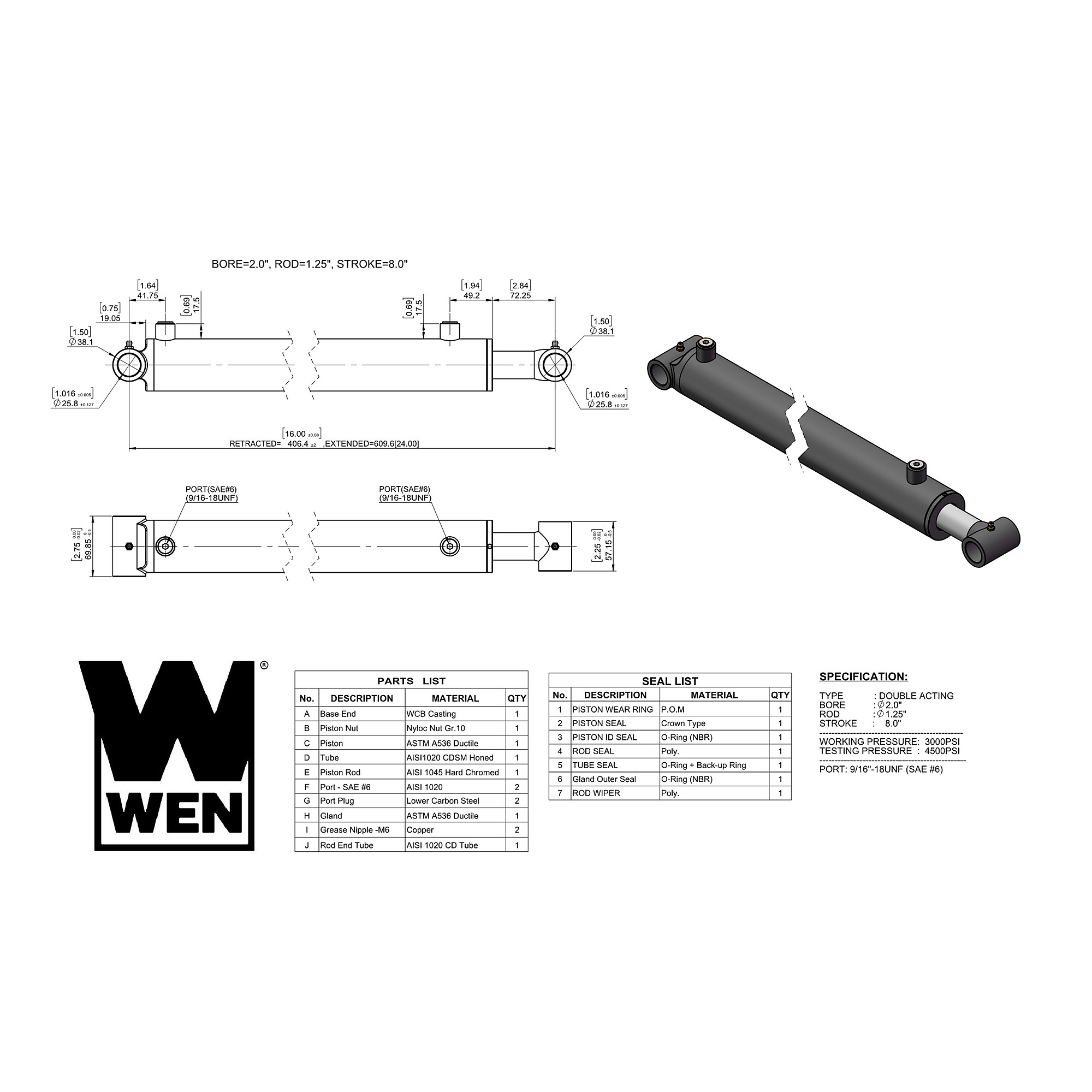

Remember when you had a cylinder that lasted? Maximize reliability in agriculture, construction, manufacturing, machinery, and more with a WEN Hydraulic Cylinder. This double-acting cross tube hydraulic cylinder withstands operating pressures of up to 3000 PSI. The SAE-6 port (9/16in.-18UNF) attaches easily to the hydraulic hose of your choice. With a 2in. bore and a 8in. stroke, this durable cylinder goes from a retracted length of 16in. all the way out to an extended length of 24in. This cylinder also includes a reinforced O-ring tube seal, a cold-drawn tube to maximize seal life, a high-tensile ground and polished chrome-plated rod, and an ASTM A536 65-45-12 ductile iron piston. And because it’s a WEN product, your cylinder comes backed by a two-year warranty and a friendly customer help line, all to make sure you remember WEN.

What's Included

    (1) Cross Tube Hydraulic Cylinder with 2-inch Bore and 8-inch Stroke

Features + Benefits

  • Double-acting steel-welded design creates pressure up to 3000 PSI
  • Features a 2-inch bore, a 8-inch stroke, and a 1.25-inch rod diameter
  • SAE-6 port (9/16 inch-18UNF) connects easily to your hydraulic hose
  • Retracted 16-inch cylinder extends out to 24 inches in length
  • Includes a polished chrome-plated rod, and a two-year warranty

Key Specs

AttributeSpecification

item#

7061041

Brand

WEN

Manufacturer's Warranty

2 year limited warranty

Ship Weight

13.67 LB

Max. PSI

4,500

Bore Diameter

2 in
AttributeSpecification

Stroke Length

8 in

Retracted Length

16 in

Extended Length

24 in

Port Size

0.563 in

Product Weight

13.0000 lb

Dimensions L x W x H (in.)

17.5 x 3.15 x 2.75 in

Reviews

Questions & Answers

Questions

  1. What size are the pins ?

    1 answer

    1. The cylinder would have 1 1/2" pins.

      Helpful?

Warranty

Manufacturer's Warranty

2 year limited warranty
