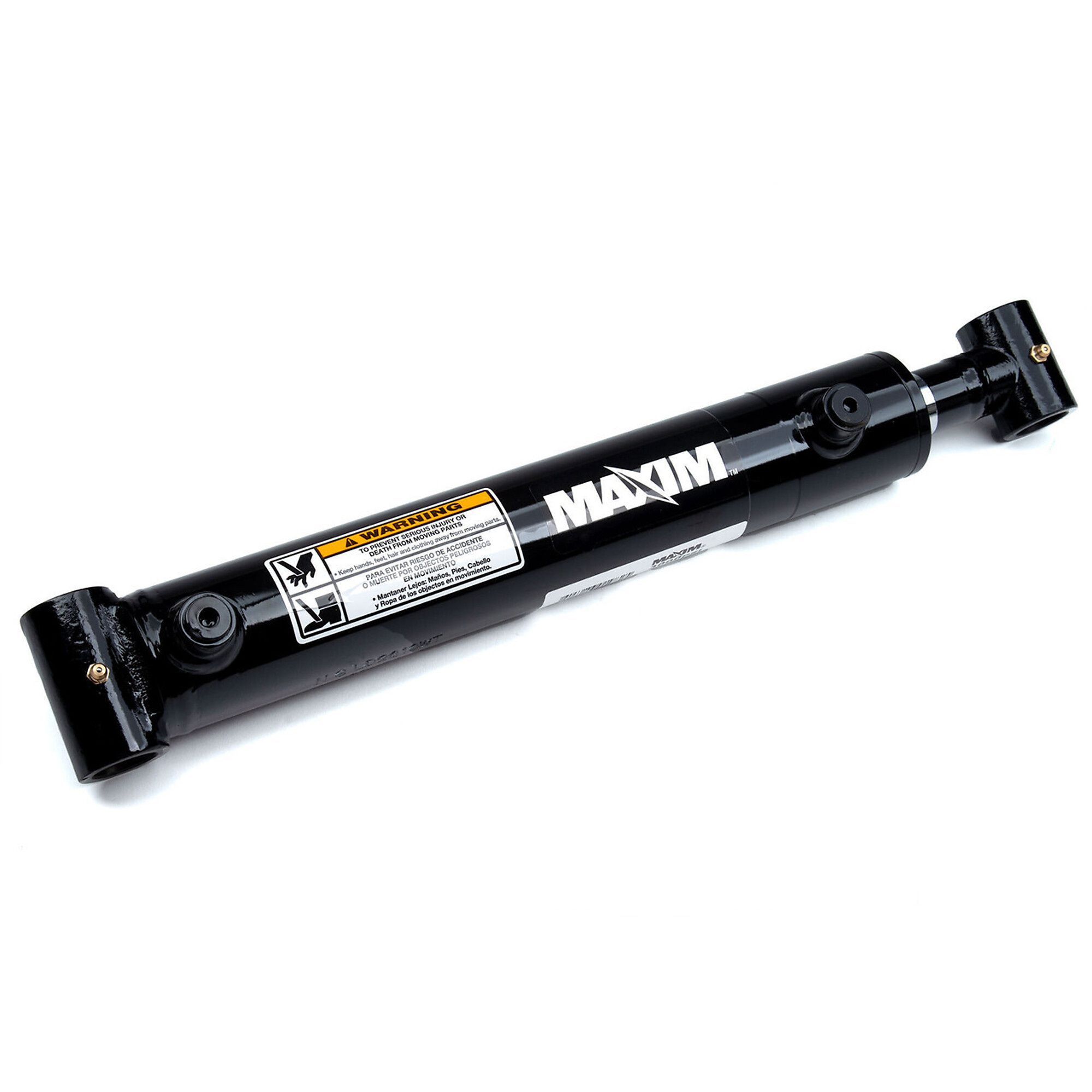

Maxim WT Welded Cross Tube Hydraulic Cylinder: 3.5 Bore x 30 Stroke, 1.75 Rod
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
- Engineered with a robust ductile iron piston for unparalleled durability in demanding environments.
- Uncompromising seal integrity guaranteed by the piston's O-ring for its inner diameter and Hallite 755 piston seal with wear rings for the outer diameter.
- Sturdy steel cross tube mounts serve as reliable end mounts, ensuring stability and facilitating effortless installation for hydraulic systems.
- Exceptional rod-sealing capabilities provided by the PolyPak design, incorporating a polyurethane U-cup with a Nitrile O-ring expander.
- Enhanced security and stability ensured by the Grade 8 zinc-plated lock nut.
See full description
See All Cross Tube Welded Cylinders
See All Maxim Cross Tube Welded Cylinders
Currently Viewing This Product
$119.99
Specifications
3,000
3,000
4,500
4,500
3.5 in
3 in
2.5 in
2 in
30 in
8 in
20 in
8 in
1.75 in
1.5 in
-
-
20,980 lb
21,200 lb
-
-
40 in
16 in
28 in
16 in
70 in
24 in
48 in
24 in
1.25 in
1 in
-
-
63.2700 lb
22.7100 lb
29.3000 lb
13.0000 lb
43.0 x 5.0 x 5.0 in
40.0 x 5.0 x 5.0 in
29.5 x 3.7 x 3.25 in
17.5 x 3.15 x 2.75 in
-
-
0.75 in
0.563 in
