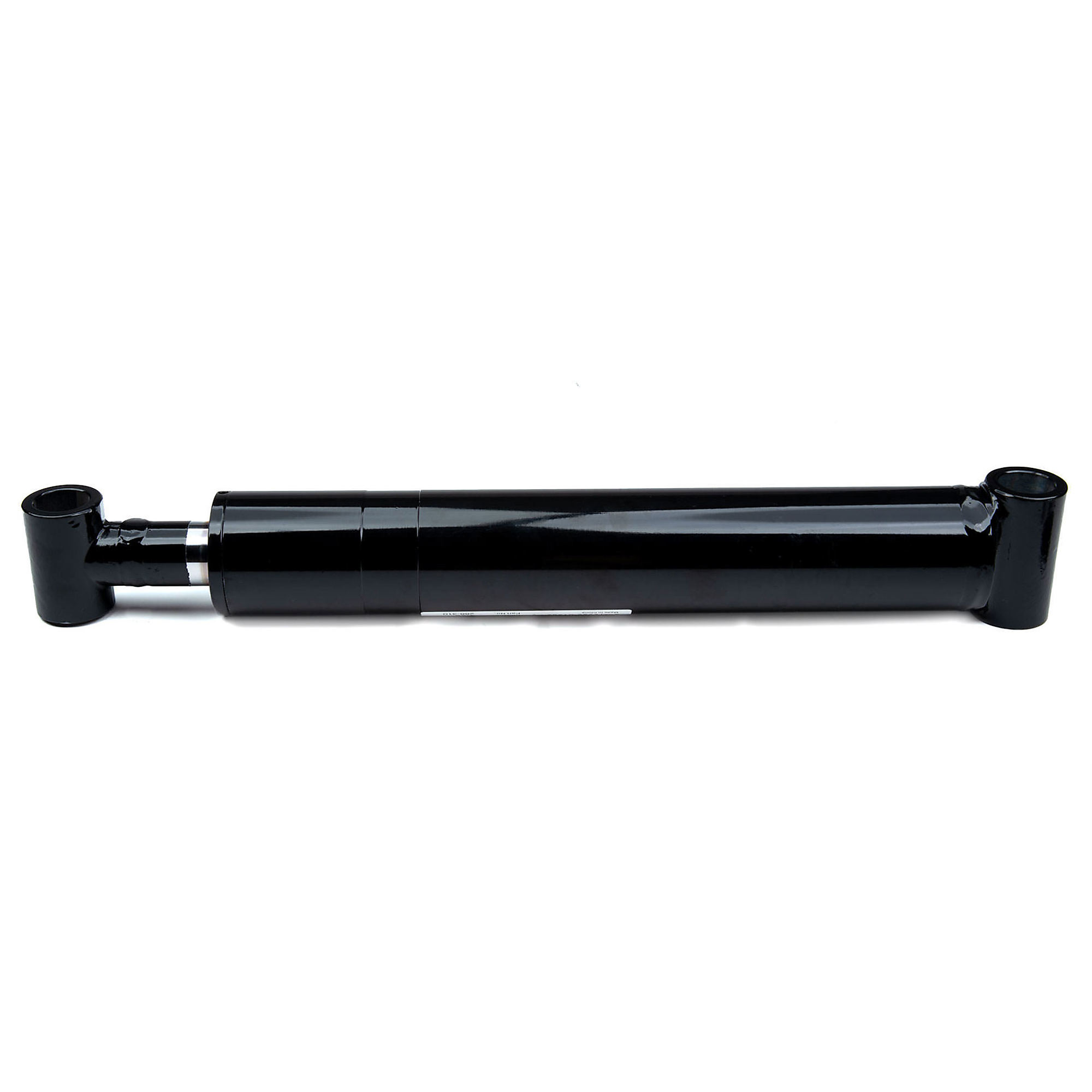

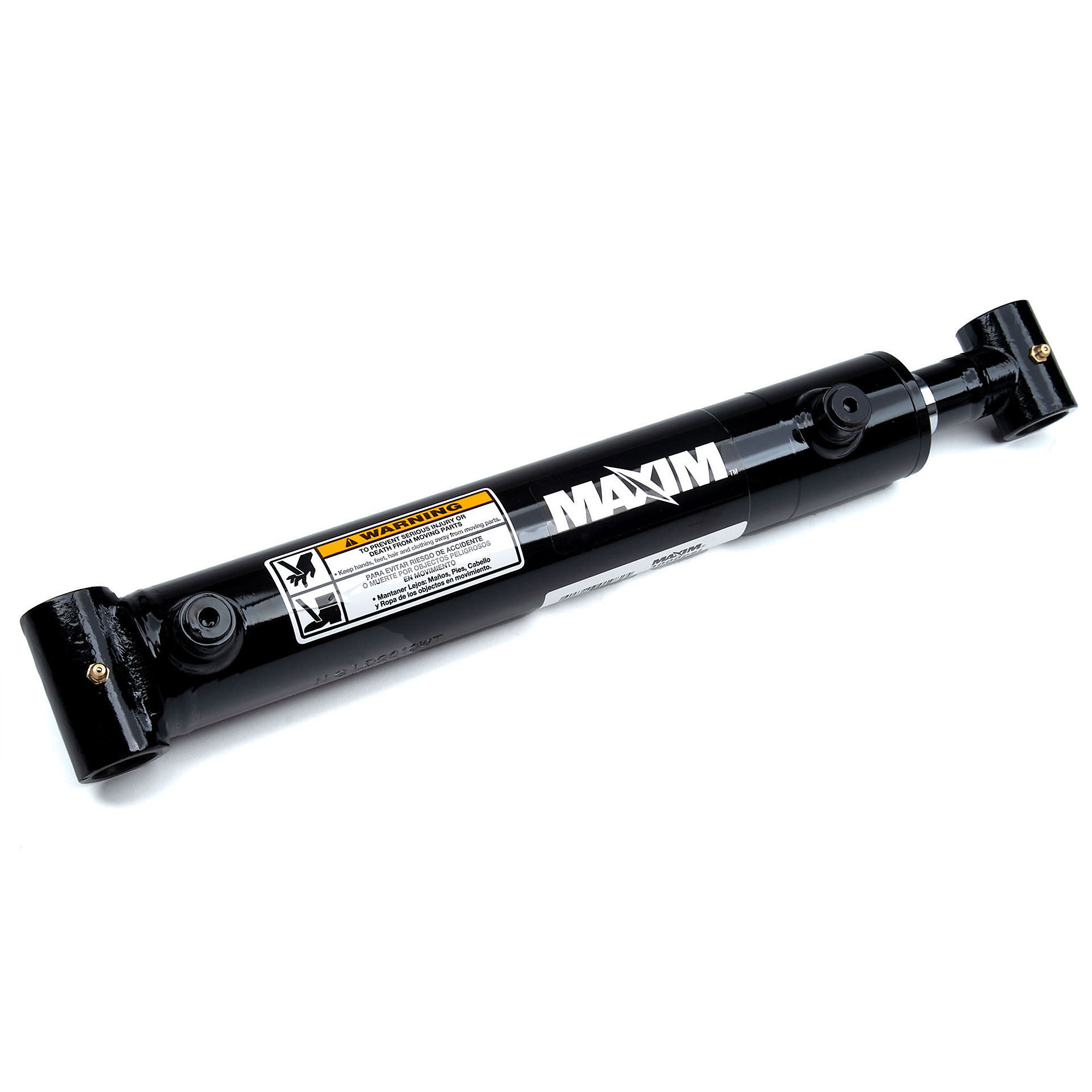

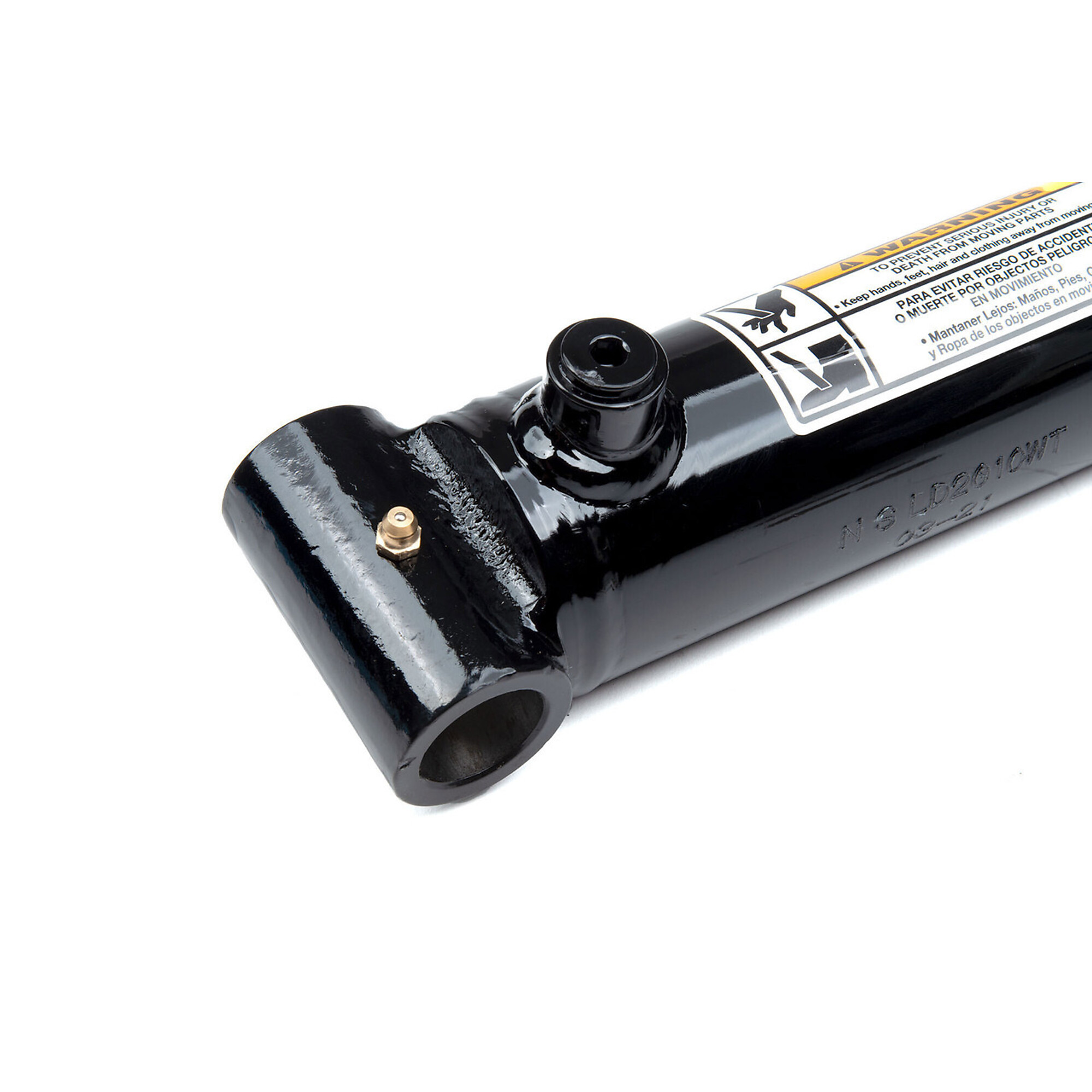

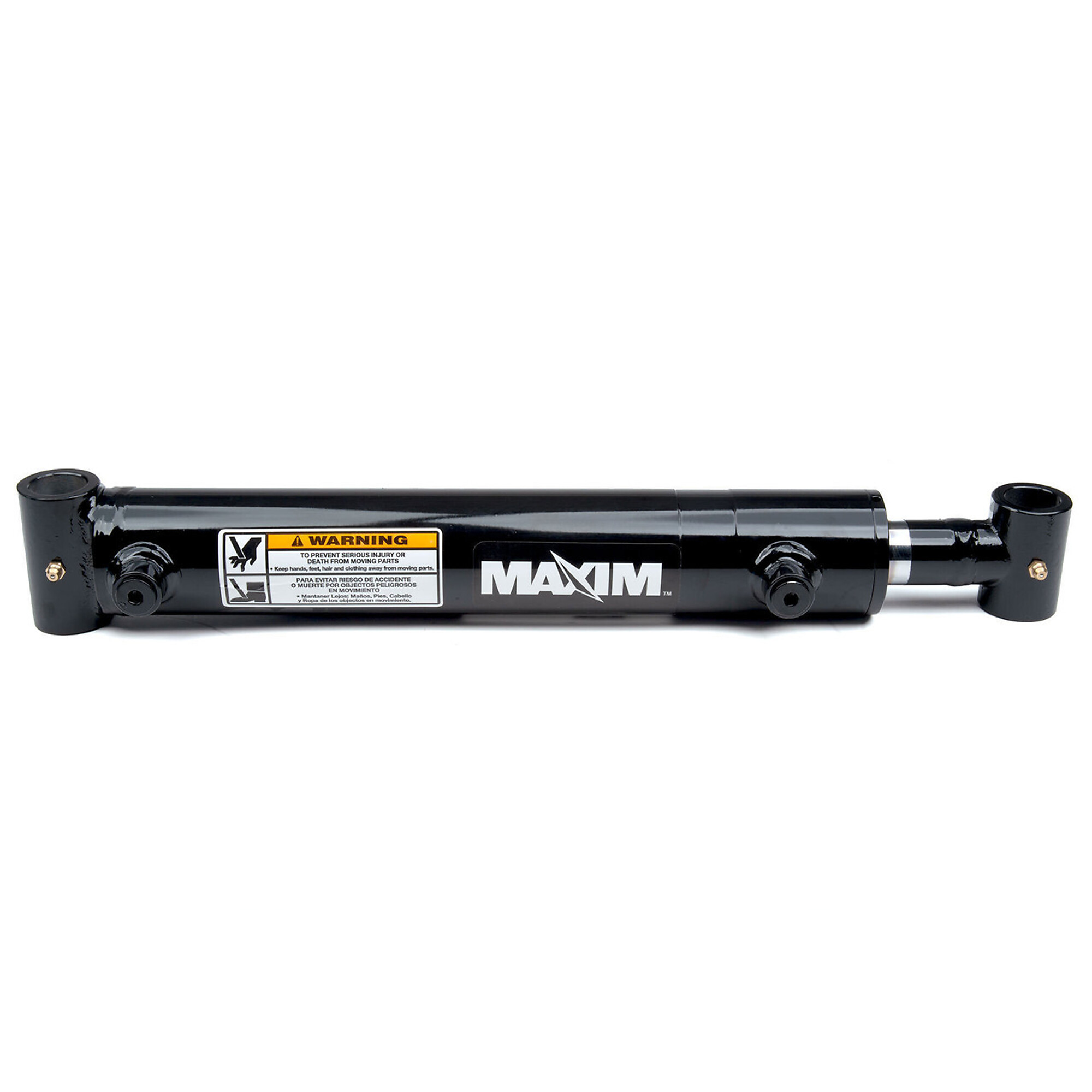

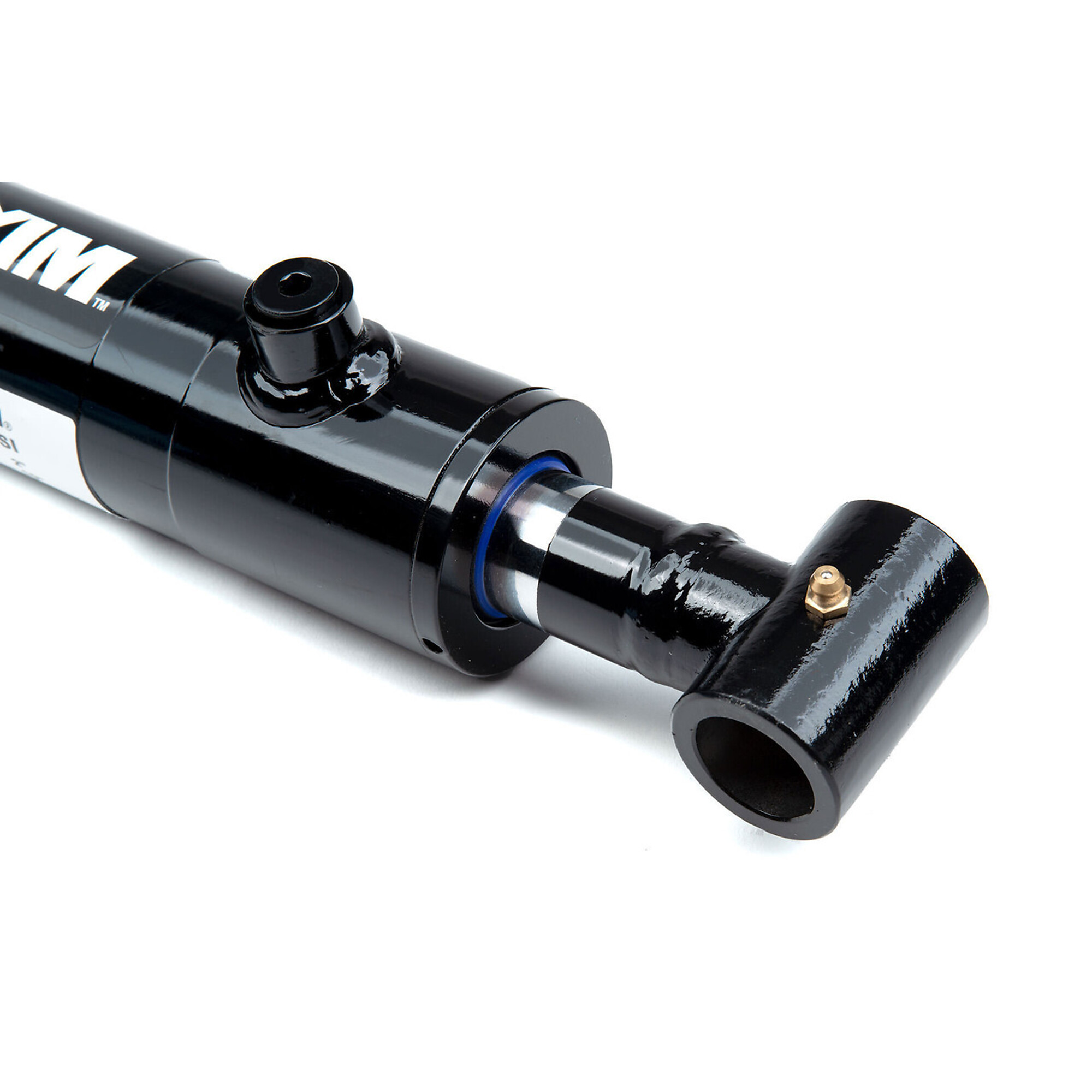

Maxim WT Welded Cross Tube Hydraulic Cylinder: 3 Bore x 8 Stroke, 1.5 Rod

Item# 5711590
Top Seller
Maxim WT Welded Cross Tube Hydraulic Cylinder: 3 Bore x 8 Stroke, 1.5 Rod

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Maxim WT Welded Cross Tube Hydraulic Cylinder: 3 Bore x 8 Stroke, 1.5 Rod

Click or Tap image to Zoom

$225.42

  • Shipping:

    Factory shipped
    $19.99 Same Day

  • Store Pickup:

    1 in stock at Fredericksburg VA

  • Engineered with a robust ductile iron piston for unparalleled durability in demanding environments.
  • Uncompromising seal integrity guaranteed by the piston's O-ring for its inner diameter and Hallite 755 piston seal with wear rings for the outer diameter.
  • Sturdy steel cross tube mounts serve as reliable end mounts, ensuring stability and facilitating effortless installation for hydraulic systems.
  • Exceptional rod-sealing capabilities provided by the PolyPak design, incorporating a polyurethane U-cup with a Nitrile O-ring expander.
  • Enhanced security and stability ensured by the Grade 8 zinc-plated lock nut.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This Maxim® WT welded hydraulic cylinder, rated at 3000 PSI, has a 3in. bore X 8in. stroke. The Maxim WT is Bailey’s best value cylinder with cross-tube mounting. Designed for demanding double-acting push and pull applications this welded cylinder exceeds the highest standards and is built to ensure Maximum reliability and performance. With a compact design WT cylinders are also ideal for mobile applications where space is at a premium.

What's Included

    (1) Maxim WT Cylinder

Features + Benefits

  • Engineered with a robust ductile iron piston for unparalleled durability in demanding environments.
  • Uncompromising seal integrity guaranteed by the piston's O-ring for its inner diameter and Hallite 755 piston seal with wear rings for the outer diameter.
  • Sturdy steel cross tube mounts serve as reliable end mounts, ensuring stability and facilitating effortless installation for hydraulic systems.
  • Exceptional rod-sealing capabilities provided by the PolyPak design, incorporating a polyurethane U-cup with a Nitrile O-ring expander.
  • Enhanced security and stability ensured by the Grade 8 zinc-plated lock nut.

Key Specs

AttributeSpecification

item#

5711590

Brand

Maxim

Manufacturer's Warranty

1 year limited warranty

Ship Weight

22.71 LB

Max. PSI

3,000

Bore Diameter

3 in

Stroke Length

8 in
AttributeSpecification

Shaft Diameter

1.5 in

Cylinder Capacity

21,200 lb

Retracted Length

16 in

Extended Length

24 in

Pin Diameter

1 in

Product Weight

22.7100 lb

Dimensions L x W x H (in.)

40.0 x 5.0 x 5.0 in

Reviews

Questions & Answers

2 Reviews This action will navigate to reviews.

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
