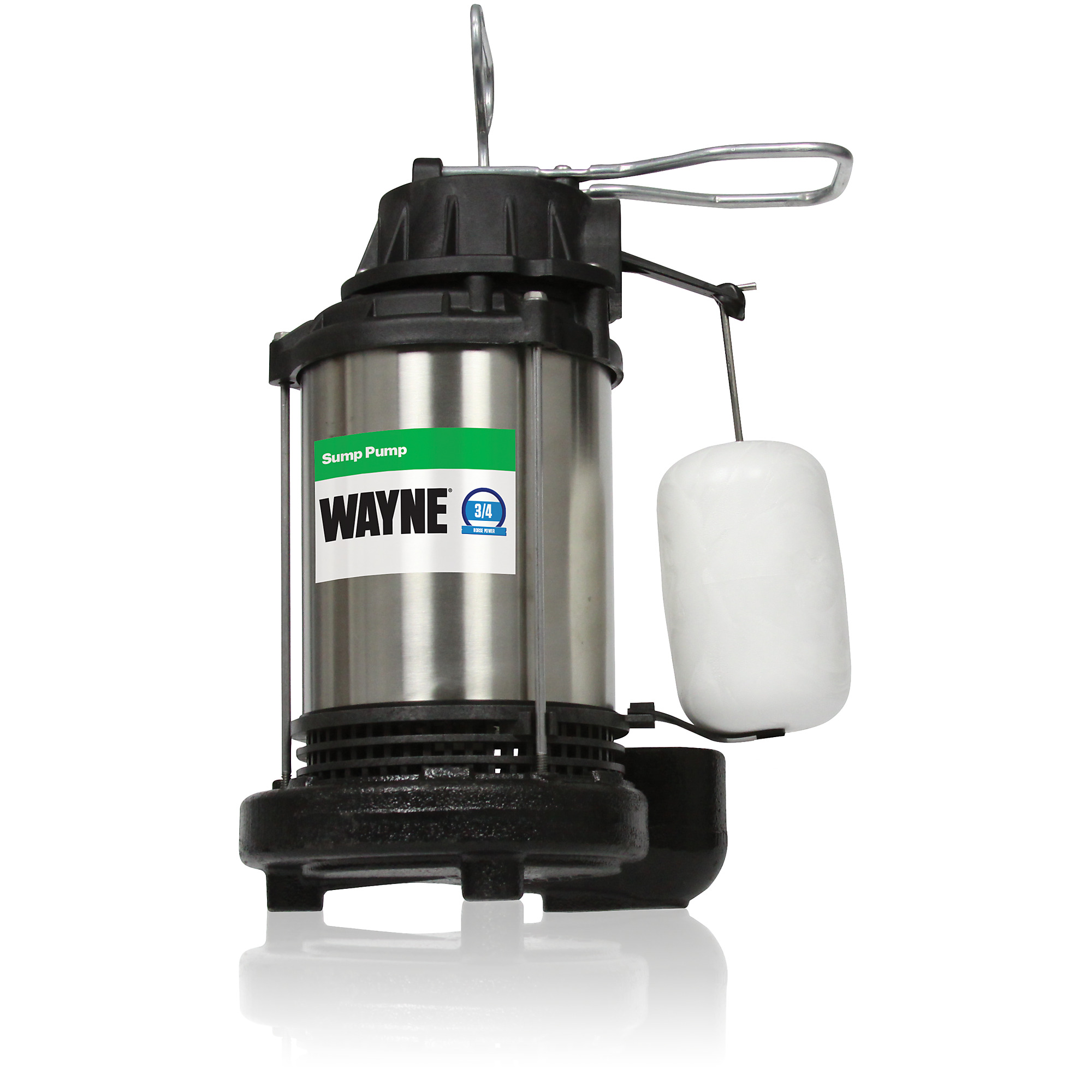

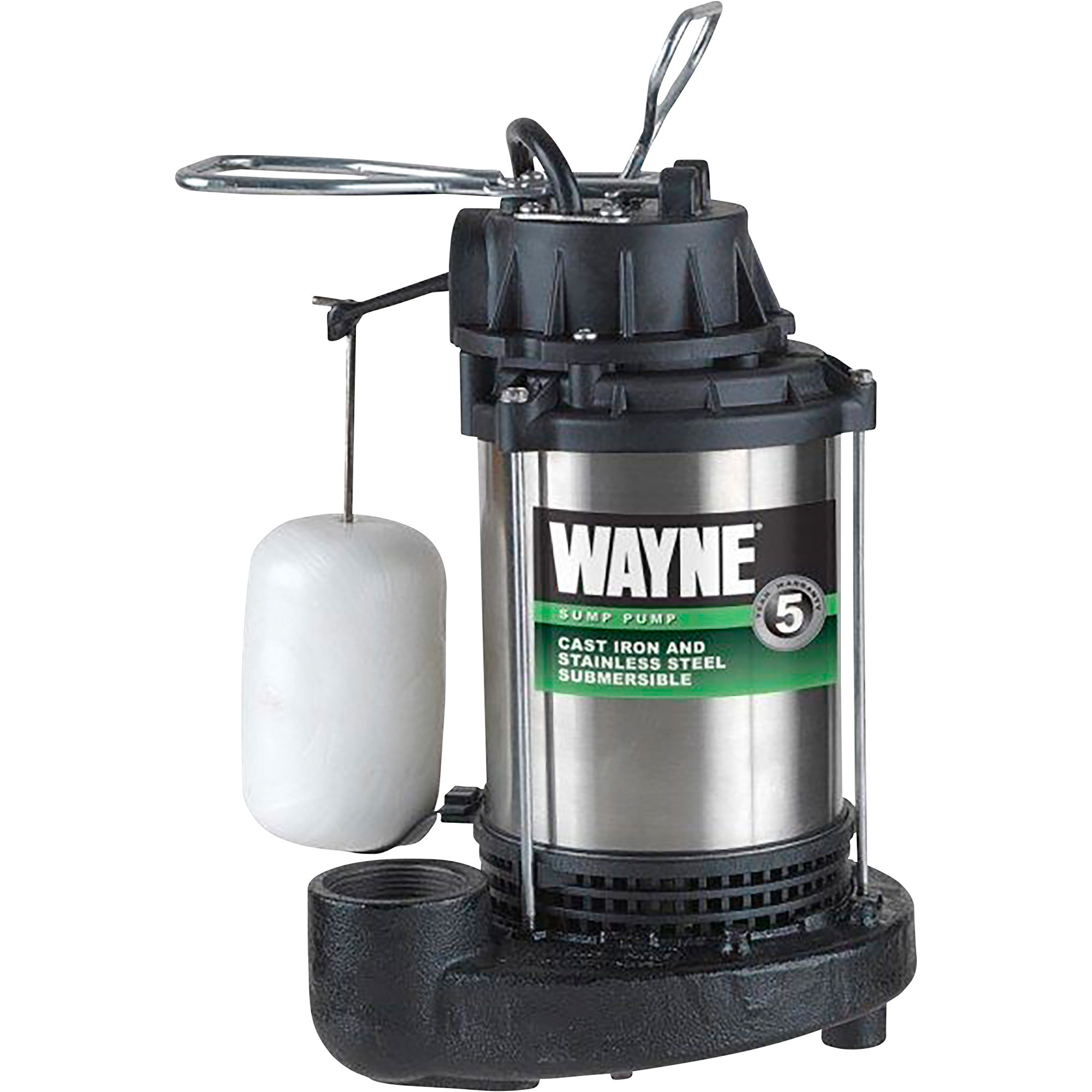

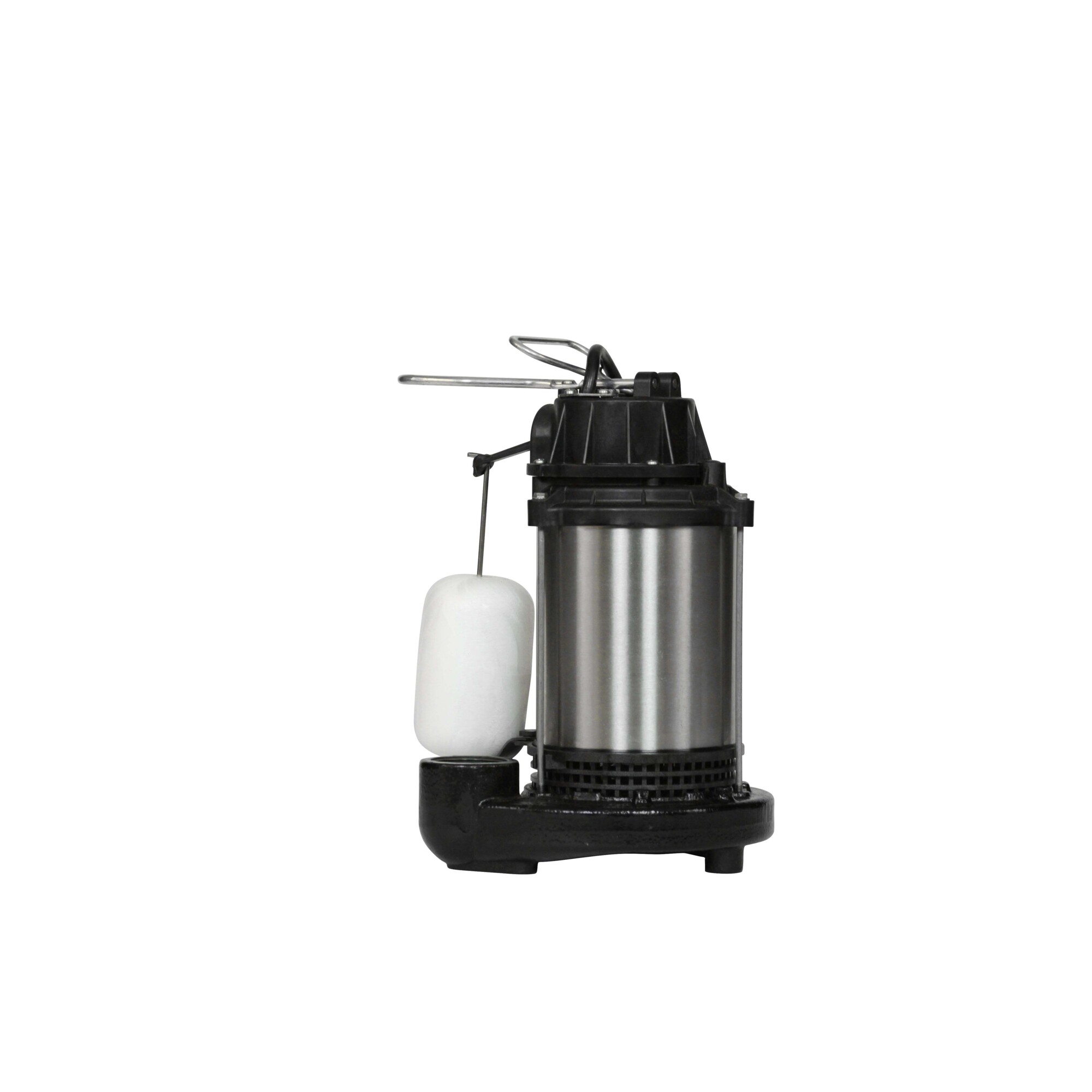

Wayne Submersible Sump Pump, 4,600 GPH, 3/4 HP, 1 1/2in. Ports, Model# CDU980E

Item# 23234
"Wayne Submersible Sump Pump, 4,600 GPH, 3/4 HP, 1 1/2in. Ports, Model# CDU980E"
Top Seller
Wayne Submersible Sump Pump, 4,600 GPH, 3/4 HP, 1 1/2in. Ports, Model# CDU980E

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Wayne Submersible Sump Pump, 4,600 GPH, 3/4 HP, 1 1/2in. Ports, Model# CDU980E

Click or Tap image to Zoom

$220.99

  • Shipping:

    Factory shipped

  • Store Pickup:

  • INDOOR USE ONLY - This 3/4 HP WAYNE basement sump pump is perfect to keep your basement dry during heavy water flow. Whether it’s rain, snow melting, etc. WAYNE model CDU980E can pump up to 5,490 GPH to keep your basement dry.
  • TOUGH AND DURABLE - Corrosion-resistant stainless steel motor housing and fasteners come with a cast-iron volute that provides long life in tough sump pump applications.
  • EFFICIENT DESIGN - The top suction design eliminates air lock and minimizes clogging from any debris in the bottom of the sump pit. Easy to install in about 15 minutes with no need to drill a weep hole! The energy efficient motors, and engineered design provide the ultra-quiet experience you won't believe. The Hardest Working Pumps, You'll Never Hear®
  • ADDITIONAL FEATURES - 1-1/2” NPT discharge for compliance with building codes.
  • QUALITY YOU DESERVE - Proudly assembled in the USA for quality you can trust. Warrantied for 5 years for dependable, efficient, & ultra-quiet performance.

See full description

Complete Your Solution

  • Wayne Submersible Sump Pump, 4,600 GPH, 3/4 HP, 1 1/2in. Ports, Model# CDU980E
  • JGB Enterprises Discharge Hose, 1 1/2in. x 25ft., Model# A008-0246-1625
Price for all two:

$283.98

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Wayne CDU980E submersible sump pump can move up to 5490 gallons per hour (gph). The top suction design filters debris and minimizes clogging. It is a rugged, stainless steel and cast-iron submersible sump pump. This pump is designed for 11in. diameter and larger sump pits. Intended for indoor use only.

What's Included

    (1) Sump pump

Downloads

Product Manual

Features + Benefits

  • INDOOR USE ONLY - This 3/4 HP WAYNE basement sump pump is perfect to keep your basement dry during heavy water flow. Whether it’s rain, snow melting, etc. WAYNE model CDU980E can pump up to 5,490 GPH to keep your basement dry.
  • TOUGH AND DURABLE - Corrosion-resistant stainless steel motor housing and fasteners come with a cast-iron volute that provides long life in tough sump pump applications.
  • EFFICIENT DESIGN - The top suction design eliminates air lock and minimizes clogging from any debris in the bottom of the sump pit. Easy to install in about 15 minutes with no need to drill a weep hole! The energy efficient motors, and engineered design provide the ultra-quiet experience you won't believe. The Hardest Working Pumps, You'll Never Hear®
  • ADDITIONAL FEATURES - 1-1/2” NPT discharge for compliance with building codes.
  • QUALITY YOU DESERVE - Proudly assembled in the USA for quality you can trust. Warrantied for 5 years for dependable, efficient, & ultra-quiet performance.

Key Specs

AttributeSpecification

item#

23234

Brand

Wayne

Manufacturer's Warranty

5 year limited warranty

Ship Weight

22.0 LB

Max. Flow

5,940 GPH

Volts

120
AttributeSpecification

Amps

9.8

Power Cord Length

96 in

Housing Material

Stainless Steel

Horsepower

0.75

Product Weight

lb

Dimensions L x W x H (in.)

10.0 x 9.75 x 14.0 in

Reviews

Questions & Answers

8 Reviews This action will navigate to reviews.

Questions

1–7 of 7 Questions
Sort by:

  1. Can this work if under water

    1 answer

    1. The submersible pump will work if under water.

      Helpful?

  2. Assuming the pump emptied all the water till it shut off, can the pump be left in freezing temperatures for an extended period of time?

    1 answer

    1. The pump would not be recommended to be used or stored in freezing temperatures.

      Helpful?

  3. What material is the impeller made of?

    1 answer

    1. The impeller is made of a durable thermoplastic.

      Helpful?

  4. Can this pump be suspended, as in a well?

    1 answer

    1. This pump cannot be suspended in a well or sump.

      Helpful?

  5. What accessories would I need to install this pump.

    It would be installed outdoors in the ground (clay soil) to control runoff. What parts (sizes & descriptions - e.g. hoses, basin, lid etc.) would I need and would be compatible with this pump?

    1 answer

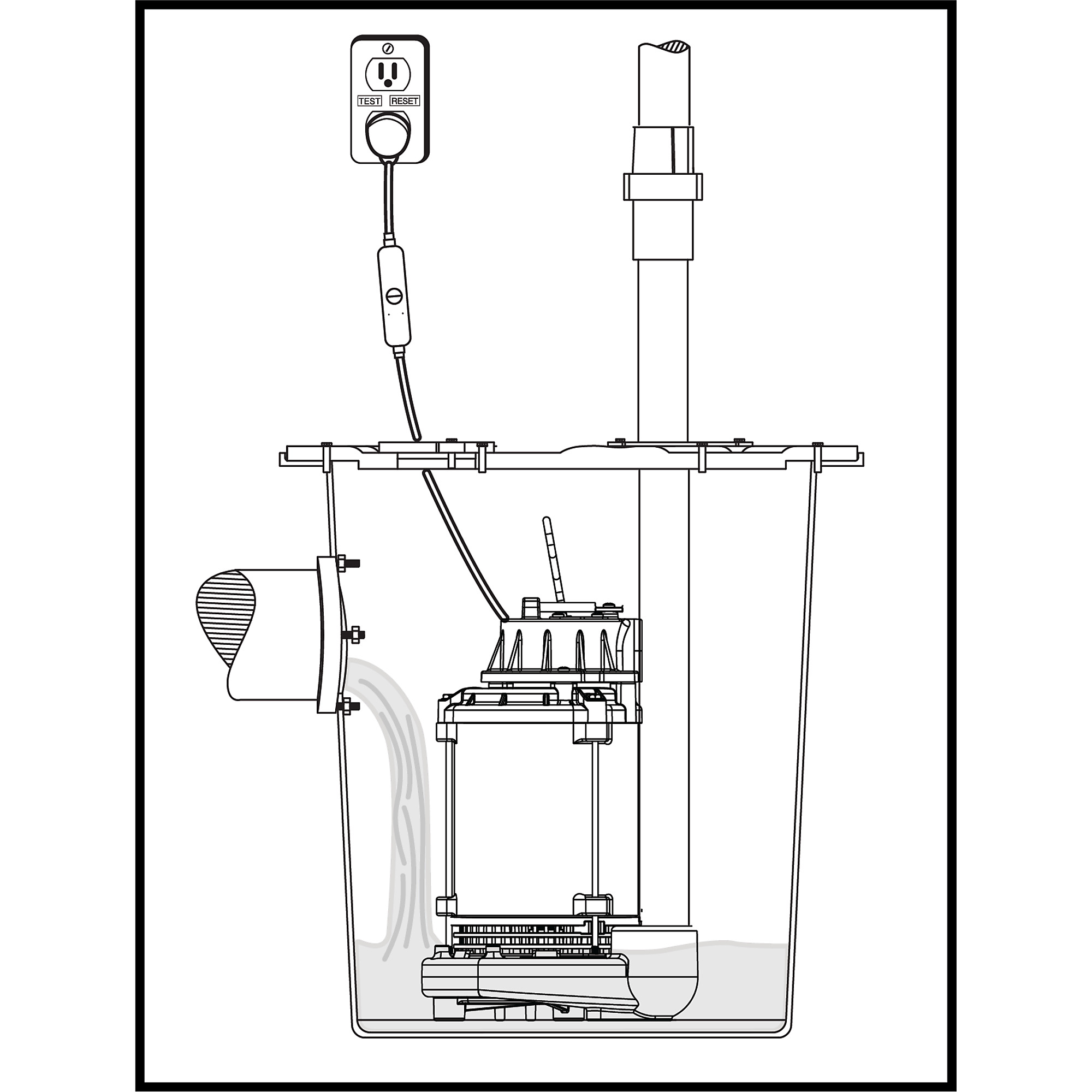

    1. Wayne sump pumps are designed to pump clear water run off from drain tile that is dropped into a sump basin. If there is no debris coming into the basket this pump will work. You will need a sump basin with the proper 4" drain tile and a 1 1/2" discharge hose or 1 1/2"PVC pipe.

      Helpful?

  6. How does the thermal protection work? and are parts readily avaliable?

    1 answer

    1. When the pump reaches a certain temp, it activates the thermal cutoff which stops the motor. Once the pump cools down the motor will restart. Parts are available through the manufacturer.

      Helpful?

  7. IS THIS PUMP MADE IN U.S.A.?

    1 answer

    1. This Wayne submersible sump pump is made in the U.S.A.

      Helpful?
