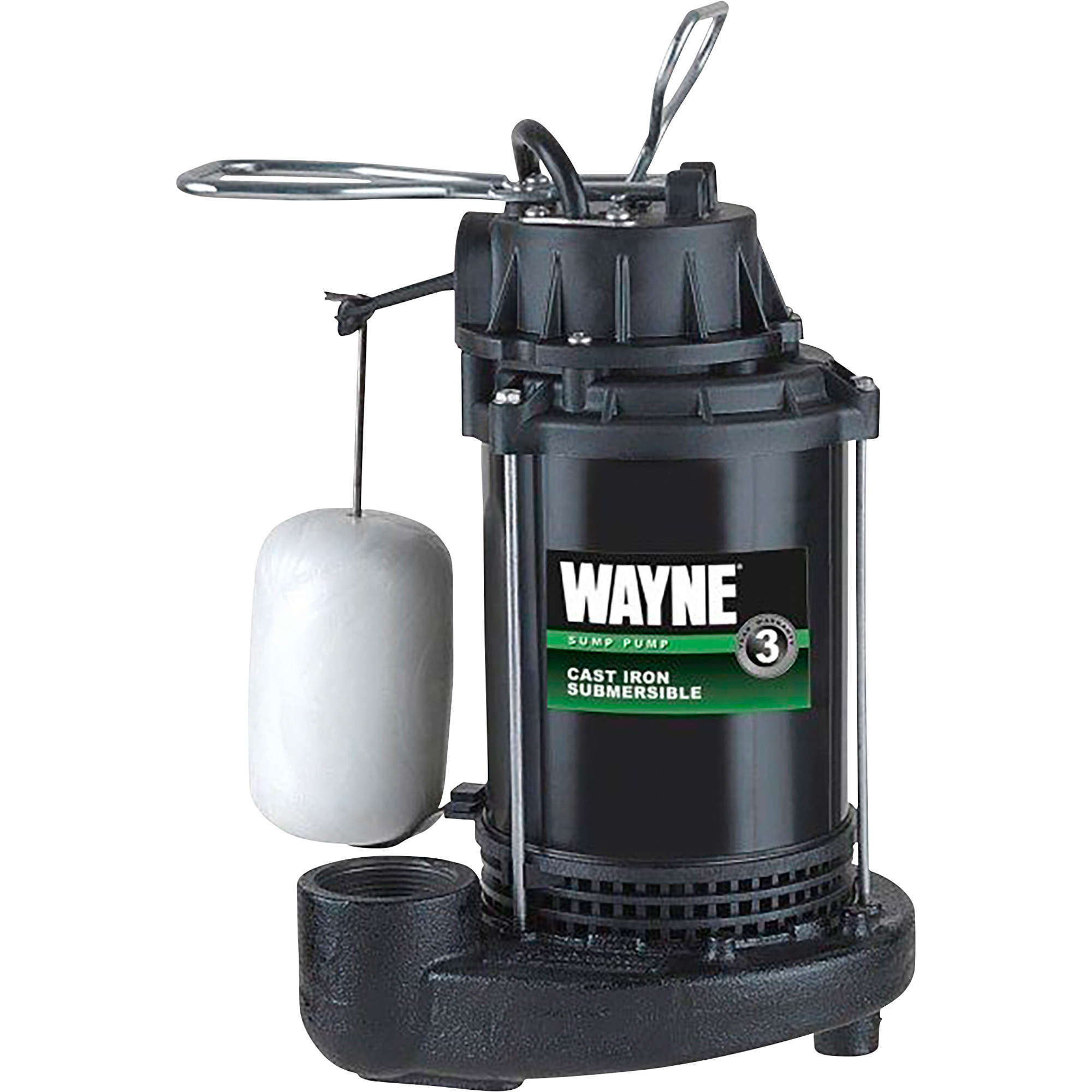

Wayne Cast Iron Submersible Sump Pump, 4,200 GPH, 1/2 HP, 1 1/2in., Model# CDU800
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$197.99
- Thermally protected motor
- Cast iron construction with corrosion-proof thermoplastic top assembly
- Mechanical float switch provides automatic operation and allows installation in sump basins 11in. in diameter or larger
- Top suction strainer filters debris
- High capacity 1 1/2in. NPT discharge port
See full description
Price for all two:
$260.98
What's Included
- (1) Sump pump
Downloads
Features + Benefits
- Thermally protected motor
- Cast iron construction with corrosion-proof thermoplastic top assembly
- Mechanical float switch provides automatic operation and allows installation in sump basins 11in. in diameter or larger
- Top suction strainer filters debris
- High capacity 1 1/2in. NPT discharge port
- Polycarbonate impeller with stainless steel shaft is designed for years of use
- Stainless steel fasteners for superior corrosion-resistance
- Permanently lubricated ball bearing
- UL and CSA listed
-
Electric cord length to connect unit ?
-
Helpful?
-
This pump comes with an 8 foot power cord.
Helpful?
-
-
Is this pump self-priming?
-
The pump is self priming once it is submerged into the water and the water level starts the pump.
Helpful?
-
When the pump is placed in a sump pit and water is introduced through the discharge piping into the pit the pump will prime itself.
Sump pumps do not have a specific port to let water in-ours have multiple openings in the volute above the impeller to let the water in and be pumped out.Helpful?
-
-
Does Model# CDU800 come with an electrical cord?
Is there a check valve that prevents flow back into the pump and pool that goes with this model?
-
The pump comes with an electrical cord but not with a check valve to prevent flow back. You can get a check valve at any hardware store & install it very easly.
Helpful?
-
This Wayne sump pump comes with a power cord, but does Not include a check valve.
Helpful?
-
-
Can it pump dirty water?
I get sand and silt in my pit from heavy clay soil can this pump be used in dirty murky water with debris like sand and silt? If so what is the largest debris it can pass?
1 answer-
This Submersible Sump Pump is intended for use in clear-water applications only.
See my recommendations below for pumps that are able to pass solids up to 3/8in.Helpful?
-
-
Is this pump fit for recirculating a fountain water which is inside a 12 inches deep pool ?
I have a overground pool 12 inches deep and with a 3 tier fountain 70 inches tall in the center of pool.
I need a submersible pump to recirculate water from pool to fountain. queations:
1- is this pump good for this purpose if not what other you suggest ?
2- Does the pump fit in 12 inch pool depth or need a pump sump.1 answer-
This pump is not good for recirculating water because it is not a continuous duty pump. I would suggest a fountain pump and I have listed a few options below.
Helpful?
-
Accessories We Recommend
This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
See All Sump Pumps
See All Wayne Sump Pumps
Currently Viewing This Product
Specifications
Specifications
Wayne Cast Iron Submersible Sump Pump, 4,200 GPH, 1/2 HP, 1 1/2in., Model# CDU800
Wayne Basement Guardian Submersible Sump Pump System,1/2 HP Primary, 12V Backup, Model# BGSP50
Wayne Sump Pump System, 1/2 HP Primary, 12V Backup, Model# WSS30VN

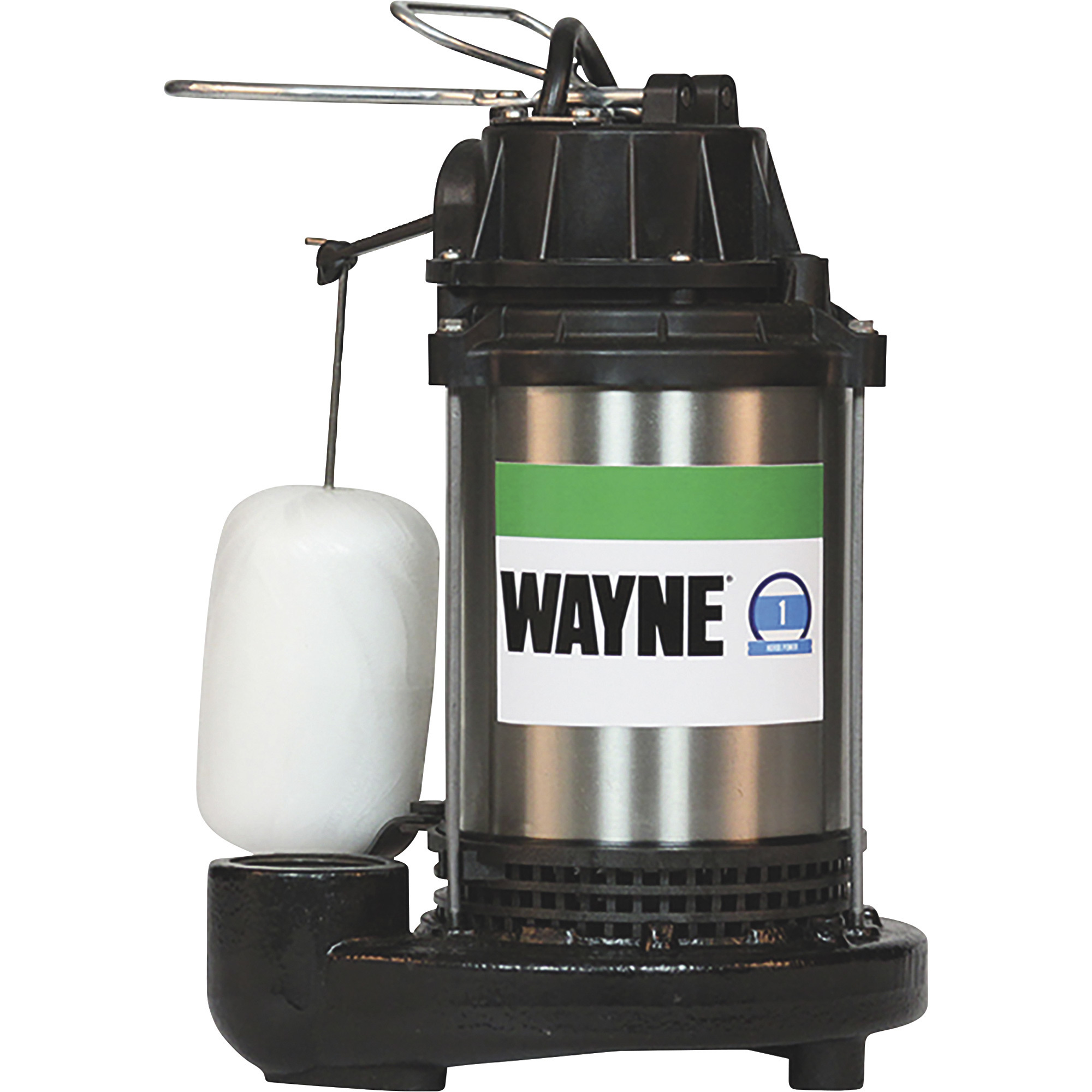

Wayne Stainless Steel/Cast Iron Submersible Sump Pump, 5,400 GPH, 1 HP, 1 1/2in. Port, Model# CDU1000
Max. Flow
Same
4,200 GPH
5,100 GPH
5,100 GPH
6,100 GPH
Volts
Same
120
Multi
Multi
120
Amps
Same
3.8
3.8
3.8
9.8
Power Cord Length
Same
96 in
96 in
96 in
96 in
Housing Material
Same
Cast-Iron
Cast-Iron
Cast-Iron
Stainless Steel
Horsepower
Same
0.5
0.5
0.5
1
Product Weight
Same
-
lb
lb
lb
Dimensions L x W x H (in.)
Same
-
13.5 x 9.0 x 15.5 in
13.0 x 9.0 x 12.0 in
10.0 x 10.0 x 14.0 in
