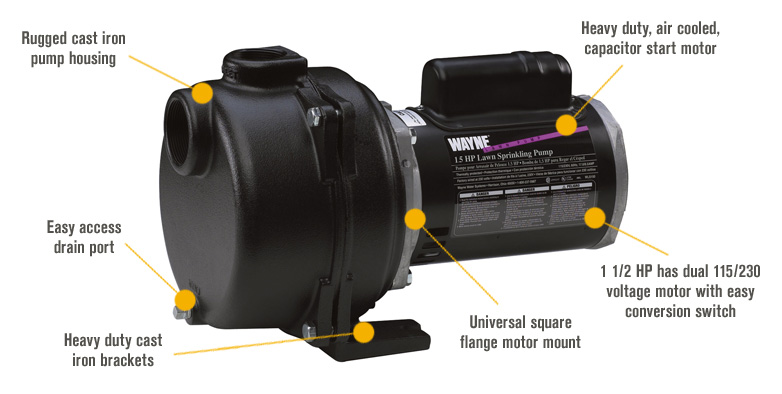

Wayne Self-Priming Centrifugal Cast Iron Lawn Sprinkler Water Pump, 4,350 GPH, 1 1/2 HP, 2in., Model# WLS150

Item# 10804
"Wayne Self-Priming Centrifugal Cast Iron Lawn Sprinkler Water Pump, 4,350 GPH, 1 1/2 HP, 2in., Model# WLS150"
Wayne Self-Priming Centrifugal Cast Iron Lawn Sprinkler Water Pump, 4,350 GPH, 1 1/2 HP, 2in., Model# WLS150

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Wayne Self-Priming Centrifugal Cast Iron Lawn Sprinkler Water Pump, 4,350 GPH, 1 1/2 HP, 2in., Model# WLS150

Click or Tap image to Zoom

$384.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Continuous duty pump has single stage motor
  • Self-priming pump
  • Dual voltage available (115/230), factory wired for 230V with easy conversion switch
  • High-efficiency square flange motor is thermally protected to prevent overheating
  • Rugged cast iron pump housing

See full description

Complete Your Solution

  • Wayne Self-Priming Centrifugal Cast Iron Lawn Sprinkler Water Pump, 4,350 GPH, 1 1/2 HP, 2in., Model# WLS150
  • JGB Enterprises Suction Hose, 2in. x 50ft., Model# A007-0329-1650
  • JGB Enterprises Discharge Hose, 1 1/2in. x 25ft., Model# A008-0246-1625
  • Water and Trash Pump Strainer, 2in.
Price for all four:

$623.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Wayne Self-Priming Centrifugal Cast Iron Lawn Sprinkler Water Pump is built to give you many years of dependable pumping service. Designed to operate underground sprinkling systems, draw water from well, lake or ponds for watering, pool filling, or any other applications where high water volume is needed. Can be used as a portable sprinkler or water transfer pump. Pump should be installed in a basement, garage, tool shed or pump house.

What's Included

    (1) Centrifugal cast iron lawn sprinkler pump

Downloads

Product Manual Product Manual2
Play Item Video

Features + Benefits

  • Continuous duty pump has single stage motor
  • Self-priming pump
  • Dual voltage available (115/230), factory wired for 230V with easy conversion switch
  • High-efficiency square flange motor is thermally protected to prevent overheating
  • Rugged cast iron pump housing
  • Stainless steel shaft for durability
  • Can supports up to 8-10 sprinkler heads at 100ft.
  • Total Gallons per hour is dependent on several variables - please review the following data to determine approximate pump performance in your application: 4350 GPH @ 5' Lift/ 20 PSI; 3450 GPH @ 15' Lift/ 20 PSI; 2950 GPH @ 5' Lift/ 30 PSI; 2500 GPH @ 15' Lift/ 30 PSI
  • Glass reinforced thermoplastic impeller and diffuser for corrosion-resistance
  • Ceramic/carbon-faced seal for long life
  • Easy access drain port
  • 17 Amp draw at 115 Volts/8.5 Amps at 230 Volts
  • Heavy-duty cast iron mounting brackets
  • Motor Speed: 3,450 RPM
  • UL and CSA listed

Key Specs

AttributeSpecification

item#

10804

Brand

Wayne

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

55.8 LB

Max. Flow

4,350 GPH

Horsepower

1.5 HP
AttributeSpecification

Port Size

2 in

Self-Priming

Yes

Volts

115/230

Max. PSI

50 PSI

Max. Suction Lift

25 ft

Reviews

Questions & Answers

22 Reviews This action will navigate to reviews.

Questions

1–10 of 23 Questions
Sort by:

  1. any problems in outdoor installation, unprotected

    1. this pump needs to be protected

      Helpful?

    2. The pump can be installed "outside" but must be protected from the weather (rain/snow etc)

      We also recommend that it be a "shaded" area away from direct sunlight to minimize ambient motor temperatures.

      Helpful?

    3. The Wayne Lawn Sprinkler Pump should not be exposed to outdoor elements. The manual does advise installing under a cover such as in a shed or the basement.

      Helpful?

  2. Prime fill plug

    Does this pump have a separate prime fill plug at the top of the pump head for refilling when prime is lost (such as when the source is pumped temporarily dry) ??

    1. no. when you are plumbing the pump you should allow for priming

      Helpful?

    2. No, the installation should include a "tee" on the top of the pump that allows for priming. Check the video on NT's site for more info.

      Helpful?

    3. After pump installation is complete, the pump must be primed. Remove the pipe plug in the discharge piping and fill the pump and suction pipe with clean water. Turn power to pump on. If the pump does not pump water in 10 minutes, turn off the pump and refill with clean water.

      Helpful?

  3. does this pump have less pressure and gph at 120 volts

    1. No, I don't think so. It will use more dollars of electricity though

      Helpful?

    2. Same performance at both 120V and 240V

      Helpful?

    3. Running this pump at 120 volts, you would have the same gpm and psi as running it at 230 volt.

      Helpful?

  4. Does the pump have a way to drain water out of it during the winter?

    It will be in an enclosed area out of the elements, but this area is not heated. I am replacing a pump that froze and cracked during this winter and want to avoid it happening again.

    1. yes it has a drain plug. I normally use compressed air to blow out all my lines before winter

      Helpful?

    2. There is a drain port on the front bottom of the pump head. The unit cannot be subjected to freezing temps with water still in the system

      Helpful?

    3. Yes, the drain plug is in the front of the pump.

      Helpful?

  5. How many feet vertically will this pump water?

    The water supply is a (above ground) fresh water tank. If I run pipe vertically, How many GPH will this pump at 40 ft.?

    1. That would be determined by how much suction lift is present and whether or not the discharge is:

      Straight up or gradual
      Discharge pipe size
      How much pressure/volume you need at discharge?
      Any other distances (horizontal) involved?

      Helpful?

    2. The Wayne Sprinkler pump will pump at the maximum 4790 gallons per minute in an application that has 0 head (meaning no rise at all above where the pump is located). Assuming that there is no restriction to the flow of the 2 inch outlet (meaning using 2 inch pipe).

      Helpful?

  6. Does this model come in 480 volt?

    1. No

      115V/240V Dual Voltage Motor is the only option

      Helpful?

    2. The Wayne Lawn Sprinkler Pump is available in dual voltage 115/230 volt only.

      Helpful?

  7. What is the GPH @ 40 feet of lift?

    1. it won't pump to 40 ft of head. you will need a different type of pump

      Helpful?

    2. This pump is only capable of lifting water 25 feet, so 40 feet of lift is not possible.

      Helpful?

  8. Hydrauliclly coupled

    Is this pump hydraulically coupled to the drive shaft
    (ie. does the impeller turn only when their is enough water in the hydraulic coupler)) ???

    1. No, the unit motor/shaft have a direct connection to the impeller.

      ie: The motor is "on" the impeller is turning.

      Helpful?

    2. No, this is not hydraulically coupled to the drive shaft.

      Helpful?

  9. Does this pump come with a switch? If so is it pressure triggered?

    1. this pump is just the bare bones pump. I bought a separate pressure switch and hooked it up with a pressure tank. works great so far

      Helpful?

    2. No. The Wayne Cast Iron Lawn Sprinkler pump does not come with a switch. It has an AC power cord.

      Helpful?

  10. can this pump be wired directly to a Heavy Duty extension cord ? and does it make a difference which way it is wired ?

    1. The pump is designed to be hard-wired. Local electrical cords should be confirmed before modifying the connections.

      Please note that proper wire gauge relative to distance is critical to making sure pump motor runs correctly

      Helpful?

    2. This pump should not be wired directly to a heavy duty extension cord. We recommend that customers contact their local electrician.

      Helpful?
