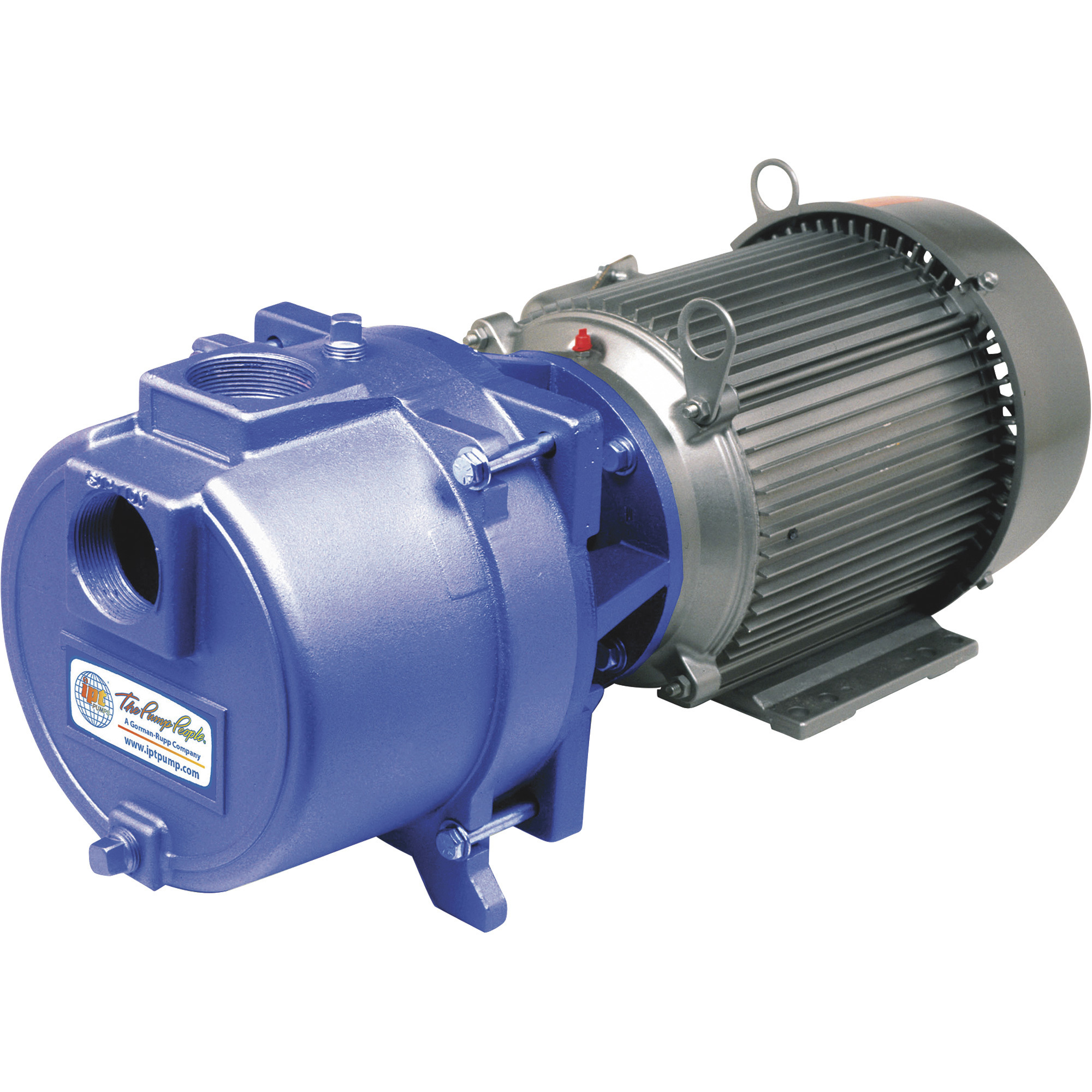

IPT Cast Iron Self-Priming Sprinkler Booster Water Pump, 7,200 GPH, 5 HP, 2in. Ports, Model# 3655-IPT-95

Item# 109474
IPT Cast Iron Self-Priming Sprinkler Booster Water Pump, 7,200 GPH, 5 HP, 2in. Ports, Model# 3655-IPT-95

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

IPT Cast Iron Self-Priming Sprinkler Booster Water Pump, 7,200 GPH, 5 HP, 2in. Ports, Model# 3655-IPT-95

Click or Tap image to Zoom

$1499.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Buna-N mechanical seal
  • Built-in check valve
  • Single stage models feature removable dual volute design

See full description

Complete Your Solution

  • IPT Cast Iron Self-Priming Sprinkler Booster Water Pump, 7,200 GPH, 5 HP, 2in. Ports, Model# 3655-IPT-95
  • JGB Enterprises Suction Hose, 2in. x 50ft., Model# A007-0329-1650
  • JGB Enterprises Water Pump Discharge Hose, 2in. x 25ft., Model# A008-0321-1625
  • JGB Enterprises Pump Hose Kit, 2in. Dia., 15ft. Suction Hose, 25ft. Discharge Hose, Model# A007-NTEHOSEKIT-2TP
Price for all four:

$1889.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The IPT Pumps 2in. Sprinkler/Booster Pump is a powerful and reliable solution for industrial duty applications, designed to deliver exceptional performance with a maximum flow rate of 7200 gallons per hour. Equipped with a robust 5 HP, 3-phase motor that operates on 208-230/460V, this self-priming pump ensures efficient and consistent water delivery for various sprinkler and booster tasks. Constructed from durable cast iron with a stainless steel impeller, it offers superior corrosion resistance and long-lasting durability, making it ideal for demanding environments. The 2-inch port size allows for easy integration into existing systems, providing a seamless and effective water pumping solution. Whether used for irrigation, water transfer, or boosting water pressure, the IPT Pumps Sprinkler/Booster Pump combines strength, reliability, and high performance to meet the needs of industrial and commercial applications.

What's Included

    (1) Sprinkler/booster pump

Downloads

Product Manual

Features + Benefits

  • Buna-N mechanical seal
  • Built-in check valve
  • Single stage models feature removable dual volute design

Key Specs

AttributeSpecification

item#

109474

Brand

IPT Pumps

Manufacturer's Warranty

1 year limited warranty

Ship Weight

157.0 LB

Max. Flow

7,200 GPH

Horsepower

5 HP
AttributeSpecification

Port Size

2 in

Self-Priming

Yes

Volts

Multi

Max. PSI

70 PSI

Max. Total Head

160 ft

Max. Suction Lift

20 ft

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–7 of 7 Questions
Sort by:

  1. How often should you grease the motor?

    1 answer

    1. You typically do not need to grease the generator's alternator bearings, as the Generac XG series uses sealed ball bearings that are lubricated for life. You would follow the maintenance schedule for oil, filters, and spark plugs instead.

      Helpful?

  2. Well 220 volt run this pump

    1 answer

    1. The pump is 3-phase and can run on 220/230 or 460 volts.

      Helpful?

  3. Is this pump for drinking water. Nsf certified?

    1 answer

    1. The pump is not NSF certified. It is not recommended to be used for drinking water.

      Helpful?

  4. Is this 3 phase electric? Delta or Wye configeration?

    Do you sell just the pump head less the motor?

    1 answer

    1. The IPT Cast Iron Self-Priming Sprinkler Booster Water Pump features a 3 phase electric motor with a delta configuration. We do not sell just the pump head for this unit in our inventory.

      Helpful?

  5. We looking to hook this pump up to a generator, how many kW would be required?

    1 answer

    1. This pump requires a generator that produces 3600 watts (3.6 kW) minimum. This pump only runs on 3 phase electricity. Single phase generators cannot be used to power this pump.

      Helpful?

  6. does this particular pump come in single phase

    pump will be hooked up and supplied by a series of holding tanks, is this application ok for this style of booster / irrigation pump.

    1 answer

    1. This pump can operate under those conditions provided the suction lift required falls within the maximum 20 feet this pump is capable of and the total head needed falls within the 160 feet the pump is capable of providing.
      Northern only carries this pump in a 3 phase.

      Helpful?

  7. where are parts available?

    1 answer

    1. Parts for this IPT Sprinkler Booster Pump may be purchased through the manufacturer direct.

      Helpful?
