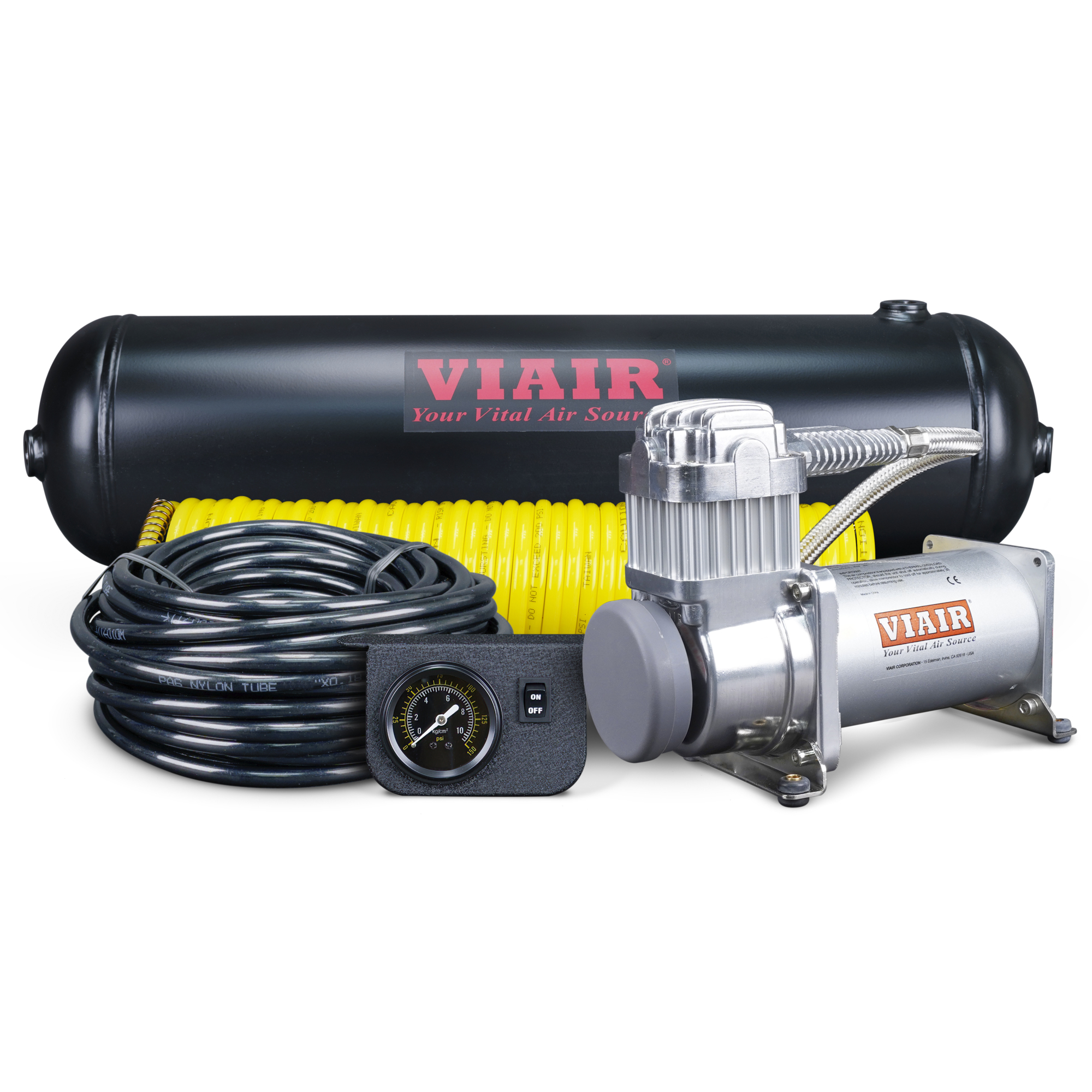

Viair, Heavy Duty Onboard Air System, Horsepower 0.25 HP, Air Tank Size 2.5 Gal, Volts 12 Model# 10005

Item# 6433245
Viair, Heavy Duty Onboard Air System, Horsepower 0.25 HP, Air Tank Size 2.5 Gal, Volts 12 Model# 10005

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Viair, Heavy Duty Onboard Air System, Horsepower 0.25 HP, Air Tank Size 2.5 Gal, Volts 12 Model# 10005

Click or Tap image to Zoom

$481.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Intended for inflation of tires up to 35 inches. Designed to be installed and mounted onto the vehicle.
  • Includes all parts needed for installation of you very own onboard air solution for tire maintenance and small pneumatic tools
  • 150 PSI maximum working pressure and 33% duty cycle
  • Remote mount air filter assembly sealed compressor
  • 33 percent duty cycle and 2.54 CFM maximum flow

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

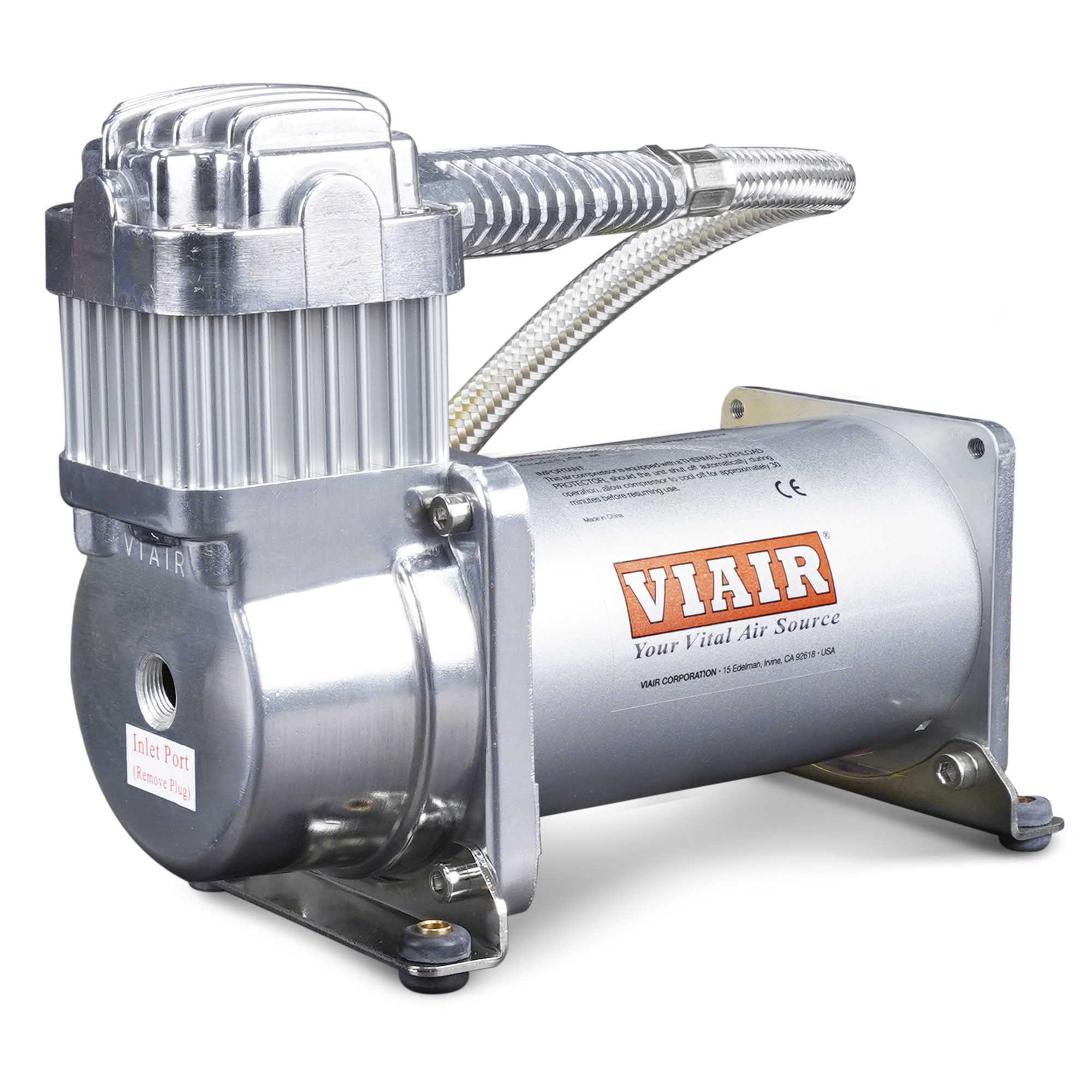

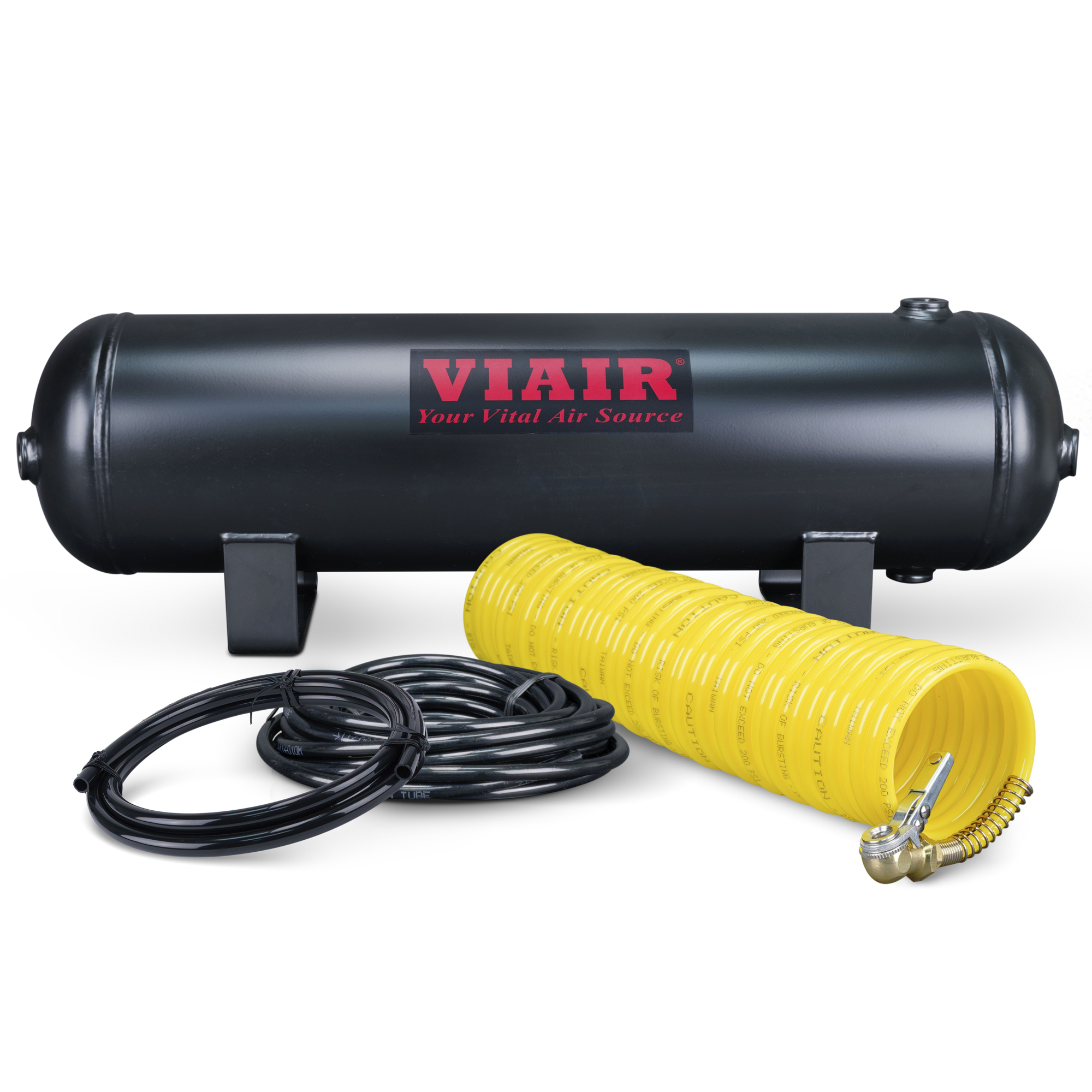

VIAIR’s Heavy Duty Onboard Air System is a pre-packaged compressed air solution that provides a faster 33% duty cycle 400C compressor, 2.5 gallon air tank, and all components needed to install a working system capable of inflating tires right out of the box.

Features + Benefits

  • Intended for inflation of tires up to 35 inches. Designed to be installed and mounted onto the vehicle.

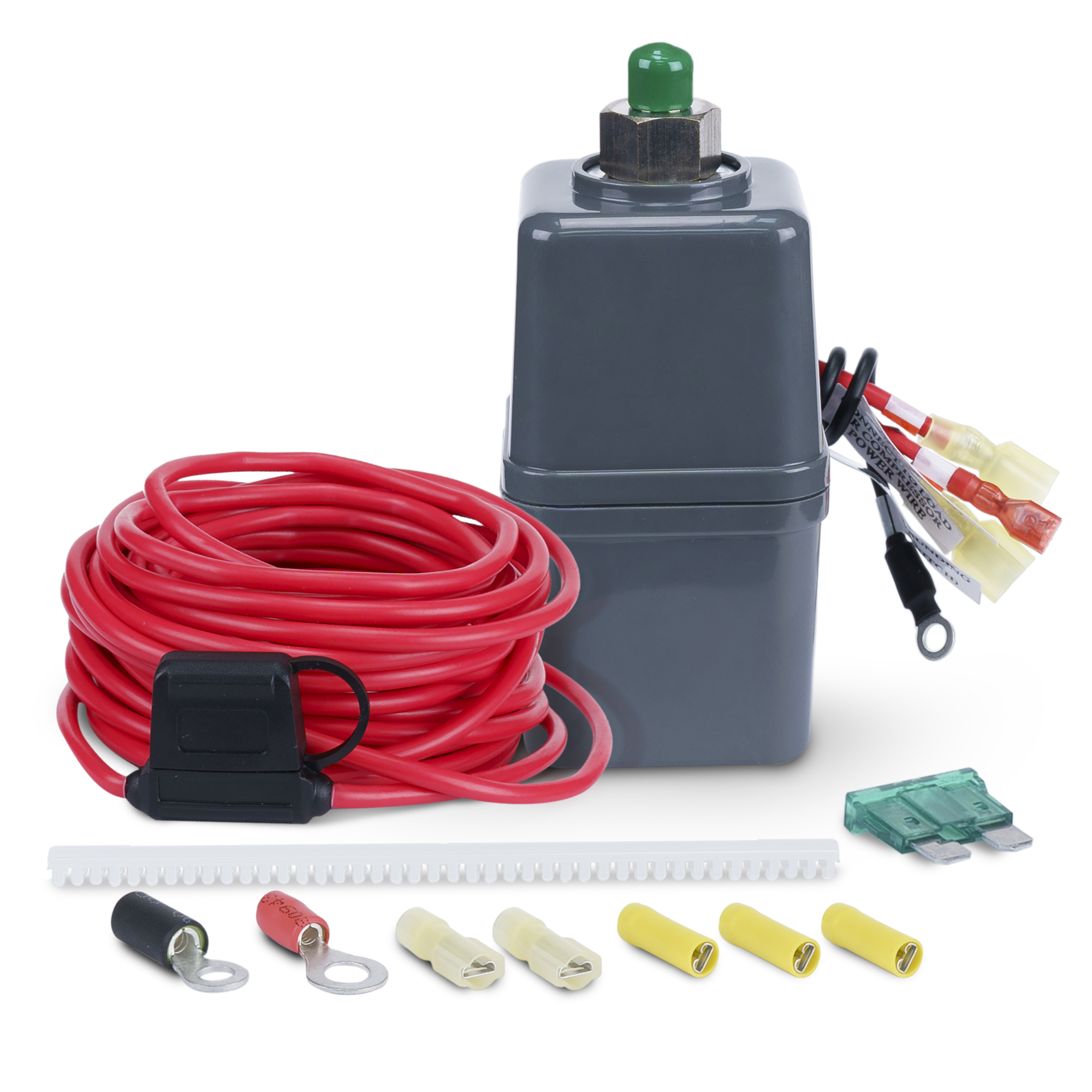

  • Includes all parts needed for installation of you very own onboard air solution for tire maintenance and small pneumatic tools
  • 150 PSI maximum working pressure and 33% duty cycle
  • Remote mount air filter assembly sealed compressor
  • 33 percent duty cycle and 2.54 CFM maximum flow

Key Specs

AttributeSpecification

item#

6433245

Brand

Viair

Manufacturer's Warranty

1 year limited warranty

Ship Weight

32.0 LB

Horsepower

0.25 HP

Air Tank Size

2.5 Gal

Volts

12
AttributeSpecification

Max. PSI

150

Air Outlets (qty.)

1

Working Pressure

150 PSI

Pump Drive

Direct

Oil Required

No

Lubrication System

Oil-Free

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
