NorthStar Portable Quiet Electric Air Compressor, 1.5 HP, 8-Gallon, 4 CFM @ 90 PSI

Item# 53009
NorthStar Portable Quiet Electric Air Compressor, 1.5 HP, 8-Gallon, 4 CFM @ 90 PSI

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

NorthStar Portable Quiet Electric Air Compressor, 1.5 HP, 8-Gallon, 4 CFM @ 90 PSI

Click or Tap image to Zoom

$444.99

  • Shipping:

    Free shipping (lower 48 states) - Available now

  • Store Pickup:

    Not Available
  • 115V, 1.5 HP, 12 Amp, 1750 RPM electric motor
  • Oil-free dual piston pump for cleaner air and maintenance-free operation
  • Quiet operation at only 70dB
  • Delivers 4 CFM @ 90 PSI
  • Delivers 5.4 CFM @ 40 PSI

See full description

Complete Your Solution

  • NorthStar Portable Quiet Electric Air Compressor, 1.5 HP, 8-Gallon, 4 CFM @ 90 PSI
  • Klutch Auto-Rewind Air Hose Reel with 3/8in. x 50ft. Rubber Hose, 300 PSI
  • Klutch 4-Pk. of Air Compressor Vibration Pads, 4in. x 4in. x 7/8in.
  • Klutch 20-Pc. Air Line Connector Kit, 1/4in. NPT
Price for all four:

$651.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The NorthStar® Portable Electric 1.5 HP, 8-Gallon Vertical Air Compressor is designed with an oil-free dual piston pump that produces cleaner air for better tool operation and maintenance-free operation. This compressor runs very quietly at only 70dB. Dual connectors allow user to operate two tools at the same time. Electric motor has low amp draw for easier starts and less electricity required. Unit is equipped with flat-free tires and a handle for easy portability on the jobsite.

What's Included

    (1) 1.5 HP, 8-gallon vertical air compressor with flat-free tires and handle

Downloads

Product Manual
Play Item Video

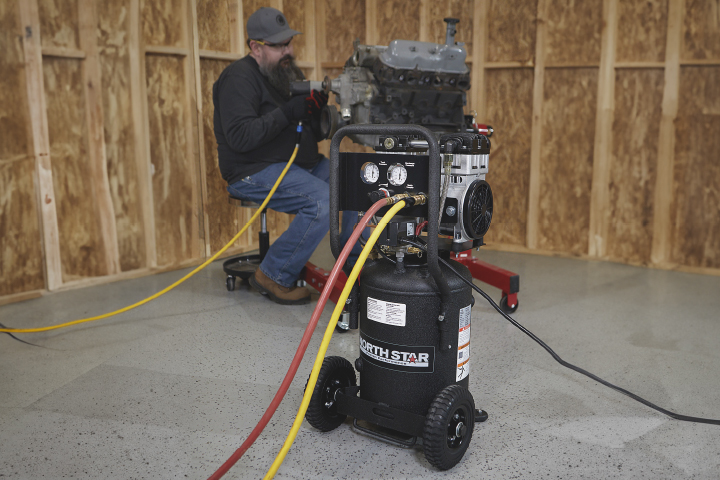

SILENT POWER

This 8-GALLON AIR COMPRESSOR combines a low noise level of 70DB with powerful performance, delivering 4 CFM AT 90 PSI. Ideal for both indoor and outdoor use without disrupting the peace

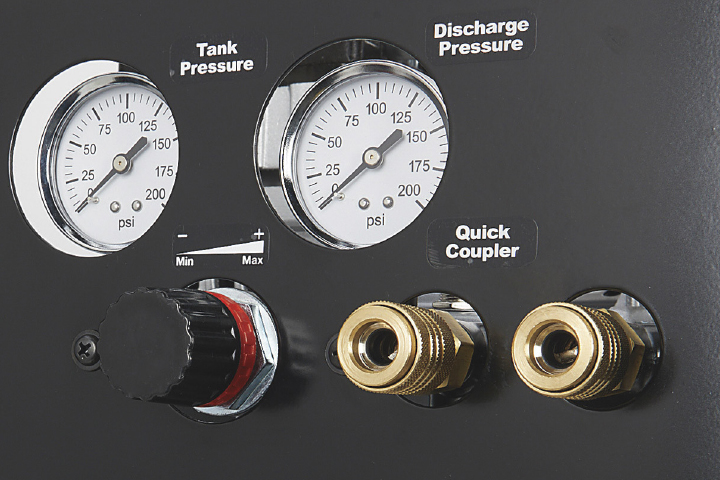

VERSATILITY IN USE

DUAL QUICK CONNECTORS allow for simultaneous use of two tools, maximizing efficiency on any project. Large pressure gauges make monitoring and adjustments simple and accurate

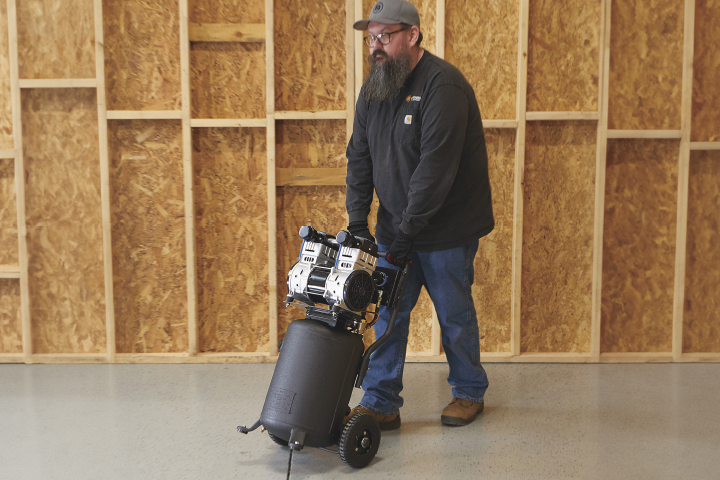

DESIGNED FOR THE JOBSITE

Mobility is a breeze with durable, FLAT-FREE TIRES and a CONVENIENT CARRYING HANDLE. This design is optimized for easy transportation and stability in various work environments

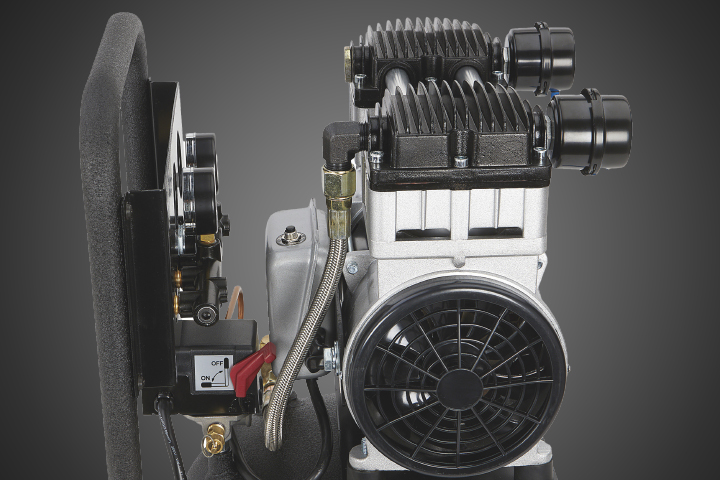

CLEAN AIR FOR TOOLS

The maintenance-free, OIL-FREE PUMP ensures that your air tools receive the CLEANEST AIR POSSIBLE, reducing wear and extending their life

Features + Benefits

  • 115V, 1.5 HP, 12 Amp, 1750 RPM electric motor
  • Oil-free dual piston pump for cleaner air and maintenance-free operation
  • Quiet operation at only 70dB
  • Delivers 4 CFM @ 90 PSI
  • Delivers 5.4 CFM @ 40 PSI
  • Two large 2in. pressure gauges to easily monitor air in tank and at outlet
  • Two 1/4in. quick connectors allow user to operate 2 tools at the same time
  • 125 PSI working pressure
  • 70% duty cycle
  • 8-gallon vertical tank
  • 7in. flat-free tires and handle provide stable and easy transport of compressor on worksite
  • 15.7in.L x 15.4in.W x 34.3in.H.

Key Specs

AttributeSpecification

item#

53009

Brand

NorthStar

Manufacturer's Warranty

4 year limited warranty

Ship Weight

97.0 LB

Horsepower

1.5 HP

Air Tank Size

8 Gal

Volts

115

CFM at 90 PSI

4.0

Max. PSI

125

Air Outlets (qty.)

2

Amps

12

Duty Cycle

70 %
AttributeSpecification

Motor RPM

1,750

Working Pressure

125 PSI

Air Outlet Size

1/4 in. NPT

CFM at 40 PSI

5.4

Noise Level

70 dB

Oil Required

No

Tank Fill Time

2.1 min

Drain Type

Manual

Tank Orientation

Vertical

Product Weight

88.0000 lb

Dimensions L x W x H (in.)

15.75 x 15.4 x 34.31 in

Reviews

Questions & Answers

152 Reviews This action will navigate to reviews.

Questions

1–10 of 33 Questions
Sort by:

  1. Are both wheels affixed to a single axle?

    1. No. They have Bolt stubbs that screw into a bracket welded to the bottom of the tank. Similar to how wheels are attached to a lawn mower.

      Helpful?

    2. You bolt the wheels to brackets on the tank.

      Helpful?

    3. No.

      Helpful?

    4. Each wheel is attached with a bolt to the bracket on the backside of the compressor tank. They are not attached to an axle.

      Helpful?

  2. Horizontal?

    Will this work horizontal or just vertical?

    1. Vertical only.

      Helpful?

    2. Vertical only.

      Helpful?

    3. IWould say no as it is designed to operate vertically

      Helpful?

    4. This unit is not designed to be used in the horizontal position.

      Helpful?

  3. Will it work on 15 amp service?

    1. I have mine on a 15 amp breaker

      Helpful?

    2. Yes it will...No problem!

      Helpful?

    3. The electric motor on this unit will draw 12 Amps.

      Helpful?

  4. Does this unit have an ASME approved tank?

    1. YES!

      Helpful?

    2. yes

      Helpful?

    3. The tank is ASME UM certified.

      Helpful?

  5. I need to purchase just the compressor/motor assembly. What part number do I order? Ed

    1. The compressor assembly, part #NS53009A.32, is available through our sister company, Jacks Small Engines. Please visit www.JacksSmallEngines.com for pricing and availability.

      Helpful?

    2. The pump assembly, part #NS53009-PA, is available through our sister company, Jacks Small Engines. Please visit www.JacksSmallEngines.com for pricing and availability.

      Helpful?

  6. WHAT PART # IN THE MANUAL IS THE UNLOADER VALVE OR WHERE CAN I FIND IT ON MY COMPRESSOR

    1 answer

    1. The pressure relief valve, part #NS53009A.13, can be purchased through our sister company, Jacks Small Engines. Please visit www.JacksSmallEngines.com for pricing and availability.

      On page 19 of the Product Manual, this is identified as part #14 in the diagram.

      Helpful?

  7. What's the best air hose to use with this air compressor 1/4" or 3/8"

    1 answer

    1. This compressor will work with a 3/8" air hose featuring a 1/4" NPT fitting. Item 73430 is a recommended hose reel we offer.

      Helpful?

  8. Need a new cbb60 capacitor. Where can I find this

    1 answer

    1. The run capacitor, part #NS53009A.27, can be purchased through our sister company, Jacks Small Engines. Please visit www.JacksSmallEngines.com for pricing and availability.

      Helpful?

  9. What gauge and length of extension cord should be used on this unit?

    1 answer

    1. At 25' long, a 14 AWG extension cord is required. At 50' a 12 AWG extension cord is required.

      Helpful?

  10. Is this a twin cylinder

    1 answer

    1. This is a twin cylinder air compressor.

      Helpful?
