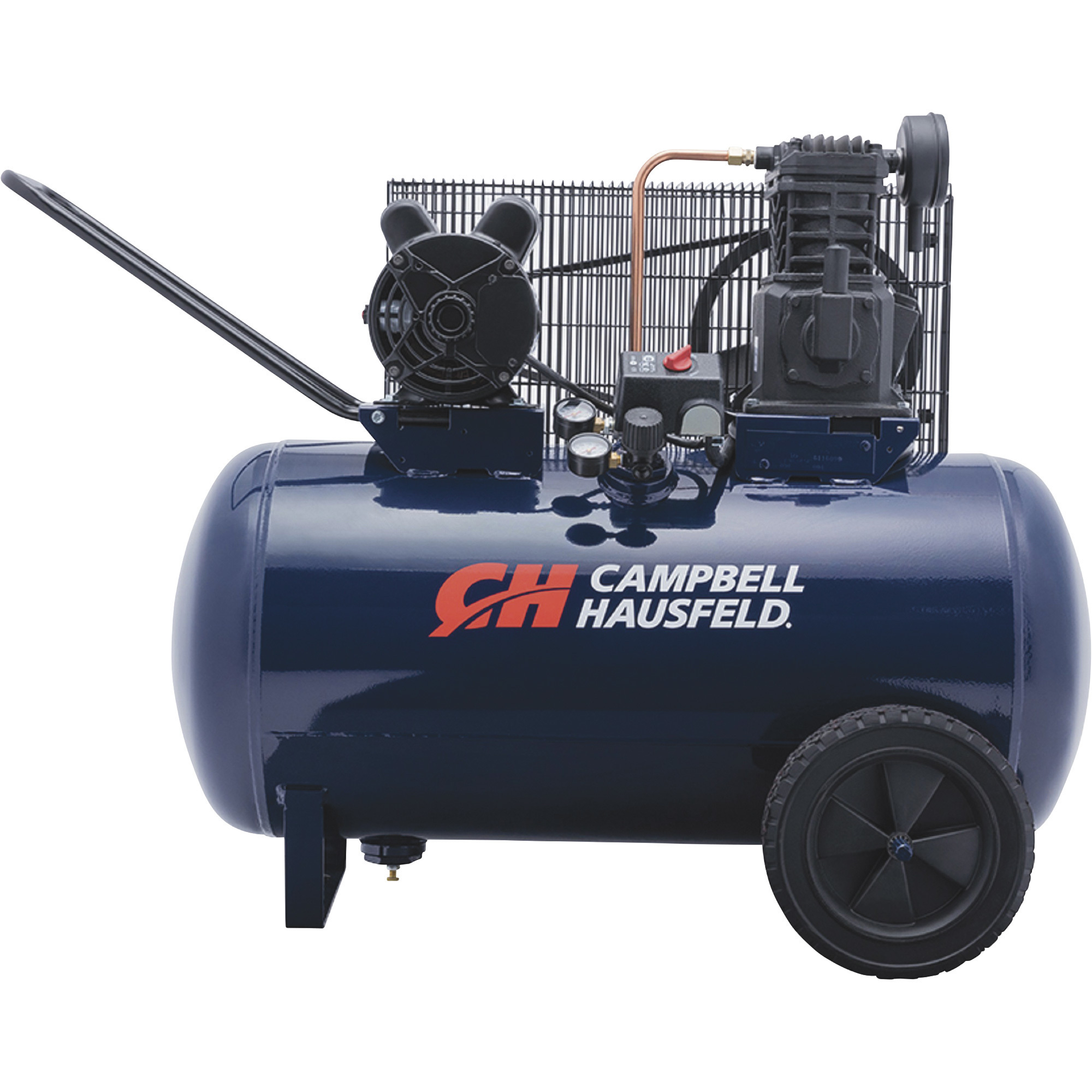

Campbell Hausfeld Portable Electric Air Compressor, 3.2 HP, 30-Gallon Horizontal, 10.2 CFM, Model# VT6271

Item# 164049
Campbell Hausfeld Portable Electric Air Compressor, 3.2 HP, 30-Gallon Horizontal, 10.2 CFM, Model# VT6271

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Campbell Hausfeld Portable Electric Air Compressor, 3.2 HP, 30-Gallon Horizontal, 10.2 CFM, Model# VT6271

Click or Tap image to Zoom

$819.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Powerful 3.7 HP, 208-230V single-phase motor
  • Delivers 10.2 CFM at 90 PSI with 135 max. PSI for plenty of power
  • Designed for quiet operation, the heavy-duty, cast iron, 2-cylinder pump is oil lubricated for long life
  • Large semi-pneumatic wheels and sturdy handle make this unit portable
  • High air flow and 30-gallon tank capacity to power a variety of air tools

See full description

Complete Your Solution

  • Campbell Hausfeld Portable Electric Air Compressor, 3.2 HP, 30-Gallon Horizontal, 10.2 CFM, Model# VT6271
  • Klutch Air Compressor Filter–Regulator Combo, 1/4in. NPT, 20 CFM
  • Milton M-Style Air Coupler and Plug Set, 1/4in. NPT, 5-Pc., Model# S-211

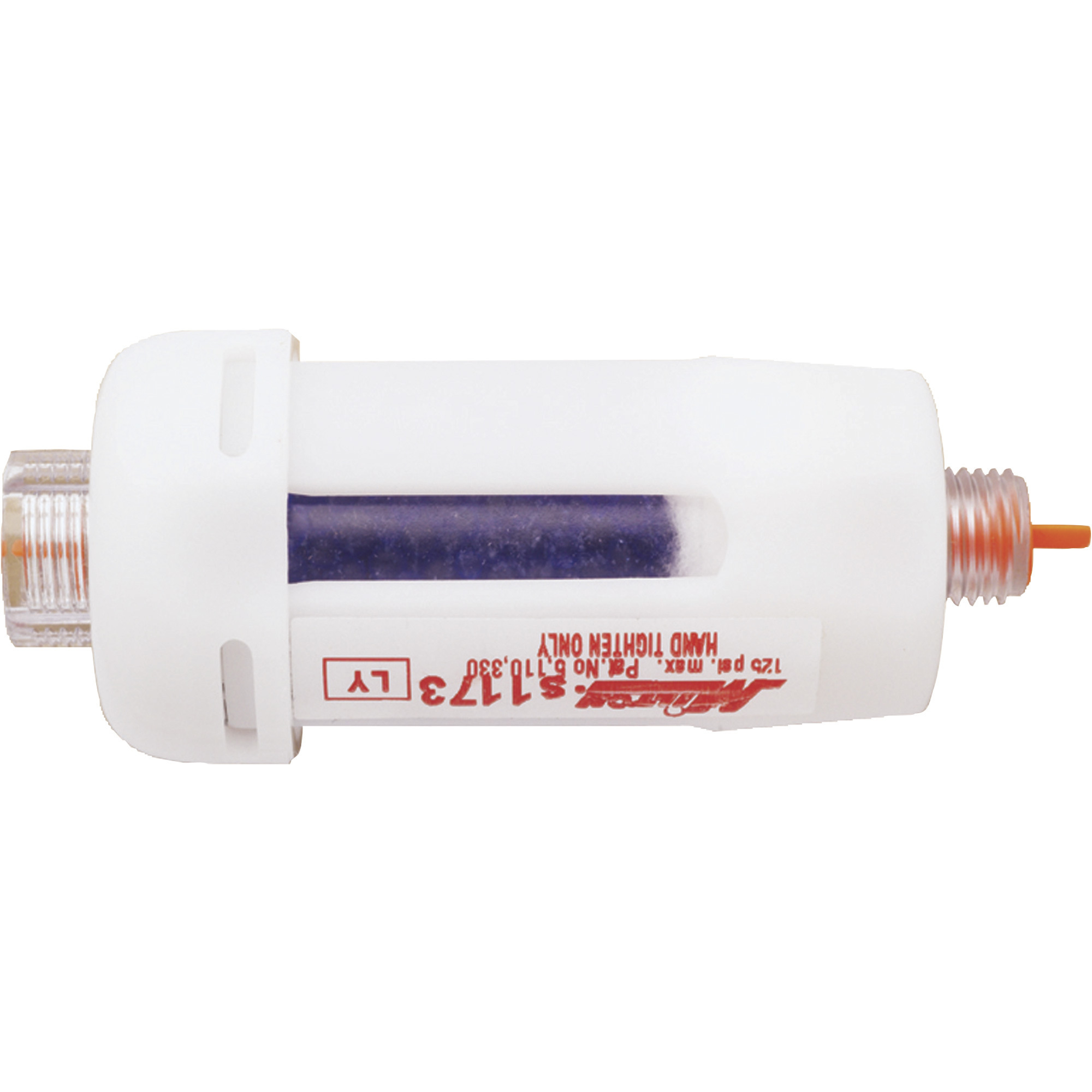

  • Milton 1/4in. Mini Inline Desiccant Dryer, 2-Pack, Model# S1173
Price for all four:

$957.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Campbell Hausfeld 30-gallon, 3.7 HP, horizontal portable air compressor (VT6271) can power a variety of air tools for the serious DIY user, professional or contractor. The large semi-pneumatic wheels make this unit easy to move from one job to the next. Designed for quiet operation, the heavy-duty, cast-iron, two-cylinder pump is oil lubricated for a long life and delivers up to 10.2 CFM at 90 PSI with a 135 maximum PSI. Finish your projects faster and easier with Campbell Hausfeld -- the air power expert.

What's Included

    (1) Air Compressor

Downloads

Product Manual

Features + Benefits

  • Powerful 3.7 HP, 208-230V single-phase motor
  • Delivers 10.2 CFM at 90 PSI with 135 max. PSI for plenty of power
  • Designed for quiet operation, the heavy-duty, cast iron, 2-cylinder pump is oil lubricated for long life
  • Large semi-pneumatic wheels and sturdy handle make this unit portable
  • High air flow and 30-gallon tank capacity to power a variety of air tools
  • Ideal for the serious DIYer, professional or contractor looking to tackle sanding, painting, stapling and bolting projects

Key Specs

AttributeSpecification

item#

164049

Brand

Campbell Hausfeld

Manufacturer's Warranty

3 year limited warranty

Ship Weight

185.0 LB

Horsepower

3.7 HP

Air Tank Size

30 Gal

Volts

208-230

CFM at 90 PSI

10.2

Max. PSI

135
AttributeSpecification

Amps

20

Pump Life

5,000 hr

Air Outlet Size

1/4 in. NPT

CFM at 40 PSI

11.8

Noise Level

87 dB

Oil Required

Yes

Tank Orientation

Horizontal

Product Weight

lb

Dimensions L x W x H (in.)

46.0 x 21.0 x 31.0 in

Reviews

Questions & Answers

7 Reviews This action will navigate to reviews.

Questions

1–10 of 21 Questions
Sort by:

  1. Clearances

    What are the required clearances around and at the top of this compressor?

    1. The Campbell Hausfeld Air Compressor requires a clearance of two feet from any side or top.

      Helpful?

    2. You should have at least 2 feet of clearance around any sides/top of this compressor.

      Helpful?

  2. How long is a warranty time?

    1. The warranty on this air compressor is as follows:
      Residential is 3 year limited. 1 year is against manufacturer defects. 2-3 year is on the pump and tank parts only.
      Commerical warranty is 90 days.

      Helpful?

    2. 3 year limited. For the first year all parts and labor on manufacturing defects are covered. Only the pump and tank defects are covered for the remainder of the warranty.

      Helpful?

  3. Recommend hose size for 500 psi

    1. This compressor will not output 500psi nor is the tank rated for pressures that high.

      Helpful?

    2. The recommended hose size can be either 1/2" or 3/8", and this unit only has a maximum pounds per square inch of 135.

      Helpful?

  4. What is the duty cycle of this compressor?

    1. The duty cycle is 75% on and 25% off.

      Helpful?

    2. The duty cycle of this compressor is 75% on/25% off.

      Helpful?

  5. will this compressor run off a generator? if so how many watt generator do I need?

    1. This Campbell Hausfeld Air Compressor needs a generator that is 18,000 watts and it has a 240 volt plug-in.

      Helpful?

    2. This Campbell Hausfeld Air Compressor could run off a generator as long as its 18,000 watts and it has a 240 volt plug-in.

      Please see my recommendations below:

      Helpful?

  6. Does this compressor come pre-wired with a power cord and if so what plug type?

    1. The power cord is prewired and is the standard 3 prong type.

      Helpful?

    2. The compressor does come with a power cord and the plug will be a 30 amp plug since the compressor operates at 240 volts.

      Helpful?

  7. Is this 120 or 240 vlts?

    1. 240 volt only

      Helpful?

    2. This Campbell Hausfeld compressor is 240 volts.

      Helpful?

  8. Would anyone be able to tell me how tall this compressor is at its tallest point? Thanks.

    1 answer

    1. This compressor is 31" tall at it's tallest point.

      Helpful?

  9. Where is the pump made? Motor?

    1 answer

    1. The pump and motor on this product are made in the USA.

      Helpful?

  10. What is the running watts?

    I saw the question for amps and generators, but what is the actual wattage?

    1 answer

    1. The running wattage at 208 Volts is 3,120 watts. The running wattage at 230 Volts is 3,450 watts.

      Helpful?
