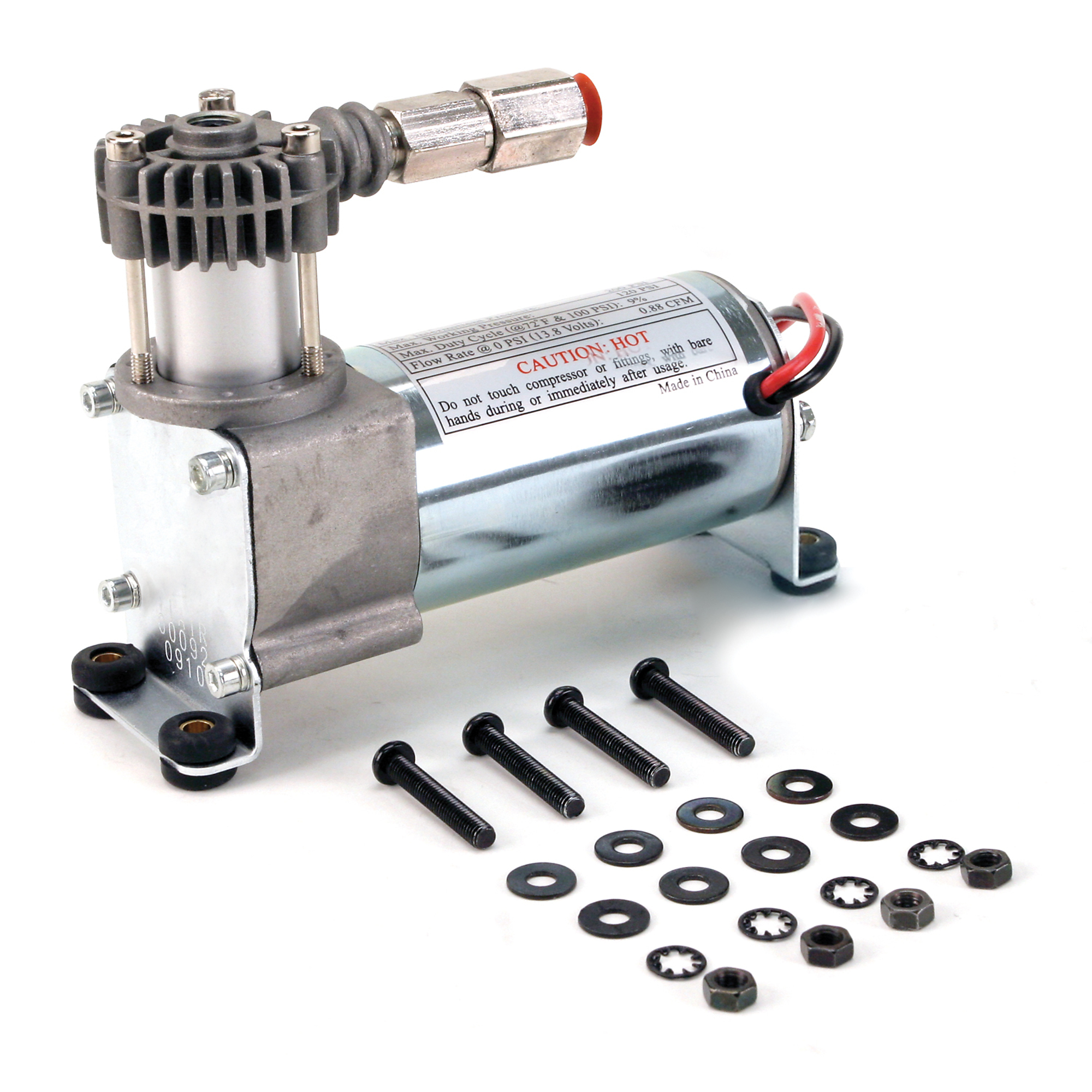

VIAIR 90C Air Compressor Kit, 0.25 HP, 12 Volts, Model# 00090

Item# 5115907
VIAIR 90C Air Compressor Kit, 0.25 HP, 12 Volts, Model# 00090

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

VIAIR 90C Air Compressor Kit, 0.25 HP, 12 Volts, Model# 00090

Click or Tap image to Zoom

$99.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Compact and Lightweight: Ideal for small spaces and easy transport.
  • Efficient Operation: Designed to be run in well-ventilated areas, ideally with the engine running.
  • Includes Essential Accessories: Comes with mounting hardware, vibration isolators, and is recommended for use with a pressure switch and 12V relay for optimal performance.
  • Enhanced Safety Features: Includes an external check valve to prevent backflow and ensure safe operation.
  • 1-Year Limited Factory Warranty: Protects against defects in materials and workmanship.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

VIAIR's 90C compressor kit is a light duty solution for smaller air applications. It is meant to fill air tanks 1.0 gallon or less. This oil-less compressor comes with an external check valve, four post mounting configuration, vibration isolators and hardware. This compressor draws air in through porous gaskets and requires no air filter. Compressor is rated to 13.8 volts from a charging car battery. The 90C is approved for use in FIRST Robotics Competitions.

What's Included

    (1) 90C Compressor Kit

Features + Benefits

  • Compact and Lightweight: Ideal for small spaces and easy transport.
  • Efficient Operation: Designed to be run in well-ventilated areas, ideally with the engine running.
  • Includes Essential Accessories: Comes with mounting hardware, vibration isolators, and is recommended for use with a pressure switch and 12V relay for optimal performance.
  • Enhanced Safety Features: Includes an external check valve to prevent backflow and ensure safe operation.
  • 1-Year Limited Factory Warranty: Protects against defects in materials and workmanship.
  • Mounting Hardware

Key Specs

AttributeSpecification

item#

5115907

Brand

Viair

Manufacturer's Warranty

1 year limited warranty

Ship Weight

3.0 LB

Horsepower

0.25 HP

Air Tank Size

0 Gal

Volts

12

CFM at 90 PSI

0.43

Max. PSI

120

Air Outlets (qty.)

1

Amps

10
AttributeSpecification

Duty Cycle

9 %

Working Pressure

120 PSI

Pump Drive

Direct

CFM at 40 PSI

0.6

CFM at Max. PSI

0.34

Noise Level

82 dB

Oil Required

No

Low Oil Shutdown

No

Lubrication System

Oil-Free

Product Weight

2.4000 lb

Dimensions L x W x H (in.)

5.9 x 2.1 x 4.5 in

Reviews

Questions & Answers

Questions

  1. What is the duty cycle on this unit

    1 answer

    1. The duty cycle is 9% at 100 PSI.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
