Ultra-Tow Stub Torsion Axles, Pair, 1000-Lb. Capacity per Pair

Item# 48224

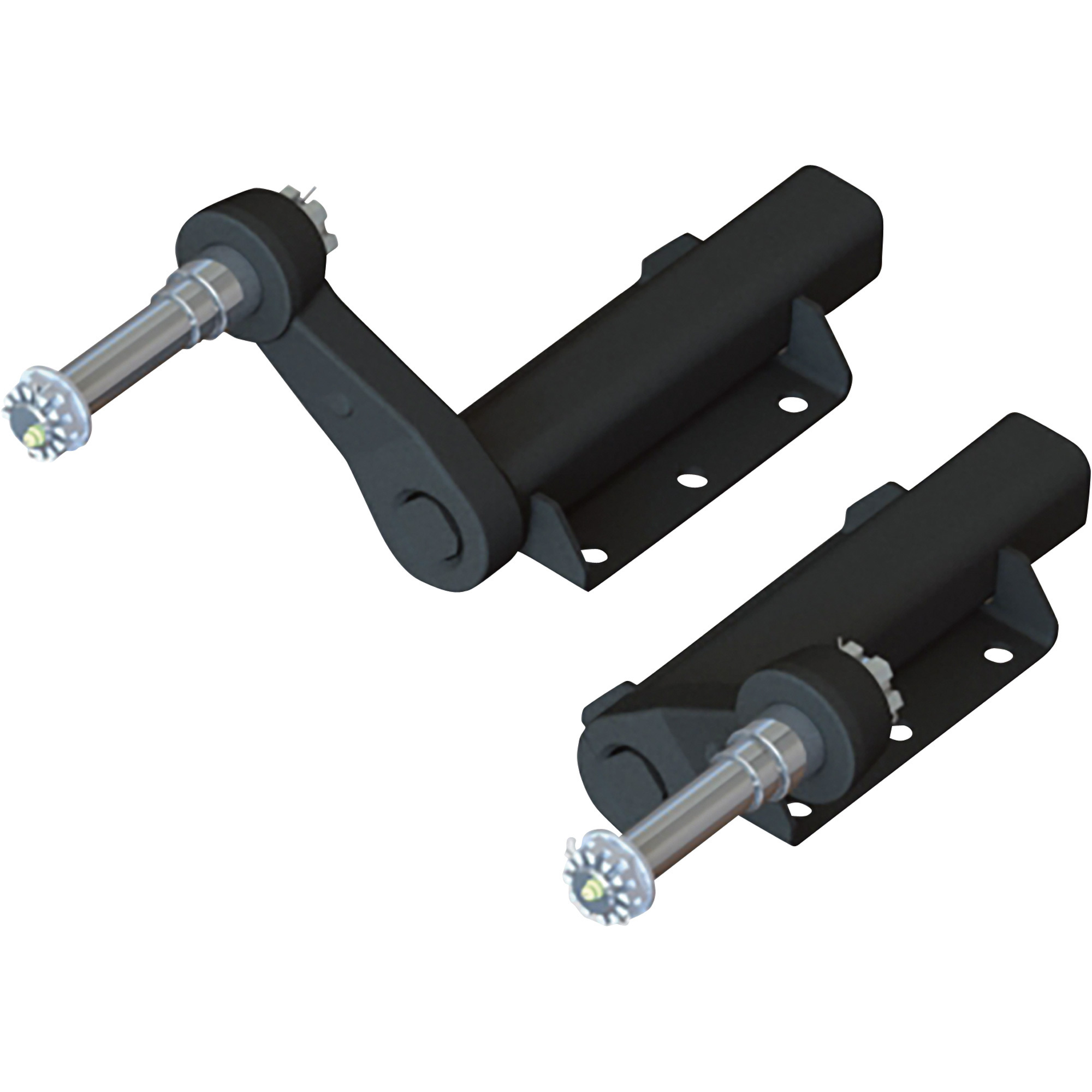

Ultra-Tow Stub Torsion Axles, Pair, 1000-Lb. Capacity per Pair

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ultra-Tow Stub Torsion Axles, Pair, 1000-Lb. Capacity per Pair

Click or Tap image to Zoom

  • For use as stub axles for small utility trailers
  • Torsion axles provide a quiet, no-shock ride with independent wheel action
  • 1000-lb. weight capacity per pair
  • Mounting plate can be bolted or welded to frame
  • 1 1/16in. inner bearings

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Ultra-Tow Stub Torsion Axles are excellent stub axles for small utility trailers. Provides a quiet, no-shock ride with independent wheel action. Sold as a pair. Made in U.S.A.

What's Included

    (2) 1000-lb. capacity (per pair) stub torsion axles

Features + Benefits

  • For use as stub axles for small utility trailers
  • Torsion axles provide a quiet, no-shock ride with independent wheel action
  • 1000-lb. weight capacity per pair
  • Mounting plate can be bolted or welded to frame
  • 1 1/16in. inner bearings
  • 1 1/16in. outer bearings
  • 1.25in. seal
  • Mounting bracket: 5in. x 11in.
  • Spindles are removable and replaceable
  • Sold as a pair

Key Specs

AttributeSpecification

item#

48224

Brand

Ultra-Tow

Manufacturer's Warranty

1 year limited warranty
AttributeSpecification

Ship Weight

38.0 LB

Weight Capacity

1,000 lb

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–9 of 9 Questions
Sort by:

  1. What is the start angle when the mounting plate is set level with the frame?

    1. 45 degrees or more

      Helpful?

    2. These stub torsion axles have a starting angle of 45 degrees down when the mounting plates are level with the trailer frame.

      Helpful?

  2. What is the largest diameter and width tire that will work with this axle?

    1 answer

    1. This axle set will work with any 4 or 5 lug hub that has 1 1/16 inch inner and outer bearings. This will accept any size rim/tire that has a 4 or 5 lug bolt pattern. See below for my suggestions for hubs.

      Helpful?

  3. Can the start angle be adjusted or changed?

    1 answer

    1. The start angle cannot be adjusted or changed on these torsion axles.

      Helpful?

  4. Are these the same Dimension as Item# 48223 Ultra-Tow Stub Torsion Axles

    1 answer

    1. The dimensions on this pair of stub torsion axles and on item# 48223 are similar but not exactly the same. The axles in this pair have an overall length of 18-3/4" while item# 48223 has axles with an overall length of 18-1/4". This pair also has a length (distance) of 6-1/4" from the pivot point to the center of the axle while that distance on item# 48223 is 6". Click the link below to view item# 48223.

      Helpful?

  5. What is the tube size?

    What tubing can I use over the axle tube to create a solid axle?

    1 answer

    1. These are square torsion axles and the tube dimensions are 2.173" x 2.173".

      Helpful?

  6. What is the hole diameter for the stub axle?

    With the stub axle removed, what is the ID of the mounting hole in the suspension arm? I want to install my own axles to use with non-standard wheels and I need to know what that bore diameter is.

    1 answer

    1. The spindle on this torsion axle is seated in a tapered hole on the suspension arm. The front side of the hole (where the spindle comes out) is 1.489" in diameter. The rear side of the hole (the castle nut side) is 1.281" in diameter.

      Helpful?

  7. Which hubs will work with this axle

    Most of your hubs have 1" inner and outer bearing size. These new torsion axles have 1 1/16" inner and outer bearing size. Are there hubs available for the new sizes.

    1 answer

    1. Northern Tool carries both 4 and 5 stud hubs that have 1-1/16" inner and outer bearings. Click the links below to view those hubs.

      Helpful?

  8. When loaded to rated capacity, how much of the listed travel remains?

    1 answer

    1. The Ultra-Tow Stub Torsion Axles travel at rated capacity will vary depending on the start angle it is mounted at. For example: at -30 degrees down for high bracket profile it would be 2.87 inches, at low bracket profile it would be 2.04 inches and at -25 degrees down in would be 1.52 inches at low profile and 2.35 inches at high profile.

      Helpful?

  9. Mounting Bolt pattern and width

    What is the mounting bolt pattern where this will bolt to the frame? In planning the trailer, how wide of mounting area will I need to bolt this axle to the frame?

    1 answer

    1. These stub torsion axles have mounting plates that measures 8" L x 5" W. The distance between the holes on the long side(hole pattern that runs parallel to the spindle/shaft) are 3" on center. The distance between the other holes(pattern that runs perpendicular to the spindle) is 3-3/4" on center.

      Helpful?
