Ultra-Tow XTP Ultra-Pack Trailer Hub, 4 on 4in., 1350-Lb. Capacity

Item# 572241
Ultra-Tow XTP Ultra-Pack Trailer Hub, 4 on 4in., 1350-Lb. Capacity

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ultra-Tow XTP Ultra-Pack Trailer Hub, 4 on 4in., 1350-Lb. Capacity

Click or Tap image to Zoom

$77.99

  • Shipping:

    Free shipping (lower 48 states) - Available now
    $19.99 Same Day

  • Store Pickup:

    6 in stock at Fredericksburg VA - Pickup in under 1 hr

  • Ultra-Pack system to easily repack bearings with grease
  • High-speed marine grade hubs
  • High-quality cast iron construction
  • Dust cap installation tool

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

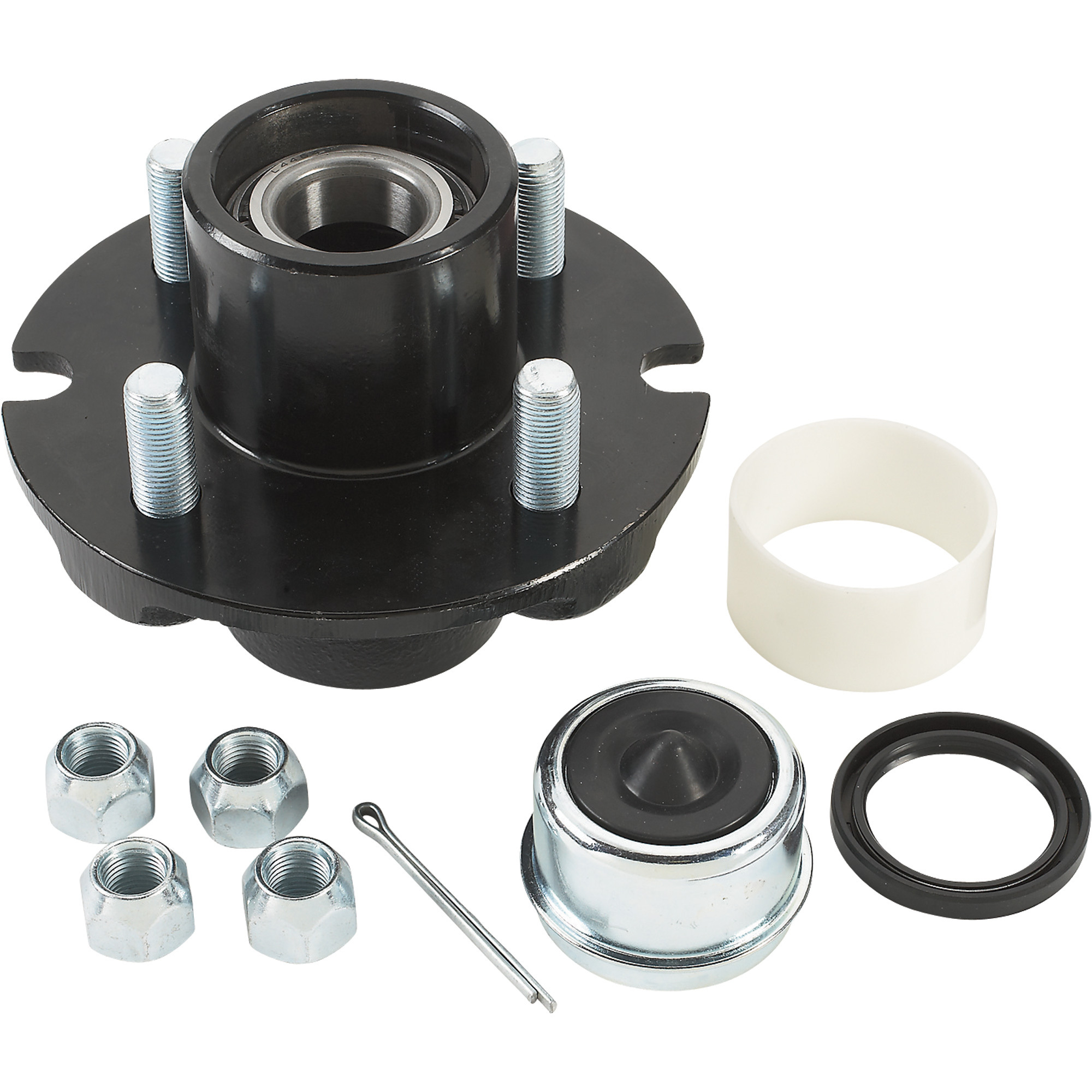

The Ultra-Tow XTP Ultra-Pack Trailer Hub is a fully assembled, prelubed hub designed to simplify bearing maintenance and extend service life. Its proprietary Ultra-Pack greasing system allows bearings to be repacked through an integrated zerk fitting without hub removal, pushing old grease out the front for a complete refresh while protecting the rear seal. Built with high-quality cast iron construction and a corrosion-resistant electro-plated finish, this hub is designed for dependable trailer performance. The Ultra-Tow XTP Ultra-Pack Trailer Hub works with existing spindles and includes bearings, seal, grease cap with zerk fitting, stud nuts and a dust cap installation tool.

What's Included

    (1) Ultra-Tow XTP Ultra-Pack Trailer Hub
Play Item Video

Features + Benefits

  • Ultra-Pack system to easily repack bearings with grease
  • High-speed marine grade hubs
  • High-quality cast iron construction
  • Dust cap installation tool

Key Specs

AttributeSpecification

item#

572241

Brand

Ultra-Tow

Manufacturer's Warranty

2 year limited warranty

Ship Weight

6.76 LB

Studs (qty.)

4

Bolt Circle Pattern

4 in
AttributeSpecification

Weight Capacity Each

1,350 lb

Seal Size ID

1.25 in

Seal Size OD

1.5 in

Bearing Size ID

1-1/16 in

Bearing Size OD

1-1/16 in

Spindle Size

1.5 in

Reviews

Questions & Answers

20 Reviews This action will navigate to reviews.

Questions

1–8 of 8 Questions
Sort by:

  1. Is there a hole in the dust cover to allow the old grease to get out?

    1 answer

    1. The dust cover does have a hole to allow old grease to be purged from the hub.

      Helpful?

  2. Does it fit trailer 49804?

    1 answer

    1. The hub assembly that fits our #49804 trailer is our part #ITI37560-15. It can be ordered online through our sister company Jacks Small Engines. Please visit www.jackssmallengines.com for pricing and availability.

      Helpful?

  3. What's the center hub outside diameter on the rim side and total hub depth?

    1 answer

    1. The center hub outside diameter is 1-1/16". The hub depth is 4-1/4".

      Helpful?

  4. Does this hub use a L44649 bearing

    1 answer

    1. The outer bearing on the hub is a model number L44649.

      Helpful?

  5. These hubs come with grease inside them already. I prefer not to mix grease with different brands. Is there a standard size grade tube I can buy for my grease gun with the same brand grease in it??

    1 answer

    1. The grease used is JIELING general-purpose lithium non marine grade grease. This is not a grease Northern Tool currently offers separately.

      Helpful?

  6. Why do these come with an extra bearing seal? The back side already has the seal on it. The front side doesn't use a seal with the metal dust cap. Am I missing something??

    1 answer

    1. The kit includes a 1.25" seal and a 1.5" seal. This will be so that the hub can work in different applications.

      Helpful?

  7. What is the thread size and pitch of the wheel studs?

    1 answer

    1. The bolts are 1/2" diameter and 20 TPI.

      Helpful?

  8. Are there cap covers to contain the grease?

    Can the grease fly out onto the wheels from the bearing cap?

    My city hits temps well over 100 degrees in the summer, can these bearing caps with grease outlets leak or are they spring loaded or something?

    1 answer

    1. The grease in this hub will not fly out onto the wheels through the dust cap and rubber plug. The rubber plug that caps the grease access hole in the dust cap is designed to have a tight seal when installed properly. Also, the grease used in this hub wouldn't change from its semi-solid state to a liquid state until it reached 446 degrees Fahrenheit. Even at ambient temperatures of 100 degrees Fahrenheit, the grease would still be in its grease like consistency.

      Helpful?

Warranty

Manufacturer's Warranty

2 year limited warranty
