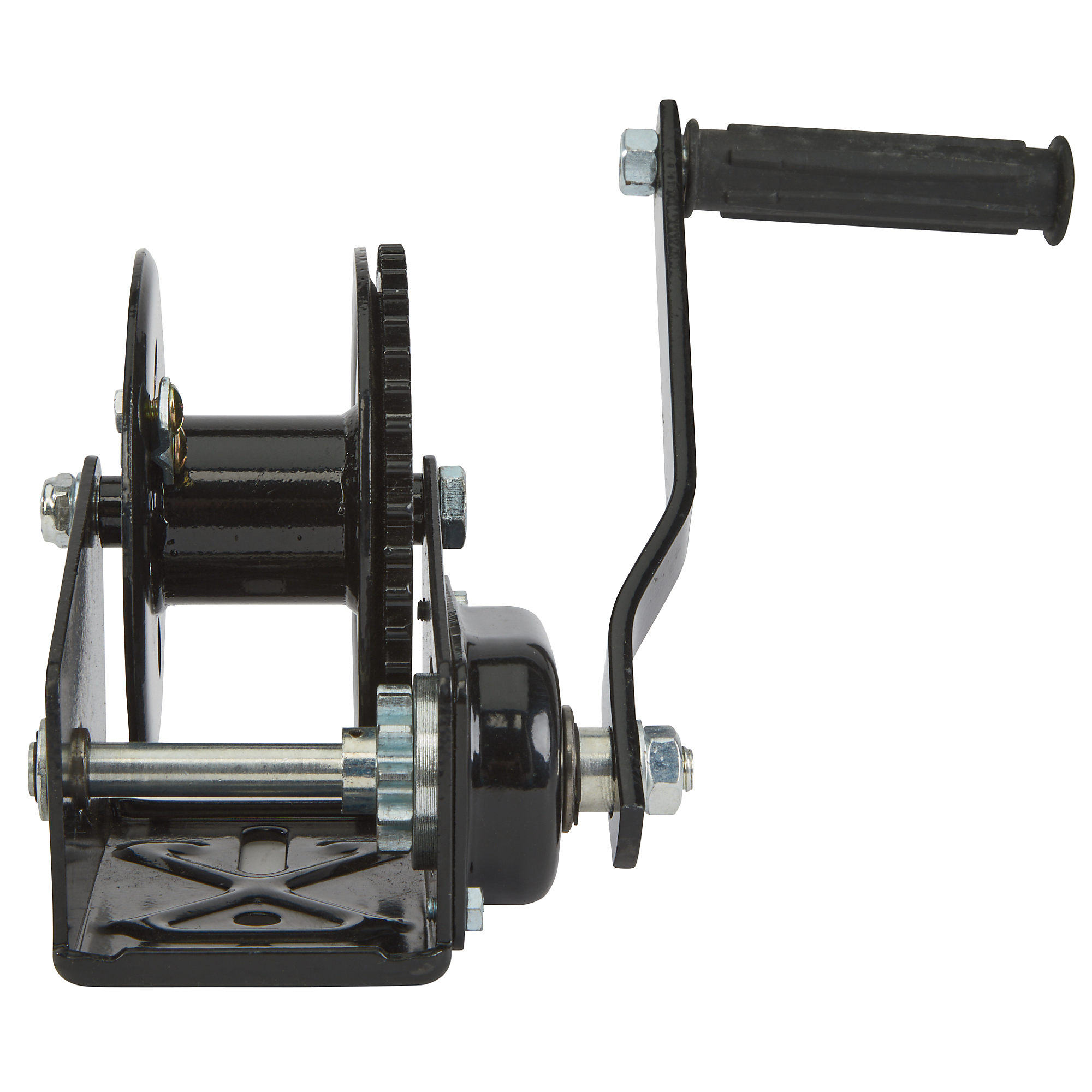

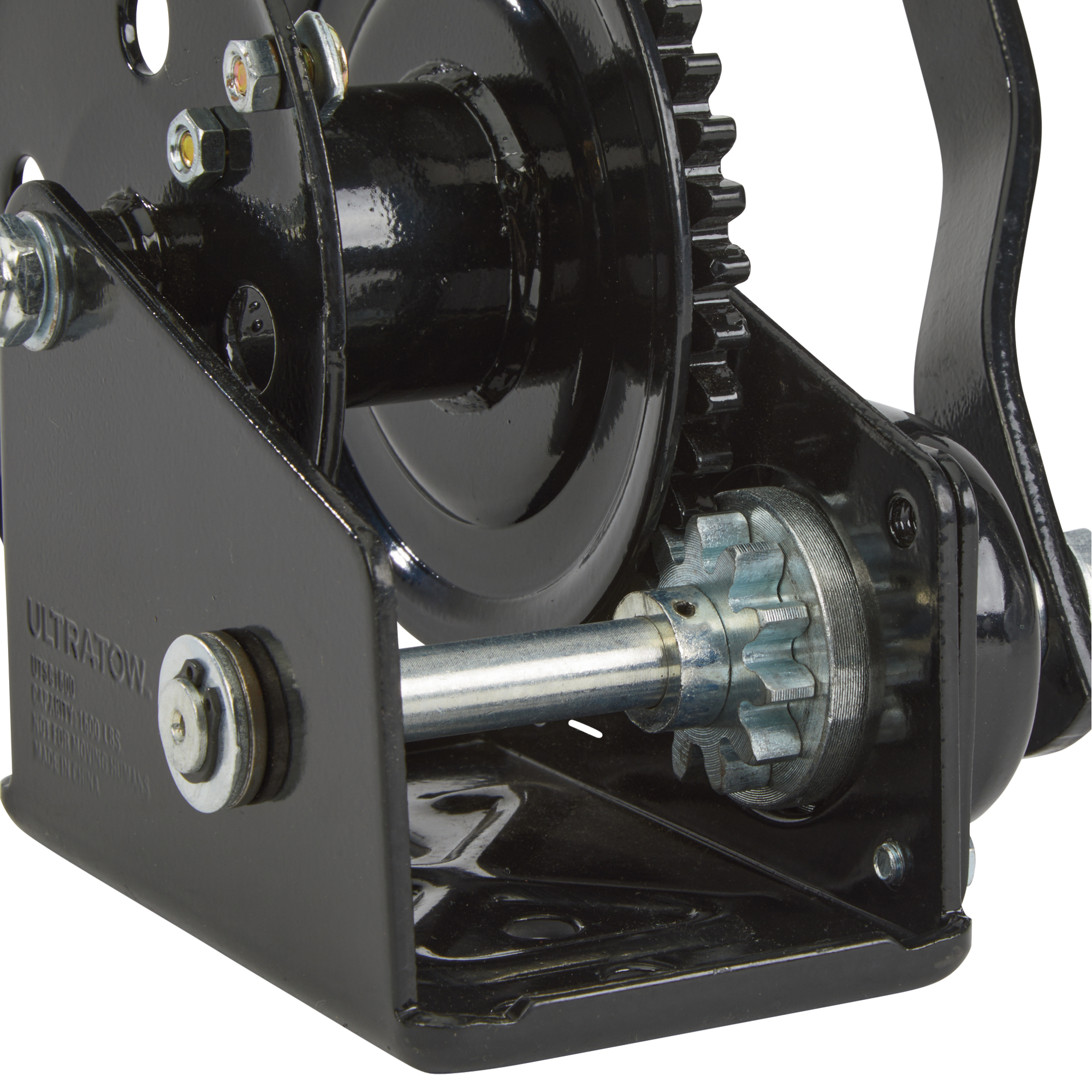

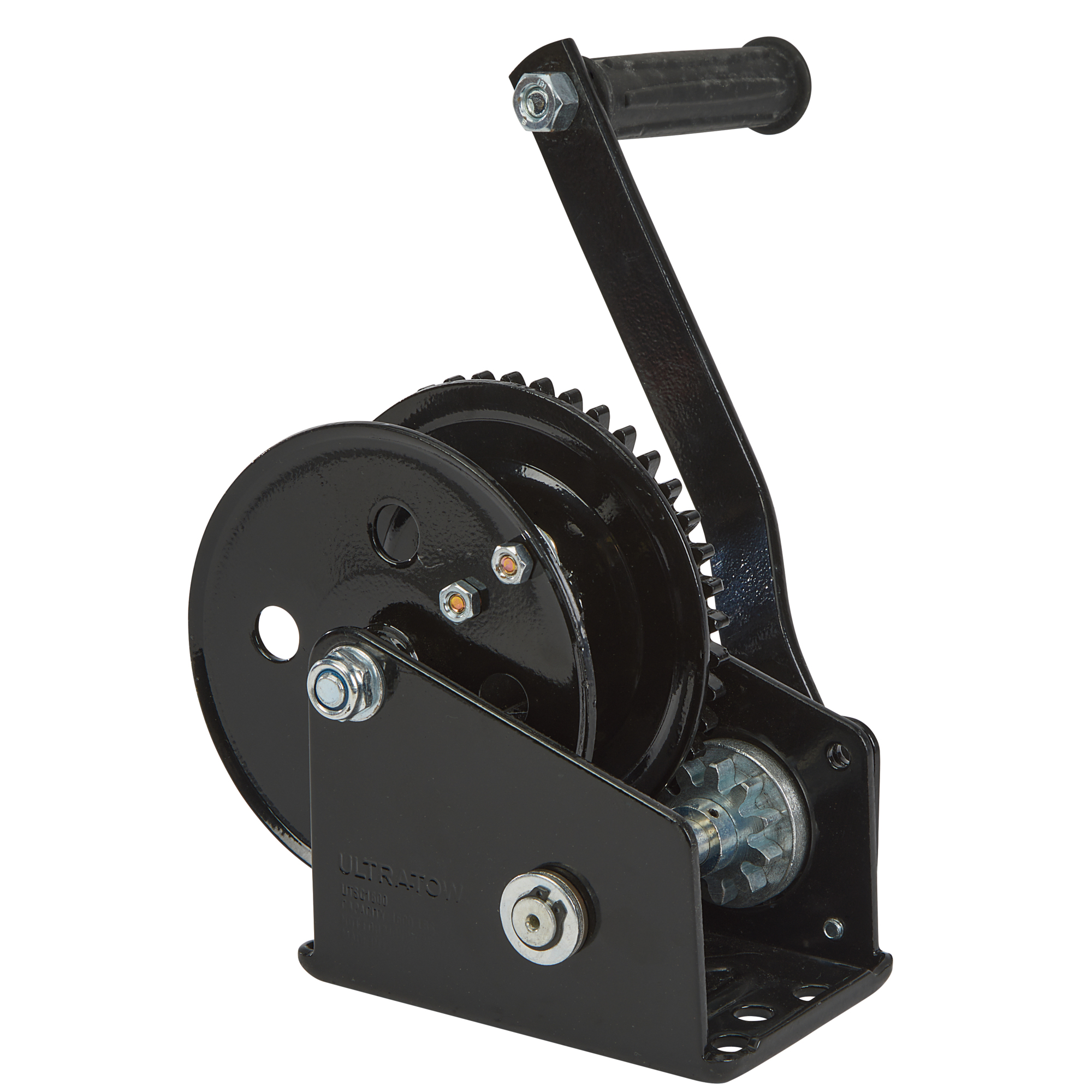

Ultra-Tow Single-Speed Hand Winch with Automatic Brake, 1600-Lb. Load Capacity

Item# 5033514
Ultra-Tow Single-Speed Hand Winch with Automatic Brake, 1600-Lb. Load Capacity

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ultra-Tow Single-Speed Hand Winch with Automatic Brake, 1600-Lb. Load Capacity

Click or Tap image to Zoom

$82.99

  • Shipping:

    Available now
    $19.99 Same Day

  • Store Pickup:

    4 in stock at Fredericksburg VA - Pickup in under 1 hr

  • Industrial-grade unit that meets demanding lift applications
  • Automatic weatherproof Weston brake
  • Compact design that allows for multiple frame mounting positions
  • Carbon and stainless steel construction
  • Ergonomic rubber handle

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • Ultra-Tow Single-Speed Hand Winch with Automatic Brake, 1600-Lb. Load Capacity
  • Ultra-Tow Universal Winch Mount
Price for all two:

$91.98

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This Ultra-Tow Single-Speed Hand Winch with Automatic Brake is an industrial-grade unit made of carbon and stainless steel that meets demanding lifting applications. Its compact design allows multiple frame mounting positions. The rubber handle is ergonomic, and the automatic weatherproof Weston brake features full enclosure and solid machined gears. With a dual-cable anchor point, large-diameter drum and a high gear ratio, this winch can be used in a variety of applications. Each unit includes an ID tag for identification and an individual test certificate and serial number for traceability. Meets CE safety standards.

What's Included

    (1) Ultra-Tow Single-Speed Hand Winch with Automatic Brake (1) Hardware bag

Downloads

Product Manual

Features + Benefits

  • Industrial-grade unit that meets demanding lift applications
  • Automatic weatherproof Weston brake
  • Compact design that allows for multiple frame mounting positions
  • Carbon and stainless steel construction
  • Ergonomic rubber handle
  • Solid machined gearing is fully enclosed for protection
  • Dual-cable anchor point
  • Large-diameter drum
  • High gear ratio
  • Test certificate and serial number for traceability

Key Specs

AttributeSpecification

item#

5033514

Brand

Ultra-Tow

Manufacturer's Warranty

1 year limited warranty

Ship Weight

7.4 LB

Product Type

Hand Winch

Load Capacity

1,600 lb

Speed Settings

1

Ratchet Type

Gear

Drum Capacity

5.23 ft
AttributeSpecification

Max. Rope Diameter

5/16 in

Gear Ratio

4.1:1

Automatic Brake

Yes

Freespooling

No

Mounting Hardware Included

No

For Use With

Used for parallel towing or lifting objects

Product Weight

8.8000 lb

Dimensions L x W x H (in.)

5.36 x 3.54 x 6.14 in

Reviews

Questions & Answers

6 Reviews This action will navigate to reviews.

Questions

1–5 of 5 Questions
Sort by:

  1. Can the winch accommodate a 25 ft polyester strap? The site suggests as 20 ft length.

    1 answer

    1. This winch is not intended for use with a strap. It can hold up to 33 feet of 7/32" diameter cable or 16 feet of 5/16" diameter cable.

      Helpful?

  2. How do you release the brake and pull the cable by hand

    1 answer

    1. The brake is fully automatic and the load remains in position any time the handle is released. This winch is not equipped with a neutral gear.

      Helpful?

  3. Is turning the crank the only way to reverse the cable on the spool ? How can you pull the cable off quickly ?

    1 answer

    1. This is a manual hand winch which requires the user to crank the handle to wind the cable or rope. To unwind the cable or rope, it must also be done manually. Pulling the load can help speed up the process.

      Helpful?

  4. How long is the cable

    1 answer

    1. The cable is not included with the winch. This is the winch only.

      Helpful?

  5. Can a strap be used on drum instead of having steel cable?

    1 answer

    1. This can be equipped with a strap or steel wire rope.

      Helpful?
