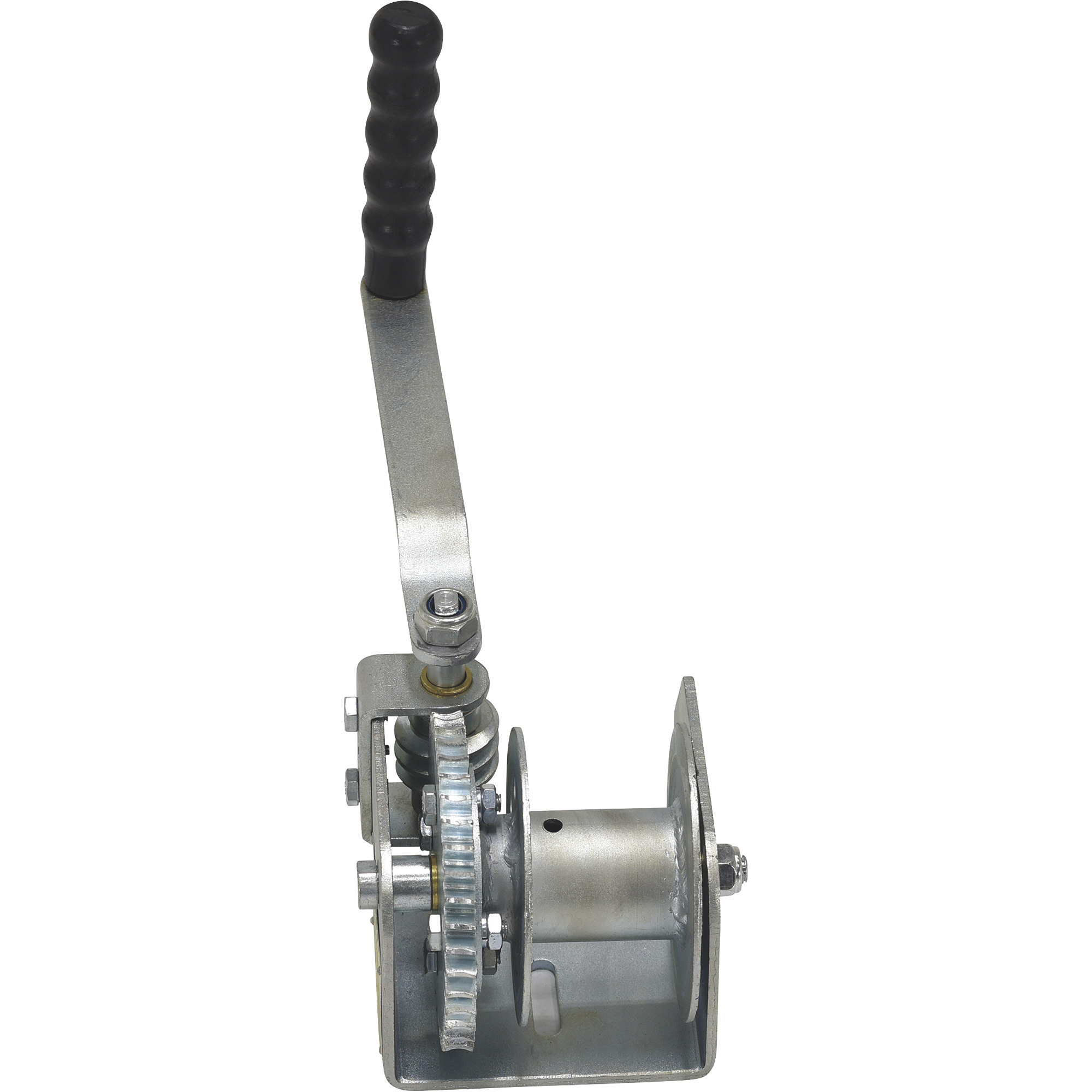

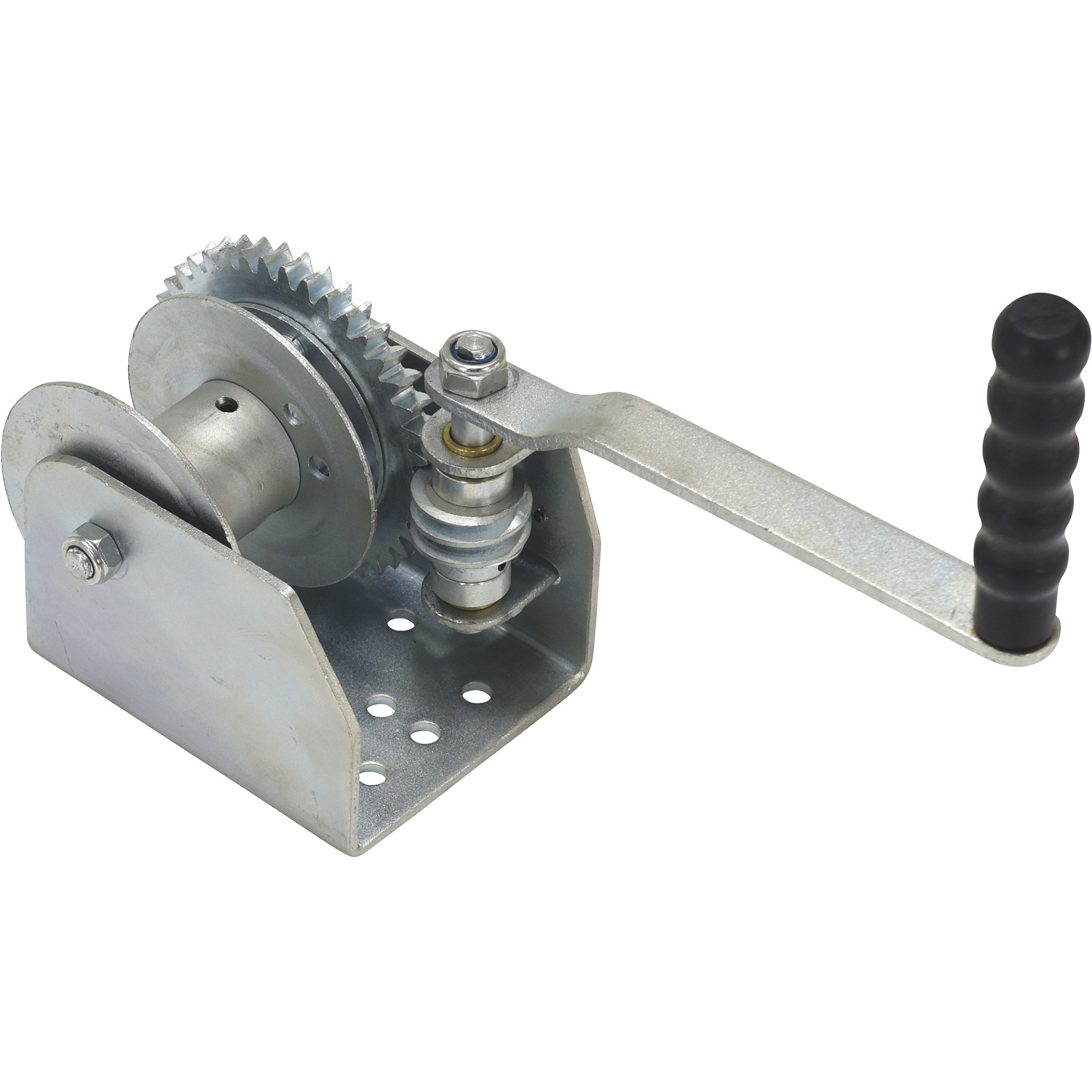

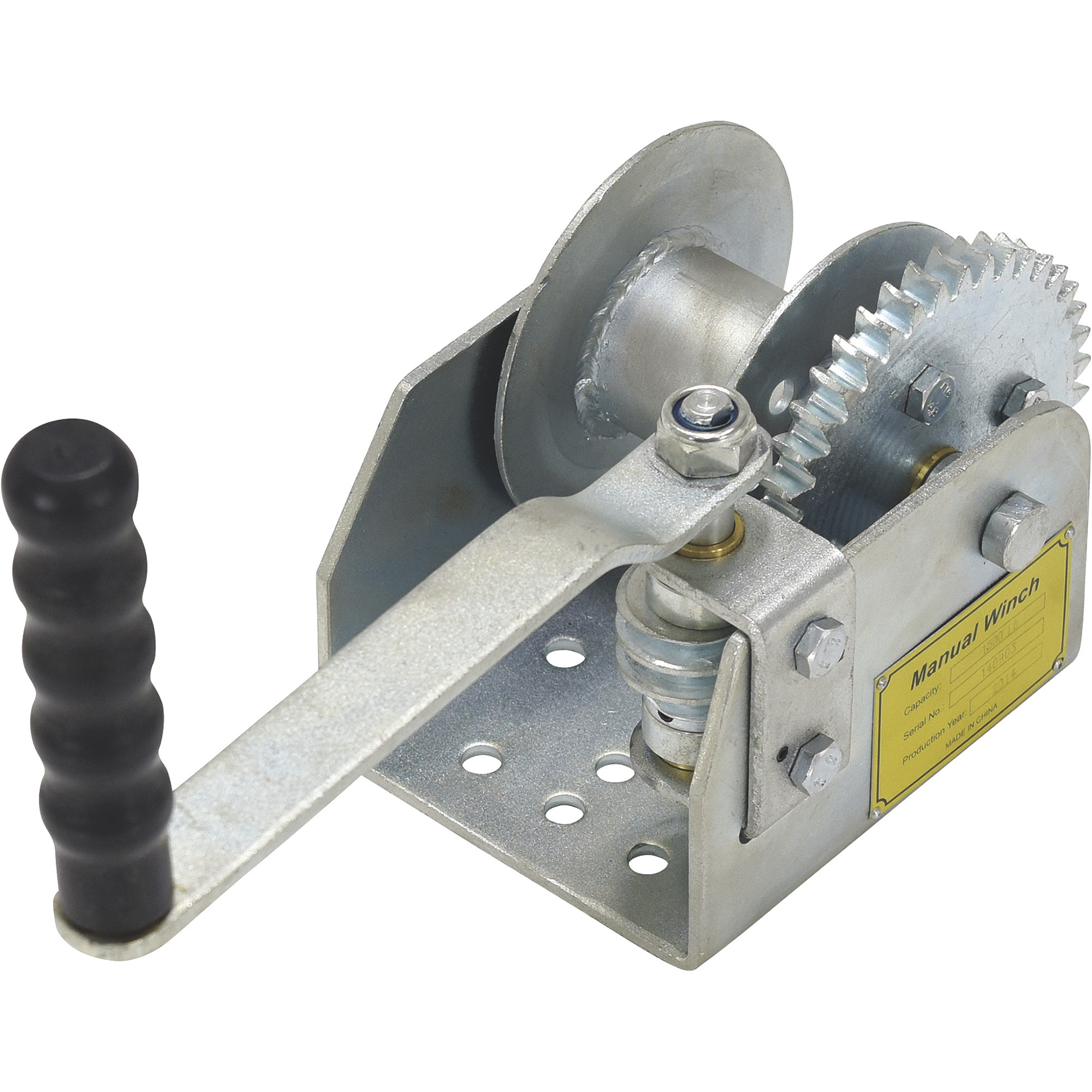

Vestil Wall-Mount Hand Winch - Single Drum, 1500-Lb. Load Capacity, Zinc-Plated, Model# WALL-S

Item# 52873
Vestil Wall-Mount Hand Winch - Single Drum, 1500-Lb. Load Capacity, Zinc-Plated, Model# WALL-S

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Vestil Wall-Mount Hand Winch - Single Drum, 1500-Lb. Load Capacity, Zinc-Plated, Model# WALL-S

Click or Tap image to Zoom

$153.97

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Hand winch is single drum wall-mount model with zinc-plated finish for maximum efficiency
  • Pinion gear shaft with lubricated down bushings provides smooth operation and long life
  • Single drum model
  • 1500-lb. load capacity
  • Wire rope not included

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Vestil Wall-Mount Hand Winch is an industrial winch that uses wire, rope, cable, strap or web to move heavy loads. This double wall-mount hand winch is constructed with steel worm gear drives with a zinc-plated finish. Pinion gear shaft with lubricated down bushings provide smooth operation and long life.

What's Included

    (1) Wall-mount single drum hand winch

Downloads

Additional Product Info Additional Product Info2
Play Item Video

Features + Benefits

  • Hand winch is single drum wall-mount model with zinc-plated finish for maximum efficiency
  • Pinion gear shaft with lubricated down bushings provides smooth operation and long life
  • Single drum model
  • 1500-lb. load capacity
  • Wire rope not included

Key Specs

AttributeSpecification

item#

52873

Brand

Vestil

Manufacturer's Warranty

1 month limited warranty

Ship Weight

12.0 LB

Product Type

Hand Winch
AttributeSpecification

Load Capacity

1,500 lb

Ratchet Type

Gear

Gear Ratio

41:1

Product Weight

12.0000 lb

Dimensions L x W x H (in.)

9.0 x 8.0 x 7.0 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–6 of 6 Questions
Sort by:

  1. Where are the mounting holes located and what size are they?

    1 answer

    1. The 3 mounting holes in the front of the hand winch are 1.102" apart, center to center. They sit back 0.59" from the end of the bracket. The 2 holes behind these 3 are 3.012" apart, center to center and are 2.63" back from the end of the bracket.

      Helpful?

  2. Does the winch free spool

    Im looking for a worm winch that does not free spool. I need it to stop and not free spool in and out when the handle is not being turned.

    1 answer

    1. This winch does not free spool.

      Helpful?

  3. What are the dimensions of the main winch unit?

    1 answer

    1. The dimensions of the unit without the handle would be 6 3/4" L x 5.9" W x 6" H. The handle is 9 5/8" L.

      Helpful?

  4. How long is the handle?

    1 answer

    1. This hand winch has a handle length of 9.6 inches.

      Helpful?

  5. Info says no braking system? How does it lock in place?

    1 answer

    1. This winch has a pinion shaft mechanism which acts as a break. In order to move a load in or out, you would need to turn the handle in the appropriate direction, otherwise the load would remain static.

      Helpful?

  6. What is the 3/16" cable capacity of the spool?

    1 answer

    1. The spool on this hand winch will hold 130 feet of 3/16" cable.

      Helpful?

Warranty

Manufacturer's Warranty

1 month limited warranty
