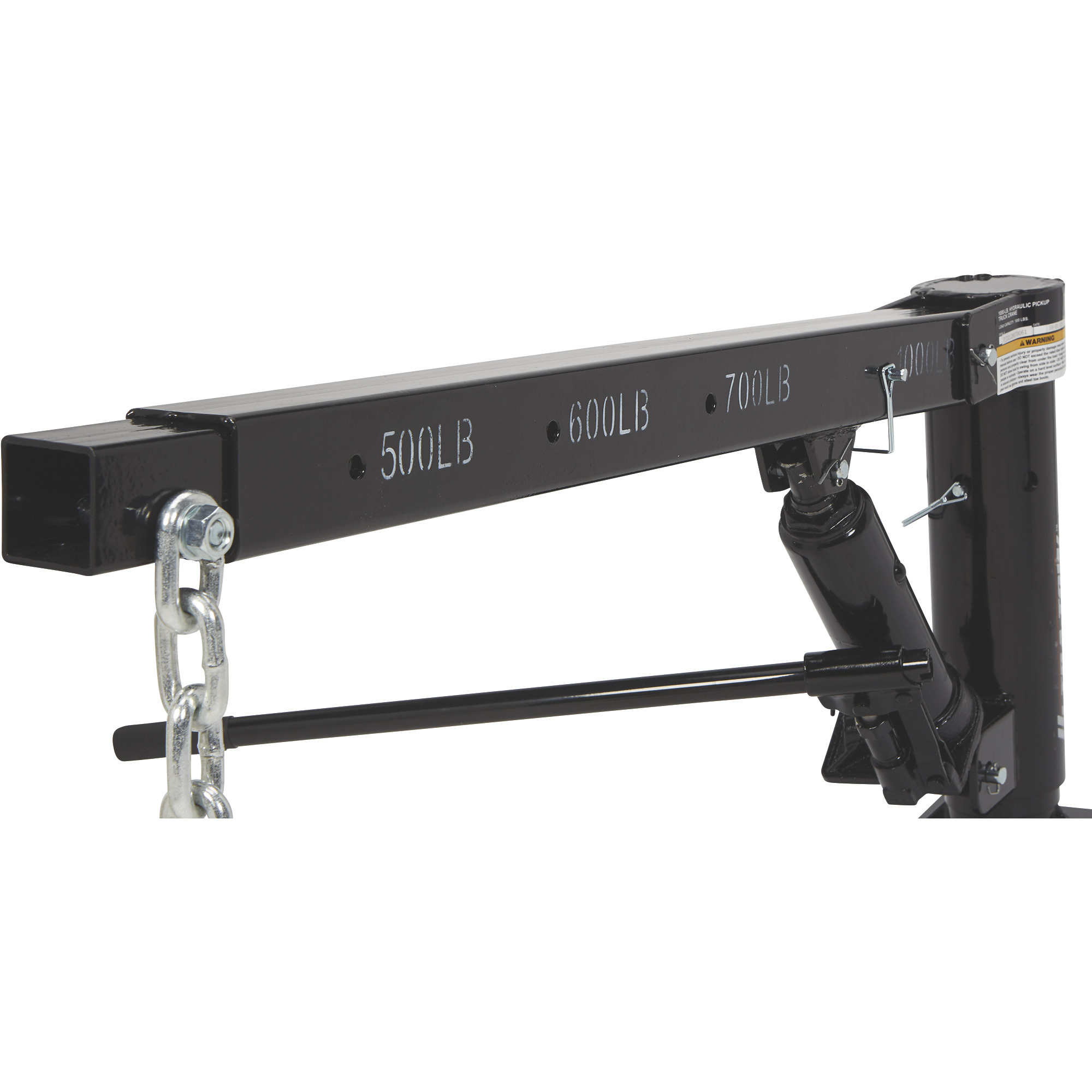

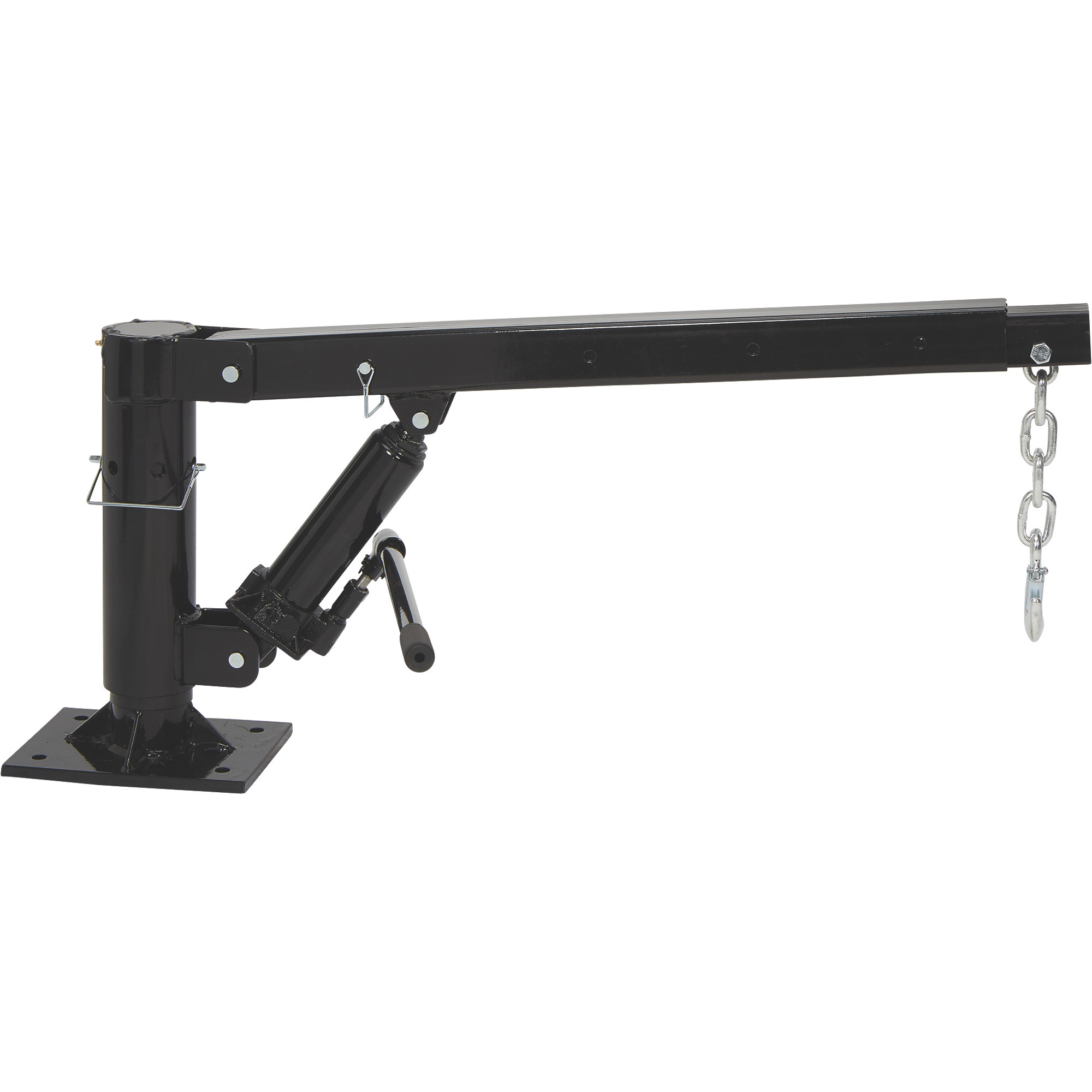

Ultra-Tow Hydraulic Pickup Truck Crane, 1000-Lb. Capacity

Item# 52512
"Ultra-Tow Hydraulic Pickup Truck Crane, 1000-Lb. Capacity"
Ultra-Tow Hydraulic Pickup Truck Crane, 1000-Lb. Capacity

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ultra-Tow Hydraulic Pickup Truck Crane, 1000-Lb. Capacity

Click or Tap image to Zoom

$149.99

  • Shipping:

    Free shipping (lower 48 states) - Available now
    $19.99 Same Day

  • Store Pickup:

    1 in stock at Fredericksburg VA

  • Lifts 1,000 lbs. fully retracted; 500 lbs. fully extended
  • Steel boom extends from 33in.–53-1/2in.
  • Boom extension locks in 4 positions
  • Base swivels 360°
  • Lift range of 9in.–56in.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Ultra-Tow Swiveling Pickup Truck Crane has a 3-ton hydraulic jack to easily lift loads up to 1,000 lbs. Steel boom extends from 33in.–53-1/2in. to help you get ideal angles when hoisting items onto truck bed. Boom stores over wheel well when not in use. All-steel construction.

What's Included

    (1) Pickup truck crane

Downloads

Product Manual

Features + Benefits

  • Lifts 1,000 lbs. fully retracted; 500 lbs. fully extended
  • Steel boom extends from 33in.–53-1/2in.
  • Boom extension locks in 4 positions
  • Base swivels 360°
  • Lift range of 9in.–56in.
  • Boom stores over wheel well when not in use
  • All-steel construction

Key Specs

AttributeSpecification

item#

52512

Brand

Ultra-Tow

Manufacturer's Warranty

1 year limited warranty

Ship Weight

61.0 LB

Max. Capacity

1,000 lb

Min. Lift

9 in
AttributeSpecification

Max. Lift

56 in

Min. Boom Length

33 in

Max. Boom Length

53.5 in

Manual or Electric

Manual

Column Diameter

3.5 in

Material

Carbon Steel

Reviews

Questions & Answers

27 Reviews This action will navigate to reviews.

Questions

1–10 of 30 Questions
Sort by:

  1. What are the dimensions of the Hydraulic jack its self?

    1 answer

    1. The jack measures 13" long x 4.2" wide x 3.9" high when fully collapsed, with an effective stroke of 6.7".

      Helpful?

  2. Is there a trailer hitch mount available?

    1 answer

    1. A trailer hitch mount is currently not available for this truck crane.

      Helpful?

  3. What sizes are the telescoping upper tubes (tube outside width, wall thickness)?

    1 answer

    1. The outside diameter of the upper telescoping tubes is 60mm. The walls are 2.75mm thick.

      Helpful?

  4. From the base of the crane, how high can will the crane reach?

    1 answer

    1. The total height the crane will reach from the base is 56 inches.

      Helpful?

  5. When the jack is mounted on the floor of the bed, in it's fully down and collapsed position, how tall is it? I'm wanting to confirm that I can add a larger steel plate under the attached, standard plate and still be under my tonneau cover when closed.

    1 answer

    1. This truck crane measures 16-5/16" high from the base to the top of the post.

      Helpful?

  6. Can this be mounted on a deck to lift 200-300 lb items 5 ft up from the ground?

    1 answer

    1. This crane could be mounted on a deck if the area where it is mounted can adequately support the load. The lifting range of this crane is 9" to 56".

      Helpful?

  7. Is there a cover for lift for weather I purchased crane n installed. It is great. Is there a protective cover for it

    1 answer

    1. At this time, there is no cover specifically designed for this truck crane. A tarp can be used to protect the crane from weather.

      Helpful?

  8. How heavy is this, I’m looking at using it to mount on car wash dryer frame and lift motors

    1 answer

    1. The actual weight of this truck crane is 55.12 lbs.

      Helpful?

  9. What are the dimensions of the base plate, is there any part that is wider than the  the narrowest  measurement of the base?

    1 answer

    1. The base plate measures 7" x 9.5". There is no section wider than the narrowest measurement of the base.

      Helpful?

  10. Where is the hydraulic oil fill

    1 answer

    1. The hydraulic oil fill plug is located on the cylinder.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
