Ultra-Tow Hydraulic Pickup Truck Crane with Hand Winch, 2000-Lb. Capacity, 5in.–80in. Lift

Item# 52534
"Ultra-Tow Hydraulic Pickup Truck Crane with Hand Winch, 2000-Lb. Capacity, 5in.–80in. Lift"
Top Seller
Ultra-Tow Hydraulic Pickup Truck Crane with Hand Winch, 2000-Lb. Capacity, 5in.–80in. Lift

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ultra-Tow Hydraulic Pickup Truck Crane with Hand Winch, 2000-Lb. Capacity, 5in.–80in. Lift

Click or Tap image to Zoom

$319.99

  • Shipping:

    Free shipping (lower 48 states) - Available now
    $19.99 Same Day

  • Store Pickup:

    3 in stock at Fredericksburg VA - Pickup in under 1 hr

  • Boom extends from 37in.–51in.

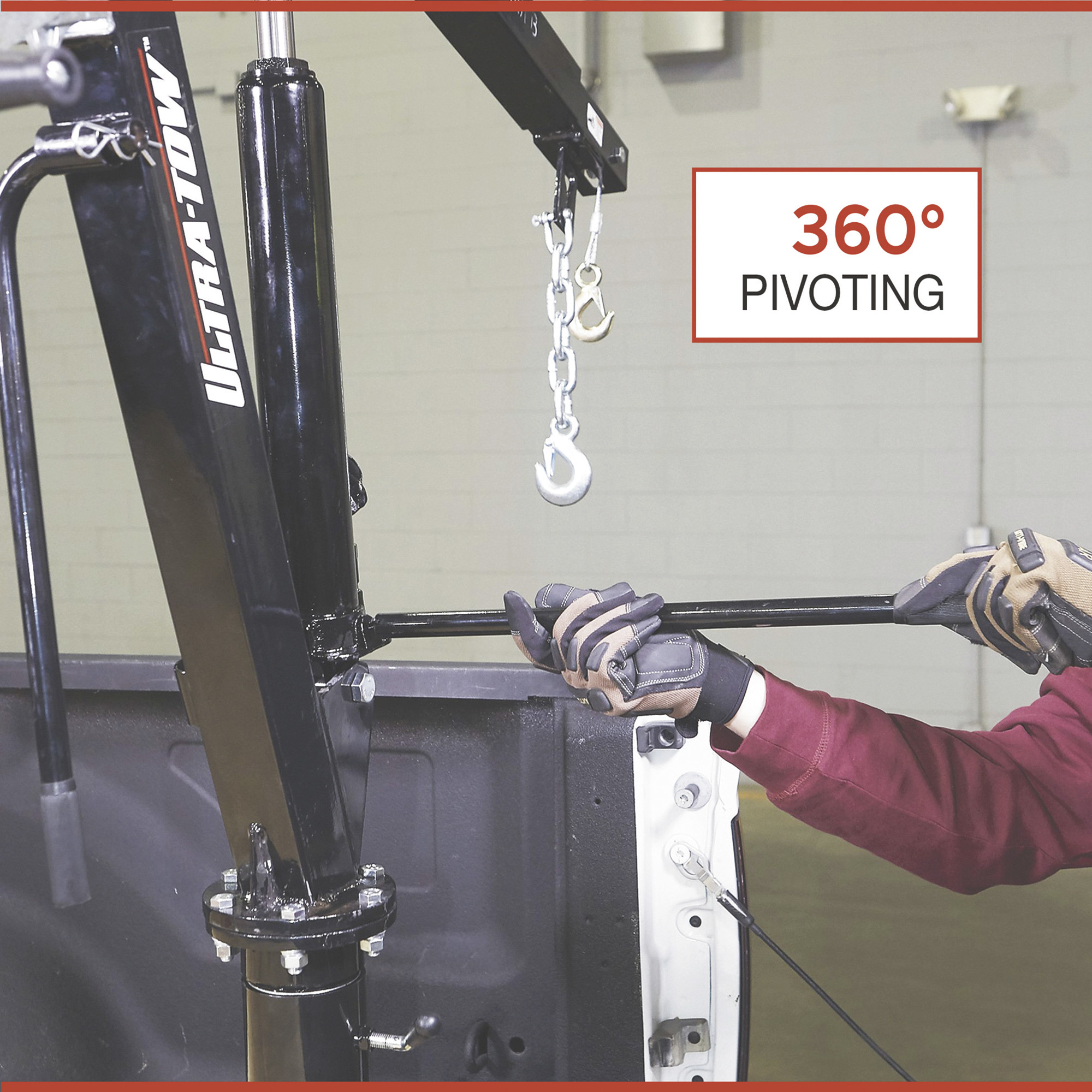

  • Pivots 360° for easy loading
  • Hydraulic ram provides lifting power
  • Lifts up to 2,000 lbs. fully retracted; up to 1,000 lbs. extended
  • Lift range of 5in.–80in.H

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Ultra-Tow 2,000-Lb. Hand Winch Truck Crane is designed to lift loads from the ground to truck bed height, then rotate them into the cargo area for easy loading. Crane lifts up to 2,000 lbs. fully retracted. Includes manual winch with 30ft. cable.

What's Included

    (1) Hand winch truck crane

Downloads

Product Manual
Play Item Video

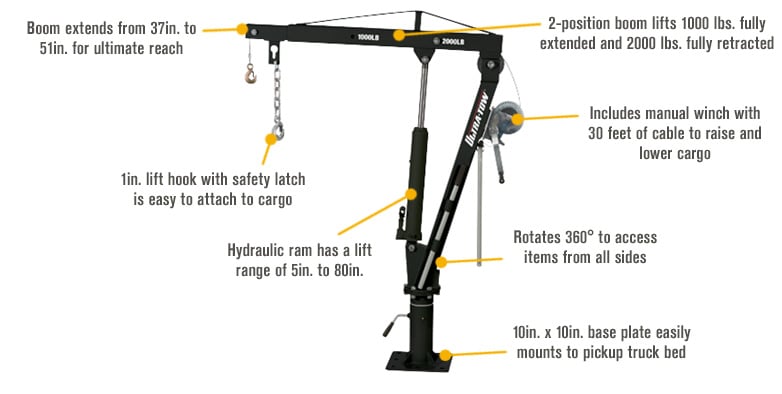

Features + Benefits

  • Boom extends from 37in.–51in.
  • Pivots 360° for easy loading
  • Hydraulic ram provides lifting power
  • Lifts up to 2,000 lbs. fully retracted; up to 1,000 lbs. extended
  • Lift range of 5in.–80in.H
  • Includes manual winch with 30ft. cable and hook
  • Lockpin set screws
  • 10in. x 10in. base for stability
  • All-steel construction

Key Specs

AttributeSpecification

item#

52534

Brand

Ultra-Tow

Manufacturer's Warranty

1 year limited warranty

Ship Weight

125.2 LB

Max. Capacity

2,000 lb

Min. Lift

5 in

Max. Lift

80 in
AttributeSpecification

Min. Boom Length

37 in

Max. Boom Length

51 in

Manual or Electric

Manual

Cable Length

30 ft

Column Diameter

3.25 in

Material

Carbon Steel

Reviews

Questions & Answers

67 Reviews This action will navigate to reviews.

Questions

1–10 of 48 Questions
Sort by:

  1. How many mounting holes are there

    1. 8 each 5/8" clearance holes

      Helpful?

    2. 8 mounting holes.

      Helpful?

    3. The base includes 8 mounting holes.

      Helpful?

  2. How large are the mounting holes in the base plate?

    1. The bolt hole diameter is 17 MM (0.6693 inches).

      Helpful?

    2. The 3/8" mounting base has 0.660" holes drilled. That puts it at 5/8" bolt clearance. The 10" mounting plate has these holes drilled for a 8.25" mount square. By the way, all supplied hardware is metric.

      Helpful?

    3. The bolt hole diameter is 17 mm.

      Helpful?

  3. What is the capacity of the winch?

    1. The hand winch does not have a separate weight capacity. The maximum capacity of the truck crane is 2000 pounds.

      Helpful?

    2. 2000 lbs

      Helpful?

    3. This item is designed to be used as one unit and the capacity is 2,000 lbs. The hand winch does not have a separate capacity since it is designed for this specific application.

      Helpful?

  4. Does it fold down in bed of truck when not in use

    1. No

      Helpful?

    2. The truck crane does not fold down into the bed when not in use.

      Helpful?

  5. When lowering is it ratchet lowering or freewheel?

    1. Ratcheting

      Helpful?

    2. The winch will ratchet to lower the load.

      Helpful?

  6. Hole spacing on the mounting bracket

    I am looking to replace a Vestil crane that has 8 1/4" hole spacing between the outside 4 holes. Will your plate fit this spacing?

    1. On the 2000LB crane that I bought, the mounting square was 8.250" Bolt Center Line to Bolt CL on the 10" base. Remember, the manufacturing dimensions can change

      Helpful?

    2. The hole spacing for the corner bolt holes are 8-1/4" center to center.

      Helpful?

  7. Is it removable?

    Looking at the picture, it looks to have a set screw to hold the crane from rotating in the base. But, once the base is bolted down, will the crane lift out of the base?

    1. The hold down bolt, when tightened, keeps the crane immovable on the base and will not lift out.

      Helpful?

    2. It is not designed to be removed and doing so could cause damage to the bearings.

      Helpful?

  8. total weight of crane

    1 answer

    1. This truck crane weighs 125 lbs.

      Helpful?

  9. When not in use what is shortest height you can adjust it to?

    1 answer

    1. This truck crane measures 53" high when in the folded position.

      Helpful?

  10. I need a new inter boom for this lift.how can I get one.

    1 answer

    1. The boom is part #UT52534.9. The boom extension is part #UT52534.11. These parts are available through our sister company, Jacks Small Engines. Please visit www.JacksSmallEngines.com for pricing and availability.

      Helpful?
