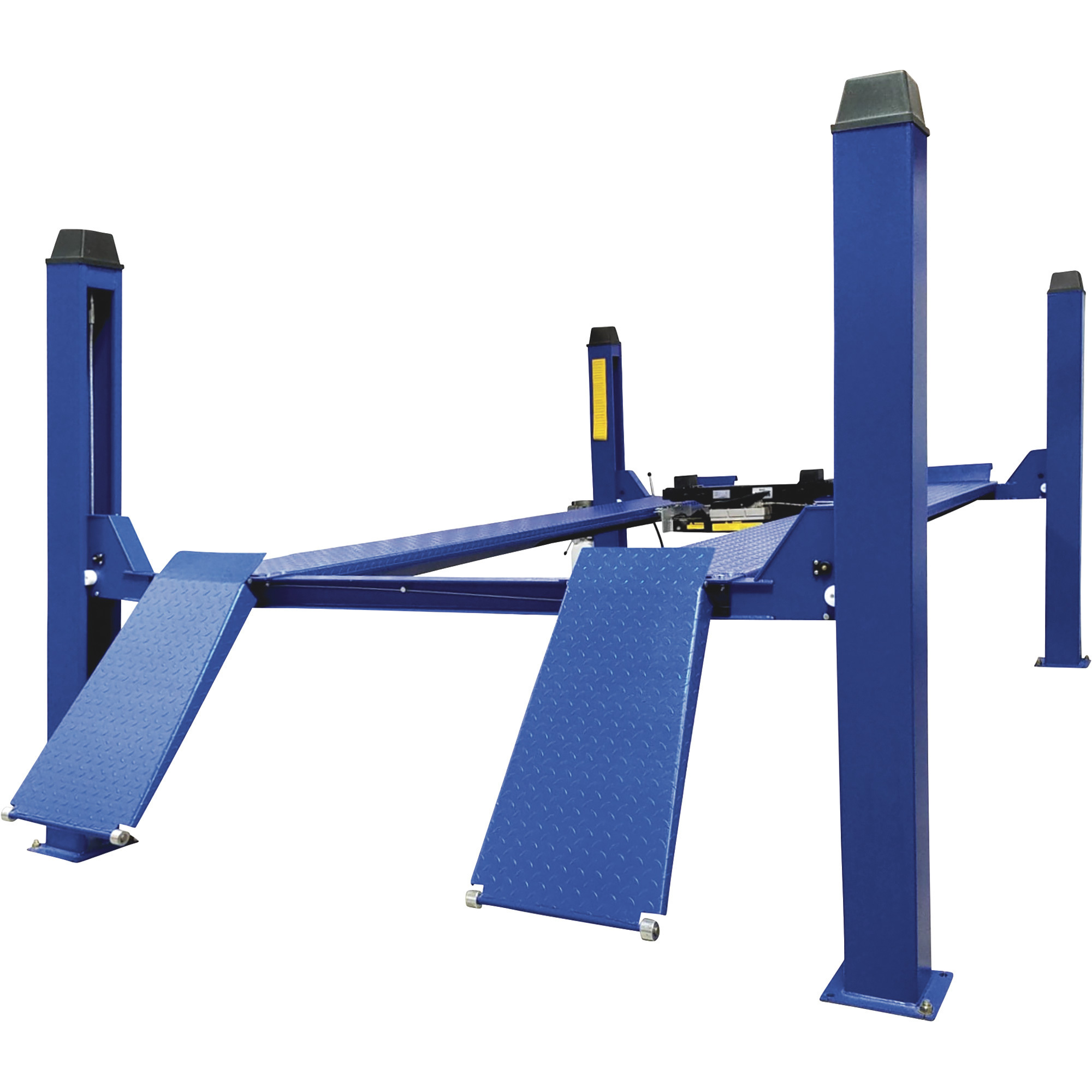

Tuxedo 4-Post Automotive Storage Lift, 12,000-Lb. Capacity, Blue, Model# FP12K-K

Item# 108675
Tuxedo 4-Post Automotive Storage Lift, 12,000-Lb. Capacity, Blue, Model# FP12K-K

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Tuxedo 4-Post Automotive Storage Lift, 12,000-Lb. Capacity, Blue, Model# FP12K-K

Click or Tap image to Zoom

$7999.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • 12,000-lb. maximum lift capacity
  • Cable driven design rises to 63in. maximum height quickly and easily
  • Powerful and dependable 220 Volt motor

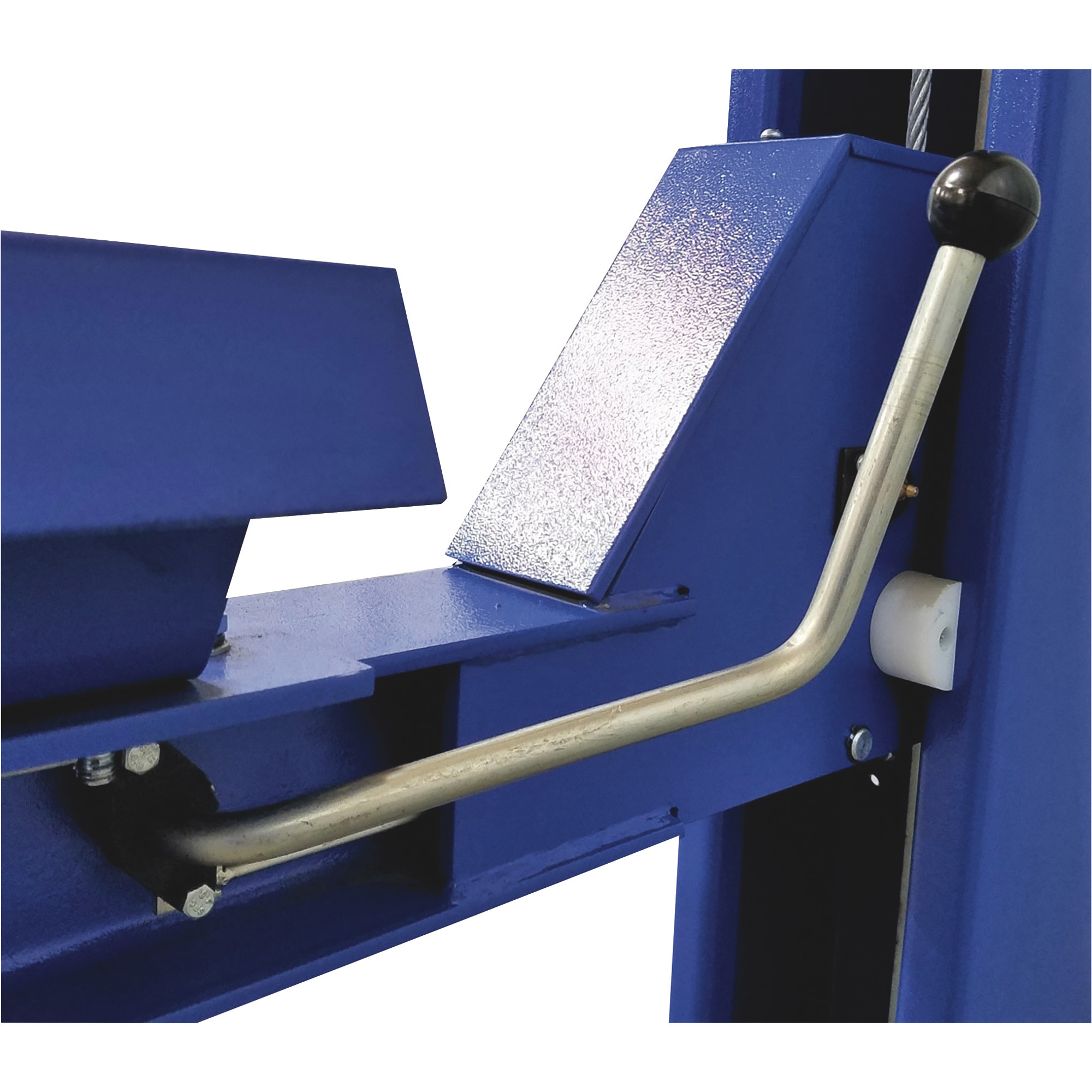

  • Single point, manual lock release for ease of use
  • Holds vehicles with a 176in. maximum wheel base

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This Tuxedo 4-Post Automotive Storage Lift with cable driven design provides 12,000 lb. lifting capacity. No power beam; cylinder is conveniently stowed under the single-piece diamond plate track. A simple lever release system and redundant safety locks make operation easy. Item too large for lift gate. Requires forklift on site for unloading. This item is delivered by LTL enclosed van carriers Monday-Friday. A forklift is required to offload the lift from a dock-height trailer.

What's Included

    (1) 4-post lift (2) Approach ramps

Downloads

Product Manual

Features + Benefits

  • 12,000-lb. maximum lift capacity
  • Cable driven design rises to 63in. maximum height quickly and easily
  • Powerful and dependable 220 Volt motor
  • Single point, manual lock release for ease of use
  • Holds vehicles with a 176in. maximum wheel base
  • No power beam; cylinder stowed under single piece diamond plate track

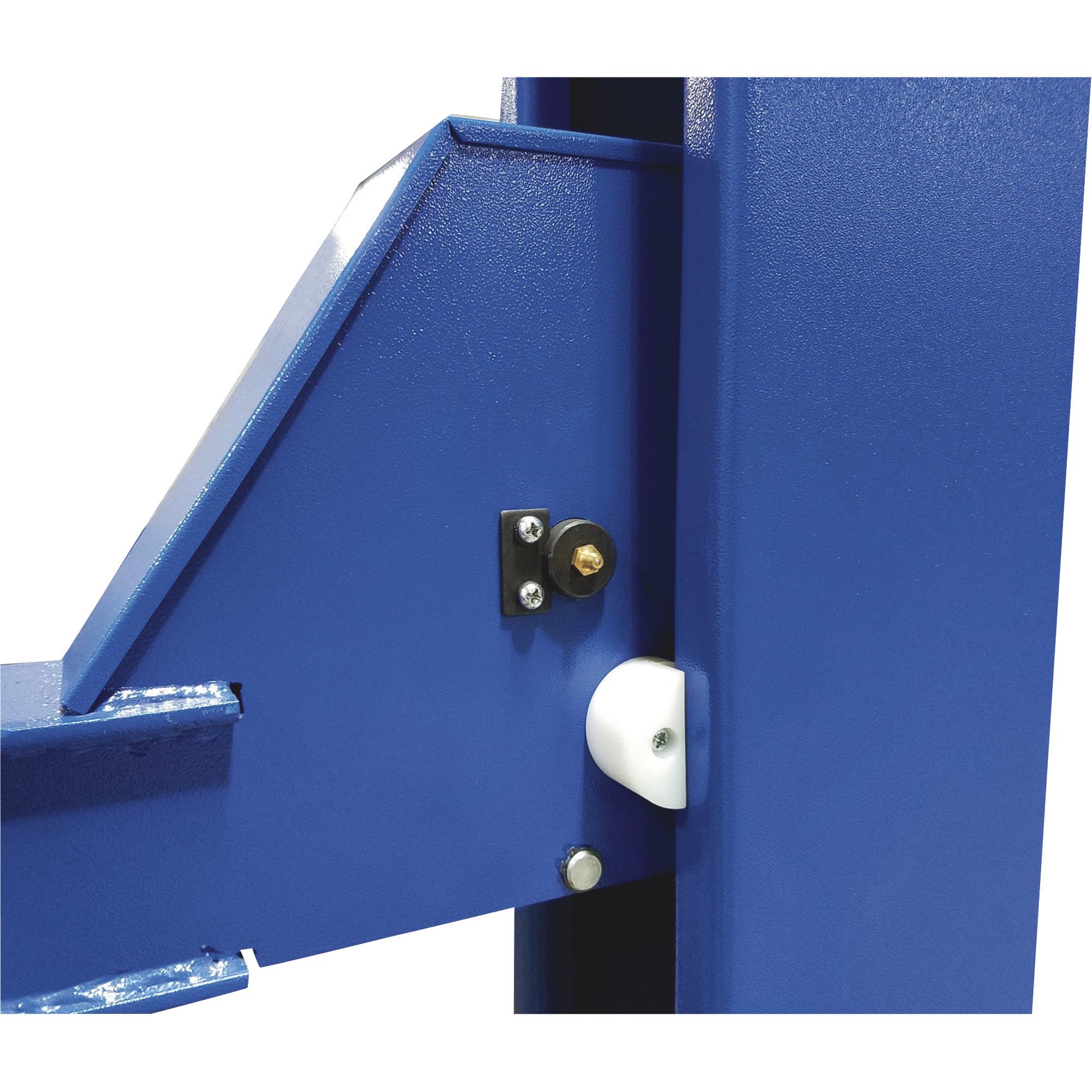

  • Simple, lever release system and redundant safety locks for safety
  • Durable, corrosion-resistant powder-coat finish
  • Rugged steel approach ramps
  • Item too large for lift gate; requires forklift on site for unloading

Key Specs

AttributeSpecification

item#

108675

Brand

Tuxedo

Manufacturer's Warranty

1 year limited warranty

Ship Weight

2255.0 LB

Capacity

12,000 lb

Max. Rise

5.63 ft
AttributeSpecification

Horsepower

1 HP

Motor Phase

Single-phase

Volts

220

Locking Position (qty.)

16

Product Weight

2,255 lb

Reviews

Questions & Answers

Questions

  1. Dimensions f wi Dimensions on the four posts length and width Hp of motor

    1 answer

    1. The overall length with ramp is 232-1/2" and overall width is 123". The width between the posts is 105" and between runways is 36-1/2". The width of the runways is 19-1/4". The column height is 84". The ramp length is 30". The power is 220V-20 Amp-1PH.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty

Compare with Most Popular in Four-Post Lifts

See All Four-Post Lifts

See All Tuxedo Four-Post Lifts

Specifications

Specifications
Tuxedo 4-Post Automotive Storage Lift, 12,000-Lb. Capacity, Blue, Model# FP12K-K
BendPak Heavy-Duty 4-Post Truck Lift, 40,000-Lb. Capacity, Model# HDS-40
BendPak 4-Post Extended Truck Lift, 40,000-Lb. Capacity, Model# HDS-40X
BendPak 4-Post Vehicle Lift, 18,000-Lb. Capacity, Model# 517596
Capacity
Same

12,000 lb

40,000 lb

40,000 lb

18,000 lb

Max. Rise
Same

5.63 ft

5.8 ft

5.8 ft

5.6 ft

Horsepower
Same

1 HP

5 HP

5 HP

5 HP

Motor Phase
Same

Single-phase

Single-phase

Single-phase

Single-phase

Volts
Same

220

220/240

220

220

Locking Position (qty.)
Same

16

13

13

13

Product Weight
Same

2,255 lb

-

-

6,003 lb

Lock Spacing
Same

-

4 in

4 in

4 in

Time of Full Rise
Same

-

75 sec.

75 sec.

75 sec.

Drive-Thru Clearance
Same

-

109 in

109 in

109 in

Material
Same

-

Steel

Steel

Steel
