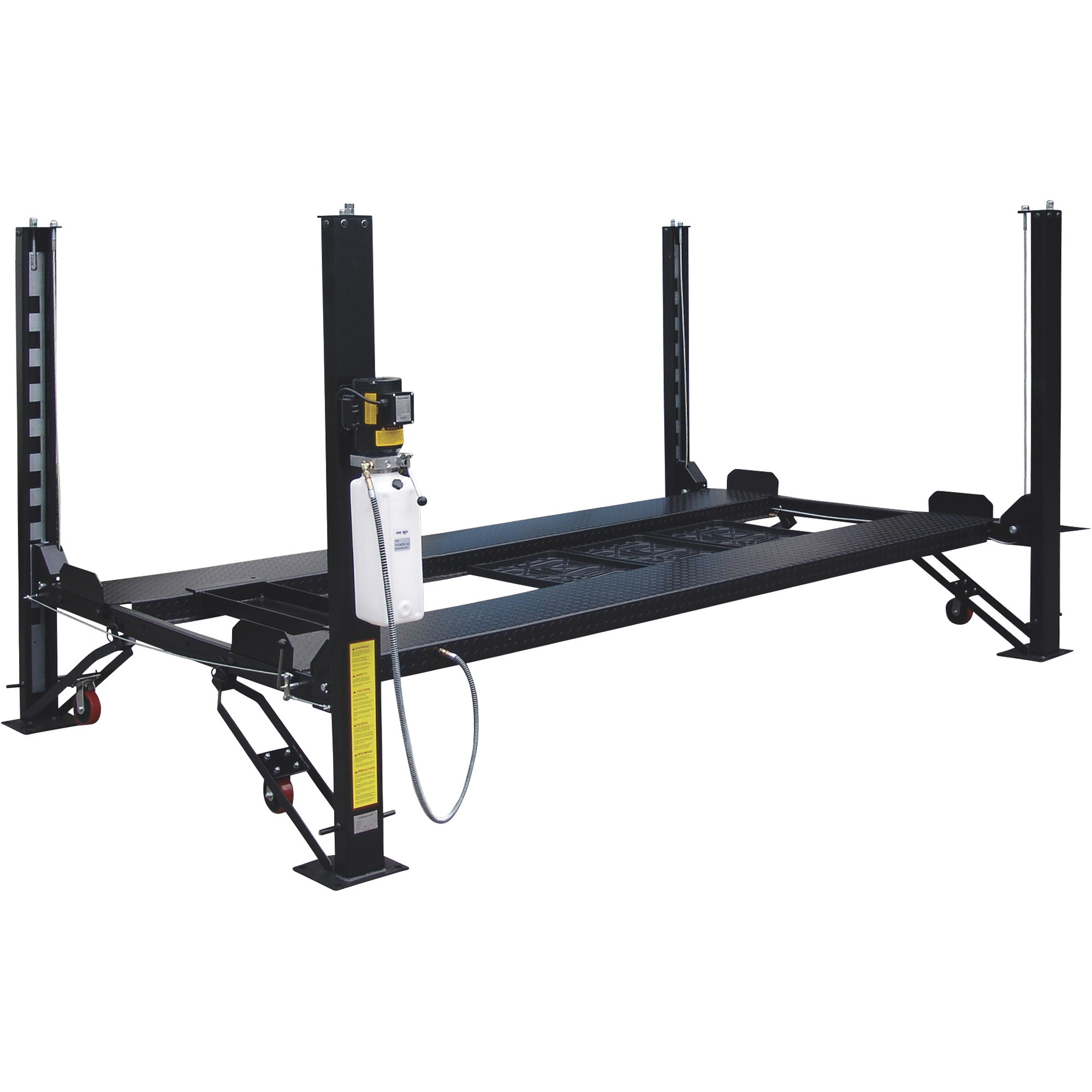

Tuxedo 4-Post Deluxe Automotive Storage Lift, 8000-Lb. Capacity, Black, Model# FP8K-DX

Item# 71516
Tuxedo 4-Post Deluxe Automotive Storage Lift, 8000-Lb. Capacity, Black, Model# FP8K-DX

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Tuxedo 4-Post Deluxe Automotive Storage Lift, 8000-Lb. Capacity, Black, Model# FP8K-DX

Click or Tap image to Zoom

$4660.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Fast operation rises to 74 3/4in. maximum height in just 90 seconds
  • Slack-cable/Safety device system
  • Internal Lock Ladder design for adjustable preset heights at 6in. intervals and leveling that holds firm
  • 10 separate locking positions
  • Non-skid diamond plate runways

See full description

Complete Your Solution

  • Tuxedo 4-Post Deluxe Automotive Storage Lift, 8000-Lb. Capacity, Black, Model# FP8K-DX
  • Tuxedo Sliding Jack, 3500-Lb. Capacity, Black, Model# SJ-35
Price for all two:

$6359.99

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This Tuxedo 4-Post Deluxe Automotive Storage Lift is great for storing one vehicle over another. The lift is portable when used with the included caster set. The 8000-lb. capacity allows you to add additional car storage space in most residential garages. The open bottom design also allows for use as a service lift for the car enthusiast. 207 5/16in.L x 103 1/2in.W. 110 Volt operation with 2.5 HP motor. Includes 4 casters, 3 drip trays, 2 approach ramps and a steel jack tray. Item too large for lift gate. Requires forklift on site for unloading. This item is delivered by LTL enclosed van carriers Monday--Friday. A forklift is required to offload the lift from a dock-height trailer.

What's Included

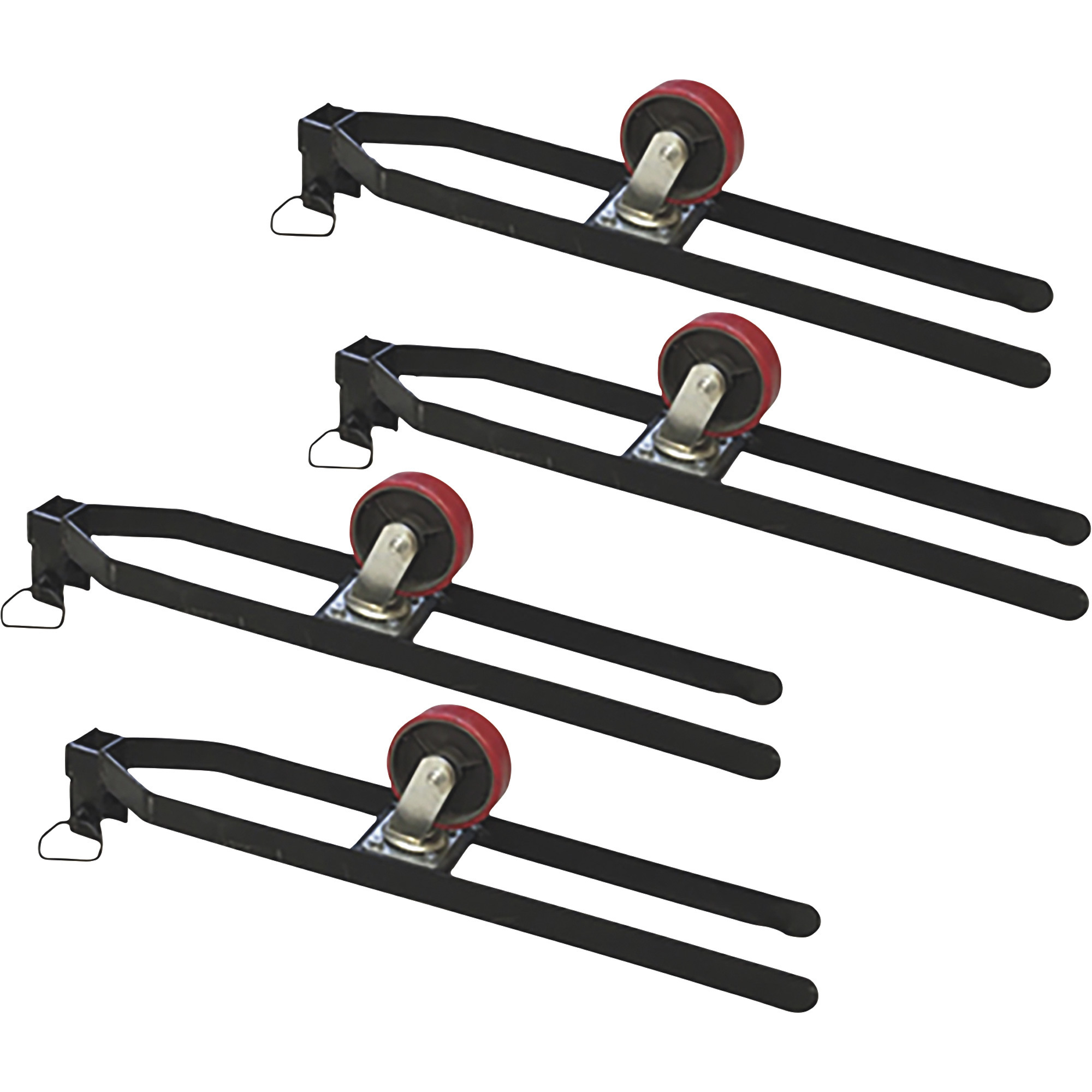

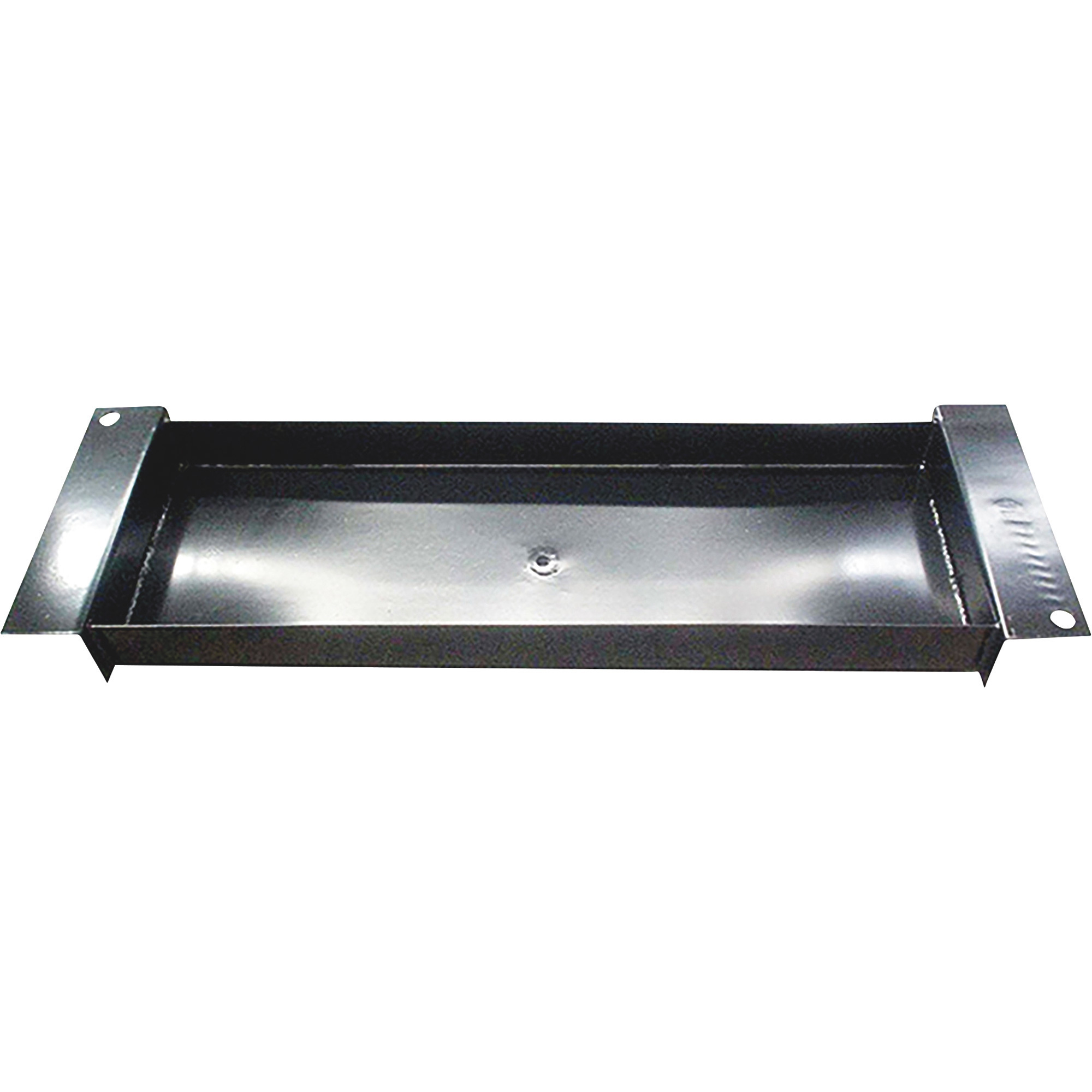

    (1) 4-post lift (4) Casters (3) Drip trays (2) Approach ramps (1) 12in.D steel jack tray

Downloads

Product Manual

Features + Benefits

  • Fast operation rises to 74 3/4in. maximum height in just 90 seconds
  • Slack-cable/Safety device system
  • Internal Lock Ladder design for adjustable preset heights at 6in. intervals and leveling that holds firm
  • 10 separate locking positions
  • Non-skid diamond plate runways
  • Single point, manual lock release for ease of use
  • Durable, corrosion-resistant powder-coat finish
  • Rugged steel approach ramps
  • Item too large for lift gate; Requires forklift on site for unloading

Key Specs

AttributeSpecification

item#

71516

Brand

Tuxedo

Manufacturer's Warranty

1 year limited warranty

Ship Weight

1705.0 LB

Capacity

8,000 lb

Max. Rise

6.1 ft
AttributeSpecification

Horsepower

1 HP

Motor Phase

Single-phase

Volts

115

Locking Position (qty.)

14

Product Weight

1,705 lb

Reviews

Questions & Answers

16 Reviews This action will navigate to reviews.

Questions

1–10 of 37 Questions
Sort by:

  1. Is this lift ALI certified?

    1. No

      Helpful?

    2. This lift is not ALI certified.

      Helpful?

  2. Hi there, Iam intersted in purchasing one of these units. I am just wondering about the caster system, I do realize that they are for moving the lift around once assembled but does it need to be lag bolted to concrete for use? Thanks

    1. No, you can move it around. Just make sure it is level.

      Helpful?

    2. Securing this lift to concrete is not required.

      Helpful?

  3. The details state 2.5 hp motor, 110 volts, How many amps does the motor draw? Will it operate on a 20 amp circuit, 110 volt?

    1. Yes, the lift will operate at 110V-20amp-1PH.

      Helpful?

    2. Yes, the lift will operate at 110V-20amp-1PH.  Thanks

      Helpful?

  4. Where can I buy parts for this item if a pulley or cable is bad ?

    1 answer

    1. Replacement parts would be available through the manufacturer.

      Helpful?

  5. Are these lifts ul or any other listing approved

    1 answer

    1. The model FP8K-DX is not UL approved. There are no other approval ratings at this time.

      Helpful?

  6. How high are the four posts, what kind of ceiling clearance do you need for the lift to fit in the garage

    1 answer

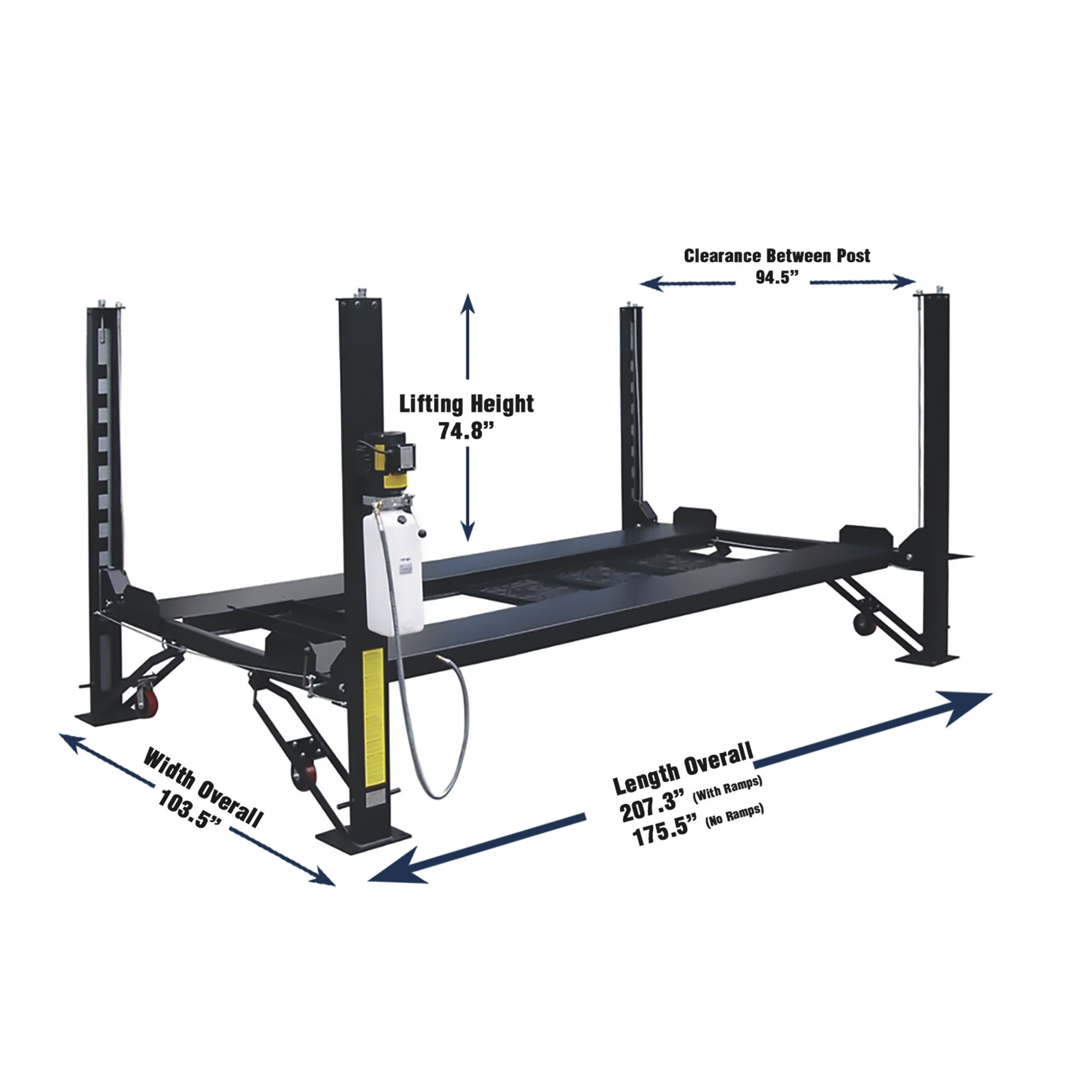

    1. The Tuxedo 4-Post Deluxe Lift rises to 74 ¾ inches (6.23 ft). Its overall length is 207 5/16 inches (17.27 ft) with ramps, or 175.5 inches without. Width is 103 ½ inches (8.63 ft).

      For ceiling clearance, add the lift’s max rise (6.23 ft) to your vehicle’s height, plus extra space for safe operation. A ceiling height of 10–12 feet is generally recommended for comfortable use and installation.

      Helpful?

  7. is the oil included with the unit

    1 answer

    1. The oil would not be included with the lift. It would require 3 gallons of hydraulic oil.

      Helpful?

  8. How long and how wide

    1 answer

    1. The overall length with the ramps is 207.3" and without the ramps it is 175.5". The overall width is 103.5".

      Helpful?

  9. Maximum height vehicle on the bottom

    1 answer

    1. The maximum lift height for the lift is 74 3/4". The runway height would be 4.3". The maximum vehicle height that would go under the lift would be approximately 70".

      Helpful?

  10. Maximum height of car on the lift bottom

    1 answer

    1. The clearance height under the runway is 70". The vehicle height would need to be less than this measurement.

      Helpful?
