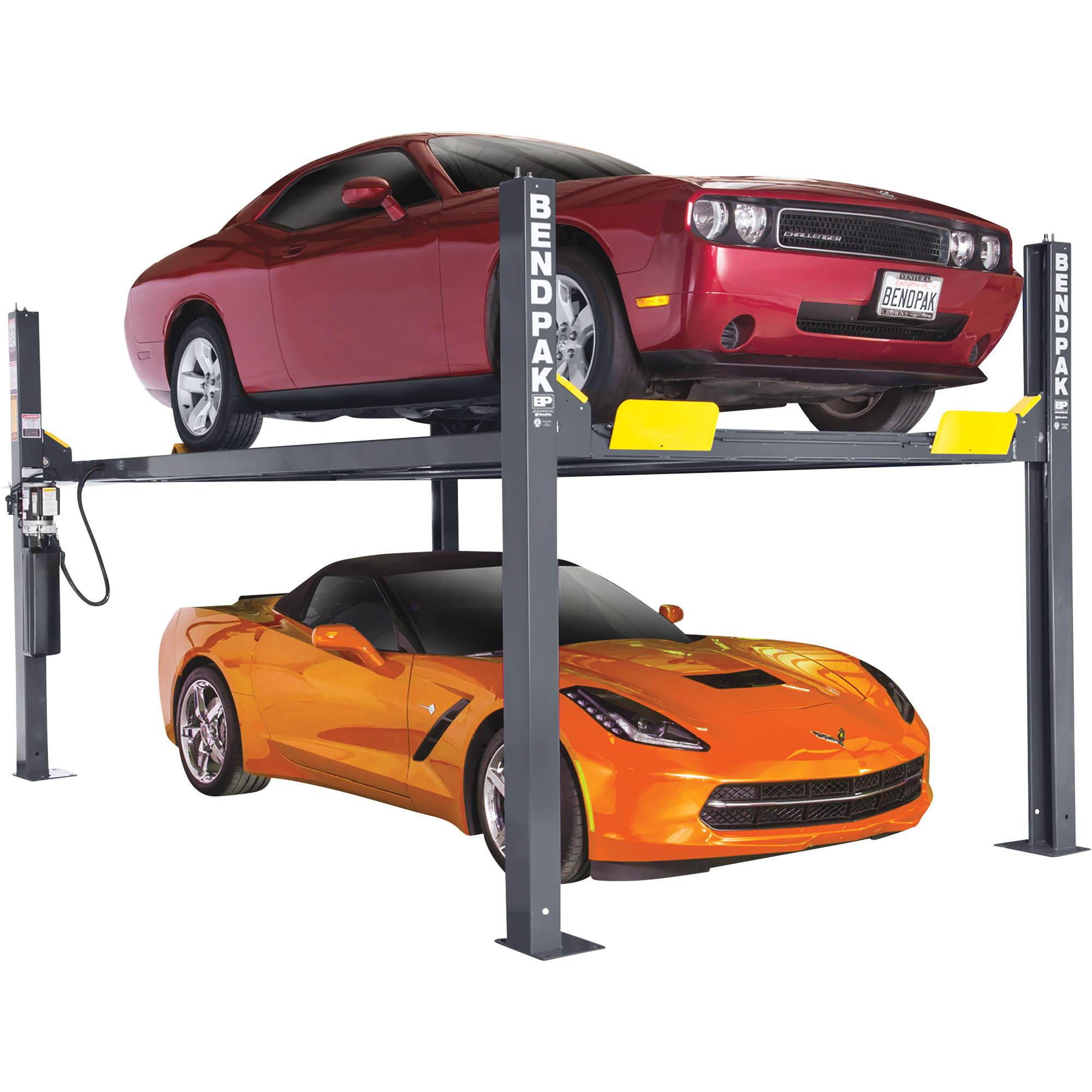

BendPak 4-Post Car Lift, 9000-Lb. Capacity, Model# HD-9

Item# 1446890
"BendPak 4-Post Car Lift, 9000-Lb. Capacity, Model# HD-9"
BendPak 4-Post Car Lift, 9000-Lb. Capacity, Model# HD-9

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

BendPak 4-Post Car Lift, 9000-Lb. Capacity, Model# HD-9

Click or Tap image to Zoom

$6095.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • The HD-9 series of 9,000-lb. four-post lifts contains seven different lifting models. Each four-post lift is perfect for vehicle storage and service,
  • CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN-1493
  • Forklift Required
  • Runways accommodate narrow and standard vehicles

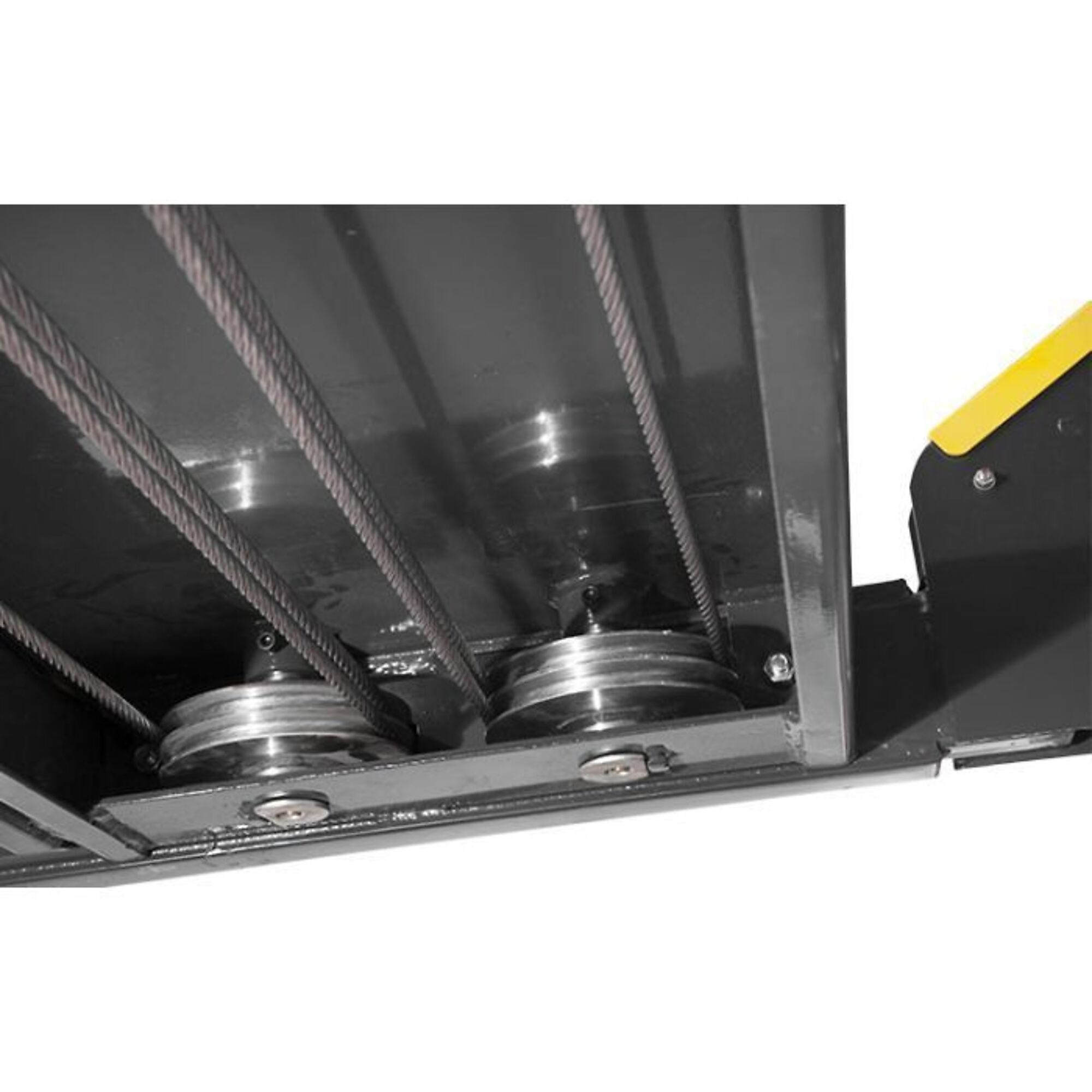

  • Oversized self-lubricating cable rollers

See full description

Complete Your Solution

  • BendPak 4-Post Car Lift, 9000-Lb. Capacity, Model# HD-9
  • BendPak Rolling Bridge Jack for 4-Post Lifts, 4500-Lb. Capacity, Model# RBJ-4500
  • BendPak Rolling Drain Pan for 4-Post Truck and Car Lifts, Model# DP-30
  • BendPak Caster Kit, Fits BendPak Model# HD-9ST, Item# 144689
Price for all four:

$9795.00

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The HD-9 series of 9,000-lb. four-post lifts contains seven different lifting models. Each four-post lift is perfect for vehicle storage and service, whether you’re working at the shop or your home garage. Each model is available with optional casters, drip trays, jack platforms and more. Meet One of Our Most Popular and Versatile Lifts A four-post lift requires a serious level of engineering. To reduce strain on the columns and provide ample lifting security at all times, BendPak uses the most durable stainless steel lifting cables, as well as the single hydraulic cylinder, to provide an incredibly powerful and smooth lift operation. With proper use, this car lift will work as well in 10 years as it did on day one. The HD-9 offers our largest variety in any BendPak four-post lift weight class because most vehicles serviced by most shops weigh less than 9,000 lbs. If you need to lift heavier vehicles, we have larger-capacity models that keep you covered. For many of you, however, the HD-9 Series will hit the sweet spot for powerful lifting, compact design and product value. Browse our 9K section to see all of what you can get on these models. Dual-hub cable sheaves Dual-hub cable sheaves are more expensive to manufacture, but we'd rather send you home with a quality product than a cheap one. They’re necessary to prevent axles, sheaves and cables from burning out before they should. Our philosophy is that your lift should be the last thing you worry about first thing in the morning.

What's Included

    (1) 4-post car lift (Model# HD-9)

Downloads

Product Manual

Features + Benefits

  • The HD-9 series of 9,000-lb. four-post lifts contains seven different lifting models. Each four-post lift is perfect for vehicle storage and service,
  • CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN-1493
  • Forklift Required
  • Runways accommodate narrow and standard vehicles
  • Oversized self-lubricating cable rollers

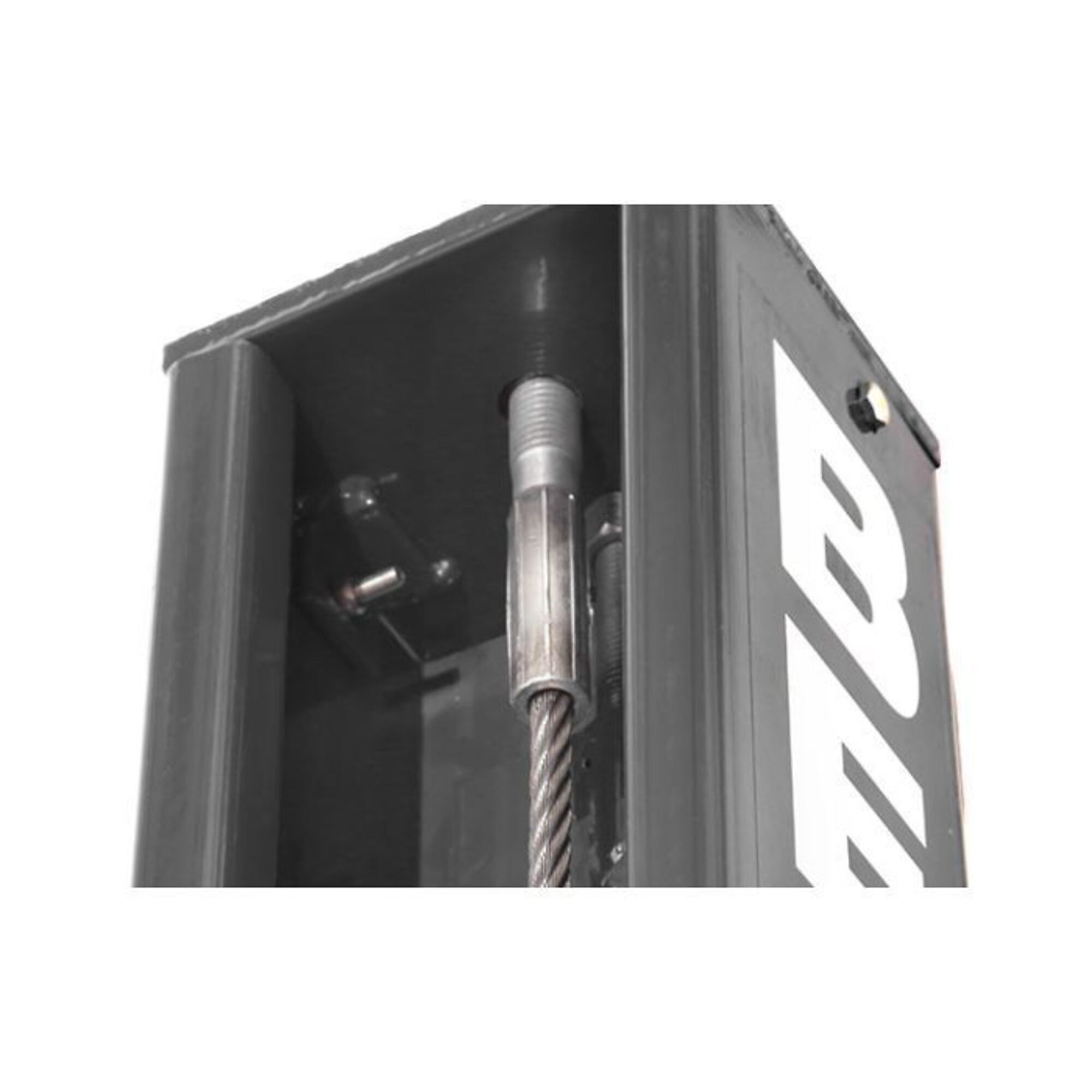

  • Features heavy-duty 3/8" aircraft cable
  • Rugged 1.25" roller axles
  • Adjustable lock ladders
  • Push-button pneumatic safety release
  • Optional drive-thru ramps available
  • Optional drip trays available
  • Optional solid deck available to increase storage capacity
  • ETL Approved
  • Perfect for parking, storage and service

Key Specs

AttributeSpecification

item#

1446890

Brand

BendPak

Manufacturer's Warranty

24 months parts/12months labor

Ship Weight

1616.0 LB

Capacity

9,000 lb

Max. Rise

6 ft

Horsepower

3 HP
AttributeSpecification

Motor Phase

Single-phase

Volts

220

Lock Spacing

4 in

Locking Position (qty.)

14

Time of Full Rise

50 sec.

Drive-Thru Clearance

86.5 in

Material

Steel

Reviews

Questions & Answers

3 Reviews This action will navigate to reviews.

Questions

1–10 of 13 Questions
Sort by:

  1. Length of post and maximum height of lift

    1 answer

    1. The BendPak HD-9 has a max lifting height of 75 inches. The post height is 88 inches.

      Helpful?

  2. Is the lift shown available in grey or is it black? Does it come in other colors?

    1 answer

    1. The lift is a dark gray color. In some lighting it may look black.

      Helpful?

  3. can the overall width be reduced to 84" Gray Model# HD-9

    1 answer

    1. The overall width could not be reduced on this 4 post car lift.

      Helpful?

  4. can it be ordered with shorter posts = approximate 78" ? Gray Model# HD-9

    1 answer

    1. This car lift would not be available with shorter posts.

      Helpful?

  5. Can you convert to 110 outlet?

    1 answer

    1. This lift can only operate on 220 volt.

      Helpful?

  6. How many crates is this shipped in and how much does each crate weigh?

    1 answer

    1. This comes packaged on a single crate and weighs 1600 pounds. A fork lift or other means to unload from the truck at the time of delivery will be required.

      Helpful?

  7. What is the max lift height? i want to be able to stand at least 6 ft high.

    1 answer

    1. This item has a max rise of 70". This would be just under 6'.

      Helpful?

  8. Will this accommodate a 3/4 ton crew cab with an 8 foot box?

    1 answer

    1. The maximum weight capacity is 9000 pounds. The runway width is 19". The length of the runway is 164". The width between the runways is 37.5". The outside runway width is 75.5". The drive through clearance is 86.5".

      Helpful?

  9. WHAT IS THE AMP FOR THIS LIFT

    1 answer

    1. The motor for this lift will draw 22 amps at the rated capacity.

      Helpful?

  10. Is this lift Made In USA or Imported?

    1 answer

    1. This item is imported from China.

      Helpful?

Accessories We Recommend

This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.

See All Lift Accessories
BendPak Rolling Drain Pan for 4-Post Truck and Car Lifts, Model# DP-30
4.0 out of 5 stars. 2 reviews

BendPak Rolling Drain Pan for 4-Post Truck and Car Lifts, Model# DP-30

Item # 144625

$525.00
See All Lift Accessories
BendPak Caster Kit, Fits BendPak Model# HD-9ST, Item# 144689
4.7 out of 5 stars. 6 reviews

BendPak Caster Kit, Fits BendPak Model# HD-9ST, Item# 144689

Item # 14468C

$825.00

Warranty

Manufacturer's Warranty

24 months parts/12months labor

Extend Your Warranty Coverage with a Northern Protection Plan (NPP)

Repair Plan — 1 Year

A Northern Protection Plan is available after adding the product to your shopping cart.

Compare with Most Popular in Four-Post Lifts

See All Four-Post Lifts

See All BendPak Four-Post Lifts

Specifications

Specifications
BendPak 4-Post Car Lift, 9000-Lb. Capacity, Model# HD-9
BendPak 4-Post Wide/Standard Car Lift, 9000-Lb. Capacity, Gray, Model# HD-9XL
BendPak 4-Post Truck and Car Lift, 14,000-Lb. Capacity, Model# HDS-14
BendPak Compact 4-Post Car Lift, 7000-Lb. Capacity, Model# HD-7P
Capacity
Same

9,000 lb

9,000 lb

14,000 lb

7,000 lb

Max. Rise
Same

6 ft

6.2 ft

6.4 ft

7 ft

Horsepower
Same

3 HP

3 HP

3 HP

3 HP

Motor Phase
Same

Single-phase

Single-phase

Single-phase

Single-phase

Volts
Same

220

220

220

220

Lock Spacing
Same

4 in

4 in

4 in

-

Locking Position (qty.)
Same

14

14

15

17

Time of Full Rise
Same

50 sec.

50 sec.

60 sec.

60 sec.

Drive-Thru Clearance
Same

86.5 in

86.5 in

98.25 in

76.5 in

Material
Same

Steel

Steel

Steel

Steel
