Tuxedo 2-Post Clear Floor Electric/Hydraulic Vehicle Lift, 15,000-Lb. Capacity, Model# TP15KCX

Item# 88308
Tuxedo 2-Post Clear Floor Electric/Hydraulic Vehicle Lift, 15,000-Lb. Capacity, Model# TP15KCX

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Tuxedo 2-Post Clear Floor Electric/Hydraulic Vehicle Lift, 15,000-Lb. Capacity, Model# TP15KCX

Click or Tap image to Zoom

$9174.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • 15,000-lb. capacity
  • Clear Floor symmetric design has nothing on the floor between the posts
  • 2 HP, single phase direct push drive electric/hydraulic motor
  • Internal hose routing
  • Reduced overall width takes up less floor space in the shop

See full description

Complete Your Solution

  • Tuxedo 2-Post Clear Floor Electric/Hydraulic Vehicle Lift, 15,000-Lb. Capacity, Model# TP15KCX
  • Tuxedo Spin-Up Cradle Adapters, 4-Pc. Set, Model# TP12KFX/ 15KCX-SPNCA
  • Omega Wheel Arms, 2 13/16in.-5 11/16in. Width and Height, Model# 92100
Price for all three:

$9664.37

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This 15,000-lb. capacity Tuxedo 2-Post Clear Floor Electric/Hydraulic Vehicle Lift is designed to keep the floor under the lift completely open, with no brackets or supports to get in the way. A strong and dependable design offers years of reliable service. The perfect 2-post lift for a variety of vehicles up to 15,000 lbs. Item too large for lift gate. Requires forklift on site for unloading. This item is delivered by LTL enclosed van carriers Monday--Friday. A forklift is required to offload the lift from a dock-height trailer.

What's Included

    (1) 2-post clear floor vehicle lift

Downloads

Product Manual

Features + Benefits

  • 15,000-lb. capacity
  • Clear Floor symmetric design has nothing on the floor between the posts

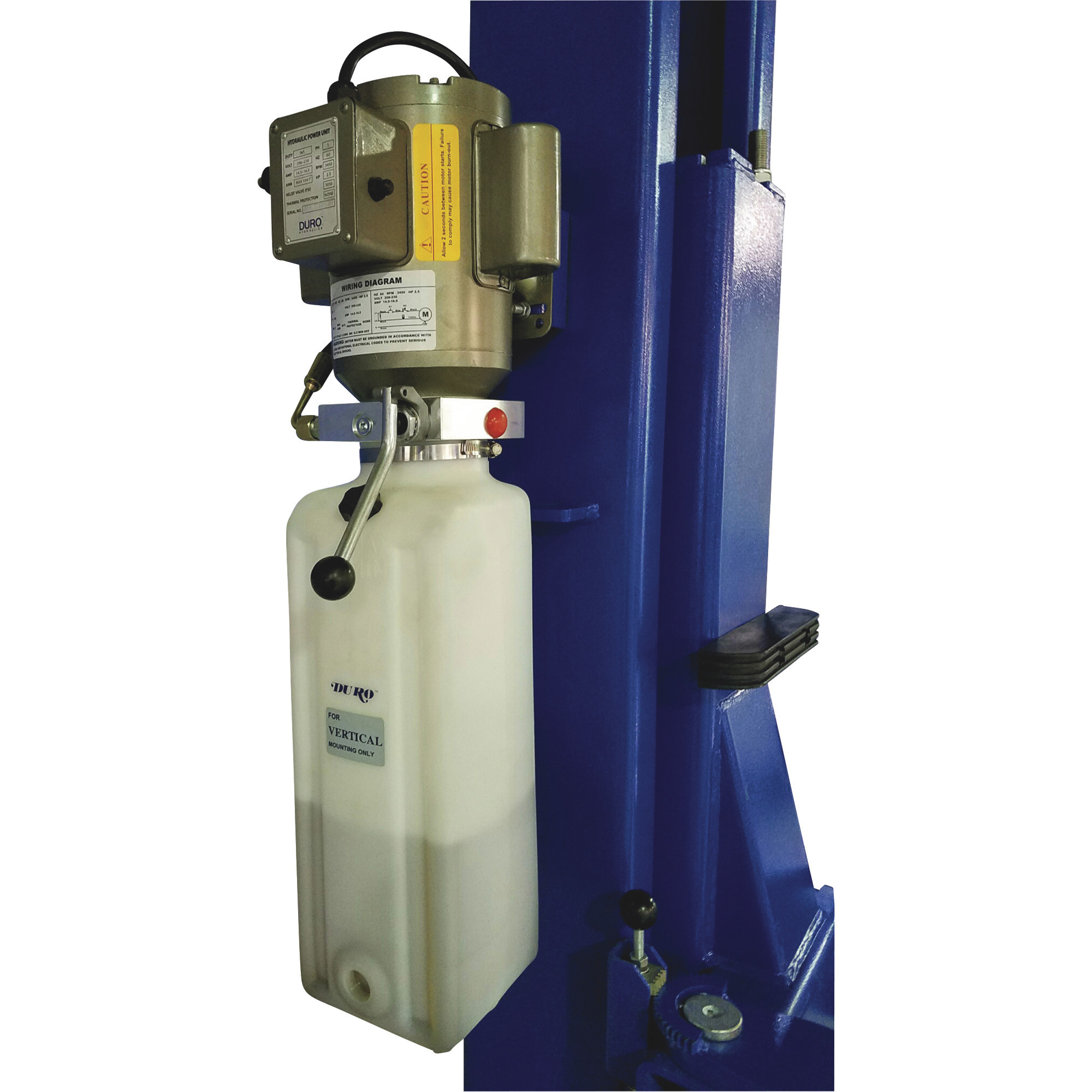

  • 2 HP, single phase direct push drive electric/hydraulic motor
  • Internal hose routing
  • Reduced overall width takes up less floor space in the shop

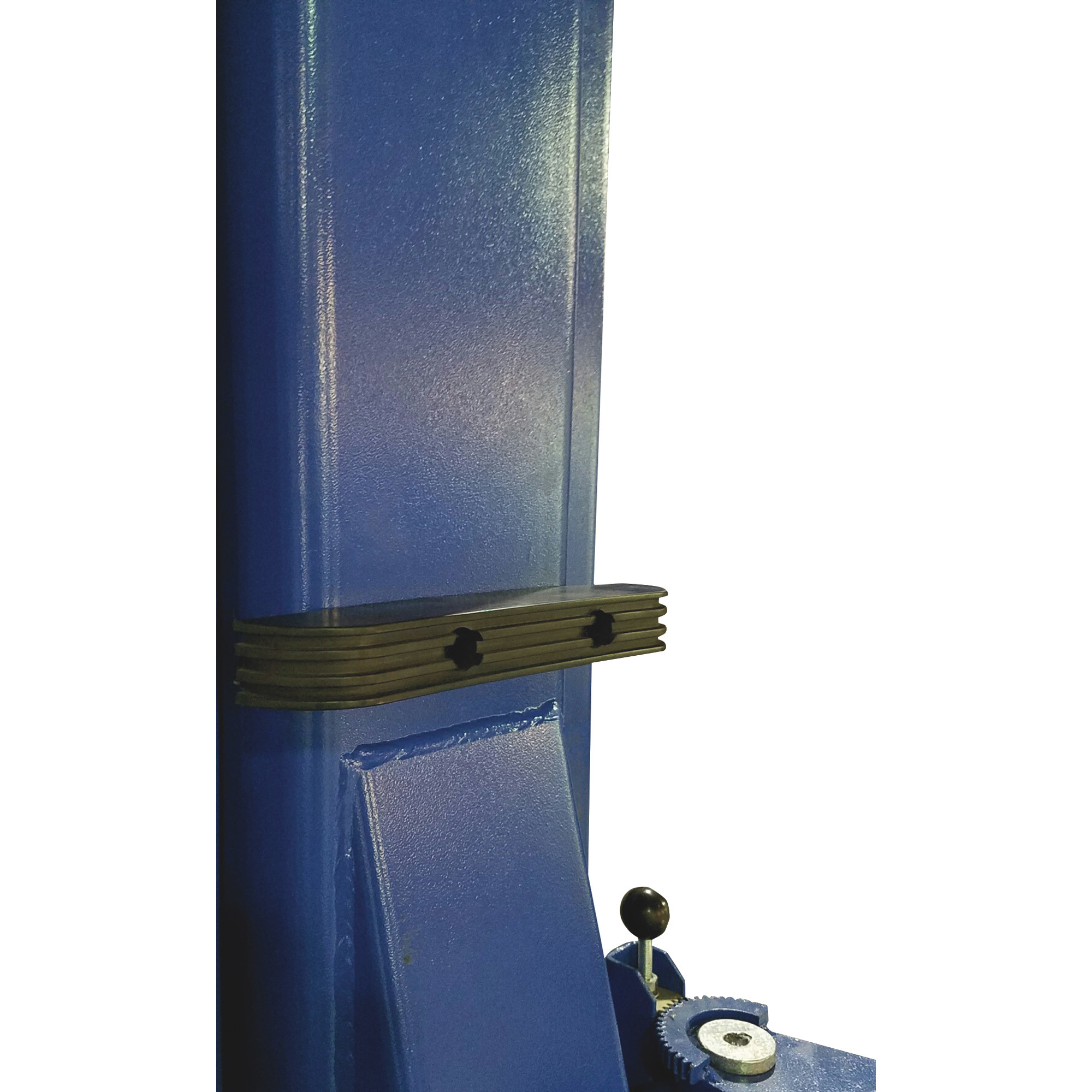

  • Rubber door guards protect vehicles from nicks and scratches
  • Reaches 76 1/2in. max. rise in just 45 seconds
  • 179 3/8in. overall height with 109 3/8in. drive-through clearance
  • Padded overhead shutoff bar with kill switch for safety
  • Single point pneumatic lock release

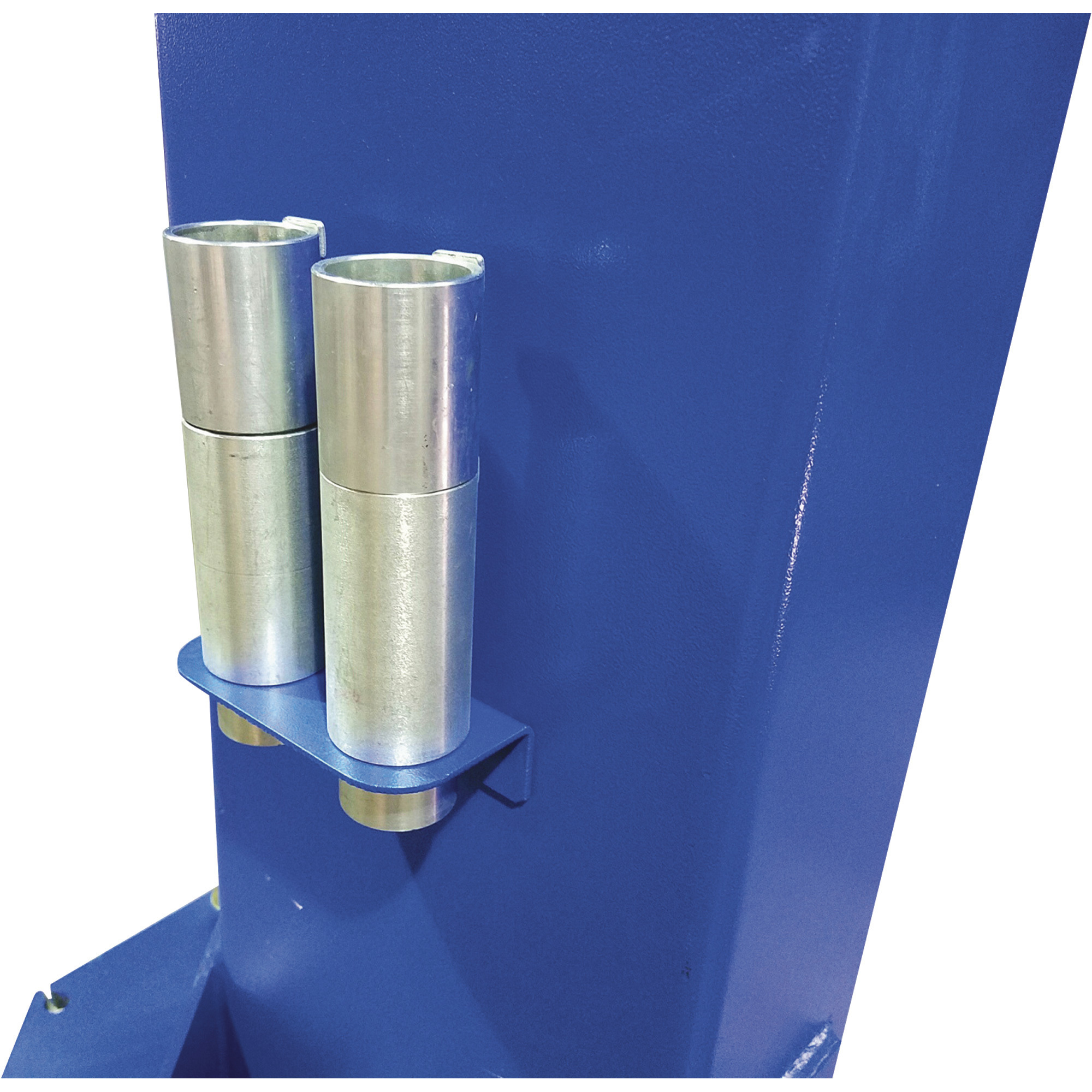

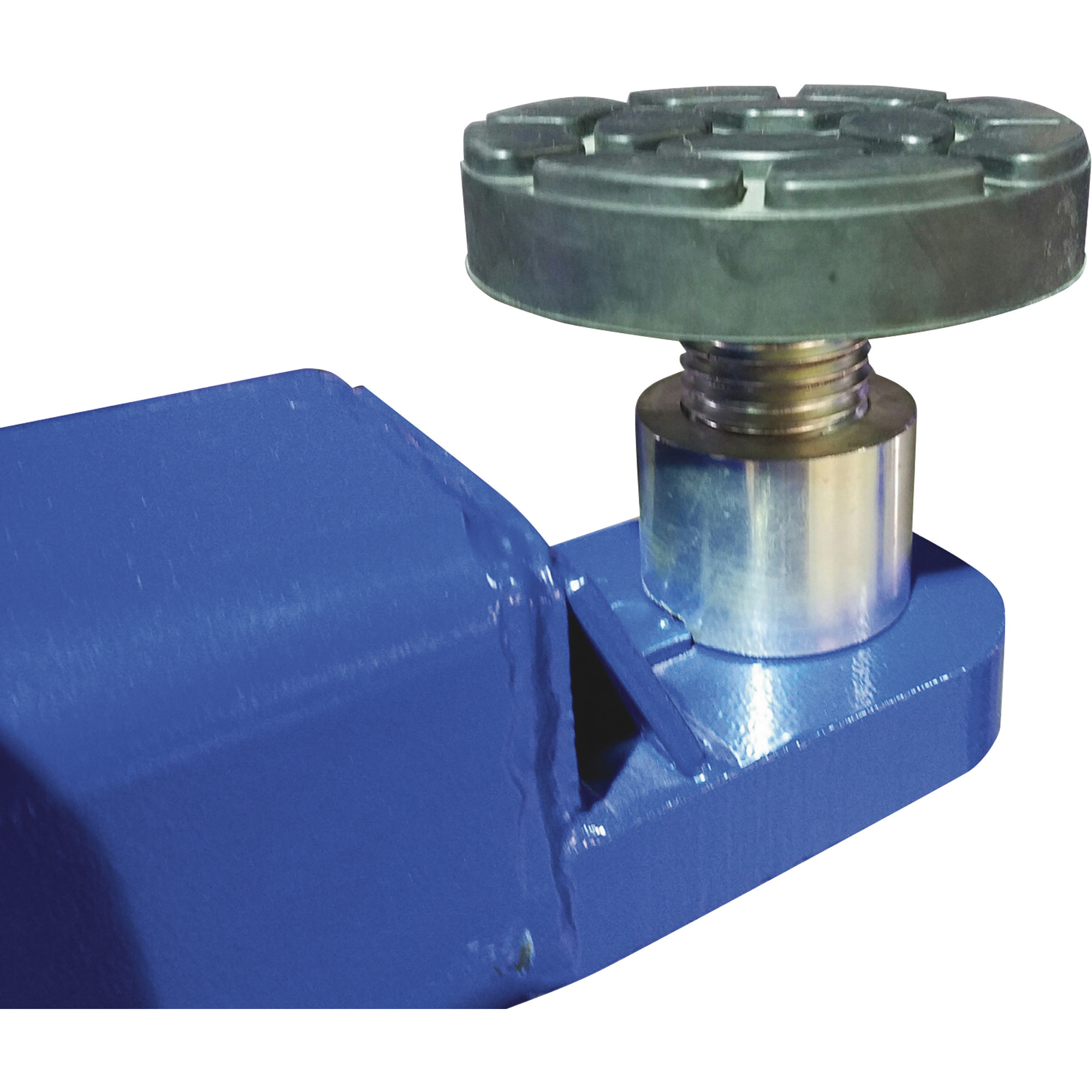

  • Low-profile drop-in adjustable swivel pads with height adapters are standard
  • Durable powder-coat paint finish
  • Item too large for lift gate; Requires forklift on site for unloading

Key Specs

AttributeSpecification

item#

88308

Brand

Tuxedo

Manufacturer's Warranty

1 year limited warranty

Ship Weight

2575.0 LB

Capacity

15,000 lb

Max. Rise

6.37 ft
AttributeSpecification

Horsepower

2 HP

Motor Phase

Single-phase

Volts

220

Locking Position (qty.)

2

Time of Full Rise

45 sec

Reviews

Questions & Answers

Questions

1–3 of 3 Questions
Sort by:

  1. What size air compressor is required for this lift to operate accordingly

    1 answer

    1. The vehicle lift does not require an air compressor to operate. The lift is powered by a 220 volt 20 amp single phase electric motor.

      Helpful?

  2. what is the req min ceiling height for a residential garage

    1 answer

    1. The total height for this lift is 179 3/8 inches. Additional ceiling height would be helpful for installation but not required.

      Helpful?

  3. how thick does concrete floor need to be for good instalation

    1 answer

    1. The concrete should be a minimum of 4-1/4” thickness and 3,000 psi tensile strength with steal or fiber mesh reinforcement.

      Helpful?

Accessories We Recommend

This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.

Warranty

Manufacturer's Warranty

1 year limited warranty

Extend Your Warranty Coverage with a Northern Protection Plan (NPP)

Repair Plan — 1 Year

A Northern Protection Plan is available after adding the product to your shopping cart.

Compare with Most Popular in Two-Post Lifts

See All Two-Post Lifts

See All Tuxedo Two-Post Lifts

Specifications

Specifications
Tuxedo 2-Post Clear Floor Electric/Hydraulic Vehicle Lift, 15,000-Lb. Capacity, Model# TP15KCX
BendPak 2-Post Car Lift, 10,000-Lb. Capacity, Model# 10AP
BendPak 2-Post Truck and Car Lift, 10,000 Lb. Capacity, Model# 10APX
BendPak, Two Post Parking Lift 6000lb Capacity, Capacity 6000 lb, Max. Rise 6.8 ft, Horsepower 4 HP, Model# PL-6000DCX
Capacity
Same

15,000 lb

10,000 lb

10,000 lb

6,000 lb

Max. Rise
Same

6.37 ft

6 ft

6.5 ft

6.8 ft

Horsepower
Same

2 HP

3 HP

3 HP

4 HP

Motor Phase
Same

Single-phase

Single-phase

Single-phase

Single-phase

Volts
Same

220

220

220

220

Locking Position (qty.)
Same

2

14

15

10

Time of Full Rise
Same

45 sec

45 sec.

45 sec.

50 sec.

Lock Spacing
Same

-

3.75 in

4 in

-

Pad Height
Same

-

4 in

4 in

-

Drive-Thru Clearance
Same

-

102 in

102 in

-

Material
Same

-

Steel

Steel

Steel

Product Weight
Same

-

1710.0000 lb

1766.0000 lb

2288.0000 lb

Dimensions L x W x H (in.)
Same

-

145.0 x 20.0 x 145.0 in

145.0 x 20.0 x 157.0 in

163.5 x 112.0 x 131.0 in
