Triplett MM750B-NIST MM750B with Certificate of Traceability to N.I.S.T.

Item# 7066002
Triplett MM750B-NIST MM750B with Certificate of Traceability to N.I.S.T.

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Triplett MM750B-NIST MM750B with Certificate of Traceability to N.I.S.T.

Click or Tap image to Zoom

$1399.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Highly Accurate, Quick Responding, AC Powered TRMS Meter with a Large LCD for all types of benchwork
  • Measures AC/DC Voltage and Current, µA Current, Resistance, Temperature, Capacitance, Frequency, and dB/dBm
  • True RMS provides better accuracy when measuring non-sinusoidal or noisy waveforms
  • 200,000 count 4.3" TFT LCD dual display
  • Bar chart, histogram, and trend chart

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

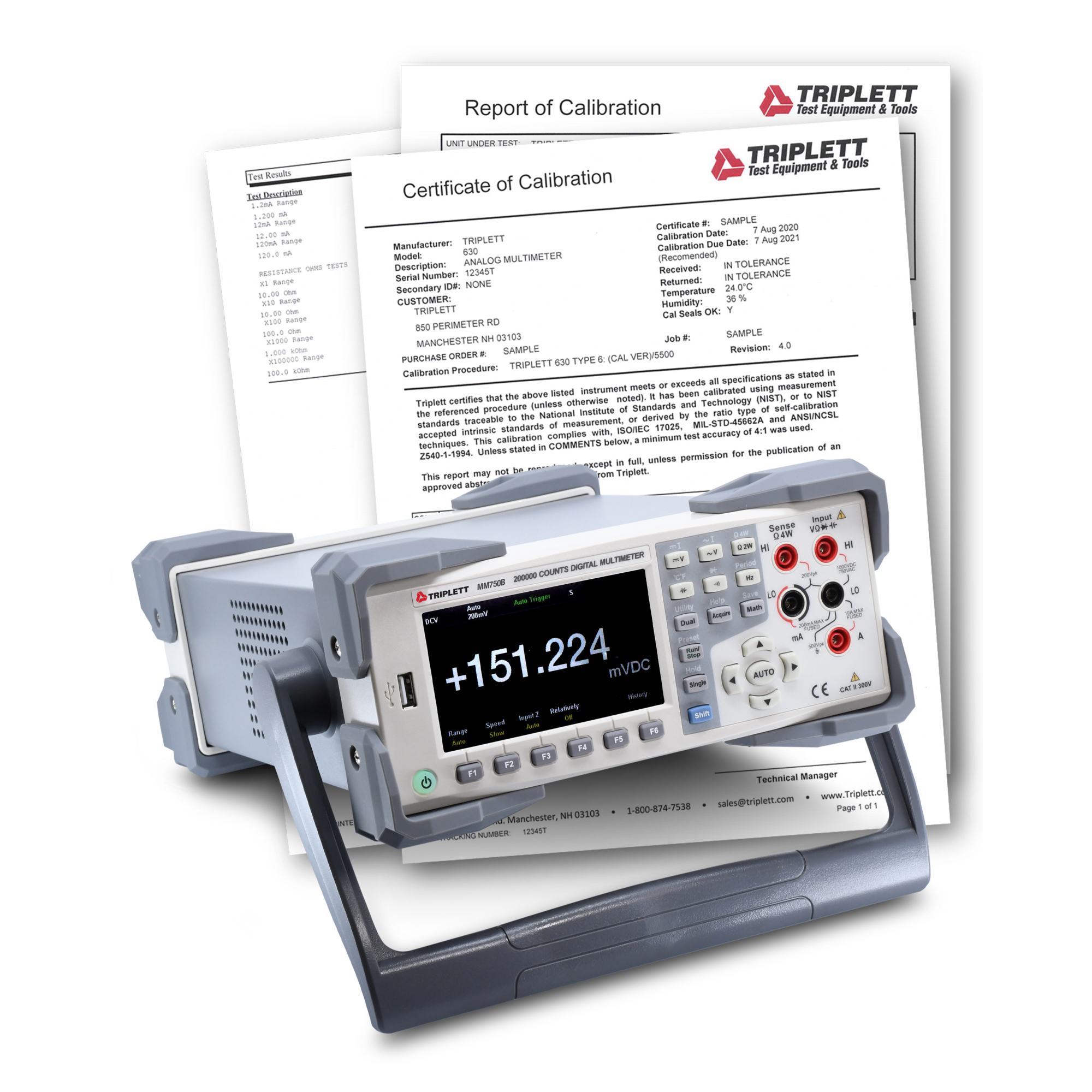

The Triplett Model MM750B-NIST Benchtop Digital Multimeter and Certificate of Traceability to N.I.S.T. is a highly accurate, quick responding, AC Powered TRMS Meter for all types of benchwork including PC Board Test and Repair, Product Design and Testing, Student Engineering and Electronics Labs, Calibration Labs, Automated testing, and more. It measures AC/DC Voltage and Current, µA Current, Resistance, Temperature, Capacitance, Frequency, and dB/dBm. True RMS provides better accuracy when measuring non-sinusoidal or noisy waveforms. Measurements are displayed on the 200,000 count 4.3in. TFT LCD dual display. It features bar chart, histogram, trend chart, standard deviation, and pass/fail. Min/Max/Average records the highest, lowest and average readings, Data Hold freezes measurement on the display. Relative mode displays measurements relative to a stored reference value. It has a built-in USB interface with remote viewing and control/data analysis software, and supports standard SCPI remote control commands. CAT II 300V safety category. cETLus listed. Includes AC power cord, test leads, RS-232 cable, USB cable/software and Certificate of Traceability to N.I.S.T. 1-year warranty.

What's Included

    (1) MM750B with NIST

Features + Benefits

  • Highly Accurate, Quick Responding, AC Powered TRMS Meter with a Large LCD for all types of benchwork
  • Measures AC/DC Voltage and Current, µA Current, Resistance, Temperature, Capacitance, Frequency, and dB/dBm
  • True RMS provides better accuracy when measuring non-sinusoidal or noisy waveforms
  • 200,000 count 4.3" TFT LCD dual display
  • Bar chart, histogram, and trend chart
  • Standard deviation, relative mode, pass/fail

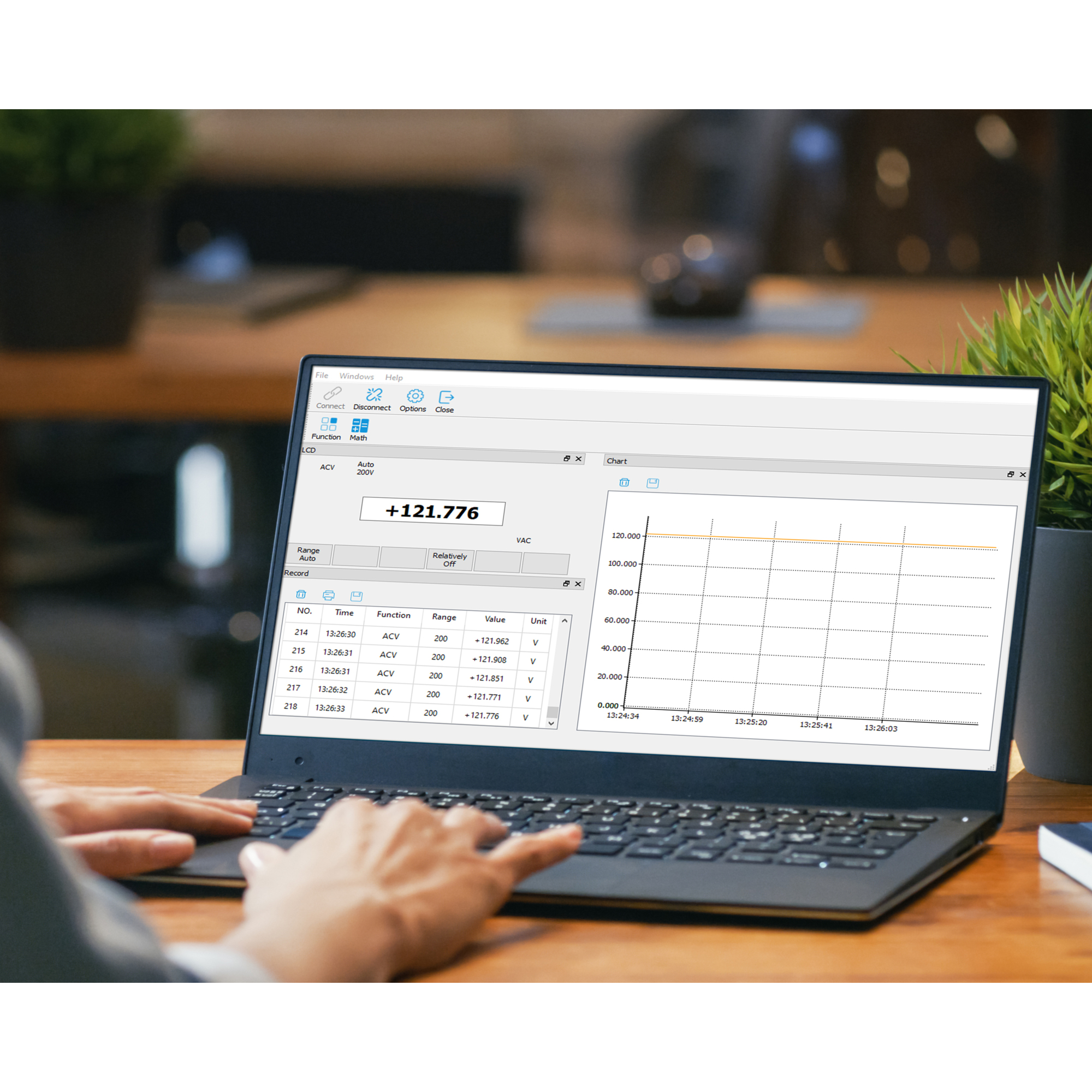

  • USB interface with remote viewing and control/data analysis software
  • Supports standard SCPI remote control commands
  • CAT II 300V safety category
  • cETLus listed

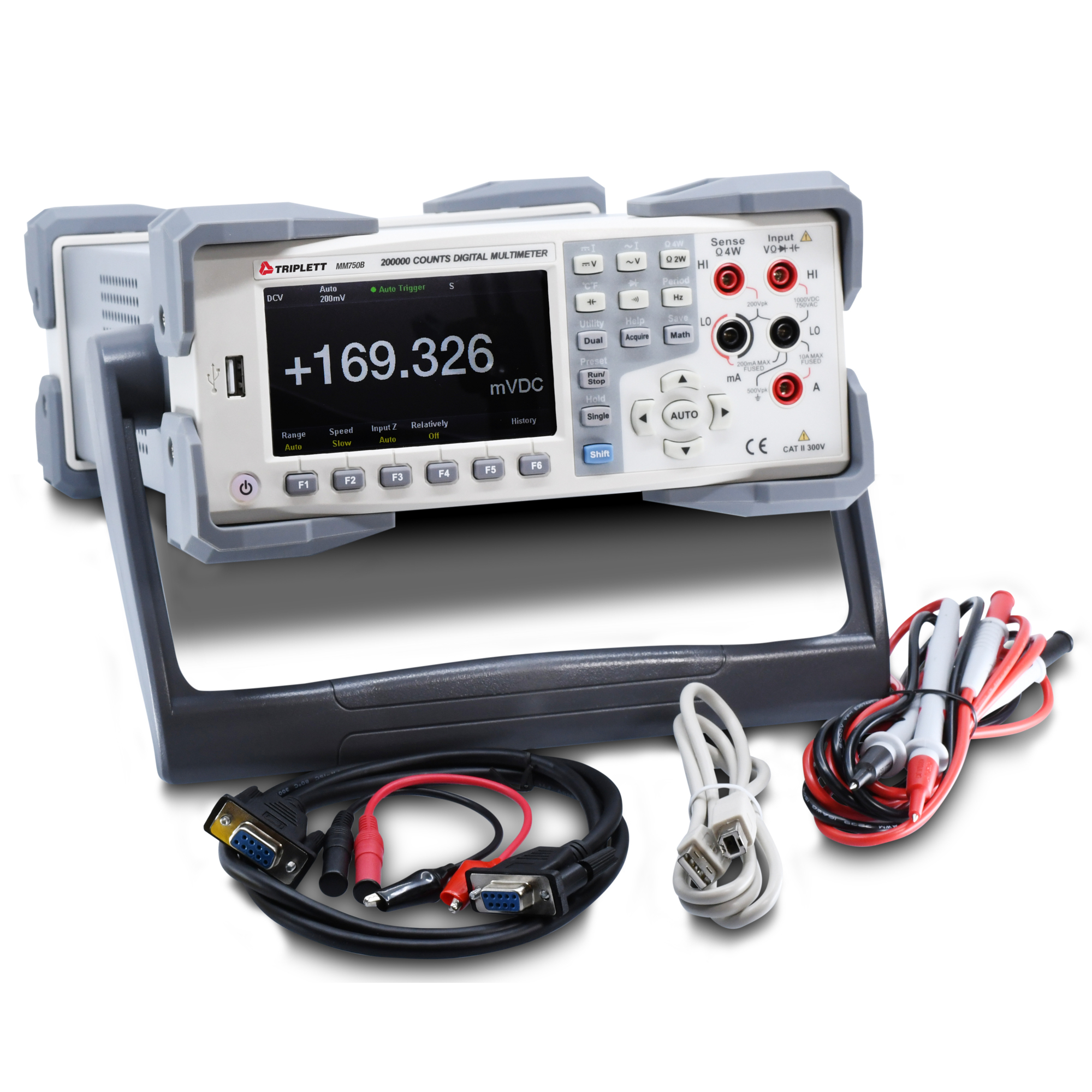

  • Includes AC power cord, test leads, RS-232 cable, USB cable/software and Certificate of Traceability to N.I.S.T..

Key Specs

AttributeSpecification

item#

7066002

Brand

Triplett

Manufacturer's Warranty

1 year limited warranty

Ship Weight

11.0 LB

Functions (qty.)

13

Display Type

LCD

Circuit or Voltage Tester

Voltage Tester

Max. DC Volts

1000

Max. AC Volts

750

Max. AC Amps

10

Max. DC Amps

10
AttributeSpecification

Max. Resistance

100

Battery Size

Other

Power Source

Corded

Live Circuit Detection

No

UL Listed

Yes

Calibration Certificate Included

Yes

Max. Ohms

100

Application

PC Board Testing and Repair, Product Design and Testing, Student Engineering and Electronics Labs, Calibration, Automated Testing

Includes

Includes AC power cord, test leads, RS-232 cable, USB cable/software and Certificate of Traceability to N.I.S.T..

Product Weight

11.0000 lb

Dimensions L x W x H (in.)

14.5 x 6.0 x 11.5 in
